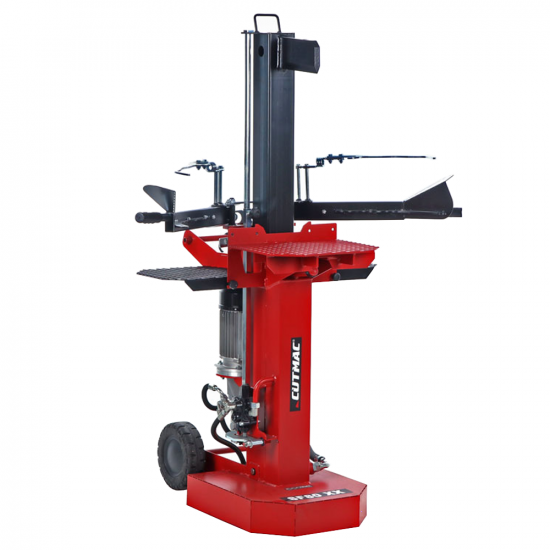

Docma SF80 Rapid 220 XX - Electric Log Splitter - Vertical

The Docma SF80 Rapid 220 XX log splitter is a perfect solution to meet the needs of anyone looking for an efficient and safe way to split wood for their needs or for any other reason.

SF80 Rapid 220 XX log-splitter: The SF80 Rapid 220 XX log-splitter stands out to be a high quality alternative. Thanks to its power and precision, this machine makes it easy to split the pole of the wood needed throughout the year, ensuring effective results without requiring excessive effort.

SF80 Rapid 220 XX (Vertical) Main Features:

• Cylinder stroke: The SF80 Rapid 220 XX provides a piston stroke of 50 cm, which allows logs of different sizes to be processed efficiently and smoothly.
• Cutting height: With a cutting height of 54.5 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
• Quantity Oil: Equipped with an 8-litres tank, the SF80 Rapid 220 XX ensures fluid and continuous work, minimising all interruptions due to oil refill.
• Adjustable Column Stroke: The adjustable column stroke gives you the flexibility to adapt the machine to your preferences and the size of the logs you are in treatment.
• Weight: With a 112 Kg weight, the SF80 Rapid 220 XX ensures the right combination of stability and handling, allowing for easy transport when necessary.
• Splitting force: 8 tons
• Work top: Fixed

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

The innovative and high-performance SF80 Rapid 220 XX electric log splitter has been designed to simplify the splitting of wood. Thanks to its powerful 3 HP (2.2 Kw) motor and state-of-the-art features, this log splitter represents the perfect solution to met all your wood-working needs.

Main Features: This log splitter has been designed to offer an easy and efficient user experience thanks to its distinct features:

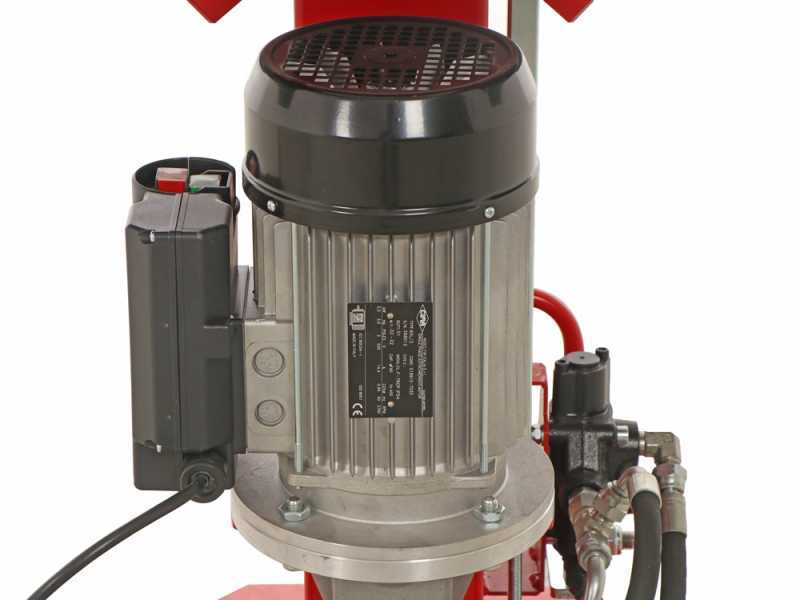

• Sturdy and Efficient Motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

• Frame with Integrated Tank: The log-splitter structure performs a double function, working both as support and hydraulic oil tank. This specific aspect not only simplifies the design, but also guarantees an efficient oil management.

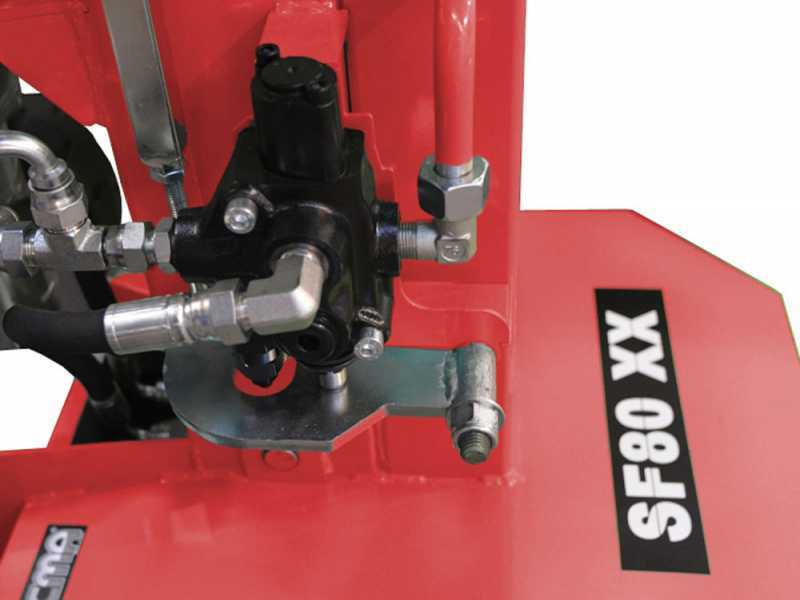

• Double Pump for Elevated Performance: The presence of a double hydraulic pump gives a powerful thrust and an astonishing working speed. This allows you to tackle even the hardest logs with ease and speed.

• Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Focus on the Double Hydraulic Pump: The distinctive feature of this log splitter is the double hydraulic pump, a key component that ensures superior performance. This innovative solution provides a constant and powerful thrust, as well as a working speed that increases overall productivity. The double hydraulic pump is a real powerhouse that allows you to split logs the efficiently and quickly.

The powerful Docma SF80 XX log splitter is a reliable tool for splitting logs of different sizes. With a thrust of 8 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

• Powerful 8 tons thrust: The Docma SF80 XX provides an 8 tons thrust, ensuring the ability to split logs of various sizes without excessive effort.
• Splitting Size: This log splitter is able to work with logs up to 54.5 cm in height and 50 cm in diameter, thus providing incredible flexibility during the material choice.
• High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

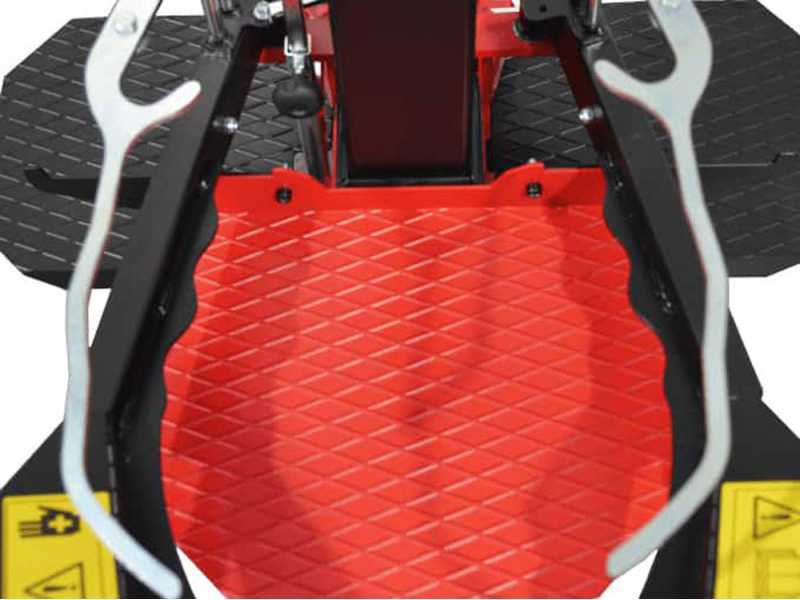

• Wide Worktop: The spacious worktop provides a comfortable area for efficiently arranging and positioning logs.
• Easy and Ergonomic Control Panel: Bimanual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
• Safety Systems: The couple of operating levers is equipped with proper hand guards and all safety devices to protect the Operator maximum protection for use.
• Integrated Support for the Log: The side logs support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
• Limit Switch Control System: The limit switch control system is adjustable, allowing the user to customise the settings according to their preferences and work requirements.

The Docma SF80 XX is a powerful and precise solution for splitting wood. It features an 8 tons thrust, ergonomic design and state-of-the-art safety features.

This device has been designed to ensure long-lasting durability and easy of use, thus becoming a solid reference point for your log splitting.

Sturdiness and Solidity: Made from high-quality materials, the log splitter boasts a solid and durable construction. This ensures that it can handle even the heaviest operations on a continuous basis, providing consistent and trusted results.

Practical and Convenient Design:

• Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
• Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
• The specific lifting attachment point increases convenience during transport or storage.
• Innovative Patented Locking System: This log splitter is equipped with an innovative, patented locking system, designed to keep the log secure and safe while splitting. This state-of-the-art mechanism minimises the risk of accidents by operating in full compliance with EN609-1-2017 safety standards .

Stable Support Base: The design is enhanced by a solid base that ensures stability during the splitting operation, minimising the risk of unwanted movement.

High-Quality Components:

• The hydraulic system of this log splitter is controlled by a hydraulic pump, which ensures a constant and controlled flow of oil for smooth and trouble-free splitting.
• The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
