Docma SF75 Rapid 220 XX - Electric Log Splitter - Vertical

Add a question
ID: 112515

EAN: 8068020721826

MPN: 910062

Docma SF75 Rapid 220 XX - Electric Log Splitter - Vertical
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
240 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
11 t
Effective thrust power
8 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF75 Rapid 220 XX
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
11 t
Effective thrust power :
8 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor brand:
CIMA
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2760 RPM
Power supply:
220 V electric
Oil tank capacity:
7 L
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

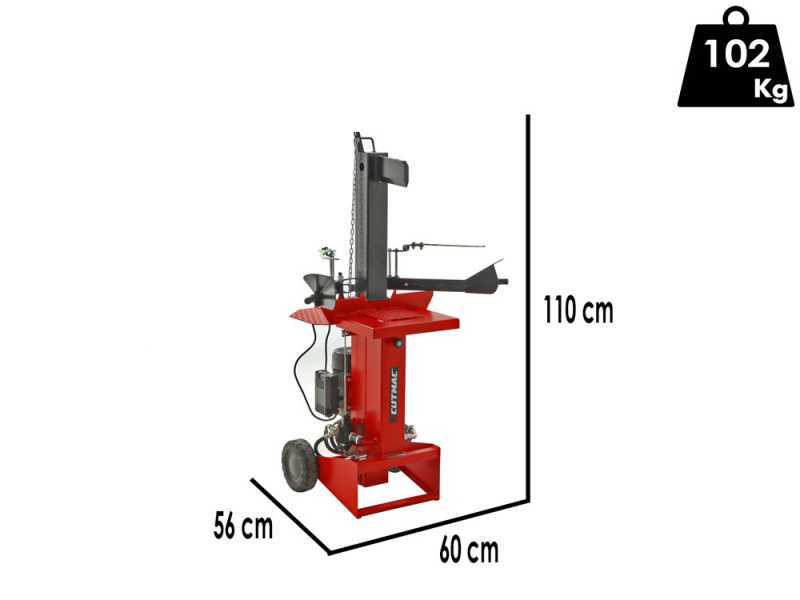

Product dimensions in cm (L x W x H):
60x56x110
Net weight:
102 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x61x134
Gross weight (packaging included) :
112 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 1.543,54
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SF75 Rapid 220 XX - Electric Log Splitter - Vertical

The SF75 Rapid 220 XX log splitter is a perfect solution to meet the needs of anyone looking for an efficient and safe way to split wood for their needs or for any other reason.

Whether you are a fireplace owner or need wood to heat your home, the SF75 Rapid 220 XX is designed to offer superior performance and reliability for every use.

SF75 Rapid 220 XX log-splitter: The SF75 Rapid 220 XX log splitter is a high-quality model, specifically designed for families with non-professional needs. Thanks to its power and precision, this log splitter allows you to easily meet the challenge of splitting the wood you need all year round, guaranteeing an effective result without excessive effort.

SF75 Rapid 220 XX (Vertical) Main Features:

  • Cylinder stroke: The SF75 Rapid 220 XX provides a piston stroke of 50 cm, which allows logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54.5 cm, this log splitter is designed to tackle even the tallest logs, reducing the need to cut wood into smaller pieces before splitting.
  • Quantity Oil: Equipped with a 7-litres tank, the SF75 Rapid 220 XX ensures fluid and continuous work, minimising all interruptions due to oil refill.
  • Adjustable Column Stroke: The adjustable column stroke gives you the flexibility to adapt the machine to your preferences and the size of the logs you are processing.
  • Weight: With a 102 Kg weight, the SF75 Rapid 220 XX ensures the right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 8 tons

Finally, the SF75 Rapid 220 XX log-splitter represents an excellent choice for families with non-professional needs looking for a reliable, safe and efficient way to split wood.

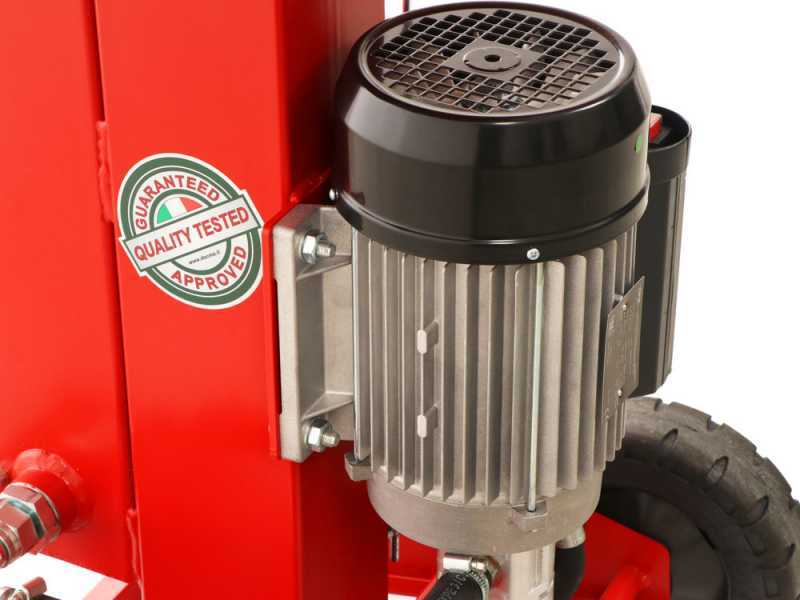

Electric motor

The innovative and high-performance SF75 Rapid 220 XX electric log splitter has been designed to simplify the splitting of wood. Thanks to its powerful 3 HP (2.2 Kw) motor and state-of-the-art features, this log splitter represents the perfect solution to met all your wood-working needs.

Main Features: This log splitter has been designed to offer a easy and efficient user experience thanks to its distinct features:

  • Powerful and Reliable Engine: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Frame with Integrated Tank: The log splitter frame perform a double function of both support and hydraulic oil tank, thus simplifying the complex design and guaranteeing an efficient oil management.

  • Double Pump for Elevated Performance: The double hydraulic pump provides a powerful thrust and an outstanding working speed, allowing even the toughest logs to be split quickly and easily.

  • Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Focus on the Double Hydraulic Pump: The distinctive feature of this log splitter is the double hydraulic pump, a key component that ensures superior performance. This innovative solution provides a constant and powerful thrust, as well as a working speed that increases overall productivity. The double hydraulic pump is a real powerhouse that allows you to split logs efficiently and quickly.

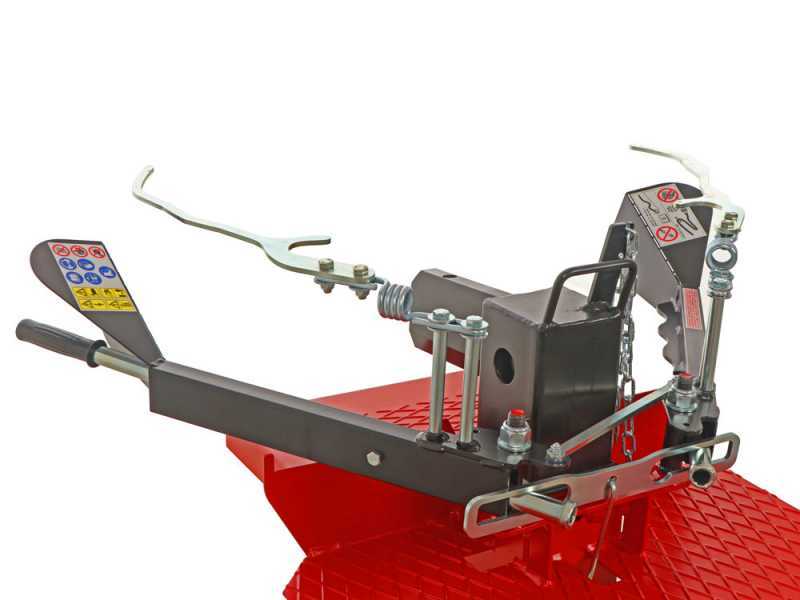

Wedge, dual control levers and cutting plate

The powerful Docma SF75 XX log splitter is a reliable tool for splitting logs of different sizes. With an exceptional thrust of 8 tonnes, this log splitter is designed to tackle the toughest jobs with ease and precision.

Performance Features:

  • Powerful 8 tons Thrust: The Docma SF75 XX provides a 8 tons thrust, ensuring the ability to split logs of various sizes without excessive effort.
  • Splitting Size: This log splitter is able to work with logs up to 54.5 cm in heigh and 50 cm in diameter, thus providing incredible flexibility during the material choice.
  • High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide Worktop: The spacious worktop provides a comfortable area for efficiently arranging and positioning logs.
  • Easy and Ergonomic Control Panel: Bimanual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Systems: The couple of operating levers is equipped with proper hand guards and all safety devices to protect the Operator maximum protection for use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Control System: The limit switch control system is adjustable, allowing the user to customise the settings according to their preferences and work requirements.

The Docma SF75 XX is a powerful and precise solution for splitting wood. With its eight tons of thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally for tackling any woodworking challenge.

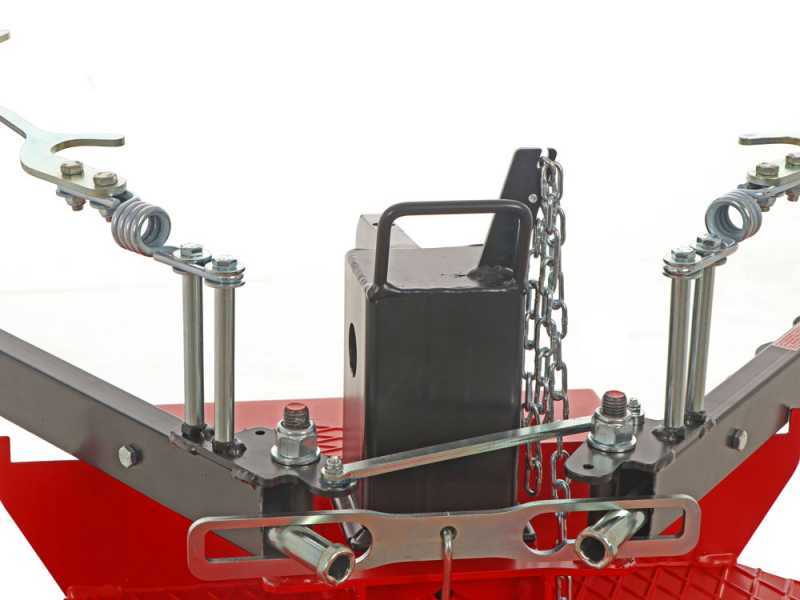

Additional features

Here is the innovative log splitter that combines solidity and practicality in a single solution. The machine has been designed for durability and ease of use, offering reliable support for your wood splitting needs.

Sturdiness and Solidity: The frame of this log splitter has been built with high quality materials, making it extremely sturdy and super solid. This ensures that the machine can cope with even the most demanding jobs over the long term, guaranteeing consistent and reliable performance.

Practical and Convenient Design:

  • Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
  • The specific lifting attachment point increases convenience during transport or storage.
  • Innovative Patented Locking System: This log splitter is equipped with an innovative, patented locking system, designed to keep the log secure and safe while splitting. This state-of-the-art mechanism minimises the risk of accidents by operating in full compliance with EN609-1-2017 safety standards .

Stable Support Base: The design is enhanced by a solid base that ensures stability during the splitting operation, minimising the risk of unwanted movement.

High-Quality Components:

  • The hydraulic system of this log splitter is controlled by a hydraulic pump, which ensures a constant and controlled flow of oil for smooth and trouble-free splitting.
  • The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

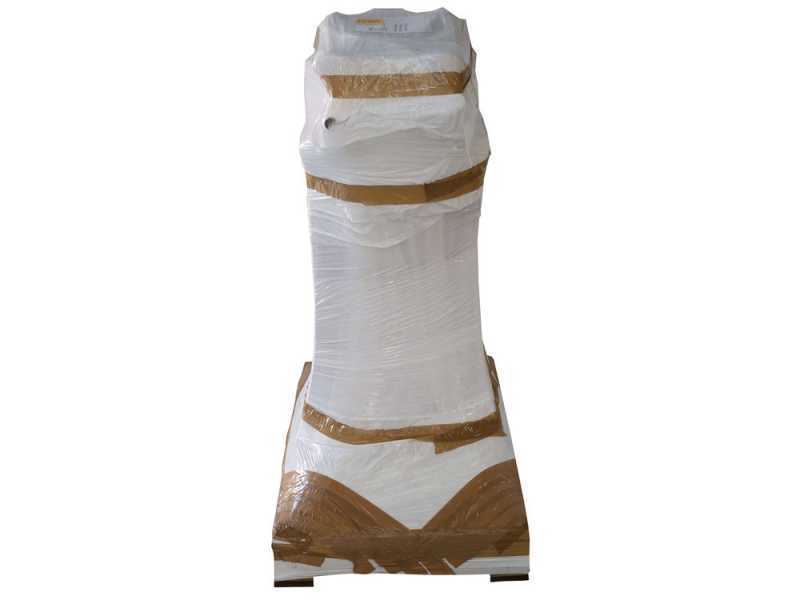

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
