Docma SF75 220XX 7T PS - Electric Log Splitter - Vertical

The SF75 220XX 7T PS log splitter stands out as an optimal solution for those who require an effective and safe method of woodworking, both for domestic needs and for other purposes. Whether the preference is for fireplace heat or home heating, the SF75 220XX 7T PS is designed to ensure high performance and reliability with every use.

Log splitter SF75 220XX 7T PS: The SF75 220XX 7T PS model is a first-class alternative, designed specifically to meet the needs of non-professional families. Thanks to its power and precision, this device allows you to easily deal with the need to process wood throughout the year, ensuring effective and effortless results.

Main Features of the SF75 220XX 7T PS (Vertical):

• CYLINDER STROKE: The SF75 220XX 7T PS boasts a cylinder stroke of 50 cm, allowing the machining of logs of different sizes with ease and efficiency.
• Cutting stroke. It has a cutting height of 54.5 cm, also ideal for larger logs, minimising the need for reduction into smaller pieces before processing.
• Oil capacity: Equipped with a 7-litre oil tank, the SF75 220XX 7T PS ensures smooth and continuous operation, minimising interruptions due to oil top-up.
• Adjustable Column Stroke: It offers the possibility of adjusting the column stroke, allowing the machine to be adapted according to the size of the logs to be machined.

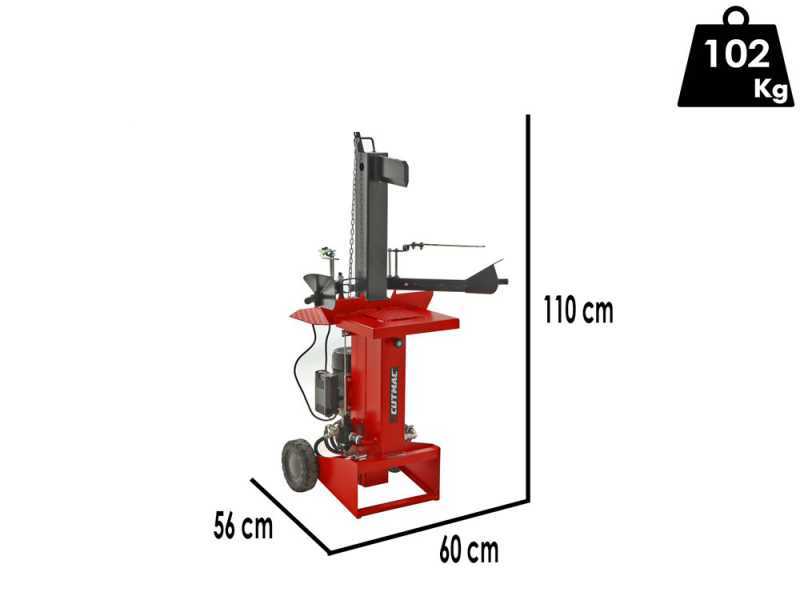

• Weight: Weighing 102kg, the SF75 220XX 7T PS offers an ideal balance of stability and handling, to make transport with relative simple when needed.
• Splitting force: 7 tons

In conclusion, the SF75 220XX 7T PS log splitter model is an excellent choice for families with non-professional needs looking for an efficient, safe and reliable way to split wood.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

The SF75 220XX 7T PS electric log splitter is an innovative and high-performance device designed to optimise the wood splitting process. Thanks to its powerful 3 HP (2.2 KW) engine and a number of sophisticated features, this product presents itself as an absolutely reliable solution for woodworking.

Main features: The log splitter has been designed to offer an easy and efficient user experience, underlined by the following distinctive properties:

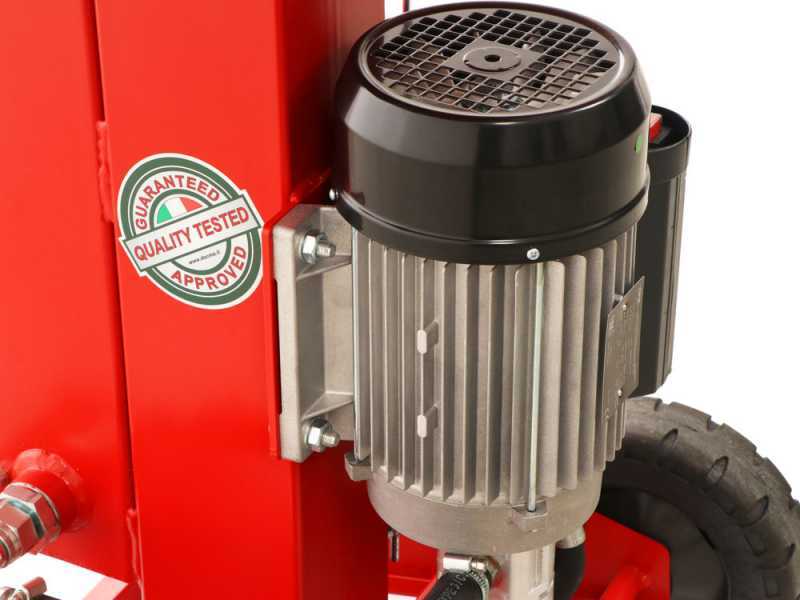

• Effective and Convenient Engine: Integrated with a 230 V, 3 Hp (2.2Kw) engine, this device provides power for effective splitting without excessive effort.

• Structure with integrated tank: The structure of the log splitter performs the dual function of support and hydraulic oil container, simplifying the overall design and ensuring efficient oil management.

• Hydraulic pump The hydraulic pump offers powerful thrust and amazing working speed, allowing you to tackle even the toughest logs with ease and speed.

• Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

The Docma SF75 220XX 7T PS log splitter stands out as a powerful and reliable tool, ideal for splitting logs of different sizes. Thanks to its remarkable pushing force of 7 tons, it has been designed to handle the most arduous jobs with ease and precision.

Performance characteristics:

• Powerful Thrust from 7 Tons: The Docma SF75 220XX 7T PS equipped with a thrust of 7 tons, ensuring the ability to work logs of various sizes without excessive effort.
• Split Dimensions: It is capable of handling logs up to 54.5 cm in height and 50 cm in diameter, allowing great flexibility in material selection.
• High resistance steel wedge: The wedge of the log splitter is made of very high-strength steel, guaranteeing exceptional durability and consistent performance over time.

Design and Functionality:

• Large Work Surface: The spacious worktop offers a comfortable area to arrange and position the logs efficiently.

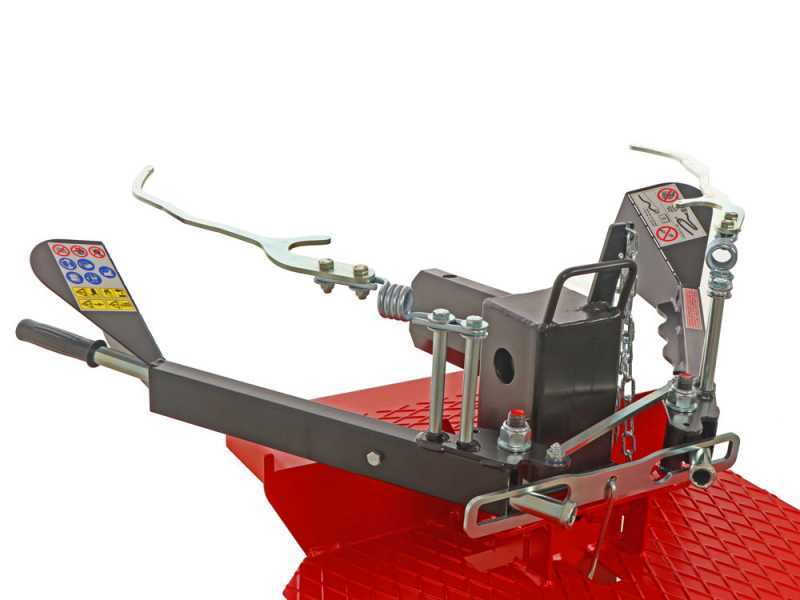

• Easy and Ergonomic Control: The dual control hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
• SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
• Integrated Log Holder: The side support integrated in the handle arms ensures that the material remains stable during operation.
• Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Docma SF75 220XX 7T PS is a powerful and precise wood splitting solution. With its 7-ton thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge

The innovative log splitter that combines solidity and practicality in a single solution. The machine has been designed for durability and ease of use, offering reliable support for your wood splitting needs.

Robustness and Solidity: The structure of this log splitter has been built with high quality materials, making it extremely sturdy and super solid. This ensures that the machine is able to tackle even the most demanding jobs in the long run, ensuring consistent and reliable performance.

PRACTICAL AND HANDY DESIGN

• Equipped with integrated wheels, this log splitter offers ease of movement, allowing you to position it optimally according to your needs.
• Thanks to the optimal balance, you can move the machine by yourself with ease using the handle for tilting the log splitter.
• The presence of a specific hooking point for lifting adds practicality during transport or storage.

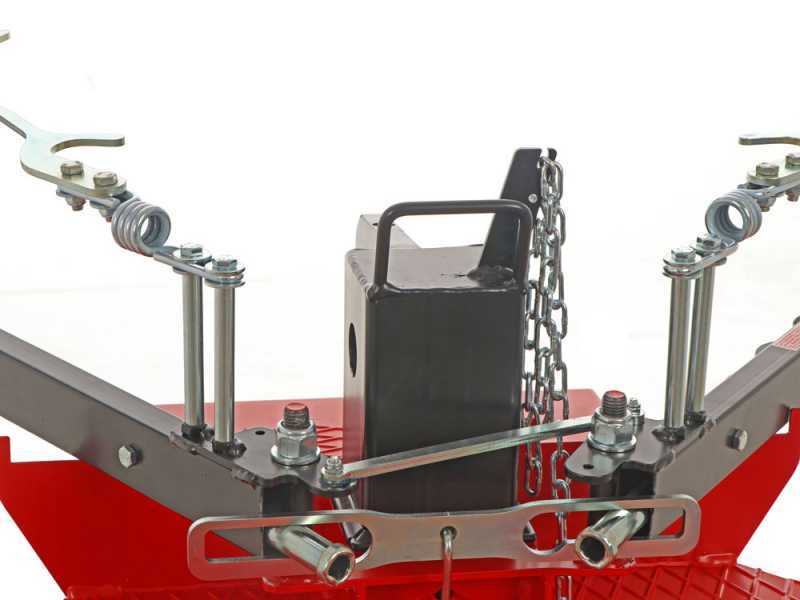

• Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

• The hydraulic system of this log splitter is managed by a hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
• The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.

To use an electric log splitter correctly, you must follow the instructions in the manual and always operate within the limits specified by the manufacturer. Using the machine correctly ensures smoother operation and reduces the strain on the machine.

Before starting operation, it is important to assess the characteristics of the wood. Knotty, twisted, irregular logs or logs with interlocked grain may be more difficult to split and require greater splitting force. The species of wood, moisture content and degree of seasoning can also affect the log’s resistance.

The dimensions of the logs must fall within the minimum and maximum values specified by the manufacturer. The log with a maximum diameter represents a dimensional limit, but the actual splitting capacity also depends on the shape and condition of the wood. If the splitting wedge encounters excessive resistance, it is advisable to stop the operation and reposition the log, avoiding subjecting the machine to prolonged strain.

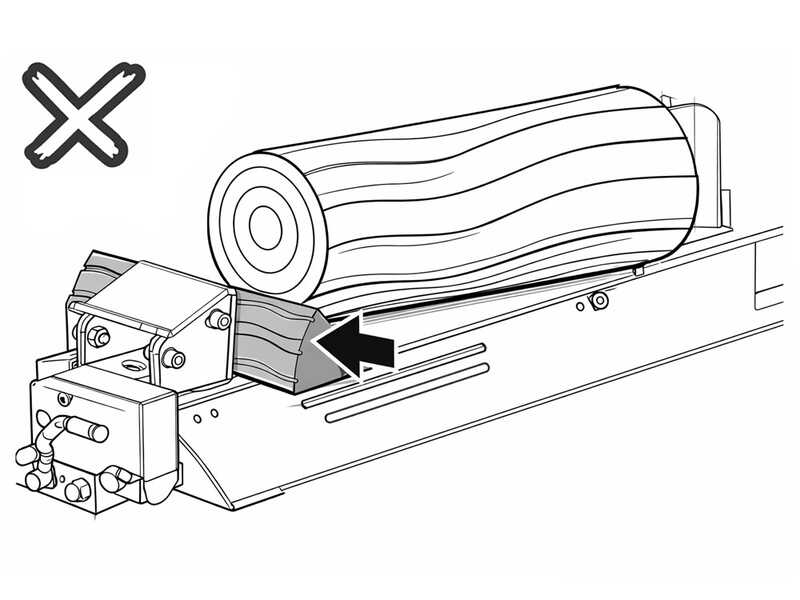

The log must be positioned securely and correctly centred on the support surface. The wood fibres should be aligned as closely as possible with the splitting direction. Avoid splitting logs that are positioned crosswise, at an angle or unstably, as these may shift during the splitting cycle.

Process only one log at a time. Do not stack multiple logs or use other pieces of wood to compensate for an uneven support surface. The work area must also be kept clear of debris and obstacles that could interfere with the operator or the movement of the machine.

The log splitter must be used exclusively for splitting logs and pieces of wood that are compatible with the machine’s specifications. It must not be used to process stones, metals, building materials or other unsuitable items.

Before starting the log splitter, check that the machine, safety devices and power cable are in good condition. During operation, keep hands and other parts of the body well clear of the splitting wedge, the piston and areas where crushing may occur. It is also recommended that suitable protective equipment be worn, such as gloves, safety footwear and eye protection.

Before carrying out any cleaning, inspection or maintenance, the log splitter must be switched off and disconnected from the mains supply. Regular checks and adherence to the manufacturer’s instructions help to keep the machine efficient and safe over time.
