Docma SF180 380 + PTO XX - Hybrid Log Splitter - Electric and Tracto-powered - Vertical

Add a question
ID: 112529

EAN: 8068020721994

MPN: 940043

Docma SF180 380 + PTO XX - Hybrid Log Splitter - Electric and Tracto-powered - Vertical
Max. trunk diameter
60 cm
Piston stroke
121 cm
Max. pressure
240 bar
Ground splitting system
Yes
Trunk lifting system
Yes
Double speed
Yes
Operating mode
Three-phase + tractor-driven PTO
Nominal power
5.5 HP
Engine
Induction
Nominal power (W)
4000 W
Nominal splitting force
22 t
Effective thrust power
18 t
Tractor three-point hitch
Yes
Product Features
Model:
SF180 380 + PTO XX
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase + tractor-driven PTO
Nominal splitting force:
22 t
Effective thrust power :
18 t
Piston stroke:
121 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground splitting system:
Yes
High position trunk length:
121 cm
Motor data
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
5.5 HP
Nominal power (W):
4000 W
Nominal power :
4000 W
Motor speed:
1680 RPM
Power supply:
Electric - tractor-driven PTO
Oil tank capacity:
21 L
Pump data
Pump type:
Hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Hydraulic oil qty.:
21 Litres
Cutting data
Max. trunk length:
121 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Tractor three-point hitch:
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes

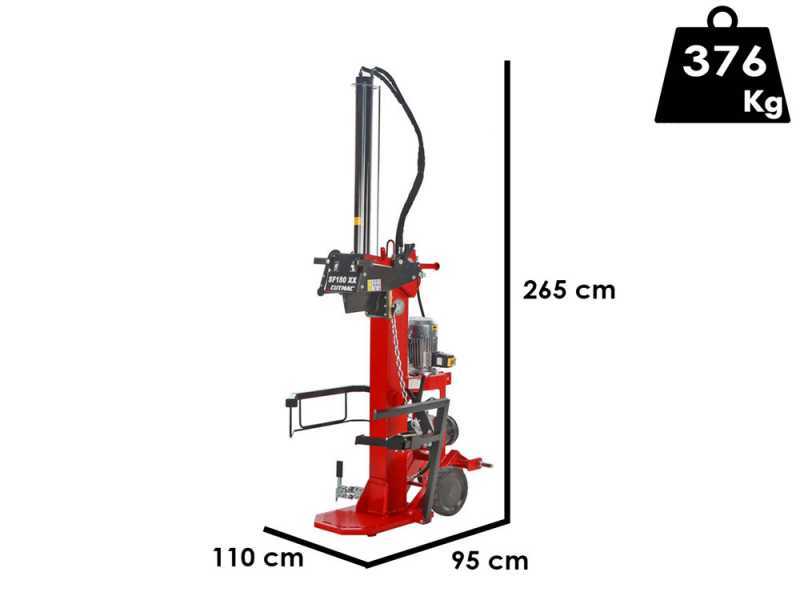

Dimensions and logistics
Product dimensions in cm (L x W x H):
110x95x265
Net weight:
376 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x200
Gross weight (packaging included) :
390 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 3.733,16
VAT Included
You're viewing:
Customers also viewed:
Description

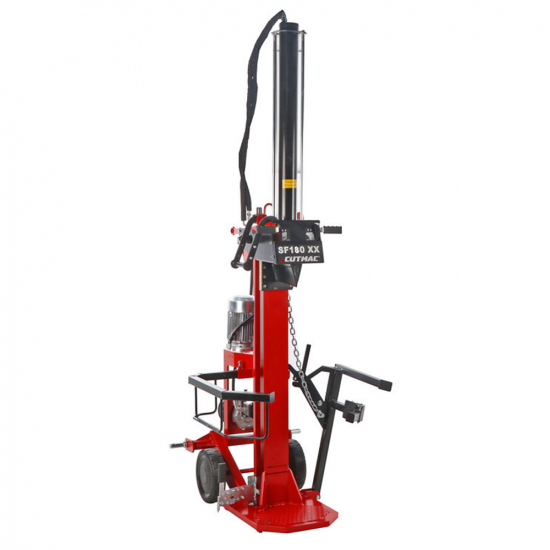

Docma SF180 380 + PTO XX - Hybrid Log Splitter - Electric and Tractor-powered - Vertical

The log splitter SF180 380+ PTO XX model represents an advanced solution for professionals who require high quality tools for their operations. It has been designed and manufactured with particular attention to the needs of experts, ensuring not only precision and power, but also safety and efficiency in splitting operations.

Main Features of the SF180 380+ PTO XX (Vertical):

  • Cylinder Stroke Depth: This model boasts a cylindrical stroke of 100 cm, thus allowing it to handle logs of various sizes. This feature reduces the need for preliminary intervention on the boot, optimising the splitting process.

  • Cutting height: With a cutting height of 121 cm, the appliance is able to deal with logs of considerable size , without requiring further preliminary cuts.

  • Oil capacity: The capacity of the tank, equal to 21 litres, guarantees long-lasting cracking operations, minimising interruptions. This ensures a continuous and efficient workflow.

  • Adjustable Column Stroke: One of the peculiarities of this model is the ability to adjust the stroke of the column. This allows the operator to adapt the machine to the specific dimensions of the logs being processed, thus ensuring accurate splitting results.

  • Thrust force: The remarkable effective pushing force of 18 tonnes places the SF180 380 + PTO XX among the most powerful models in its class. This makes it a valuable ally for those who need high efficiency and reliability in splitting operations.

In addition, the SF180 380 + PTO XX is equipped with a patented system that allows you to lock and unlock the cylinder quickly and efficiently.

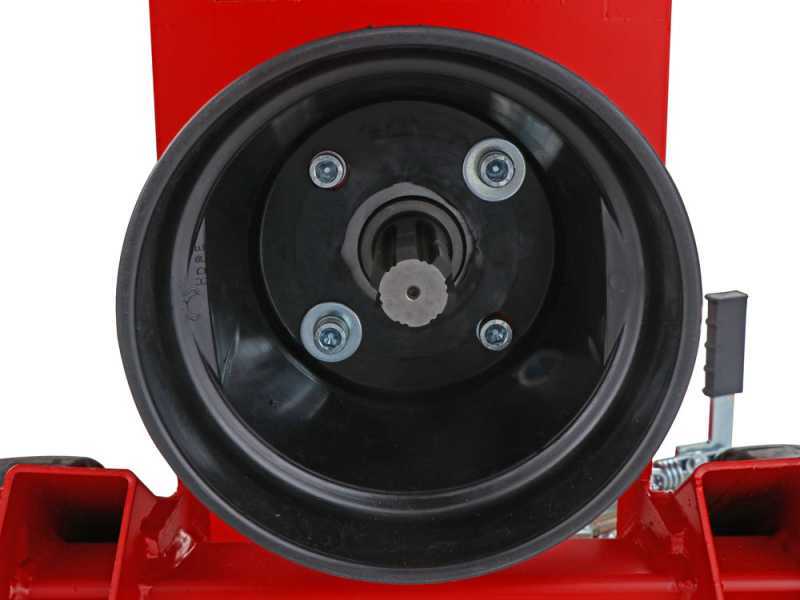

Dual functionality: cardan drive with tractor

The log splitter in question has been designed to work in synergy with tractors, thanks to its ability to connect via a universal joint. This connection offers high operational efficiency, ensuring optimal power transmission from the tractor to the log splitter.

The robust design and precision chassis mechanics feature solid three-point hooks These couplings ensure a firm and secure connection to the tractor, minimising any unwanted play or movement during operation.

The hydraulic efficiency of the log splitter is guaranteed by a high-quality hydraulic pump. This pump draws oil from the integrated tank, located at the base of the machine structure, with a capacity of 21 litres.

This tank not only acts as a container for the oil, but is also an integral part of the machine body, optimizing the space and functionality of the entire unit.

The hydraulic cylinder, equipped with a powerful thrust, is activated by the pump, allowing an efficient and continuous splitting of the wood.

Finally, the multiplier plays a crucial role in power transmission. It works as a bridge between the tractor and the hydraulic pump, effectively transferring the drive torque. The universal joint acts as an intermediary in this process, ensuring that the power generated by the tractor is transferred without leakage to the hydraulic pump.

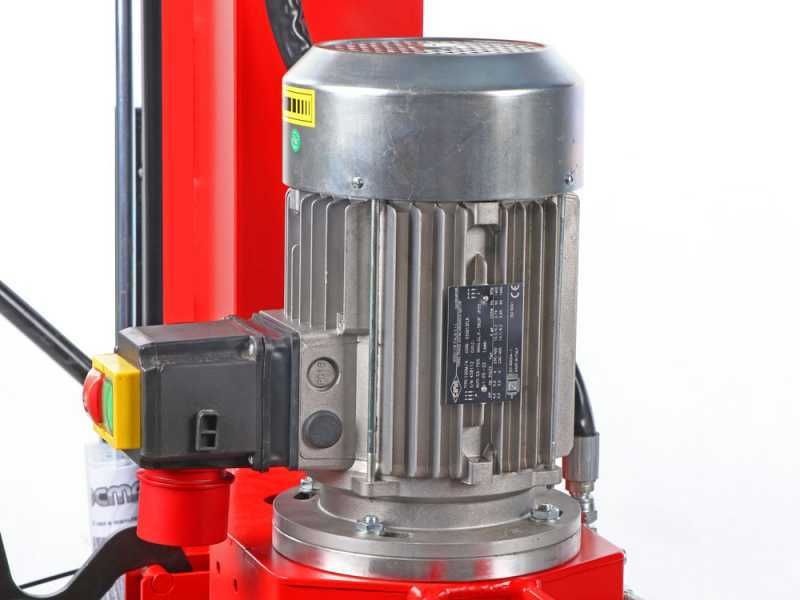

Dual functionality: electric engine

The log splitter in question represents an advanced solution for woodworking, since it can also be used through a 380V power supply.

At the heart of this system is a 5.5 Hp three-phase engine with a rated power of 4000 W, thus ensuring considerable efficiency in the splitting process.

One of the fundamental components of this configuration is the high quality hydraulic pump. This pump operates at a maximum pressure of 240 bar, representing one of the key elements to ensure the efficiency of the log splitter.

Its main function is to supply the oil, taken directly from the tank, to the hydraulic cylinder, which plays the role of pusher for the wood.

A distinctive feature of this model is that the structure of the machine itself acts as a reservoir for hydraulic oil.

This integrated design contributes not only to greater efficiency, but also to greater practicality in terms of maintenance and use.

Thanks to the high-performance hydraulic pump, the user can expect a significant increase in log splitter productivity. This component allows you to cut execution times in half, making the entire cracking process much faster.

Wedge and piston

The powerful Docma SF180 380+ PTO XX log splitter is , a reliable companion for splitting logs of different sizes. With an exceptional effective thrust of 18 tons, this log splitter is designed to tackle the most demanding jobs with ease and precision.

Technical features:

  • Thrust Force: The Docma SF180 380 + PTO XX, with an effective thrust of 18 tons, is designed to break logs of any size with ease, while minimizing mechanical wear and ensuring optimal operator comfort.
  • Split Dimensions: This device is designed to treat logs that reach a height of 121 cm and a diameter of up to 60 cm, offering considerable versatility in processing materials.
  • High resistance steel wedge: The main components, such as the split wedge, are forged from high-strength steel, ensuring not only extraordinary longevity but also consistent performance over the years.

Design and Functionality:

  • Intuitive control The control levers, designed with ergonomic criteria, offer the operator unparalleled ease of use, allowing precise control during splitting operations.
  • Safety Measures: The design integrates various safety devices, ensuring that the operator remains protected from injury during use.
  • Ground Split: The split on the ground is one of the most traditional and effective methods for dividing wood, particularly when using a log splitter.
  • Limit switch control system: The fully adjustable limit switch control system allows detailed customisation, offering flexibility in splitting operations.

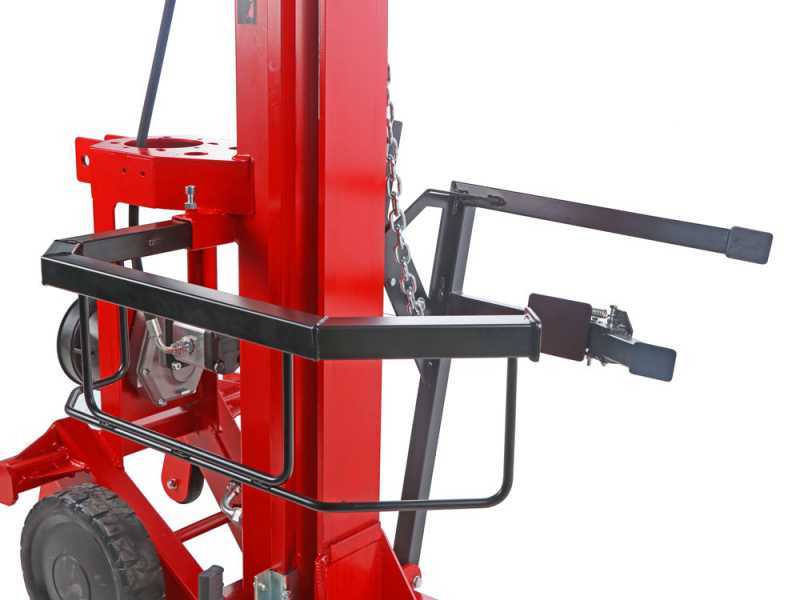

  • Lateral lifting system: The lateral lifting system for a log splitter is a very useful feature that allows the operator to handle heavy or bulky logs of wood with greater ease and safety. This system helps to position the boot directly in the split area, significantly reducing physical fatigue and minimising the risk of injury.

The Docma SF180 380+ PTO XX is a powerful and precise wood splitting solution. With its 18-ton nominal thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge.

Main features

The SF180 380+ PTO XX log splitter has a number of technical and functional features of considerable importance, each of which has been designed to ensure maximum efficiency, safety and durability.

Integrated oil tank: The base of the log splitter houses an integrated oil tank. This arrangement allows for optimal weight distribution, ensuring stability during splitting operations and facilitating maintenance operations.

LATERAL SUPPORT A sturdy lateral support for holding the log is integrated directly into the log splitter structure.

Lifting system: The machine is equipped with an innovative lifting system for the logs, complemented by an effective locking mechanism. This system facilitates the handling of heavy logs and ensures that they remain securely in place during splitting.

INCORPORATED WHEELS The base of the log splitter has integrated wheels, a fundamental detail that facilitates the transport and handling of the machine, making operations easier, especially in confined spaces or rough grounds.

3-Point attachment system: The three-point attachment, specifically designed for connection to the tractor, This configuration ensures a robust and stable connection to the tractor.

Support Platform: The machine is equipped with a support platform, designed to ensure comfort and safety for the operator during splitting operations.

Multifunction levers: One of the key elements of the log splitter are the levers, which have the task of raising the piston. This lever has also been designed to handle the double speed of the machine, allowing the user greater control and versatility during use.

Free items & Standard equipment

Standard equipment

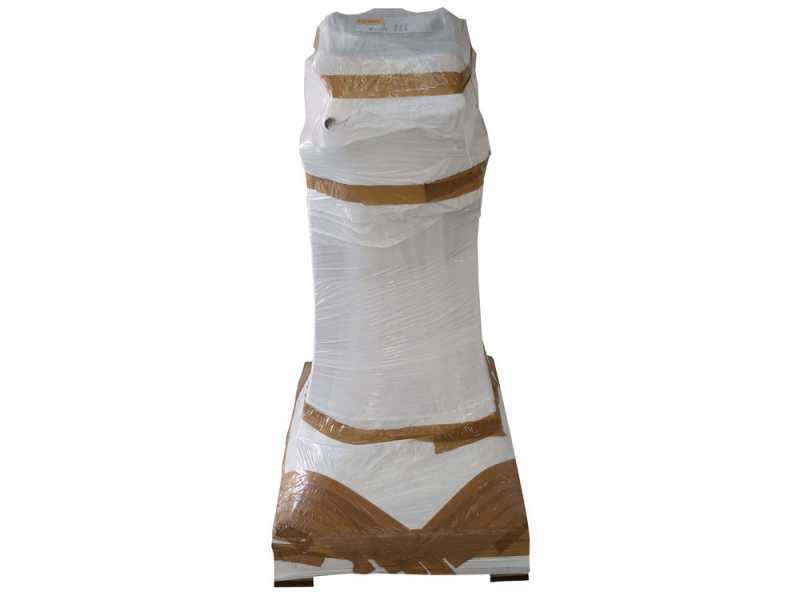

The log splitter is safely shipped in its original packaging and placed on pallet.

The maintenance and operating instructions manual is included in the packaging.
