Docma SF110 Rapid 380/4 XX - Electric Log Splitter- Vertical - 400V

Add a question
ID: 112524

EAN: 8068020722038

MPN: 930055

Docma SF110 Rapid 380/4 XX - Electric Log Splitter- Vertical - 400V
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Operating mode
Three-phase 400 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
13 t
Effective thrust power
8.15 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF110 Rapid 380/4 XX
Type:
Vertical
Double speed:
No
Operating mode:
Three-phase 400 V
Nominal splitting force:
13 t
Effective thrust power :
8.15 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Nominal power :
3000 W
Motor speed:
3360 RPM
Power supply:
400 V electric
Oil tank capacity:
18 L
Pump data
Pump type:
Double hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
18 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

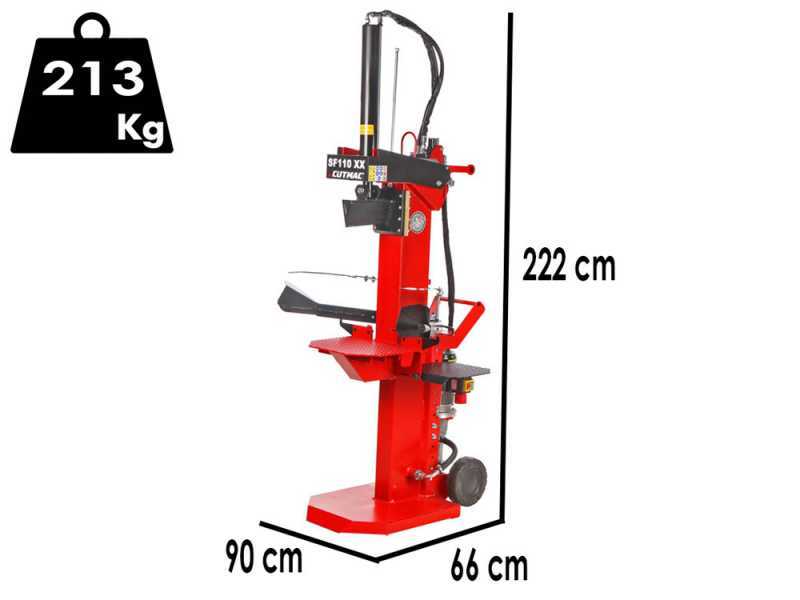

Product dimensions in cm (L x W x H):
90x66x222
Net weight:
213 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x222
Gross weight (packaging included) :
230 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
Suggested price:
€ 2.605,46
€ 2.527,30
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SF110 Rapid 380/4 XX - Electric Log Splitter - Vertical

The SF 110 Rapid 380/4 XX log splitter is a perfect solution for those who need an effective and safe method of dividing wood, both for domestic and other professional needs.

SF110 rapid 380/4 XX Log Splitter: represents a high quality option designed specifically for professional needs. With its power and precision, this wood splitter will allow you to easily face the challenge of splitting wood, guaranteeing an effective result without excessive efforts.

Main Features of the SF110 rapid 380/4 XX (Vertical):

  • CYLINDER STROKE: With a stroke of 50 cm, this device is able to handle logs of different sizes with ease.
  • Cutting stroke. Its 54.5 cm cutting height allows the SF110 Rapid 380/4 XX to tackle even particularly tall logs, eliminating the need to prepare smaller pieces before splitting.
  • Oil capacity: With a capacity of 18 litres, it guarantees continuous and uninterrupted operation.
  • Adjustable Column Stroke: The adjustable column stroke gives you the flexibility to adapt the machine to your preferences and the size of the logs you are working with.
  • Weight: Weighing 213kg, the SF110 Rapid 380/4 XX offers the right combination of stability and handling, allowing you to move it with relative ease when needed.
  • Splitting force: 8.15 tons

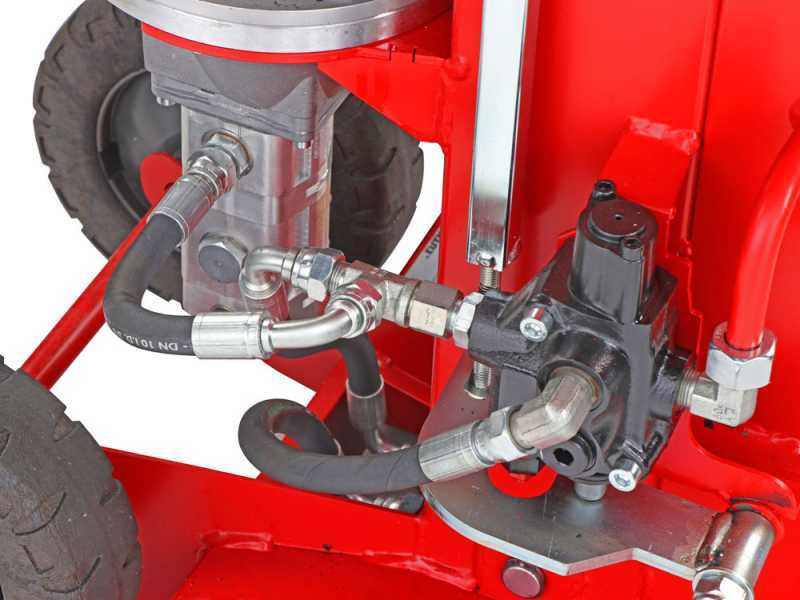

Electric motor

The modern SF110 Rapid 380/4 XX electric log splitter, designed to high-end specifications, is ideal for facilitating wood splitting. Thanks to its robust 4 HP (3 KW) motor and a range of cutting-edge features

Main features: This device has been designed to ensure a smooth and productive user experience thanks to its key elements:

  • High-quality Engine: Equipped with a 4 Hp (3 KW) 400V engine, this log splitter offers exceptional power that guarantees effective splitting without excessive effort.

  • Desing with built-in-reservoir: The log splitter body also has the function of containing hydraulic oil, optimising the structure and ensuring optimal oil management.

  • Double Pump for Enhanced Performance: The dual hydraulic pump offers powerful thrust and amazing working speed, allowing you to tackle even the toughest logs with ease and speed.

  • Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

Detail of the Double Hydraulic Pump: The distinctive feature of this log splitter is the double hydraulic pump, a key component that ensures superior performance. This innovative solution provides a constant and powerful boost, as well as a working speed that increases overall productivity. The double hydraulic pump represents a real power engine that allows you to split logs efficiently and quickly.

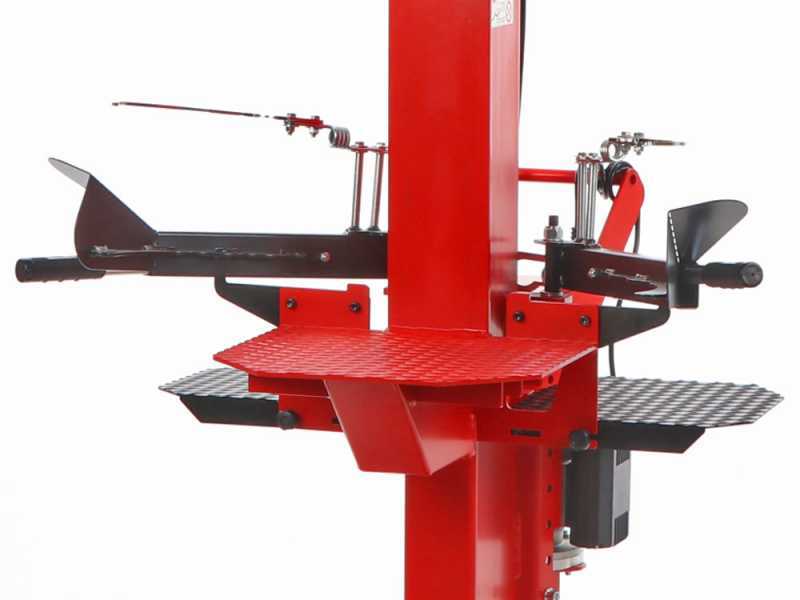

Wedge, dual control levers and cutting plate

The powerful Docma SF110 RAPID 380/ 4 XX log splitter is a reliable companion for splitting logs of different sizes. With an exceptional thrust of 8.15 tons, this log splitter is designed to tackle the most demanding jobs with ease and precision.

Performance characteristics:

  • Powerful Thrust from 8.15 Tons: The Docma SF110 RAPID 380/4 XX offers a thrust of 8.15 tons, ensuring the ability to split logs of various sizes without excessive effort.
  • Split Dimensions: This log splitter is able to work with logs up to 54.5 cm high and 50 cm in diameter, offering incredible flexibility in the choice of materials.
  • High resistance steel wedge: The wedge of the log splitter is made of very high-strength steel, guaranteeing exceptional durability and consistent performance over time.

Design and Functionality:

  • Large Work Surface: The spacious worktop offers a comfortable area to arrange and position the logs efficiently.
  • Easy and Ergonomic Control: The dual control hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Measures: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Docma SF110 RAPID 380/ 4 XX is a powerful and precise wood splitting solution. With its 8.15-ton thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge.

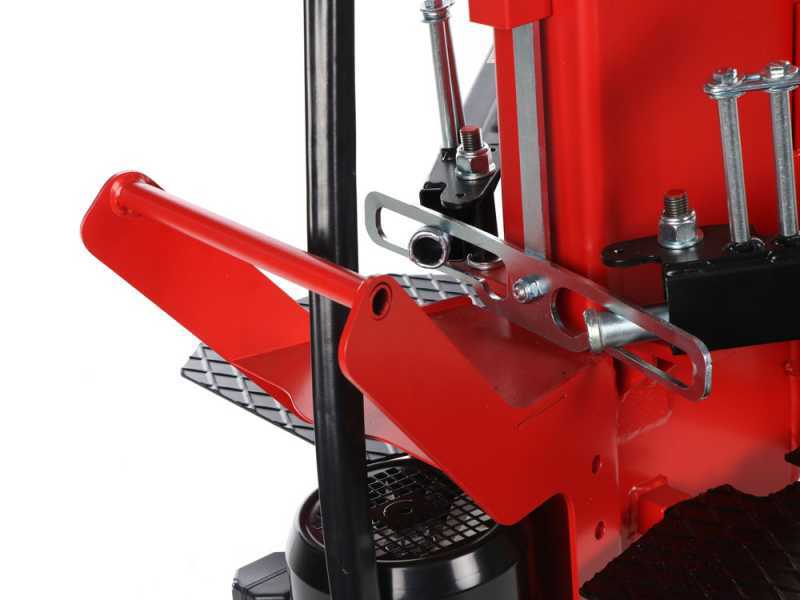

Additional features

The innovative log splitter that combines solidity and practicality in a single solution. The machine has been designed for durability and ease of use, offering reliable support for your wood splitting needs.

Robustness and Solidity: The structure of this log splitter has been built with high quality materials, making it extremely sturdy and super solid. This ensures that the machine is able to tackle even the most demanding jobs in the long run, ensuring consistent and reliable performance.

PRACTICAL AND HANDY DESIGN

  • Equipped with integrated wheels, this log splitter offers ease of movement, allowing you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move the machine by yourself with ease, using the handle for tilting the log splitter.
  • The presence of a specific hooking point for lifting adds practicality during transport or storage.
  • Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

  • The hydraulic system of this log splitter is managed by a hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
  • The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.

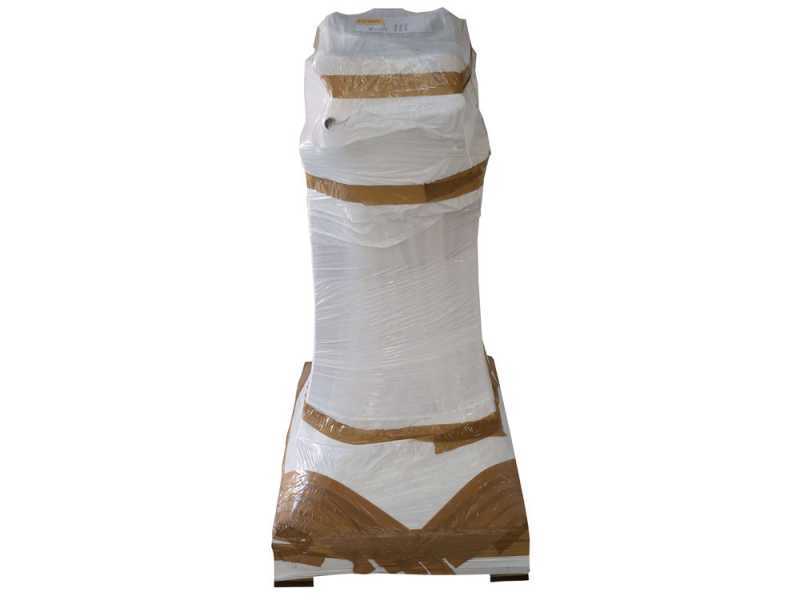

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging and placed on pallet.

The maintenance and operating instructions manual is included in the packaging.
