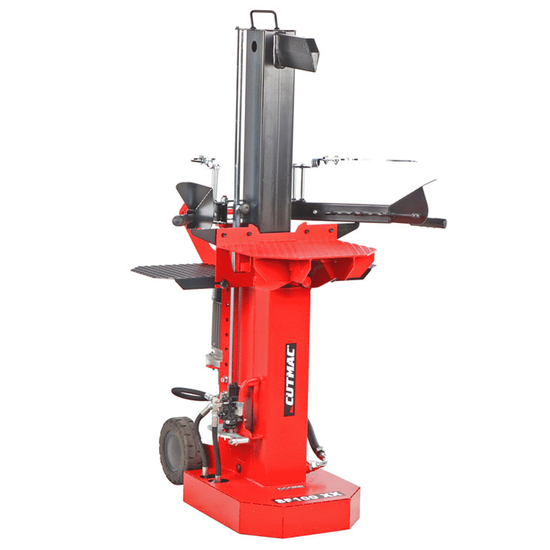

Docma SF100 Rapid 380/4 XX - Electric Log Splitter - Vertical - 400V

The Docma SF100 Rapid 380/4 XX log splitter model is designed to meet the needs of those who need an efficient and safe wood splitting tool. It can be used both for the supply of firewood and for other applications.

It is equipped with a structure designed for high-level performance, even with particularly resistant or knotty boots. Its efficiency is supported by an oversized cylinder, a solid metal structure and a piston with a bore of 80

Main Features of the SF100 rapid 380/4 XX (Vertical):

• CYLINDER STROKE: This model offers a cylinder stroke of 50 cm, which allows you to work with logs of various sizes with great efficiency.
• Cutting height: It boasts a cutting height of 54.5 cm, allowing you to treat logs of considerable height without the need for preliminary cuts.
• Oil capacity: The 13 litre oil tank ensures consistent operation and reduces interruptions for topping up.
• Adjustable Column Stroke: This functionality allows the machine to be adapted to the specific needs of the user and to the size of the logs to be processed.

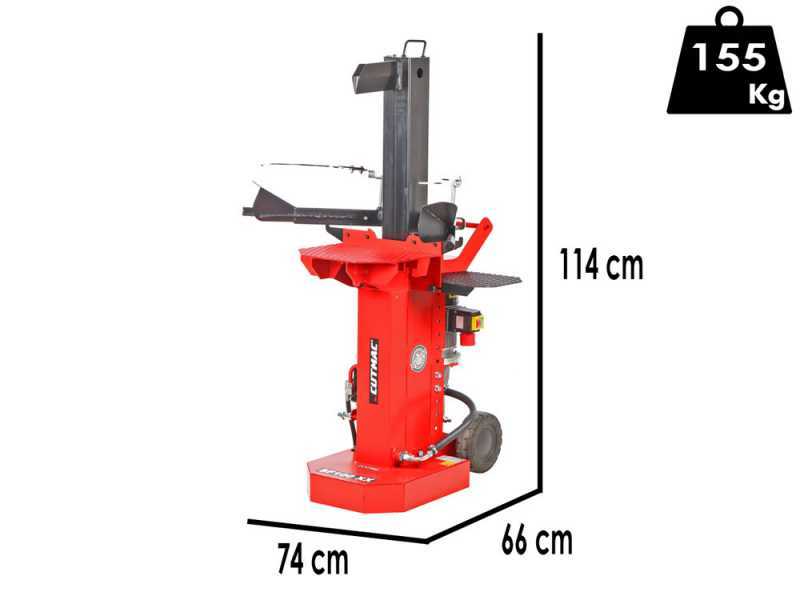

• Weight: Weighing 155kg, the SF110 Rapid 380/4 XX offers the right combination of stability and handling, allowing you to move it with relative ease when needed.
• Splitting force: 8.15 tons
• Support surface: Fixed

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

The SF100 Rapid 380/4 XX electric log splitter model is an advanced device designed to improve efficiency in wood splitting. Featuring a 4 HP (3 KW) engine and a series of avant-garde features, it is suitable for all operations related to wood treatment.

Main features:

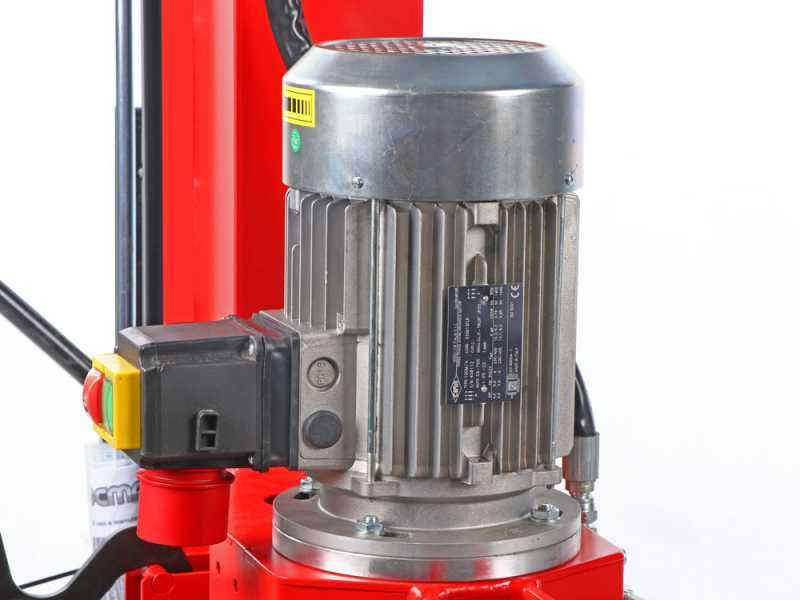

• Efficient engine: Equipped with a 4 Hp (3 KW) 400 V engine, ensuring optimal splitting performance without unnecessary effort.

• Structure with integrated tank: The construction of the log splitter incorporates a reservoir for hydraulic oil, acting both as a structural support and as an oil reservoir. This feature not only makes the design cleaner, but also optimizes oil management.

• Double Pump for Enhanced Performance: Equipped with a double hydraulic pump, the appliance ensures high performance and quick operation, allowing you to work efficiently even on the most resistant logs.

• Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

Detail of the Double Hydraulic Pump: The strength of this device is the presence of the double hydraulic pump, which is essential to guarantee high-level performance. This innovative component provides a constant and powerful pressure, coupled with an operating speed that increases productivity. With this feature, the user can split the wood efficiently and in a timely manner.

The Docma SF100 Rapid 380/4 XX high-power log splitter is an essential tool in the division of woody logs. Thanks to a thrust force of 8.15 tons, it has been developed to effectively and accurately handle the most demanding splitting operations.

Performance characteristics:

• Thrust Capacity: The SF100 Rapid 380/4 XX boasts a thrust force of 8.15 tons, making it able to split logs of different diameters with ease and precision.
• Split Dimensions: This log splitter is able to work with logs up to 54.5 cm high and 50 cm in diameter, offering incredible flexibility in the choice of materials.
• High resistance steel wedge: The log splitter is equipped with a high-strength steel wedge, which ensures long life and uniform performance over time.

Design and Functionality:

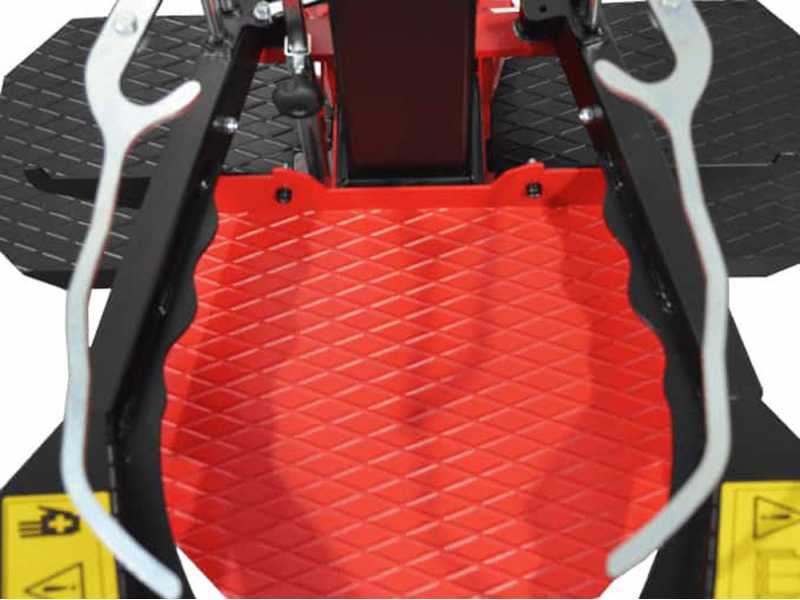

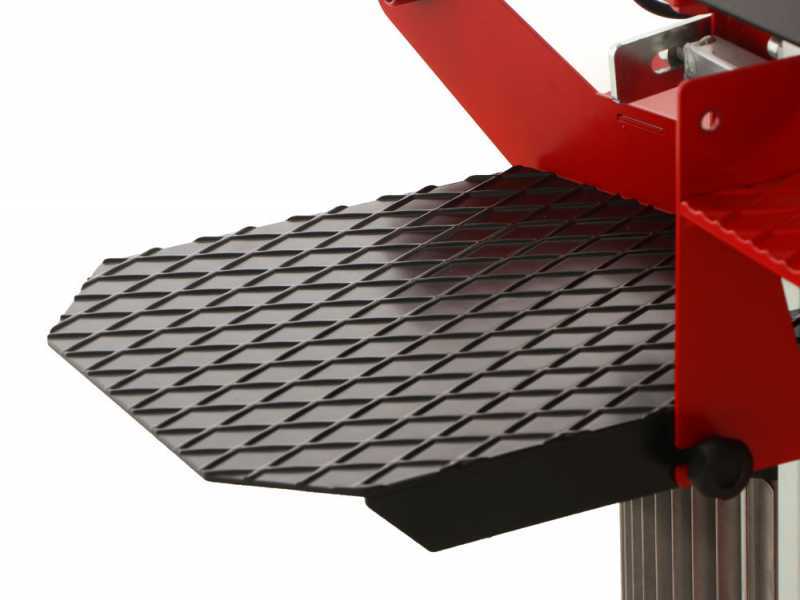

• Large Work Surface: Its spacious worktop provides an optimal area for log preparation and placement.
• Easy and Ergonomic Control: The dual controls hydraulic valve levers allow the user to easily manage splitting operations, adapting to different work needs.
• SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
• Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
• Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The SF100 Rapid 380/ 4 XX is a powerful and precise wood splitting solution. With its 8.15-ton thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge.

The log splitter in question represents an advance in the field, combining strength and functionality in a sophisticated design. This tool is designed to offer longevity and ease of use, establishing itself as a reliable solution for splitting operations.

Robustness and Solidity: Made of high quality materials, the log splitter is characterized by a solid and resistant construction. This feature ensures that it can handle the most demanding operations effectively, providing consistent and confident results.

Functional Design:

• Mobility: Thanks to the integration of wheels, our log splitter ensures easy handling, allowing you to position it strategically according to your needs.

• Manoeuvrability: Its balanced structure and dedicated handle make it easy to move the unit.

• ATTACHMENT POINT: A special attachment point is provided to facilitate lifting and storage of the log splitter.

• Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

• The hydraulic system of this log splitter is managed by a double hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
• The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.
