Docma SF100 Rapid 220 XX - Electric Log Splitter - Vertical

Add a question
ID: 112519

EAN: 8068020721239

MPN: 920026

Docma SF100 Rapid 220 XX - Electric Log Splitter - Vertical
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
12 t
Effective thrust power
8.15 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF100 Rapid 220 XX
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
12 t
Effective thrust power :
8.15 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor brand:
CIMA
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Nominal power :
2200 W
Motor speed:
2760 RPM
Power supply:
220 V electric
Oil tank capacity:
13 L
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
13 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
74x66x114
Net weight:
155 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x61x138
Gross weight (packaging included) :
170 Kg
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
Suggested price:
€ 1.961,58
€ 1.902,73
VAT Included
You're viewing:
Customers also viewed:
Description

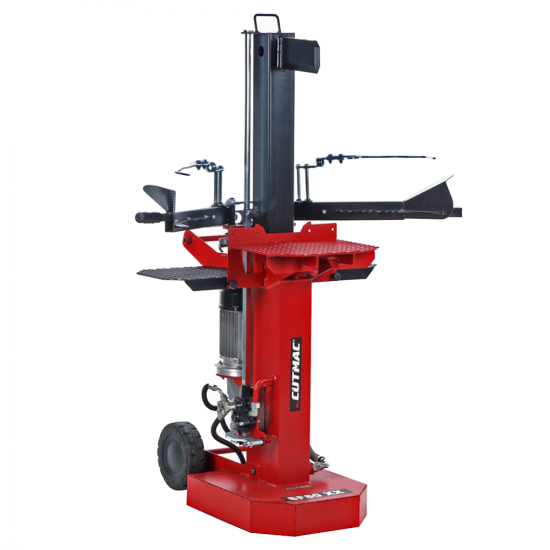

Docma SF100 Rapid 220 XX - Electric Log Splitter - Vertical

The Docma SF100 Rapid 220 XX powerful log splitter is the perfect solution to meet the needs of those looking for a reliable and safe way to split the logs, whether for firewood supply or other purposes.

It ensures high-quality performance even with resistant and knotty logs. Its efficiency is guaranteed by an oversized cylinder, a very sturdy metal structure, and a piston with a bore of 80.

SF100 Rapid 220 XX log-splitter: The SF100 Rapid 220 XX log-splitter stands out to be a high quality alternative. Thanks to its power and precision, this machine makes it easy to split the wood needed throughout the year, ensuring effective results without requiring excessive effort.

SF100 Rapid 220 XX (Vertical) Main Features:

  • Cylinder stroke: The SF100 Rapid 220 XX provides a piston stroke of 50 cm, which allowing the logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54.5 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
  • Quantity Oil: Equipped with a 13-litres tank, the SF100 Rapid 220 XX ensures fluid and continuous work, minimising all interruptions due to oil refill.
  • Adjustable Column Stroke: The adjustable column stroke gives you the flexibility to adapt the machine to your preferences and the size of the logs you are treatment.

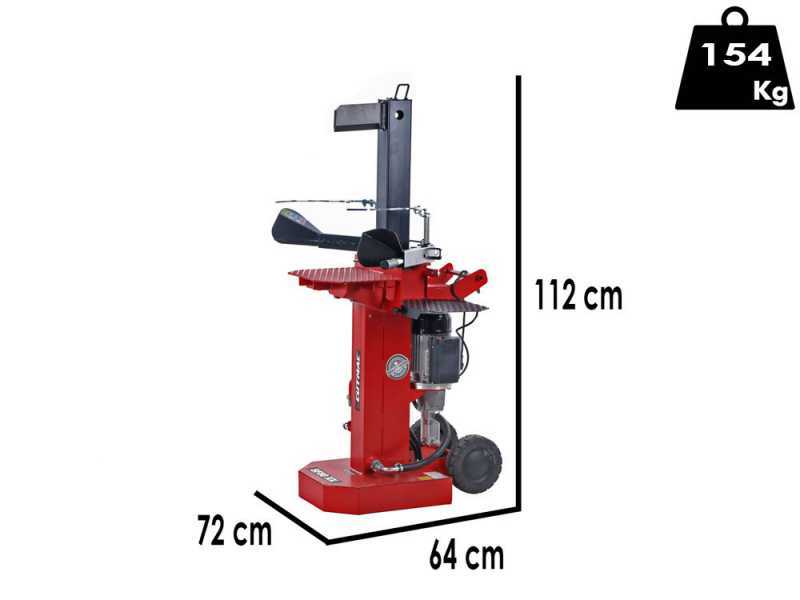

  • Weight: With a 154 Kg weight, the SF100 Rapid 220 XX ensures the right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 8.15 tons
  • Work top: Fixed

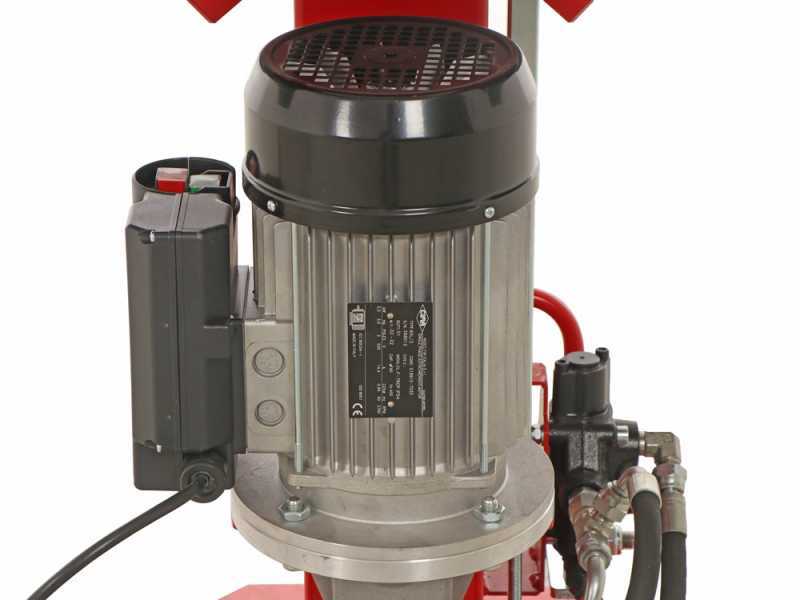

Electric motor

The innovative SF100 Rapid 220 XX electric log splitter has been designed to optimize the splitting of wood With a 3 HP (2.2 Kw) powerful motor and several state-of-the-art functions, this machine is the perfect device to meet your need when cutting the logs.

Main Features: This log splitter has been been designed to offer a easy and efficient user experience thanks to its distinct features:

  • Sturdy and Efficient Motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Frame with Integrated Tank: The log-splitter structure performs a double function, working both as support and hydraulic oil tank. This specific aspect not only simplifies the design, but also guarantees an efficient oil management.

  • Double Pump for Elevated Performance: Equipped with a double hydraulic pump, it ensures outstanding power and working speed. It allows you to easily manage even the most resistant logs.

  • Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Focus on the Double Hydraulic Pump: The distinctive feature of this log splitter is the double hydraulic pump, a key component that ensures superior performance. This innovative solution provides a constant and powerful thrust, as well as a working speed that increases overall productivity. The double hydraulic pump is a real powerhouse that allows you to split logs the efficiently and quickly.

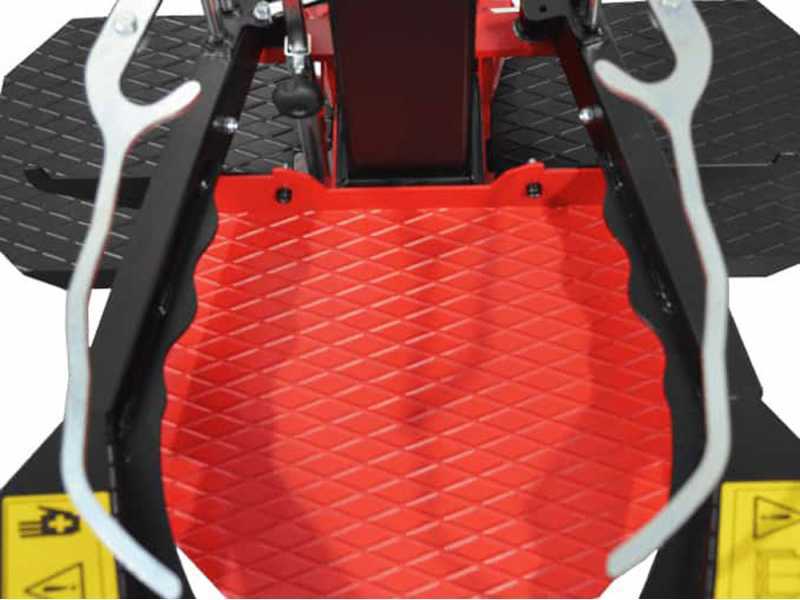

Wedge, dual control levers and cutting plate

The Docma SF100 XX is a reliable and high-power log splitter is a superior machine for splitting logs of various sizes. With an extraordinary thrust of 8 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

  • Powerful 8.15 tons Thrust: The Docma SF100 XX features a 8.15 tons thrust, ensuring the ability to split the logs of various diameter without excessive effort.
  • Splitting Size: This log splitter is able to work with logs up to 54.5 cm in heigh and 50 cm in diameter, thus providing incredible flexibility during the material choice.
  • High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide Worktop: The wide worktop provides the perfect surface to prepare and place efficiently logs.
  • Easy and Ergonomic Control Panel: Bimanual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Systems: The couple of operating levers is equipped with proper hand guards and all safety devices to protect the Operator maximum protection for use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Control System: The limit switch control system is adjustable, allowing the user to customise the settings according to their preferences and work requirements.

The Docma SF100 XX is a powerful and precise solution for splitting wood. With its 8.15 tons of thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally for tackling any woodworking challenge.

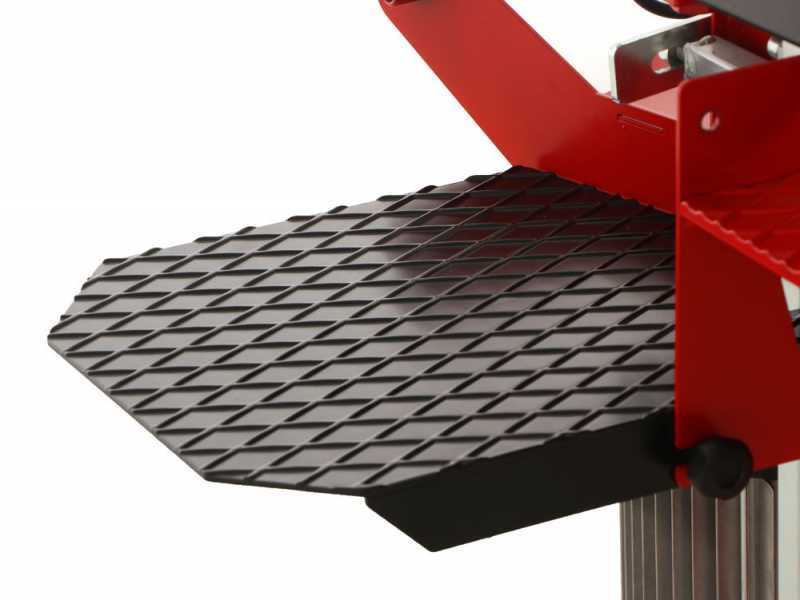

Additional features

The revolutionary log splitter combines strength and functionality in a unique design. This device has been designed to ensure long lasting durability and easy of use, thus becoming a solid reference point for your log splitting.

Sturdiness and Solidity: Made of high-quality materials, the log splitter is characterised by its sturdy and durable design. This guarantees that it can tackle the most intensive tasks consecutively, delivering uniform and safe results.

Practical and Convenient Design:

  • Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
  • The specific lifting attachment point increases convenience during transport or storage.
  • Innovative Patented Locking System: This log splitter is equipped with an innovative, patented locking system, designed to keep the log secure and safe while splitting. This state-of-the-art mechanism minimises the risk of accidents by operating in full compliance with EN609-1-2017 safety standards .

Stable Support Base: The design is enhanced by a solid base that ensures stability during the splitting operation, minimising the risk of unwanted movement.

High-Quality Components:

  • The hydraulic system of this log splitter is controlled by a hydraulic pump, which ensures a constant and controlled flow of oil for smooth and trouble-free splitting.
  • The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
