Name: Comet MTP P40/20 BA (CE) - Petrol spray pump - Loncin G200F engine - version for acids and chemicals
Brand: Comet
SKU: K610549
Price: 1142.16 EUR
Availability: InStock

Description

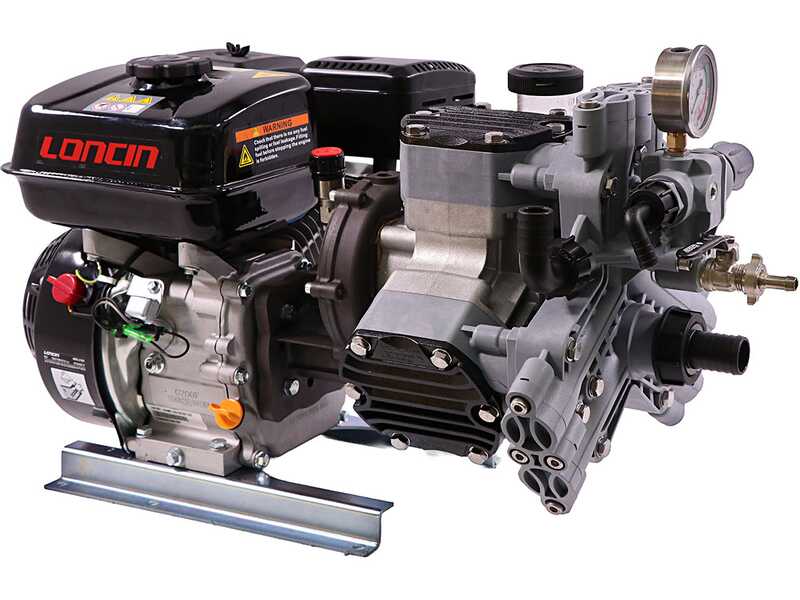

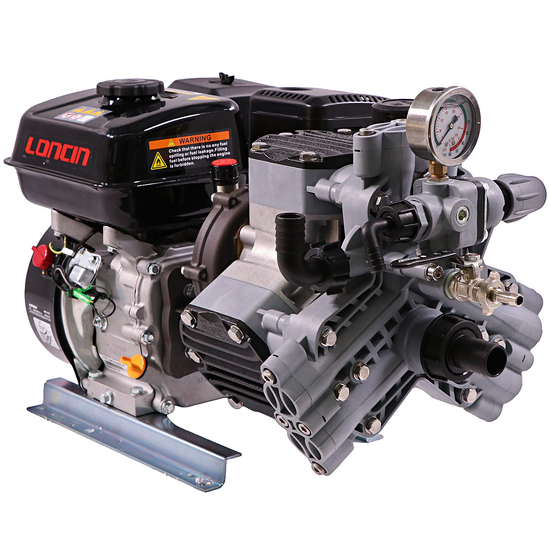

Comet MTP P40/20 BA (CE) petrol spray pump

The Comet MTP P40/20 is a combustion engine pump designed to meet the spraying needs of agriculture and gardening.

Equipped with a powerful Loncin G200F engine, this machine guarantees high performance, reliability and resistance even in difficult working conditions

Its sturdy and solid structure makes it perfect for outdoor use, both in the sun and in adverse weather conditions. The three Viton membranes also increase its compatibility with a wide range of chemicals and acids, making it ideal for professional use, but also for those who want a versatile tool for irrigation and other operations.

The MTP P40/20 is portable and easy to manoeuvre, and can be used for many tasks, such as irrigation, cleaning and washing. Suitable for weed control and spraying in small, medium and large crops, gardens, parks, greenhouses, vegetable gardens and for distributing cleaning and dyeing solutions. The machine is suitable for both phytosanitary purposes and cleaning and disinfection.

The Loncin G200F engine, a single cylinder four-stroke engine with a displacement of 193cc and a rated power of 6.5 hp at 3600 rpm, ensures stable operation and optimal performance even under the most demanding conditions. Thanks to its power, this motor pump is perfect for mounting on various configurations, such as trolleys, wheelbarrows or mounted and wheeled sprayers, offering great flexibility of use.

The machine is equipped with a pressure regulator and a pressure gauge, essential tools for optimising spraying and ensuring precise distribution of liquids.

Thanks to the 3 Viton diaphragms, the machine is highly resistant to chemical attack and mechanical abrasion, allowing for extreme versatility of use in sectors such as:

Application of soil inoculants
Road de-icing
Removal of moss, algae, etc.
Sanitisation of food processing plants
Cleaning of fishing industry docks
Treatment of fuel-contaminated water

Comet MTP P40/20 BA (CE) - Petrol spray pump - Loncin G200F engine - version for acids and chemicals

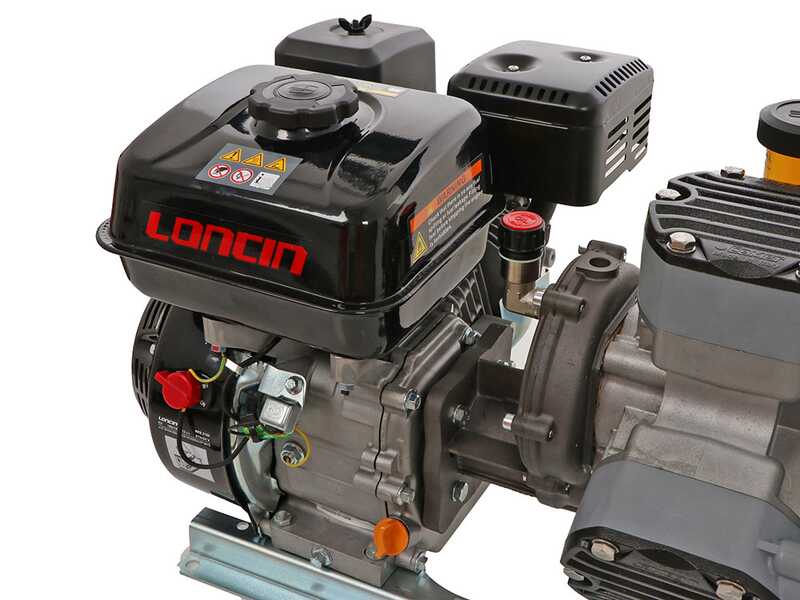

Loncin G200F rengine

The original Loncin G 200 F 4-stroke petrol engine of the latest generation with a displacement of 196cc has been manufactured with OHV overhead valve technology . Thanks to this mechanism, the motor pump will not require much maintenance.

Features:

Engine type: Single cylinder 4-stroke - OHV
Cylinder type: Cast iron
Displacement: 196 cm³
Tank capacity: 3.8 litres
Oil tank capacity: 0 .6 litres
Max. rpm: 3600 rpm

Nominal power: 6.5 HP
The most correct term would be "Commercial Power", meaning the classic standard definition of power officially used until a few years ago by all the most well-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 5.49 HP (at 3600 rpm)
This corresponds to the real power expressed at the motor shaft. It is the figure indicated as official in the manual or in the technical data provided by the motor manufacturer.

* This figure may vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

ATTENTION

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before starting it.

Technical characteristics of the pump

Three Viton diaphragm configuration. This guarantees exceptional durability, resistance and reliability, and minimises maintenance.

PERFORMANCE:

Bar: 0–20 bar

Flow rate: 42 L/min (0 bar)

Flow rate:40 L/min (20 bar)

550 rpm

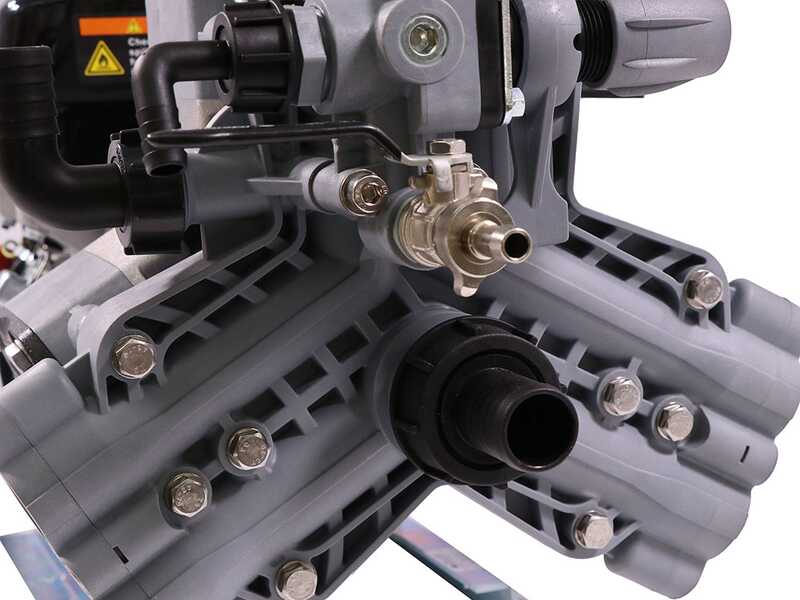

Special pressure regulator

Detail of pressure gauge

Semi-professional pressure regulation unit.

Allows you to regulate the pressure at the pump outlet (from 0 to 20 bar).

It is equipped with 2 standard outputs, which can be used to connect the various treatment equipment presented above. It also has a side cap that allows a third output to be added if required.

The black side connection is the overflow outlet. This means that all the liquid that is pumped but not used by the equipment comes out of this connection, which must then be returned with a piece of pipe to the tank containing the liquid being dispensed.

This overflow can also be used to mix the liquid to a small extent.

Suitable for chemicals and acids

The pump is suitable for use with chemicals or acids, which offers an advantage over standard pumps.

In fact, thanks to the special configuration of the machine, characterised by diaphragms and mechanical parts in contact with the liquid (heads and manifold) that are highly resistant to chemical attack and mechanical abrasion, the pump can also be used with chemicals or acids, such as kaolin treatment or particularly aggressive products that would corrode a standard aluminium pump.

The above characteristics allow the machine to be extremely versatile in sectors such as:
