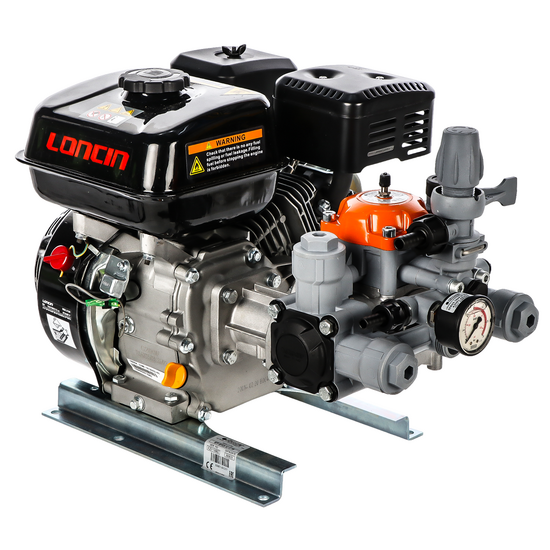

Comet MTP BPX25 PP - Motorised spray pump - Loncin G200F engine - version for acids and chemicals

The Comet BPX25 PP combustion engine spray pump is a professional solution designed for intensive agricultural applications, particularly for spraying organic crops and use with chemicals. The pump, part of the new Comet BPX range, uses internal 'wet parts' made entirely of plastic, giving it high resistance to corrosion and abrasion. The configuration with materials such as polypropylene and SS316 stainless steel allows continuous use with aggressive liquids, fertilisers and herbicides.

It is coupled with a reliable Loncin G200F 4-stroke petrol engine with 196 cc OHV technology, which ensures efficient combustion, lower fuel consumption and reduced noise levels. The engine also offers significant advantages over traditional 2-stroke engines: longer life, fewer fuel-related problems and easier starting even after long periods of inactivity.

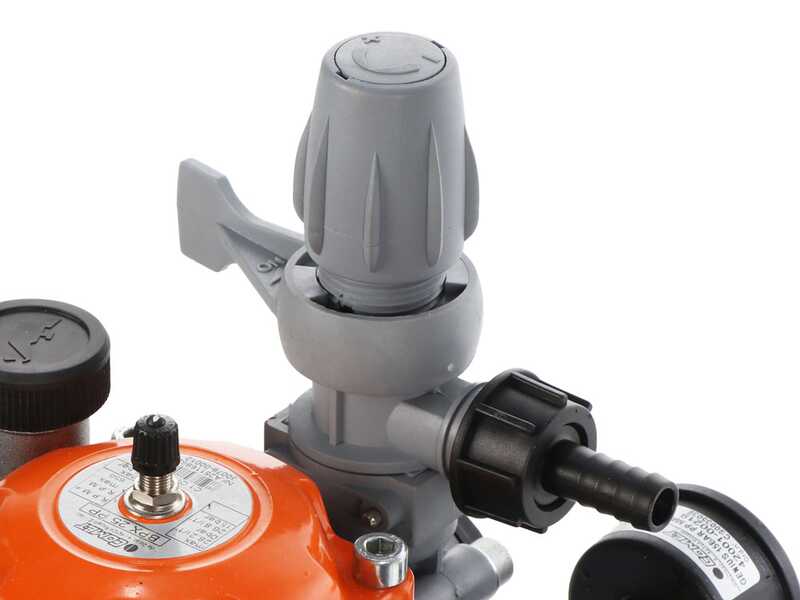

From a structural point of view, the Comet BPX25 PP motor pump is compact and functional. The external valve manifolds allow for quick maintenance using a hexagonal Allen key. The pump body has a technical and practical design, with a pressure adjustment unit with a visible pressure gauge, an ergonomic selector and thick grey plastic fittings, designed for continuous use. The pump operates at 650 rpm and offers a maximum flow rate of 29.9 litres/minute with an operating pressure of 15 bar. The motor requires 1.6 HP and has a total weight of 14.3 kg.

The following features highlight the main advantages of the product:

• Stainless steel pump made of polypropylene: corrosion-resistant structure, compatible with chemicals and acids;
• Loncin G200F 4-stroke OHV engine: greater reliability, quietness, reduced consumption and simplified maintenance;
• Inspectable valve manifolds: easy access with Allen key for quick and safe maintenance in the field;
• High hydraulic performance: 29.9 L/min at 15 bar, suitable for spraying medium and large crops;
• Compact and sturdy structure: reinforced pump body, stable supports and design suitable for intensive agricultural contexts.

• Pump body made of anti-corrosion plastic materials: constructed with wet parts in polypropylene and SS316 stainless steel, offering high resistance to chemicals, acids and fertilisers;
• Maximum operating pressure 15 bar: guarantees sufficient thrust for spraying operations on crops, even those with high vegetative density;
• Maximum flow rate 29.9 litres/minute: allows continuous delivery of liquids over large surfaces, optimising working times;
• Optimal speed 650 rpm: rotation speed designed for balanced, efficient and long-lasting operation;
• Power absorption 1.6 HP: reduced energy requirements in relation to the hydraulic performance obtained;
• Pump weight 14.3 kg: solid and well-balanced structure, suitable for stable mounting on fixed frames or bases;
• External valve manifolds can be inspected: easy access for routine maintenance using a simple hex key;
• Compatibility with multiple materials: available in Nylon + SS316 or PP + SS316 versions to suit different chemical resistance requirements;
• 3-diaphragm configuration: ensures smooth liquid delivery and reduces pulsations during operation;
• Continuous high-performance operation: suitable for use with cisterns, agricultural tanks and fixed spraying systems.

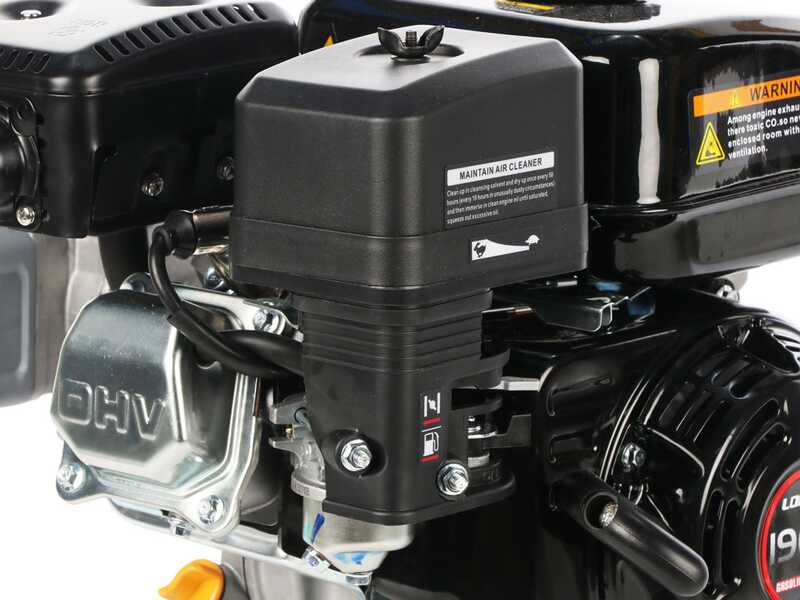

The original Loncin G 200F latest generation 4-stroke petrol engine with 196 cc displacement has been manufactured with 'OHV' overhead valve technology.

Features:

• Engine type: Single cylinder 4-stroke - OHV
• Cylinder type: Cast iron
• Displacement: 196 cm³
• Max. rpm: 3600 rpm
• Compression ratio: 8.5:1

ATTENTION

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Nominal power: 6.5 HP
The most correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most well-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 5.09 HP (at 3600 rpm)
This corresponds to the real power expressed at the crankshaft. It is the figure indicated as official in the manual or in the technical data provided by the engine manufacturer.

* This figure may vary for the same engine model, depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

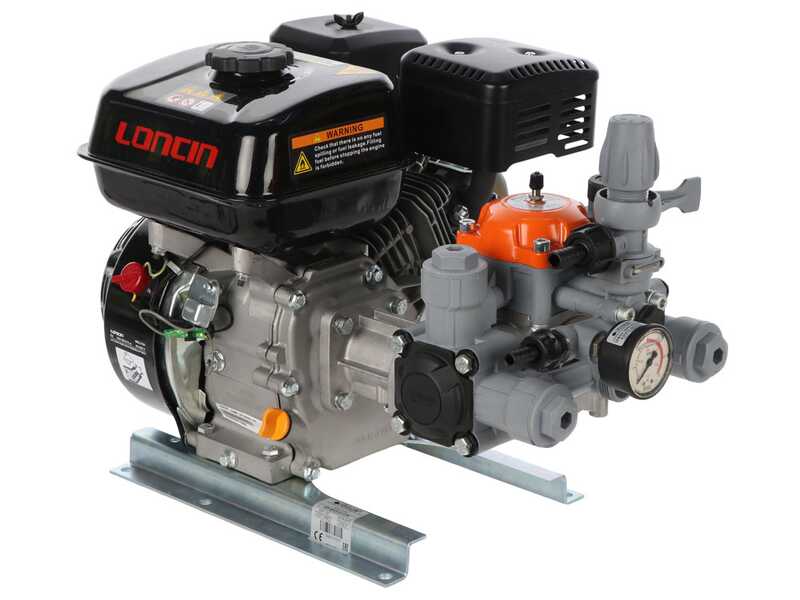

The pump is suitable for use with chemicals or acids, which offers an advantage over standard pumps.

In fact, thanks to the special configuration of the machine, characterised by diaphragms and mechanical parts in contact with the liquid (heads and manifold) that are highly resistant to chemical attack and mechanical abrasion, the pump can also be used with chemicals or acids, such as kaolin treatment or particularly aggressive products that would corrode a standard aluminium pump.

The above characteristics allow the machine to be extremely versatile in sectors such as:

• Application of soil inoculants
• Road de-icing
• Removal of moss, algae, etc.
• Sanitisation of food processing plants
• Cleaning of fishing industry docks
• Treatment of fuel-contaminated water

In particular, this machine features:

• Parts in contact with the liquid made of anodised aluminium
• 2 NBR membranes
