Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure

Industrial
Questions & Answers (4)
ID: 1839

EAN: 8080546013933

MPN: 30015-00007

Comet
Catalog Comet
8,1/10
After-sales assistance & Spare parts
25Pictures
1Videos
5Customer pics
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
+500 sold
Configuration
Pump only
Water pump type
Diaphragm
Number of diaphragms
4
Flow rate
88 L/min
Max. operating pressure
50 bar
Motor type
Tractor-driven PTO
Nominal power
11.7 HP
Manufacturing country
Italy
Product Features
Model:
APS 96
Type:
4 membranes
Configuration:
Pump only
Motor type:
Tractor PTO
Operating mode:
Tractor-driven PTO
Configuration:
Pump only
Flow rate:
88 L/min
Max. operating pressure:
50 bar
Manufacturing country:
Italy
Motor data
Motor type:
Tractor-driven PTO
Nominal power:
11.7 HP
Pump data
Pump brand:
Comet
Number of diaphragms:
4
Water pump type:
Diaphragm
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
22.5 Kg
Packaging:
Original packaging
Assembly time:
Assembled
Prompt Delivery
25 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
Free returns (up to 30 days after receipt) *
€ 704,21
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

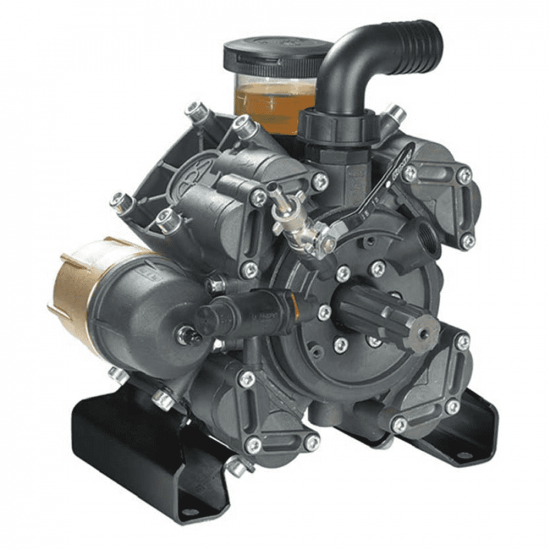

Comet APS 96 Tractor Mounted Pump

For spraying treatments in medium and large crops.
Application on trailed and wheeled sprayers
Parts in contact with liquid made of anodized aluminium, resistant to corrosion.

New 4-membrane configuration.

Hydraulic accumulator. internal manifolds.
The suction-discharge valves, all arranged on the pump discharge side, are easy to check. Discharge valve Safety valve

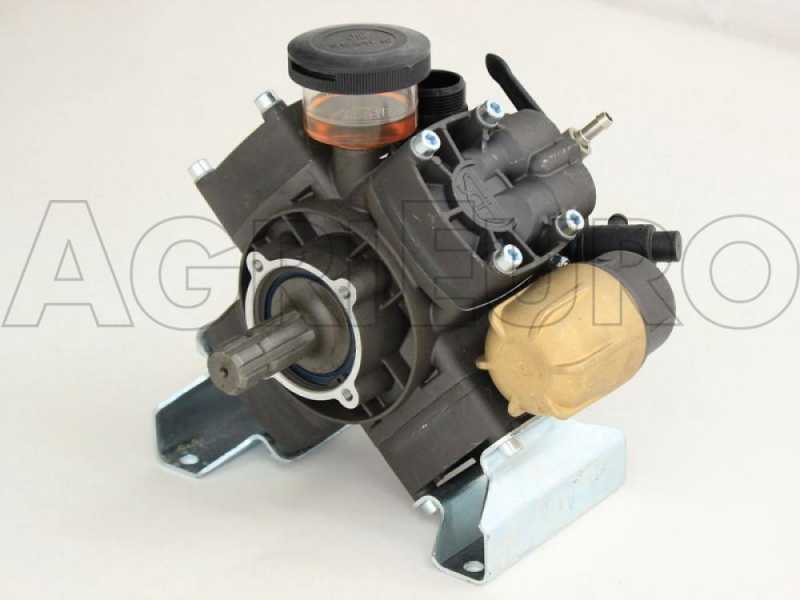

The pump features a through shaft like in the pic. here shown



To complete the equipment for its use, you can purchase the PRESSURE REGULATION UNIT.

After that, the product is complete and can be used by connecting it to your tractor. You can find and purchase these accessories in the tab "related products" at the top.



NOTE:
If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure

Main Features

Performance

N. of membranes/pistons
4
Flow rate
88.0L/min
Pressure
50.0 bar
Power
11.7 CV
RPM
550
Weight
22.5 Kg

It allows to operate:

  • up to 5 to manual lever lances (or knobs) simultaneously
  • 2 MITRA lances simultaneously
  • 2 lateral rods for spraying with 4 butterfly jets each

Feet for storage included

Connection for the control unit

You can combine the control group you prefer by purchasing it separately during the order completion phase or by browsing the related products.

Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure

Configurations Available

Two main examples on how to complete your pump with the accessories you find in the "RELATED PRODUCTS" tab:

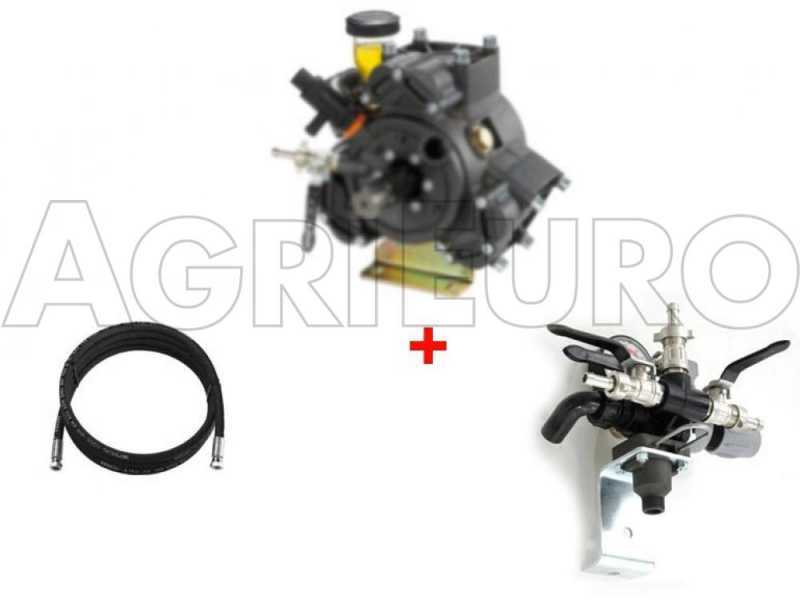

Pump configuration for distance connection to the tractor, through the cardan shaft:

  • Distance pressure regulation unit to mount on frames, equipped with fittings
  • high pressure hose to connect the pump to the pressure regulation unit
  • * the pump is complete and ready to use
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
Comet APS 96 Tractor-Mounted Sprayer Pump – high pressure
