Comet APS 96 - Spray pump with tractor attachment - High pressure

Questions & Answers (5)
ID: 1839

EAN: 8080546013933

MPN: 30015-00007

8,1/10
After-sales assistance & Spare parts
Comet APS 96 - Spray pump with tractor attachment - High pressure
+600 sold
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 28/10/2026 - 30/10/2026
€ 739,75
Vat included
Technical data
Configuration
Pump only
Water pump type
Diaphragm
Number of diaphragms
4
Flow rate
88 L/min
Max. operating pressure
50 bar
Motor type
Tractor-driven PTO
Absorbed power
11.7 HP
Type of attachment
Dual PTO
Manufacturing country
Italy
Product Features
Model
APS 96
Type
4 membranes
Configuration
Pump only
Motor type
Tractor PTO
Operating mode
Tractor-driven PTO
Configuration
Pump only
Flow rate
88 L/min
Max. operating pressure
50 bar
Manufacturing country
Italy
Motor data
Motor type
Tractor-driven PTO
Type of attachment
Dual PTO
Absorbed power
11.7 HP
Pump data
Pump brand
Comet
Number of diaphragms
4
Water pump type
Diaphragm
Manufacturing country
Italy
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Net weight
22.5 Kg
Packaging
Original packaging
Assembly time
Assembled

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

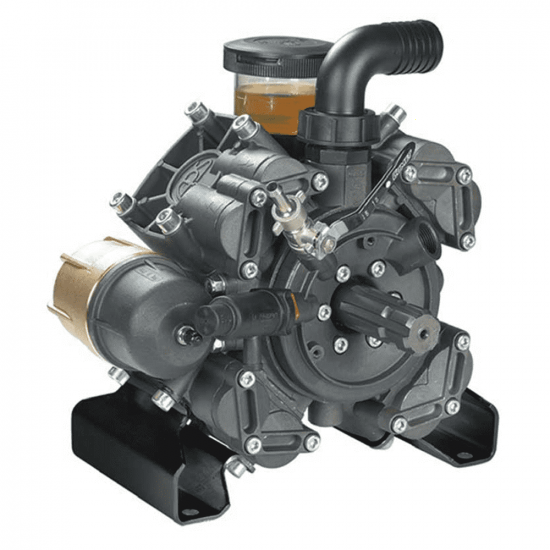

Comet APS 96 Tractor Mounted Pump

For spraying treatments in medium and large crops.
Application on trailed and wheeled sprayers
Parts in contact with liquid made of anodized aluminium, resistant to corrosion.

New 4-membrane configuration.

Hydraulic accumulator. internal manifolds.
The suction-discharge valves, all arranged on the pump discharge side, are easy to check. Discharge valve Safety valve

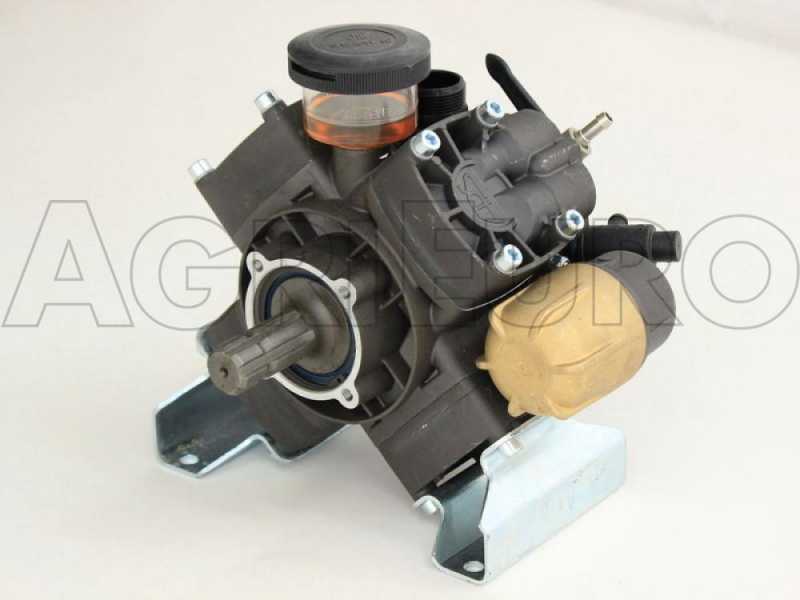

The pump features a through shaft like in the pic. here shown



To complete the equipment for its use, you can purchase the PRESSURE REGULATION UNIT.

After that, the product is complete and can be used by connecting it to your tractor. You can find and purchase these accessories in the tab "related products" at the top.



NOTE:
If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

Main Features

Performance

N. of membranes/pistons
4
Flow rate
88.0L/min
Pressure
50.0 bar
Power
11.7 CV
RPM
550
Weight
22.5 Kg

It allows to operate:

  • up to 5 to manual lever lances (or knobs) simultaneously
  • 2 MITRA lances simultaneously
  • 2 lateral rods for spraying with 4 butterfly jets each

Feet for storage included

Connection for the control unit

You can combine the control group you prefer by purchasing it separately during the order completion phase or by browsing the related products.

Configurations Available

Two main examples on how to complete your pump with the accessories you find in the "RELATED PRODUCTS" tab:

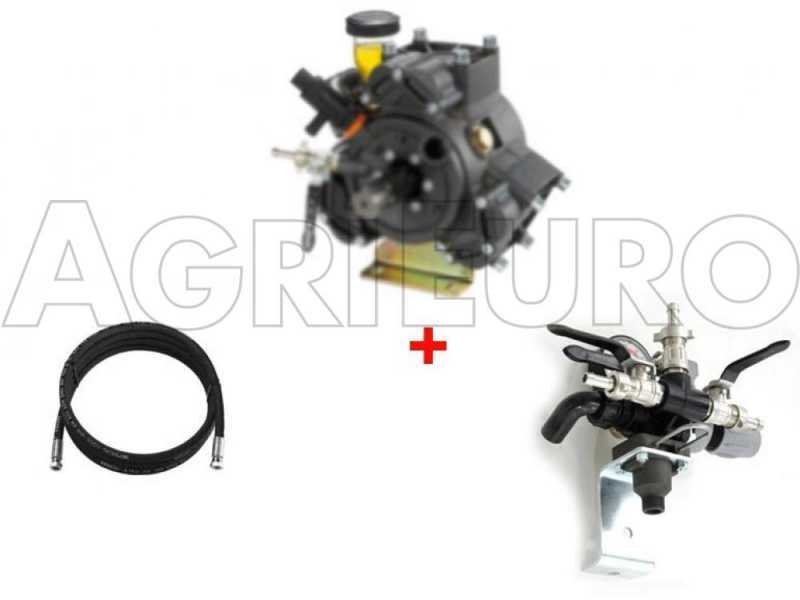

Pump configuration for distance connection to the tractor, through the cardan shaft:

  • Distance pressure regulation unit to mount on frames, equipped with fittings
  • high pressure hose to connect the pump to the pressure regulation unit
  • * the pump is complete and ready to use

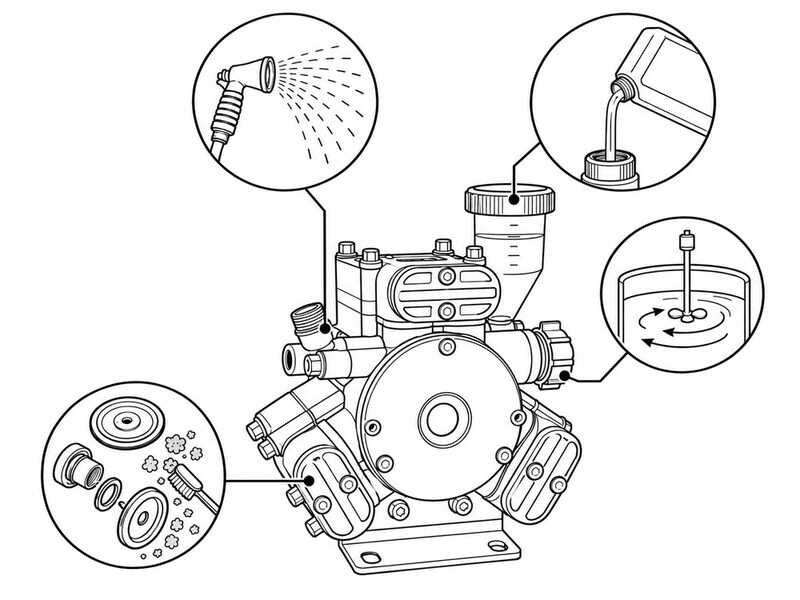

Recommendations for Use - Sprayer Pumps

To ensure the spray pump remains efficient and reliable over time, it is essential to clean the circuit thoroughly after each treatment and to carry out regular maintenance on the main components.

Residues from the products used can build up inside the pump, particularly on valves, their seats, diaphragms, seals and tubes, leading to the formation of deposits, blockages and limescale.

For this reason, after each use, it is recommended that the circuit be thoroughly flushed with clean water, allowing the water to circulate through the pump to remove as much residue from the solution used as possible.

It is also important to always follow the dilution ratios specified by the manufacturer of the product used, avoiding excessive concentrations or the introduction of substances into the circuit that have not been properly dissolved.

A properly prepared solution reduces the build-up of deposits and helps to preserve the pump’s internal components.

When using mineral-based products or substances prone to settling, it is advisable to have an agitator or mixing system inside the tank.

Continuous agitation keeps the product in suspension and reduces settling at the bottom.

EXTRAORDINARY MAINTENANCE

At the end of the season, it is advisable to carry out a more thorough inspection of the pump, removing the valves from their seats to eliminate any residues or limescale.

It is also advisable to remove the membrane heads, check the condition of the membranes and remove any deposits present inside.

It is important to check and replace the oil in accordance with the instructions, timings and specifications set out in the manufacturer’s user and maintenance manual.

Proper cleaning and regular maintenance help to maintain the pump’s performance and extend its service life.
