Comet APS 51 - High Pressure Tractor-Mounted Sprayer Pump

Questions & Answers (6)
ID: 1021

EAN: 9993081520325

MPN: 30012-00010

8,1/10
After-sales assistance & Spare parts
Comet APS 51 - High Pressure Tractor-Mounted Sprayer Pump
+200 sold
Configuration
Pump only
Water pump type
Diaphragm
Number of diaphragms
3
Flow rate
50 L/min
Max. operating pressure
40 bar
Motor type
Tractor-driven PTO
Nominal power
5.2 HP
Manufacturing country
Italy
Product Features
Model:
APS 51
Type:
Three membranes
Configuration:
Pump only
Motor type:
Tractor PTO
Operating mode:
Tractor-driven PTO
Configuration:
Pump only
Flow rate:
50 L/min
Max. operating pressure:
40 bar
Manufacturing country:
Italy
Motor data
Motor type:
Tractor-driven PTO
Nominal power:
5.2 HP
Pump data
Pump brand:
Comet
Number of diaphragms:
3
Water pump type:
Diaphragm
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
16.4 Kg
Packaging:
On pallet
Gross weight (packaging included) :
22 Kg
Assembly time:
Assembled
Prompt Delivery
13 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
€ 534,24
VAT Included

You're viewing:
Customers also viewed:
Description

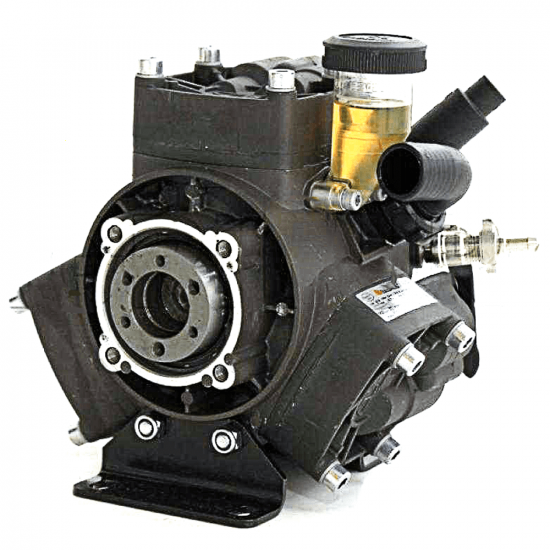

Comet APS 51 Tractor Mounted Pump

For spraying treatments in medium and large crops. Application on trailed and wheeled sprayers
The parts in contact with the liquid are made of anodized aluminium, resistant to corrosion.

New three-membrane configuration.

Interior manifolds. The suction-discharge valves, all arranged on the pump discharge side, are easy to check. The valve is made with stainless steel site and plate.

 ATTENTION!

The PRESSURE REGULATION UNIT and the male or female PTO to operate it complete the equipment to use the machine.

After that, the product is complete and can be used by connecting it to your tractor. You can find and purchase these accessories in the tab "related products" at the top.

NOTE:
If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

Main Features

Performance

N. of membranes/pistons
3
Flow rate
50.7 l/min
Pressure
40.0 bar
Power
5.2 CV
RPM
550
Weight
16.4 Kg

It allows to operate:

  • up to 5 to manual lever lances (or knobs) simultaneously
  • 2 MITRA lances simultaneously
  • 2 lateral rods for spraying with 4 butterfly jets each

Feet for storage included

Connection for the control unit

You can combine the control group you prefer by purchasing it separately during the order completion phase or by browsing the related products.

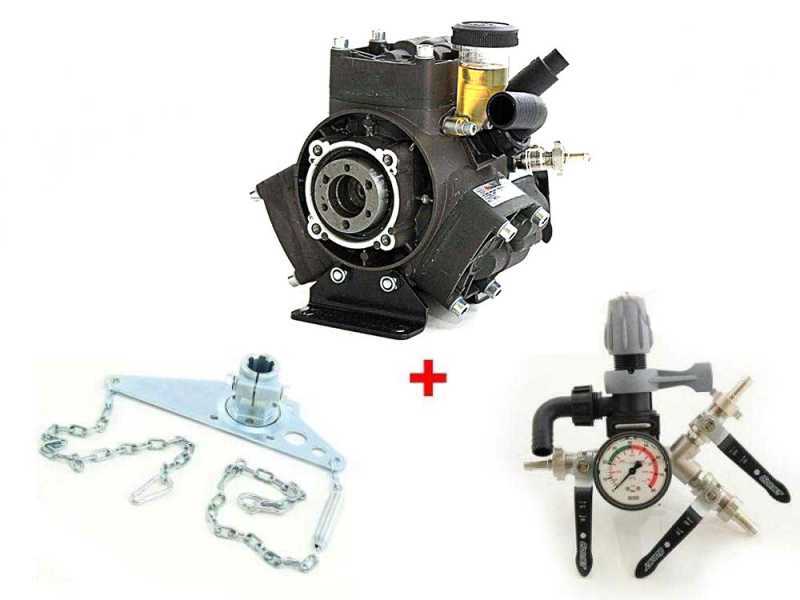

Configurations Available

Two main examples on how to complete your pump with the accessories you find in the "RELATED PRODUCTS" tab:

Pump configuration for direct connection to the tractor PTO:

  • pressure regulation unit to mount directly on the pump
  • female power take-off to mount directly on the pump, equipped with supports with chains
  • * the pump is complete and ready to use

Pump configuration for distance connection to the tractor, through the cardan shaft:

  • Distance pressure regulation unit to mount on frames, equipped with fittings
  • high pressure hose to connect the pump to the pressure regulation unit
  • male power take-off to mount directly on the pump, to connect the tractor cardan shaft to the pump
  • * the pump is complete and ready to use
