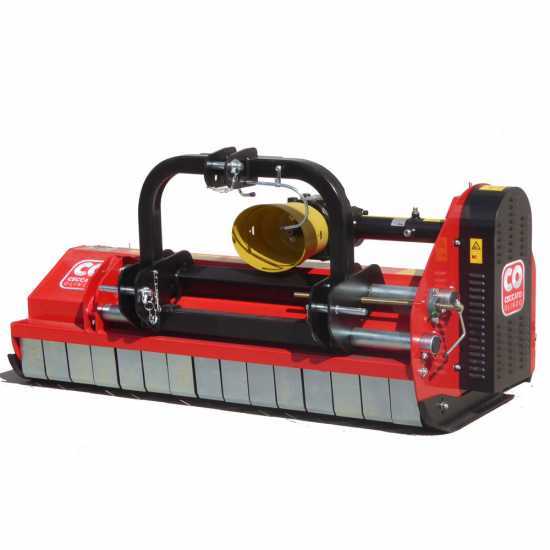

Ceccato Trincione 400 - 4T2000M - Tractor-mounted Flail Mower - Heavy Series - Manual Shift

Questions & Answers (1)
ID: 103124

EAN: 9999237536172

MPN: 4T2000M

After-sales assistance & Spare parts
Ceccato Trincione 400 - 4T2000M - Tractor-mounted Flail Mower - Heavy Series - Manual Shift
+10 sold
Tractor power
From 60 to 70 HP
517 Kg
Cutting width
200 cm
Sliding motion
Standard cutting tools
Hammer flails
Double skin frame
Hammer flail weight
1.2 Kg
Manufacturing country
Product Features
Trincione 400 - 4T- 2000M
Tractor power:
From 60 to 70 HP
Manual shift:
Manual shift:
Hydraulic shift:
Sliding motion:
Fixed 3-point hitch:
Reversible three-point-hitch:
Cardan shaft rotation:
Manufacturing country:
Transmission data
Integrated free wheel device:
Cutting data
Cutting width:
200 cm
Wood diameter:
Up to 50 mm
No. of blades:
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Cutting width:
200 cm
Collection bag:
Double skin frame:
Single row
Side drive belts:
Pantograph arm:
Rear brush rakes (collection rods):
Rear support roller:
Free gifts/extra features
Side skids:
Cardan included:
Cardan shaft:
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
218x100x88 cm
Net weight:
517 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
218x100x105 cm
Gross weight (packaging included) :
515 Kg
Unloading with hydraulic tail lift:
Assembly time:
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
Suggested price:
€ 4.828,31
€ 4.104,06
VAT Included
You're viewing:
Customers also viewed:

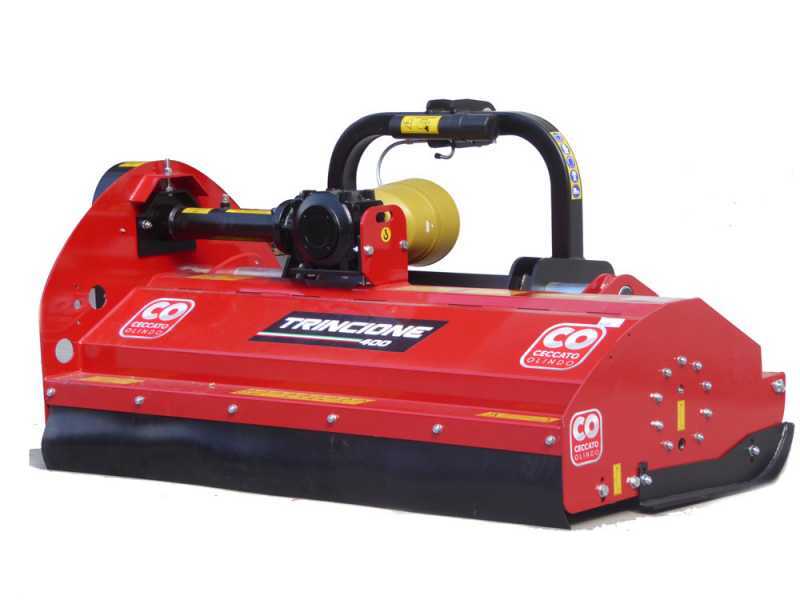

Introduction to the product

The CECCATO TRINCIONE 400 - 4T2000M flail mower with mechanical side shift and screw system for a comfortable transport is an innovative Italian product provide high performances.

The machine features a very sturdy design thanks to the double deck designed to be shock-resistant over time.

The choice of the first quality components make this machine suitable for different type of operations (grass, pruning, straw, etc.)

It is equipped with 4-belt trasmission and a proper spy-hole to check the oil level on the on the transmission shaft the connects the pulley to the reducer.


  • Real working width: 200 cm
  • Real width occupied (with side skids assembled): 218 cm
  • Weight: 517 kg
  • Rear support roller

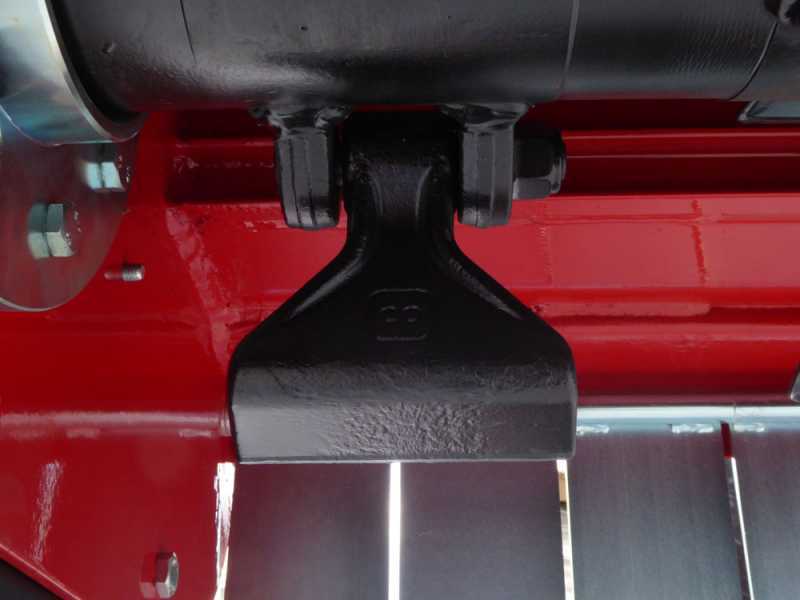

Cutting tools

Nr. of smooth hammer flails on standard equipment: 30

Smooth hammer flails

They are very sturdy hammer flails and of first quality of the brand Olindo Ceccato.

It finely grinds grass and shoots. Thanks to the high engine revolutions per minute (540 rpm) and a high no. of hammer flails it reduces the wave effect of the turf and carries out an excellent grinding operation.

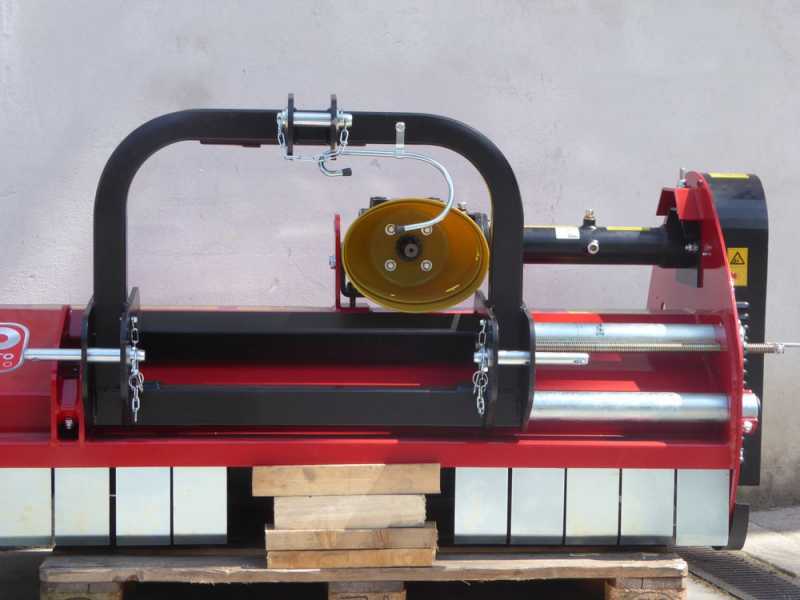

Hydraulic side shift and 3 points hitch

Equipped with manual side shift with screw system that enables to change position

  • Position 1
  • Position 2
  • Position 3

The 3 point hitch is located on a very sturdy tubular going along the full structure.

The manual shift of the flail mower is powered by a handy and sturdy screw system that enables to move the flail mower to the right and the left.

Universal standard power take-off (1 3/8" Z6)

Focus on the sturdy 3 points linkage.

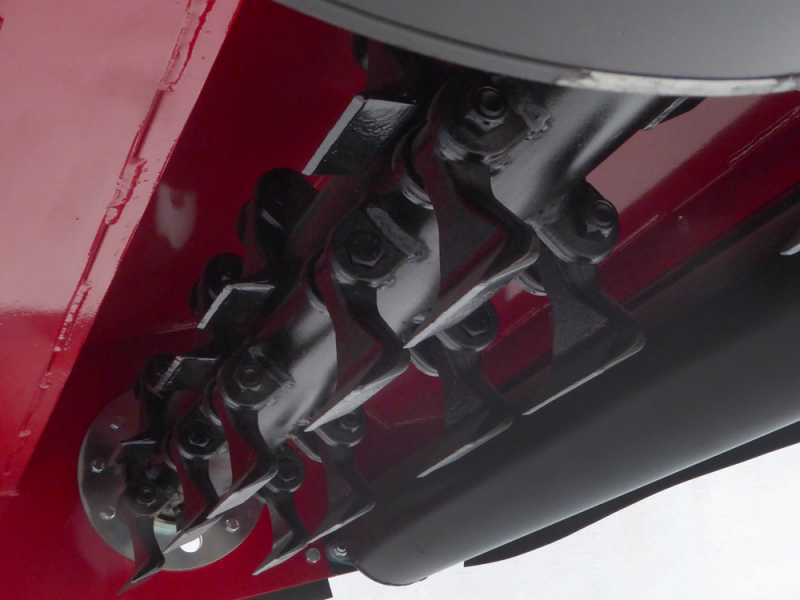

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor with 40 cm diameter It can resist to many years job and accidental hits.

It is electronically balanced.

The rotor is mounted on side steel supports equipped with roller bearings which are 10 times sturdier that normale ball bearings.

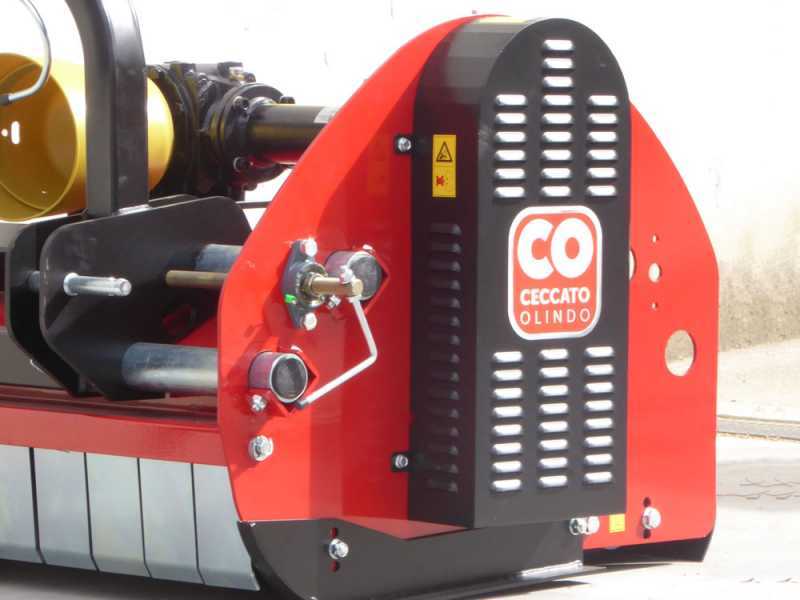

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The machine is equipped with the highest-quality gear multipliers Made in Italy. The outer body is moulded, while the inner gear made of tempered steel. It is also equipped with lubricated extension and a useful spy-hole for the oil check.

Big section 4 belts transmission

Belt protection side shield, with optimized dimension: 4 big section belts. This kind of side shield saves room on the product’s total width.

Greaser side transmission particular, easy to access from a dedicated opening

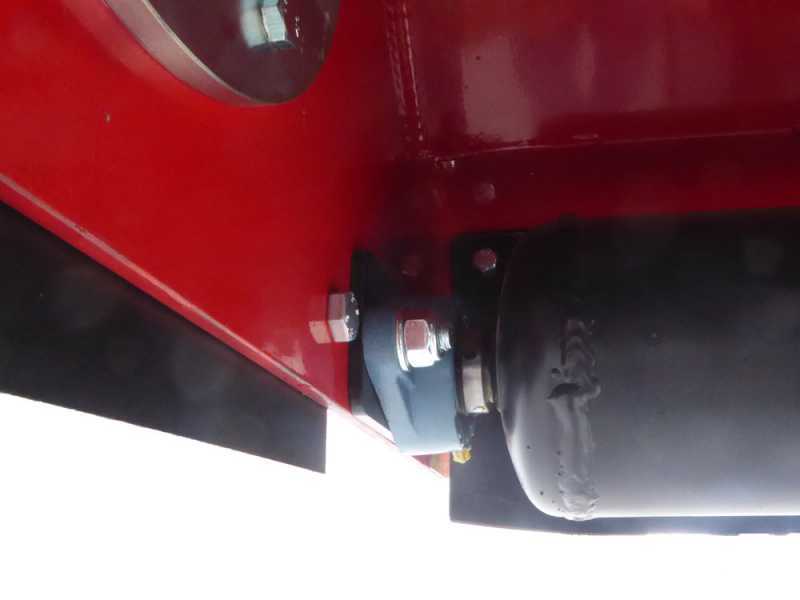

High thickness steel double skin frame with double counter-blades row.

High thickness double skin frame (double shell) (4 + 4 mm).

The two shells are one laying over the other one and this makes the equipment sturdiest than the ones with a standard frame.

This fail mover is indestructible even in hostile conditions.

Resistant even to medium-sized stones, shrubs and the underbrush.

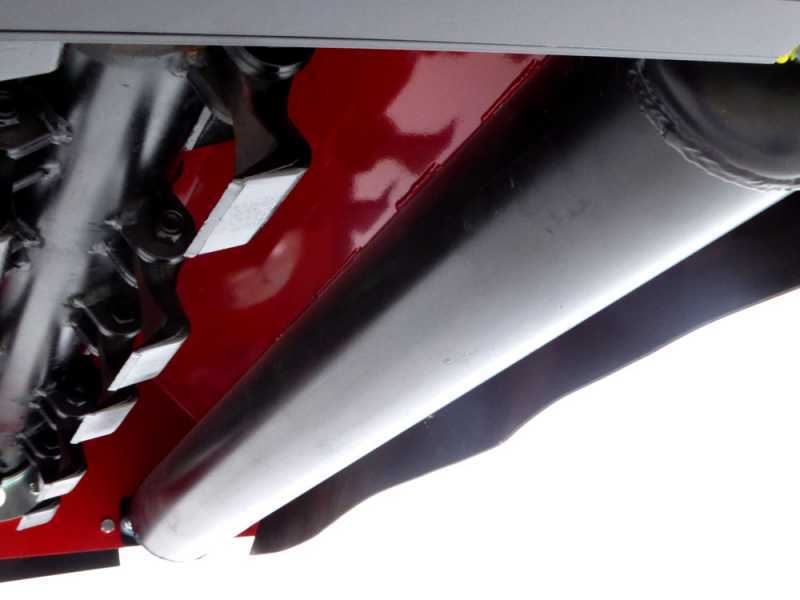

Stabilizer accessories - rear roller and side skids

Rear height adjustable roller exceptional diameter: 140 mm. Without any doubt, the biggest in its category.

Focus on the roller side supporting plate , with holes for the height adjustment.

Focus on the Roller scratching bar , adjustable by means of screws.

Side skids

Free items & Standard equipment

Standard equipment

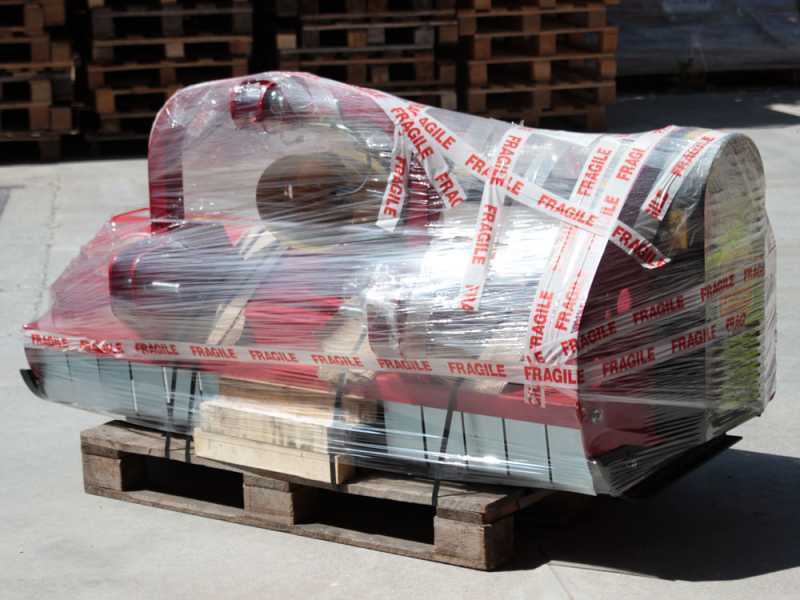

The product is shipped on a 80x120 pallet.

  • side skids
