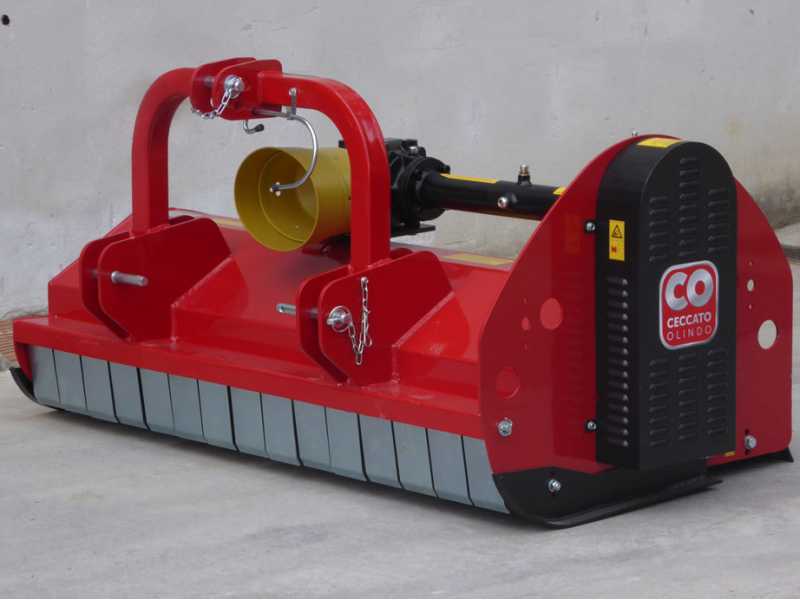

Introduction to the product

The CECCATO TRINCIONE 400 - 4T2000F flail mower is an innovative Italian product provide high performances.

The machine features a very sturdy design thanks to the double deck designed to be shock-resistant over time.

The choice of the first quality components make this machine suitable for different type of operations (grass, pruning, straw, etc.)

It is equipped with 4-belt trasmission and a proper spy-hole to check the oil level on the on the transmission shaft the connects the pulley to the reducer.

TECHNICAL DETAILS (in summary):

Real working width: 200 cm
Real width occupied (with side skids assembled): 218 cm
Weight: 472 kg
Rear support roller

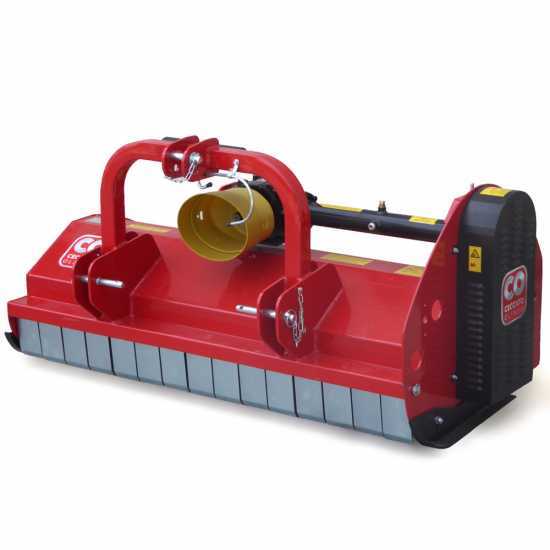

Ceccato Trincione 400 - 4T2000F - Tractor-mounted Flail Mower - Heavy Series

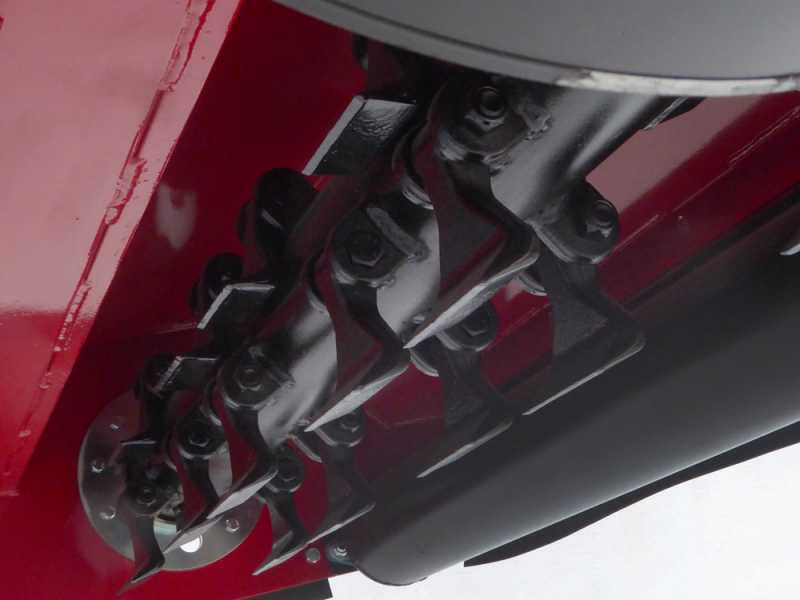

Cutting tools

Nr. of smooth hammer flails on standard equipment: 30

Smooth hammer flails

They are very sturdy hammer flails and of first quality of the brand Olindo Ceccato.

It finely grinds grass and shoots. Thanks to the high engine revolutions per minute and a high no. of hammer flails it reduces the wave effect of the turf and carries out an excellent grinding operation.

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor with 40 cm diameter It can resist to many years job and accidental hits.

It is electronically balanced.

The rotor is mounted on side steel supports equipped with roller bearings which are 10 times sturdier that normale ball bearings.

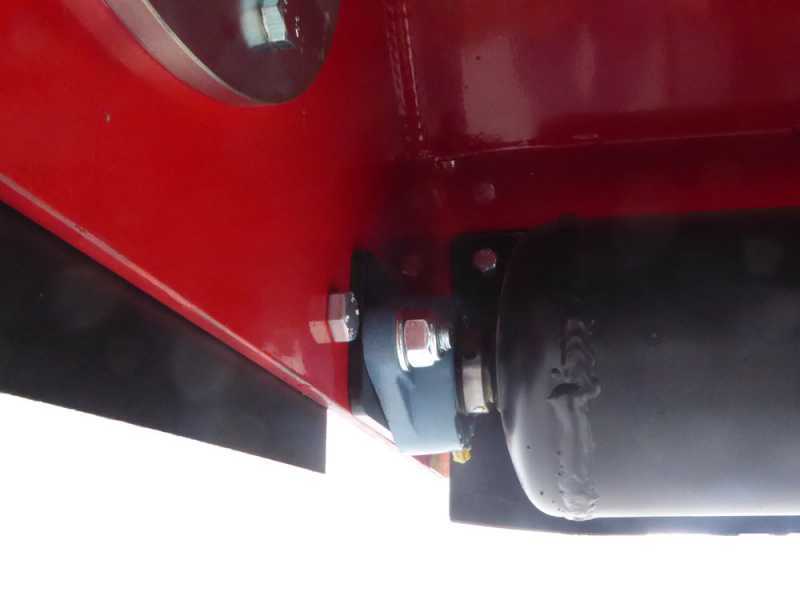

High thickness steel double skin frame with double counter-blades row.

High thickness double skin frame (double shell) (4 + 4 mm).

The two shells are one laying over the other one and this makes the equipment sturdiest than the ones with a standard frame.

This fail mover is indestructible even in hostile conditions.

Resistant even to medium-sized stones, shrubs and the underbrush.

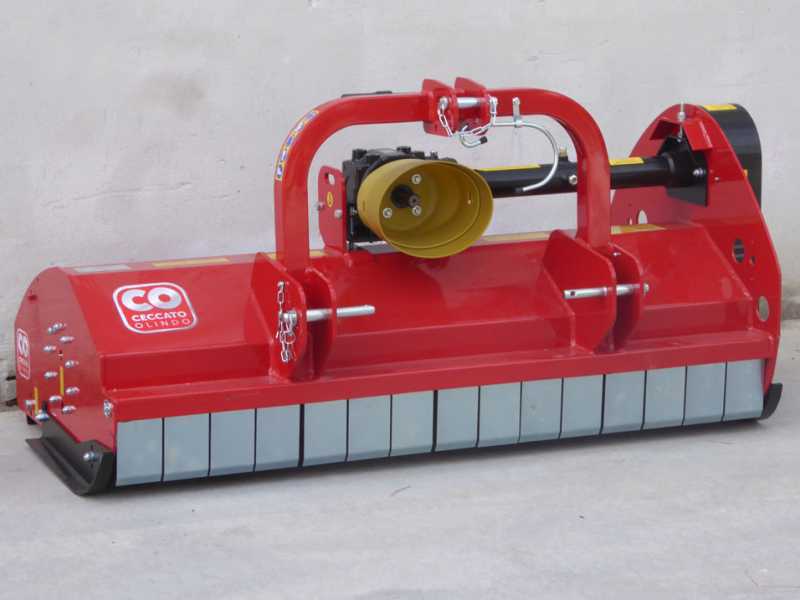

Fixed 3 points linkage

Provided with 3 point fixed linkage. Components are exclusively of Italian origin.

Joints particular, very close to the machinery frame , and not protuberant.

This allows the flail mower to work very close to the tractor, avoiding the stone is thrown towards the operator and mostly eliminating any possibility the machinery could be lifted as its weight will charge the tractor in a minor way.

This allows to attach the machine even to smaller tractors, despite its high weight.

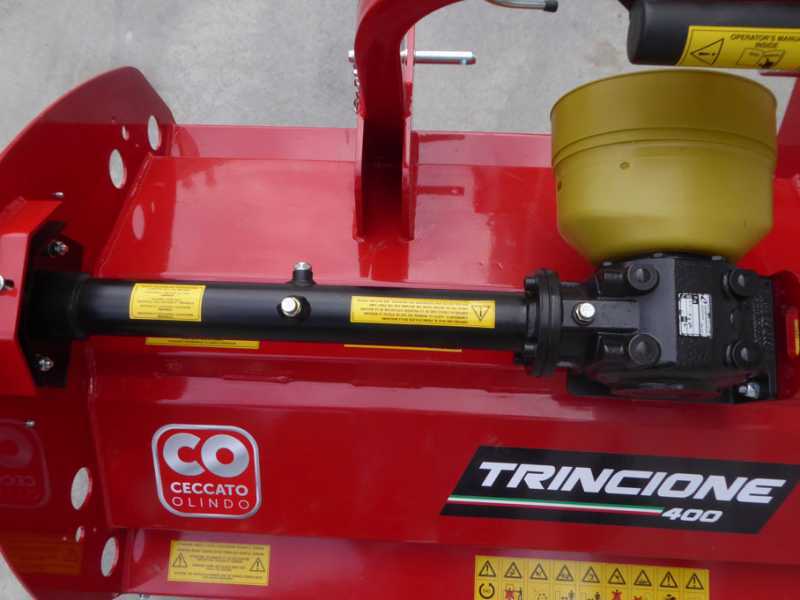

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The machine is equipped with the highest-quality gear multipliers Made in Italy. The outer body is moulded, while the inner gear made of tempered steel. It is also equipped with lubricated extension and a useful spy-hole for the oil check.

Big section 4 belts transmission

Belt protection side shield, with optimized dimension: 4 big section belts. This kind of side shield saves room on the product’s total width.

Greaser side transmission particular, easy to access from a dedicated opening

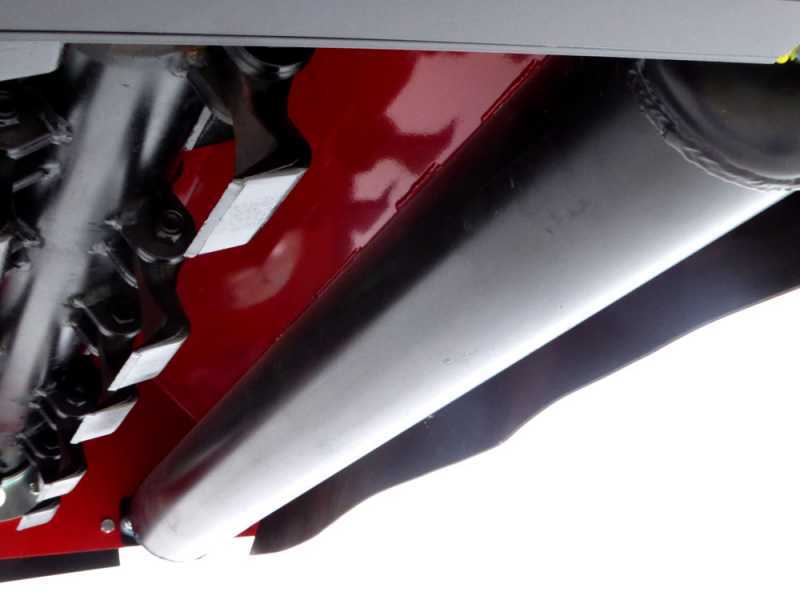

Stabilizer accessories - rear roller and side skids

Rear height adjustable roller exceptional diameter: 140 mm. Without any doubt, the biggest in its category.

Focus on the roller side supporting plate , with holes for the height adjustment.

Focus on the Roller scratching bar , adjustable by means of screws.

Side skids

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Ceccato Trincione 400 - 4T2000F - Tractor-mounted Flail Mower - Heavy Series

EAN: 9999237536158

MPN: 4T2000F
