Name: Ceccato TRINCIONE 400 4T1400M - Tractor-mounted Flail Mower - Heavy Series
Brand: Ceccato Olindo
SKU: 110593
Price: 3970.94 EUR
Availability: InStock
Rating: 4.83 (1 reviews)

Description

Product introduction

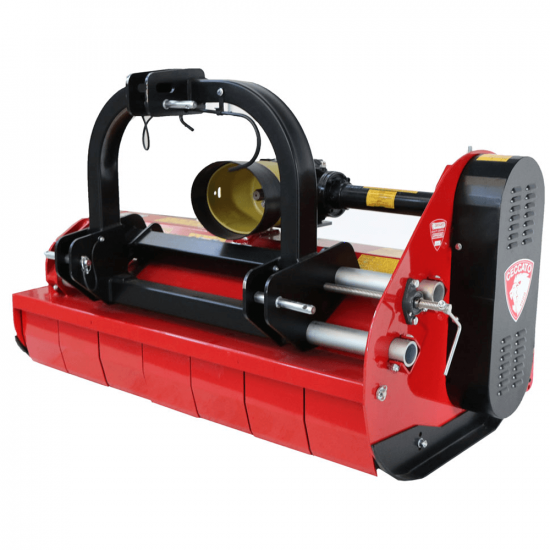

The Ceccato Olindo trincione 400 model is a tractor-mounted flail mower entirely Made in Italy, designed for professional use.

The mechanical shift and screw system makes it really easy and convenient to move the flail mower, an innovative machine made in Italy, equipped with very high performance.

A sturdy and resistant machine, designed to withstand considerable stress. Provided with a 4+4 mm double housing and special oscillating barrel roller bearings.

Electrically balanced rotor, adjustable idler roller and skids as standard.

Suitable for large tractors featuring a power between 40 and 80 Hp.

Sheet thickness: 6 mm.

The flail mower is fully robot-welded and made of top-quality components.

It is fitted with 4 drive belts and a grease nipple on the side of the transmission.

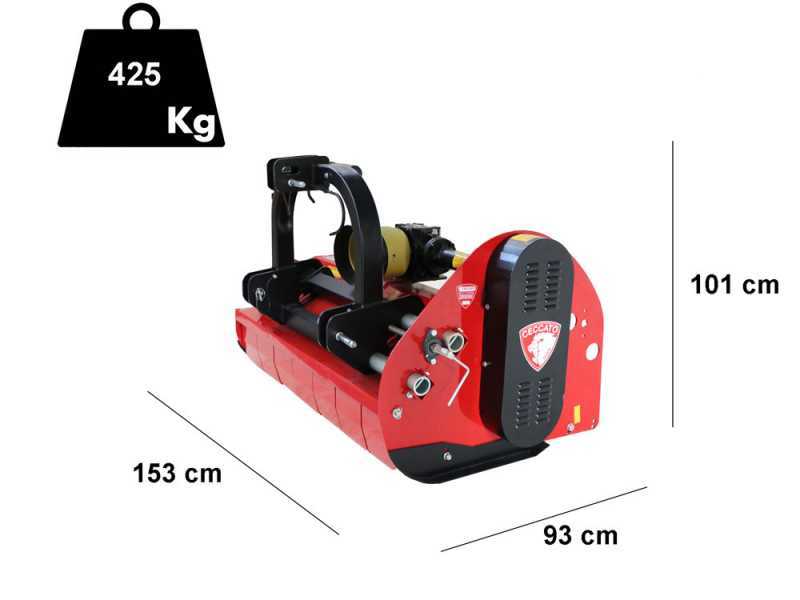

TECHNICAL DATA:

Real working width: 140 cm
Real width (side skids already assembled): 153 cm
Weight: 425 Kg
Rear supporting roller

Ceccato TRINCIONE 400 4T1400M - Tractor-mounted Flail Mower - Heavy Series

Cutting tools

No. of standard-supplied hammer flails: 20

Operation with hammer flails.

These are very sturdy and heavy-duty hammers of the highest quality Olindo Ceccato branded.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions (540 rpm) and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

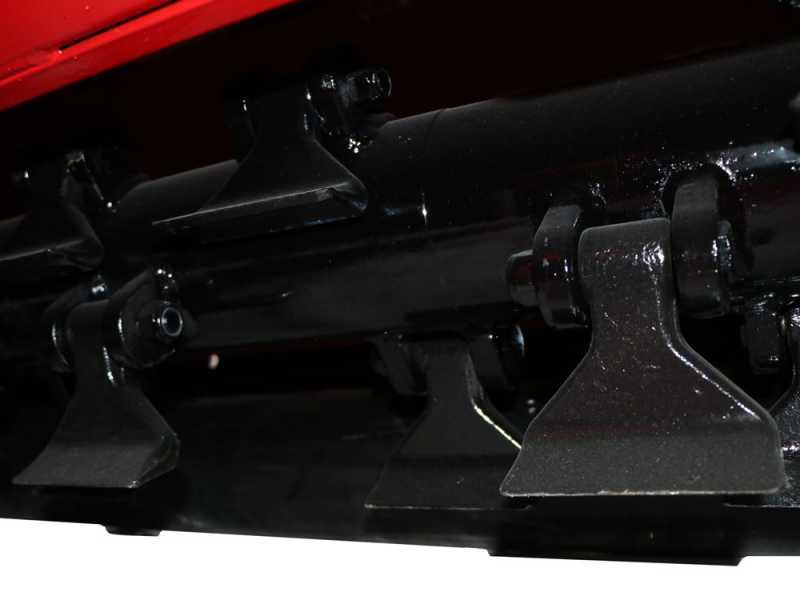

Rotor, reinforced hammer flail supports, side bearings

The highly-tick rotor features a 40 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Additionally, the electronically balanced rotor is mounted on side steel supporting bars that are provided with barrel roller bearings, renowned to be 10 times more resistant compared to the standard ball bearings.

Double housing and counter blades

The flail mower is equipped with a highly-thick double 4+4 mm housing.

These two steel plates are in contact and laid one on top of the other, making the machine much more sturdy compared to classic flail mowers with a standard frame.

This flail mower is thus truly indestructible even under the most adverse conditions.

It withstands stones (not too large), shrubs, brushwood and undergrowth with even large diameter branches without the slightest difficulty.

Side belt drive and gearbox unit

Large gearbox in oil bath, the machine is equipped with the best gearboxes. The housing is made of cast iron, while the internal gears are made of hardened steel. Also fitted with a lubricated extension with a very useful peep-hole for checking the oil level.

4-belt side drive with large section belts.

Space-optimised lateral belt guard: despite the transmission being equipped with 4 large-section belts. This feature allows the flail mower to take up very little space.

- Focus on the grease nipple on the transmission side, placed in a convenient position for easy access.

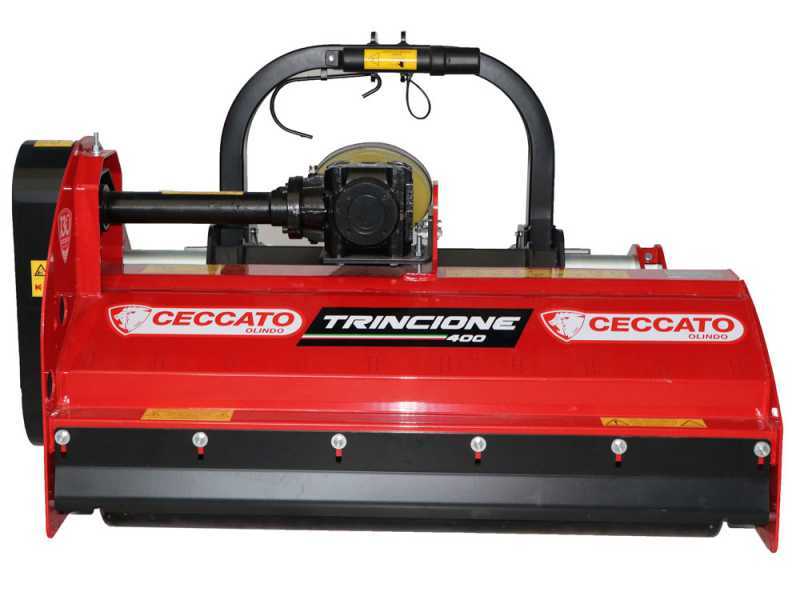

Stabiliser devices - rear roller and side skids

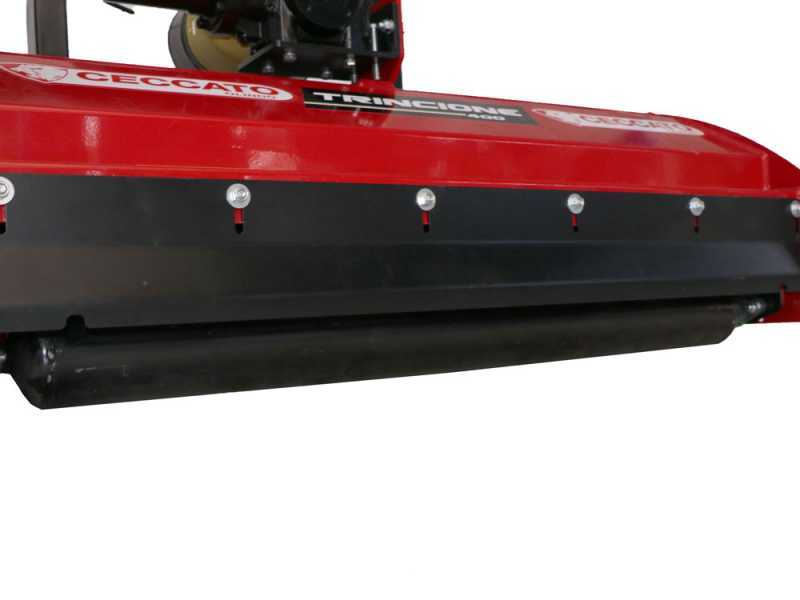

Height-adjustable rear supporting roller with an exceptional diameter of 140 mm.

Adjustable side support skids on standard equipment

Heavy-duty Series front protection slaps made of shaped steel.

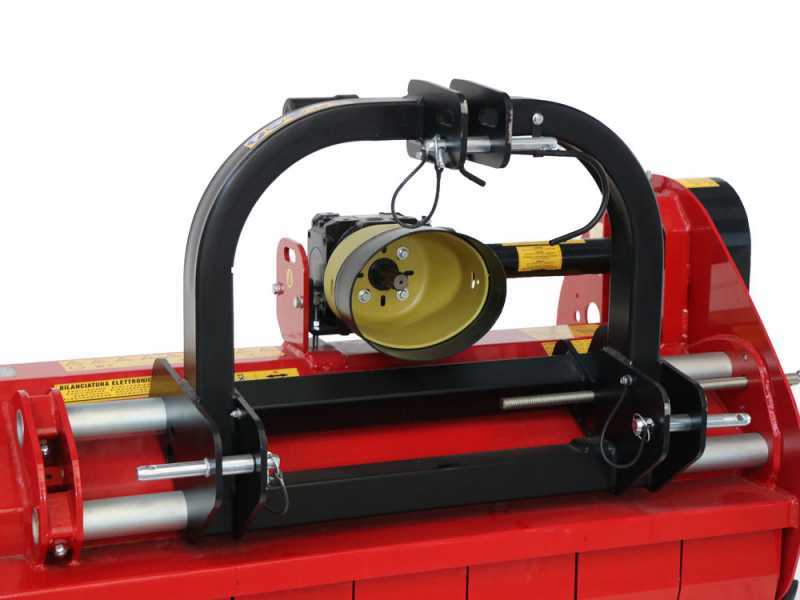

Hydraulic side shift and 3-point hitch

The flail mower is provided with manual shifting with screw system which allows to adjust the position of the equipment.

Position 1
Position 2
Position 3

The 3-point hitch slides on sturdy tubular skids, which allow the flail mower to change position with great precision.

The manual movement of the flail mower is operated by means of a very convenient and sturdy screw system, which allows easy movement of the equipment to the left and right.

Universal standard PTO ( 1 3/8" Z6 )

Focus on the 1° category sturdy 3-point hitch.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.
