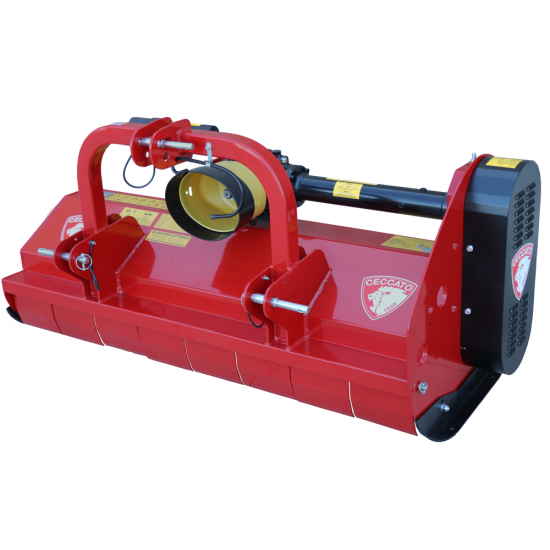

Product introduction

The Trincione Ceccato 380 - T1800F with Fixed Attachment tractor flail mower is an Innovative machine completely Made in Italy, which provides very high performance.

The flail mower features a compact and sturdy design thanks to its double skin frame 3+3 mm, which has been specially designed to withstand time and the shocks it can receive.

The choice of top-quality components makes this machine suitable for different types of mowing operations (grass, pruning, straw, etc.).

It is equipped with 4 transmission belts and a special peephole for checking the oil level along the transmission shaft that connects the pulley to the gearbox.

Furthermore, this flail mower is built with the highest-quality materials and it is equipped with all the necessary safety devices according to the current legislation.

As you can see from the photos, the 380 products have a thinner housing than the 400 series products.

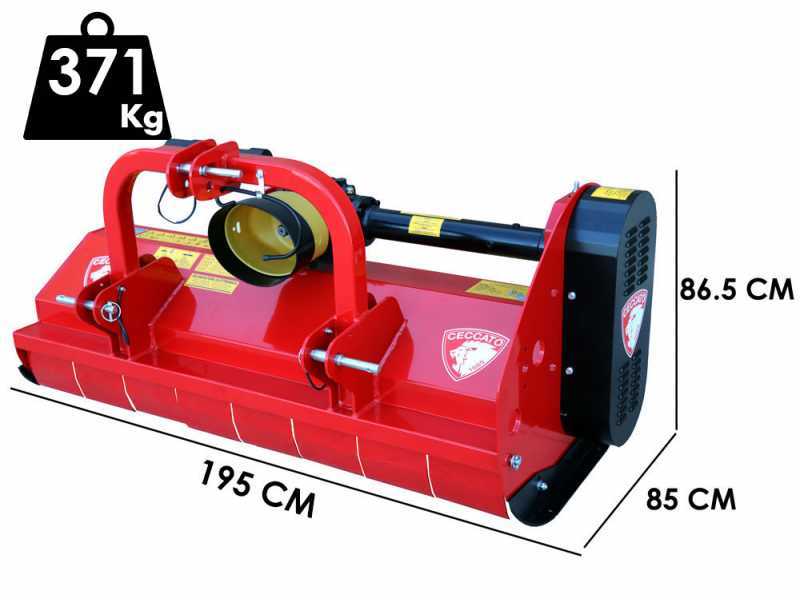

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 180 cm
Real width occupied (with side skids already mounted): 195 cm
Weight: 371 kg
Rear support roller with a diameter of 132 mm

Ceccato Trincione 380 - T1800F - Tractor-mounted Flail Mower - Medium-light Series - Hydraulic Shift

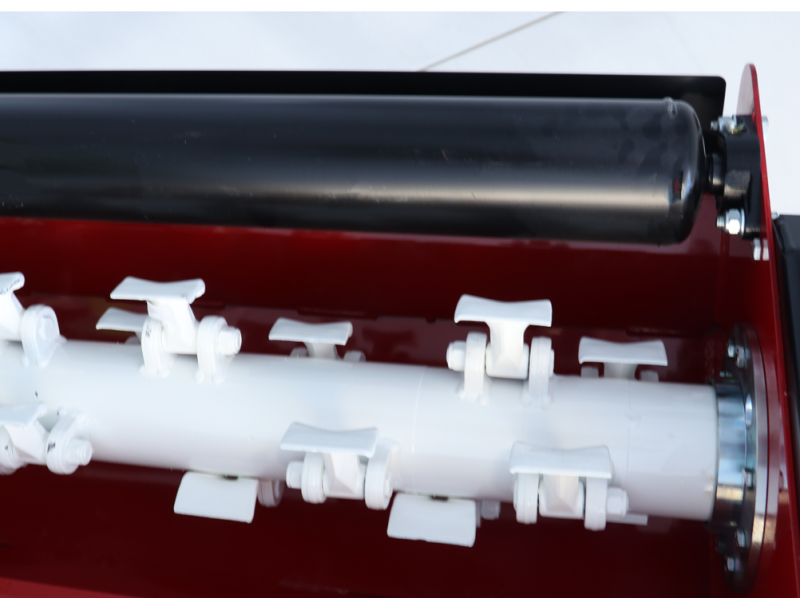

Cutting tools

No. of standard-supplied toothed hammers: 26

Toothed hammer flails

These highly-sturdy and heavy hammers represents the high quality of the brand they pertains: Olindo Ceccato.

This machine is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The hammers have a width of 82 mm.

The bolt diameter is 24 mm, while the width is 100 mm.

Roller cutting diameter: 125.5 mm

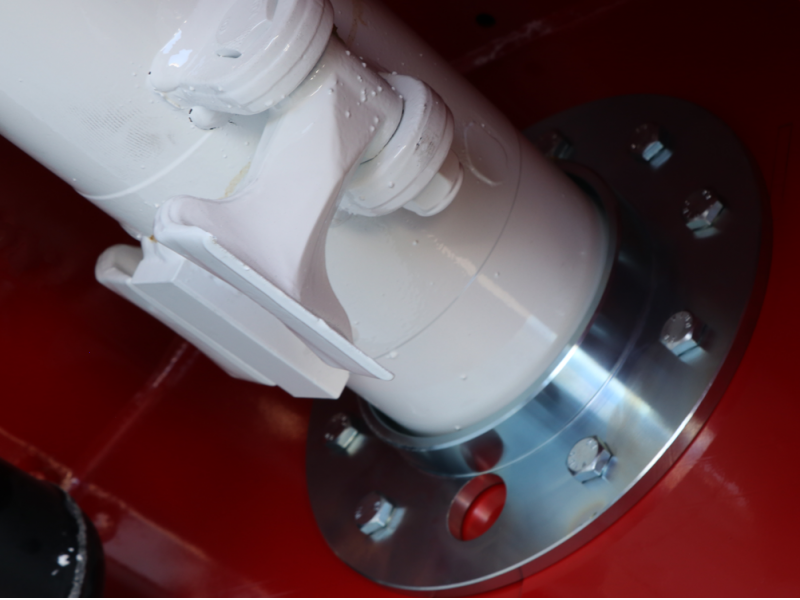

Rotor, reinforced hammer flails supports, side bearings

The highly-tick rotor features a 132 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Additionally, the electronically balanced rotor is mounted on side steel supporting bars that are provided with spherical roller bearings, renowned to be 10 times more resistant compared to the standard ball bearings.

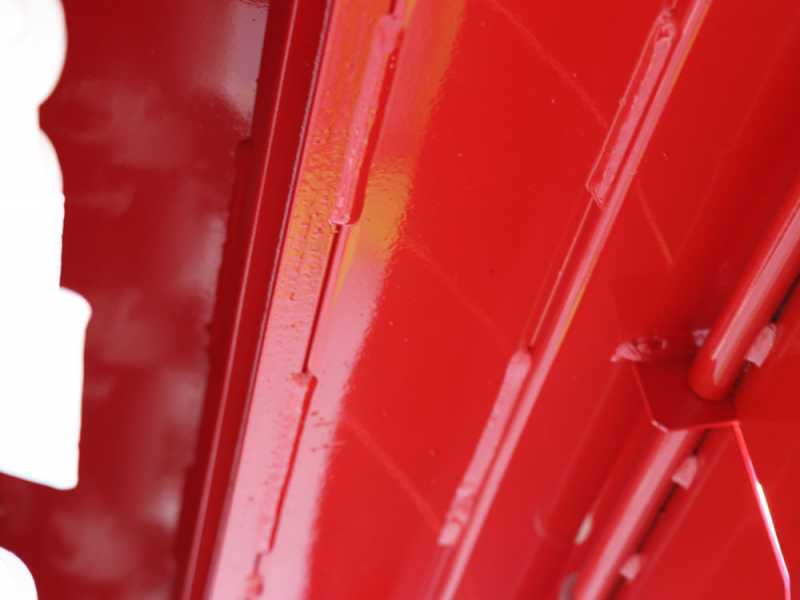

High thickness steel double skin frame with double counter-blades row

The flail mower is equipped with a highly-thick double skin frame (3+3 mm).

These two steel plates are in contact and laid one on top of the other, making the machine much more sturdy compared to classic flail mowers with a standard frame.

This flail mower is thus truly indestructible even in the most adverse conditions, while maintaining its ease of use.

It withstands stones, shrubs, brushwood and undergrowth with even large diameter branches without the slightest difficulty.

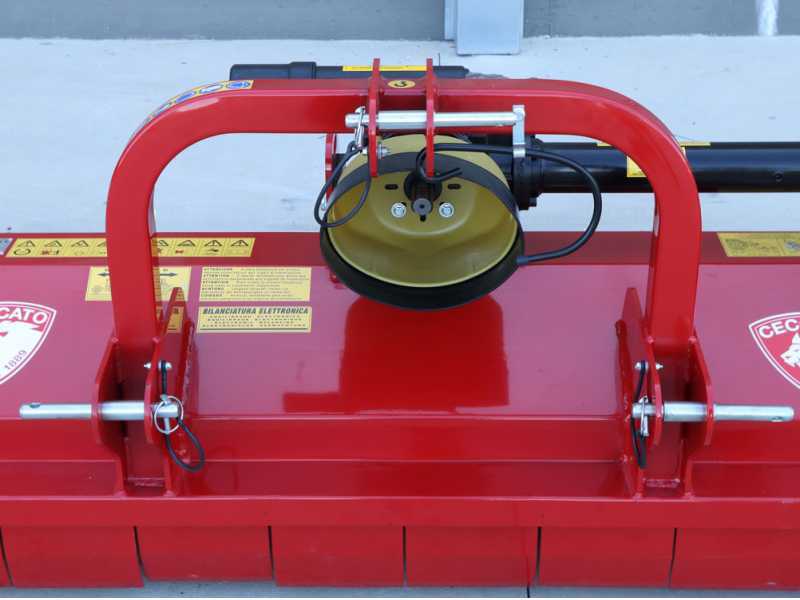

Fixed 3-point linkage

Equipped with standard fixed 3-point linkage. Thus, all the components are strictly Italian.

Focus on the couplings that are closely placed in proximity to the machine body, meaning that they are not protruding.

This allows the flail mower to be positioned very close to the tractor, eliminating the risk of stones being thrown at the Operator, but above all eliminating any problems with lifting the machine, because in this way its weight is very close to the tractor, thus placing a much lower burden on it than other products of the same type.

This feature makes possible to also fit the equipment with smaller-sized tractors despite its high weight, making the machine a versatile and easy-to.use product.

The upper pin of the 3-point linkage has a diameter of 25 mm, while the lower hitches have a diameter of 28 mm.

The pins are 60 mm width.

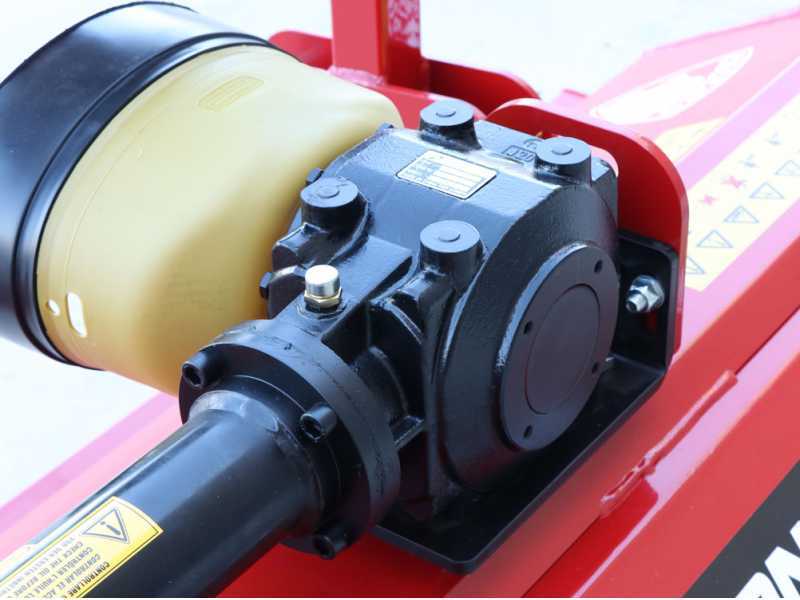

Side belt transmission and reduction gearbox

Large-sized gearbox in oil bath. The machine is equipped with the highest-quality gear multipliers Made in Italy. The housing is made of cast-iron and the internal gears in hardened steel. Thus, this flail mower model is also equipped with lubricated extension with eyelet, which proves to be really useful in order to check the oil level.Large-section 4-belt side transmission

Side belt cover with optimised dimensions. This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.

Stabilizer accessories - rear roller and side skids

Rear supporting roller with a large diameter of 132 mm.

Focus on the steel side bracket

Focus on the heavy-duty roller scraper support

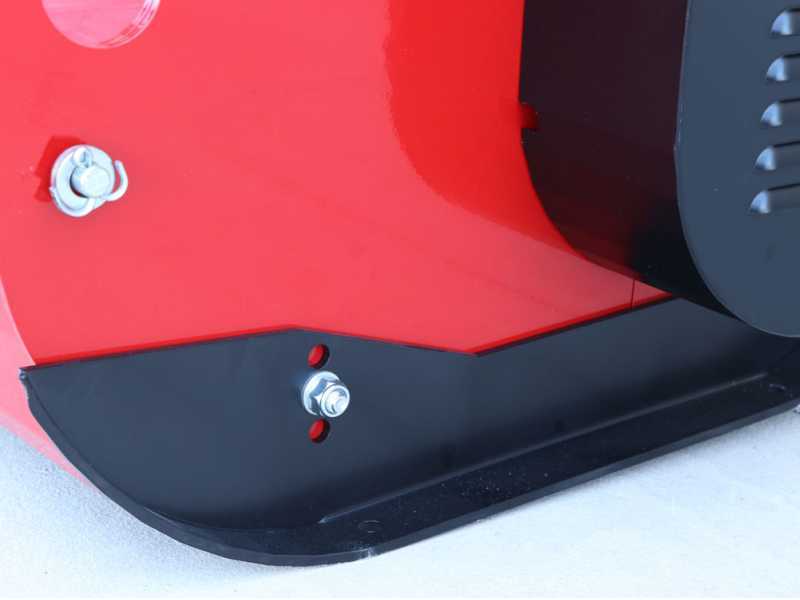

Height-adjustable side support skids

Heavy-duty Series of front protection slaps made of shaped steel.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.
