Ceccato SPLE12T - Electric Log Splitter - Vertical - 400V

Questions & Answers (1)
ID: 110602

EAN: 9999991098244

MPN: SPLE12T

8,5/10
After-sales assistance & Spare parts
Ceccato SPLE12T - Electric Log Splitter - Vertical - 400V
Max. trunk diameter
50 cm
Piston stroke
54 cm
Max. pressure
180 bar
Retractable piston for transport
Yes
Operating mode
Three-phase 400 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
12 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
BULL SPLE12T
Type:
Vertical
Double speed:
No
Operating mode:
Three-phase 400 V
Nominal splitting force:
12 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Motor speed:
2840 RPM
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
180 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
10 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes

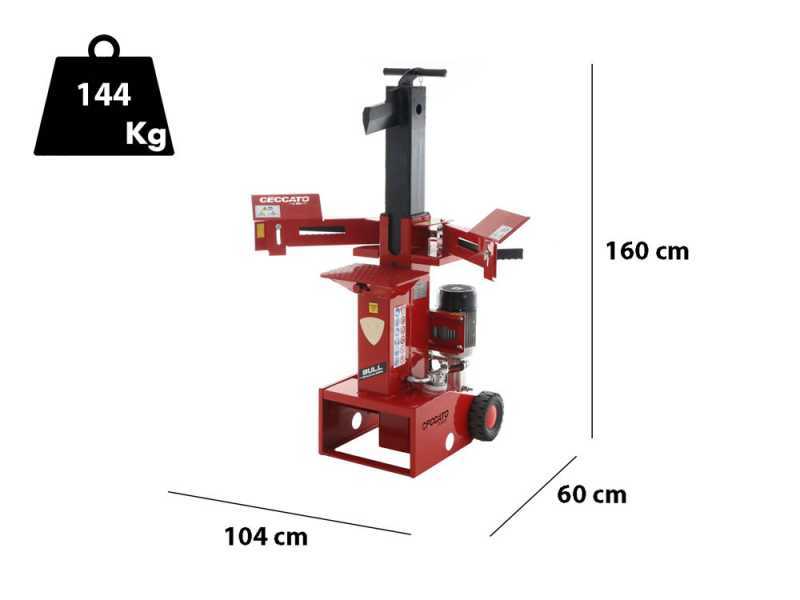

Dimensions and logistics
Product dimensions in cm (L x W x H):
104x60x160 cm
Net weight:
144 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
84x81x127 cm
Weight including packaging:
170 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
Suggested price:
€ 2.149,45
€ 1.998,99
Vat included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Ceccato Bull SPLE12T Electric Vertical Log Splitter - 12 tons

The Bull SPLE12T log splitter by Ceccato Olindo is an all-Italian vertical log splitter designed for semi-professional use. A product of the highest Italian quality Ceccato Olindo, a historical brand and leader in the sector.

Made with a reinforced frame, fully robot-welded, very sturdy, with Domex steel components, hardened steel knife with top-quality electrical and hydraulic components.

54 cm Splitting stroke with a double hydraulic pump and adjustable end-of-stroke control system.

Equipped with a powerful 4 Hp (3 Kw) three-phase electric motor. The Ceccato Olindo SPLE12T log splitter has 2 wheels and a special handle for easy transport. Thus, it is also equipped with an automatic adjustable end-of-stroke control system.
It has a double pump that guarantees a powerful thrust and great working speed.

Thanks to this electric log splitter, the cutting operations are easy and safe: the SPLE12T is equipped with special safety devices that are designed to protect the user.

Hydraulic hoses with screen-printed canvas sheathing in the fittings, in full compliance with regulations.

The machine is manufactured with all the necessary safety devices that are identified by current legislation and complies with EC safety regulations.

Splitting power: 12 tons

Trunk diameter: from 10 to 50 cm

Length of logs: from 18 to 50 cm

Running: 54 cm

Weight: 144 kg

The Ceccato Bull log splitter is entirely manufactured in Italy.

This machine is part of the log splitter Bull line by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: Cutting wedge with 3 inclination towards the column.

ARM CONTROL LEVERS: Shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. Thus, the shape has been specifically selected to prevent the possible fall of the log towards the operator.

HYDRAULIC HOSES: We have increased the tube diameter. This allows a lower oil temperature. Protection and skimming with Ceccato Olindo reinforced sheath and screen-printed with steel studs. In case of damage or burst of the hose, it allows retaining the vaporizing oil without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

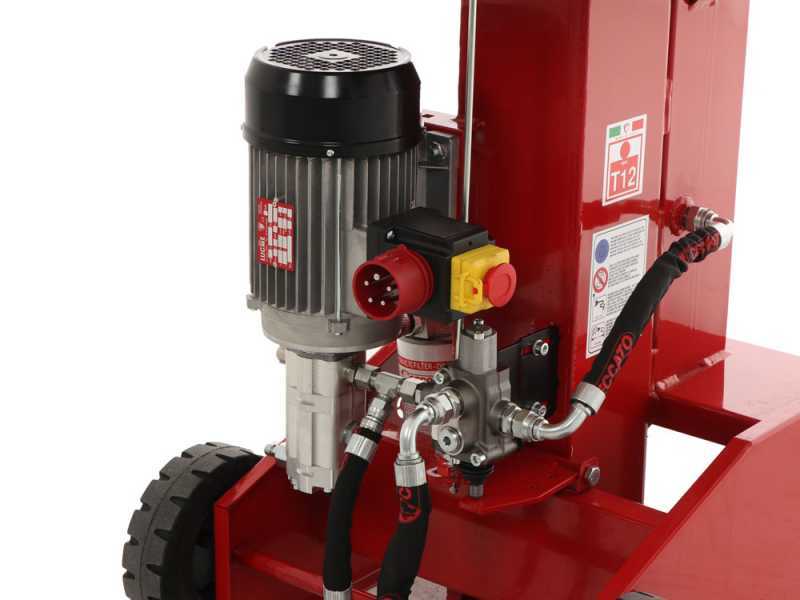

Electric motor

This log splitter can be used a normal mains power supply, using the three-phase 400 V, 4 Hp motor with a power of 3 kW.

The body of the machine structure itself has the function of hydraulic oil tank .

- Oil filter

- Porthole for oil control

It is equipped with a double pump that guarantees powerful thrust and high working speed.

- Focus on the double hydraulic pump

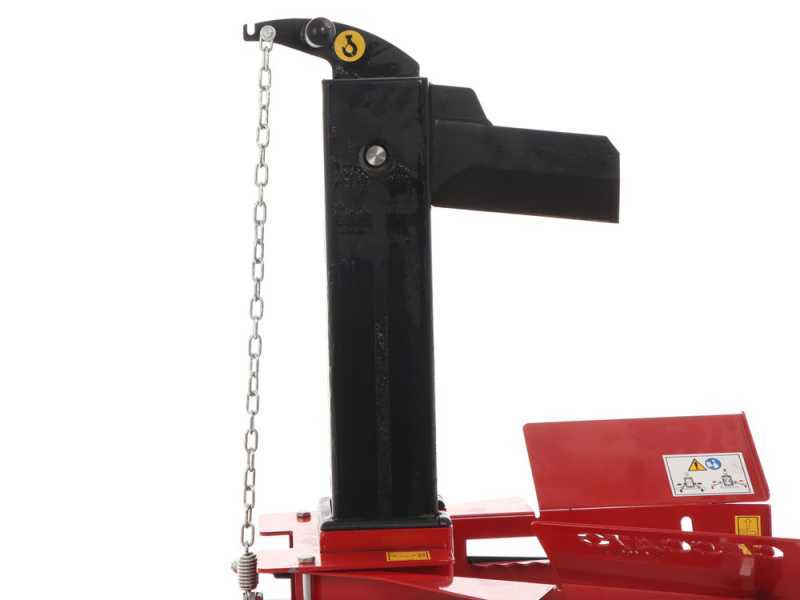

Wedge, dual control levers and cutting plate

With a cutting thrust of 12 tons, this Ceccato log splitter is able to split wood logs which vary in size up to a maximum of 50 cm heightand a 50 diameter.

The wedge is made of high-strength steel.

The work table is broad: 35 x 27 cm

The user will have to activate the machine by the two-hand command levers of the hydraulic valve to fully use the log splitter at best for his needs.

The pair of ignition handles It is equipped with appropriate hand protection and in accordance with all safety devices that protect the user.

Focus on the lateral log support integrated into the arms of the handles.

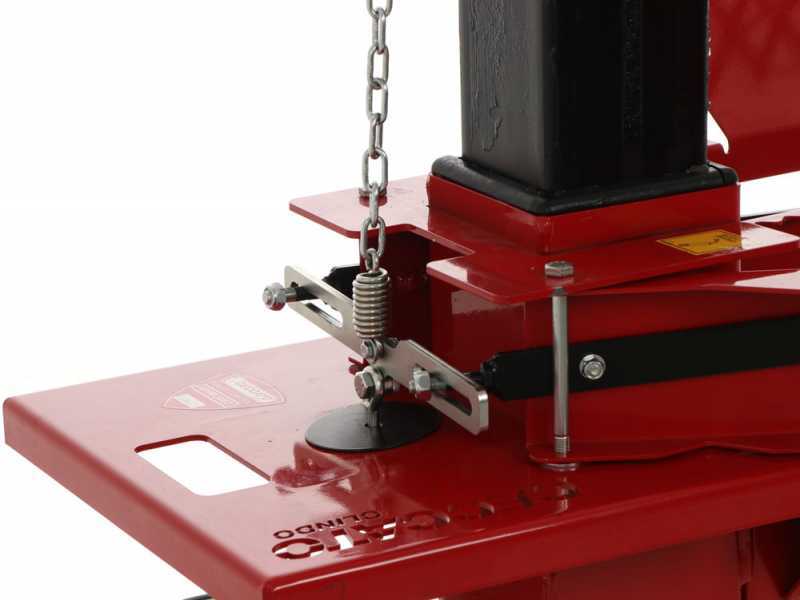

Adjustable limit switch control system

Additional features

The machine has a sturdy and super solid structure .

The log splitter comes complete with wheels for easy transport and it is renowned to be perfectly balanced: the log splitter can also be moved by a single operator using the handle to tilt the log splitter.

It is also equipped with a specific attachment point for lifting.

Solid support base

- Focus on the oil level check

- Detail of the Bull Series

This machine is made keeping in mind all of the industry standards in order to make the operator's work safe.

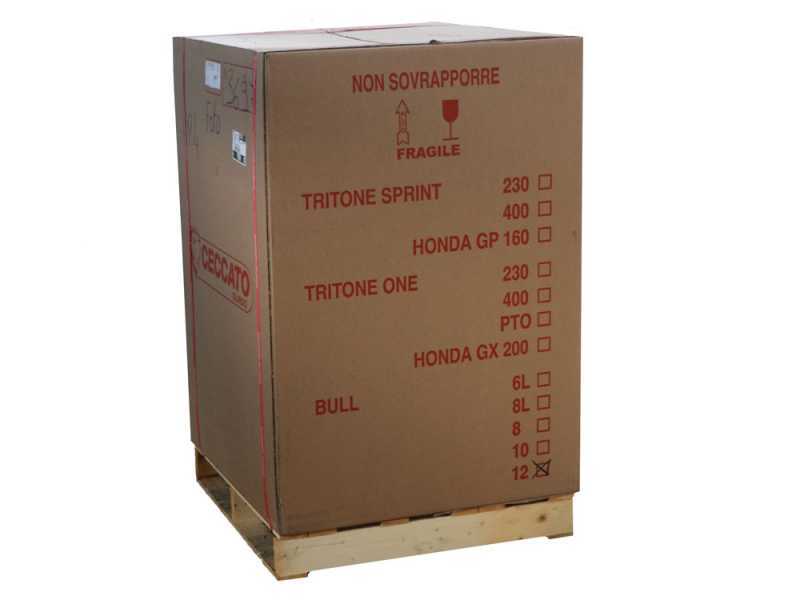

Free items & Standard equipment

Standard equipment

The log splitter is shipped with careful packaging and placed on a pallet.

Included in the packaging there are the operating and maintenance instructions
