Ceccato olindo SPLET13TLT - Hybrid log splitter - Electric and tractor-driven - Vertical

Add a question
ID: 112816

EAN: 8053435097055

MPN: SPLET13TLT

Ceccato olindo SPLET13TLT - Hybrid log splitter - Electric and tractor-driven - Vertical
Max. trunk diameter
65 cm
Piston stroke
110 cm
Max. pressure
180 bar
Ground splitting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Three-phase + tractor-driven PTO
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
13 t
Pump type
Double hydraulic
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
SPLET13TLT
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase + tractor-driven PTO
Nominal splitting force:
13 t
Piston stroke:
110 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Motor speed:
2840 RPM
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
180 bar
Oil tank:
Yes
Cutting data
Max. trunk length:
114 cm
Max. trunk diameter:
65 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Net weight:
330 Kg
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 3.500,96
€ 3.325,91
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

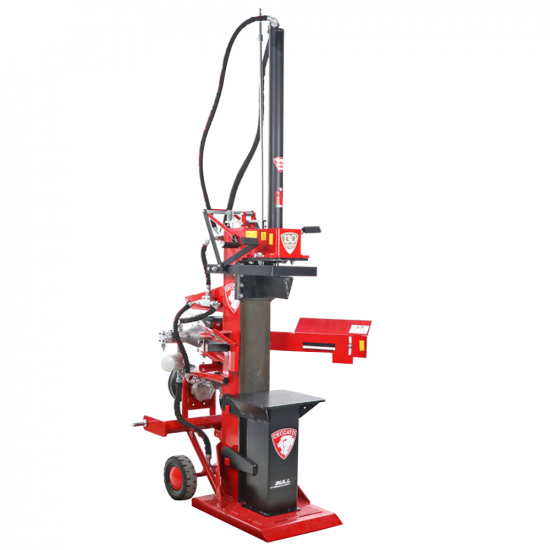

Electric vertical log splitter SPLET13TLT

The Bull SPLET13TLT log splitter from Ceccato Olindo is a prominent choice for anyone requiring a robust and reliable working tool for professional and intensive use.

The Bull SPLET13TLT is distinguished by its large wedge, which is supported by a steel guide of significant thickness, ensuring superior protection of the machine cylinder even under maximum stress.

The versatility of the Bull SPLET13TLT is evident in its ability to run either on electric power, thanks to its three-phase 4 Hp electric motor, or via a Cardan shaft connected to a tractor's power take-off.

This log splitter is capable of exerting an impressive thrust force of 13 tonnes, making it suitable for splitting knotty logs of various sizes, up to a maximum height of 114 cm and a diameter of 65 cm.

From a safety point of view, the Bull SPLET13TLT is equipped with an accident-prevention safety arch, an automatic adjustable limit switch control system, and all the safety devices required to ensure user protection.

These features make the Bull SPLET13TLT not only effective, but also extremely safe for professional use. In addition, the piston is designed to be foldable, making it easier to store and adapt the log splitter to available space.

Manufactured entirely in Italy, Ceccato Olindo's Bull SPLET13TLT belongs to the prestigious Bull line of log splitters. This model is not only an example of outstanding quality and efficiency, but also a symbol of Italian durability and reliability in the professional log splitter sector.

The unprecedented safety of the Ceccato Olindo log splitter

WEDGE: Cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 50 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

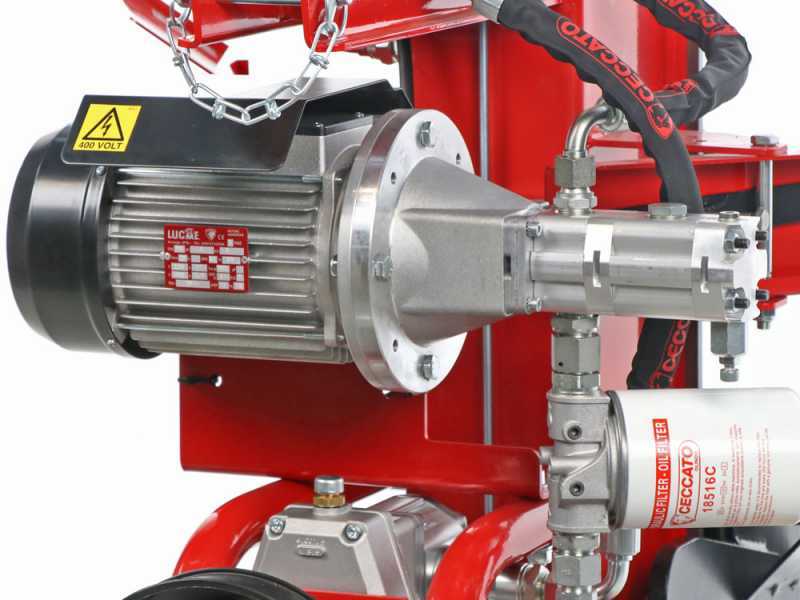

Dual functionality: electrically powered

This log splitter can be operated using the 400V power supply using the 4 HP three-phase motor with a power output of 3000 W.

In this configuration, the electric motor exploits the action of a high-performance hydraulic pump operating at a pressure of 180 bar (max).

The frame of the machine structure itself acts as the hydraulic oil tank.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

Furthermore, the pump is connected to a large-sized heavy-duty hydraulic distributor specifically designed for supporting the pressure of the hydraulic circuit.

Dual functionality: cardan shaft via tractor PTO

This log splitter is tractor-mounted and can be connected to the tractor via a Cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 180 bar working pressure and pump 26 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means of the three-point linkage on the sturdy machine frame.

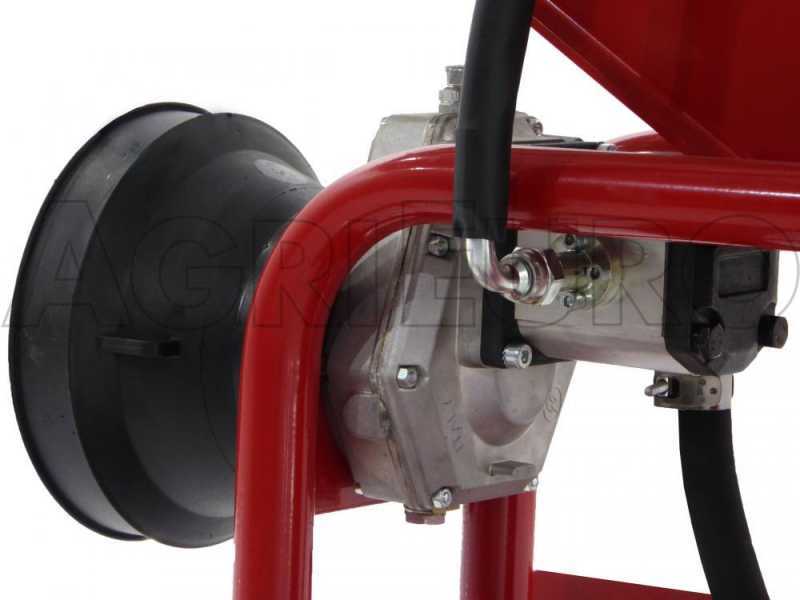

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the Cardan universal joint.

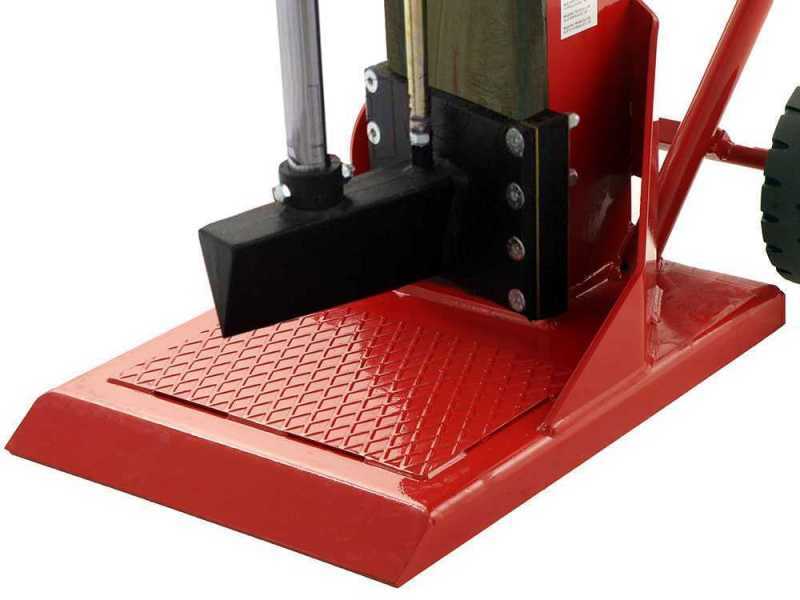

Wedge and piston stroke 1100 mm

With a thrust of no less than 13 tonnes, this log splitter is capable of splitting knotty logs of varying sizes up to a maximum height of 114 cm thanks to the additional drive controls on the top of the machine, which allow very large logs to be split.

This is possible thanks to the very sturdy and large piston, which features an 80 mm outer diameter and a 40 mm internal diameter.

The 1100 mm piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

You can disassemble and close the piston to limit the log splitter size for easy storage. You can partially close it by means of the table provided on standard equipment.

Dual controls and speed regulation

The log splitter is equipped with a speed cylinder drive circuit and double powering controls.

Focus on the upper controls and the lower controls.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force to up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

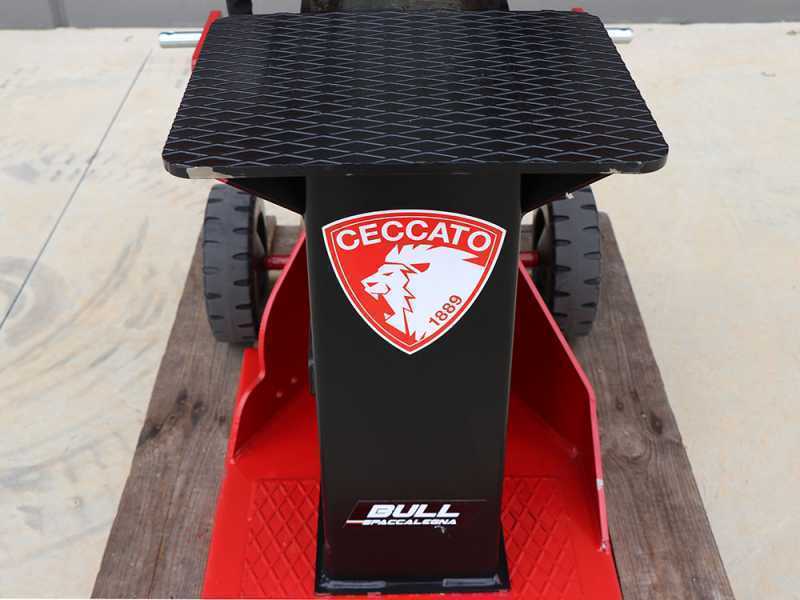

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

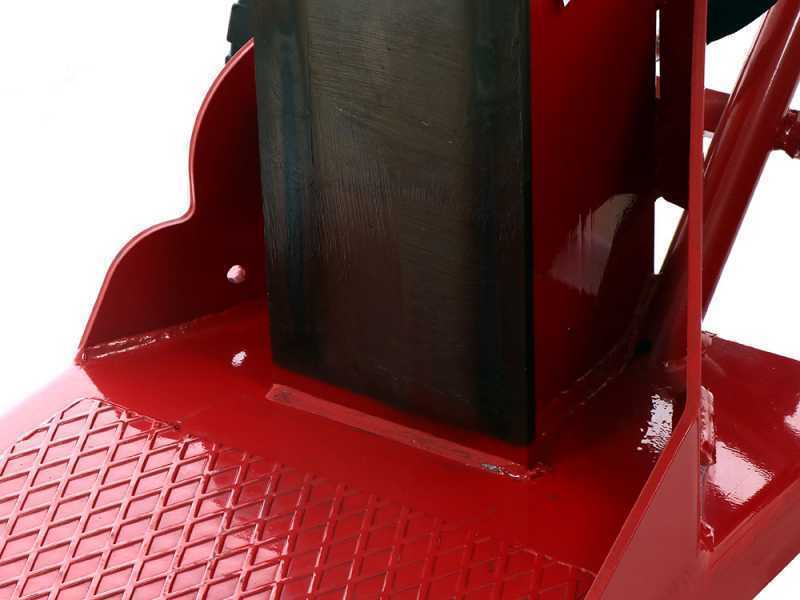

In fact, unlike most log splitters on the market, which have frames made from 'H' beams, the frame of the Ceccato log splitter is made from a boxed structure, and is reinforced with the front flat plate where the splitting wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

Focus on the 27 cm transport wheels.

Focus on the log lifting connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Other features

Wedge locking device with wedged logs. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the wedge.

Detail of removable floor for ground splitting

Details of the hydraulic oil drain plug.

Details of the hydraulic oil level.

Focus on the Ceccato Olindo oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the highly thick cutting plate.

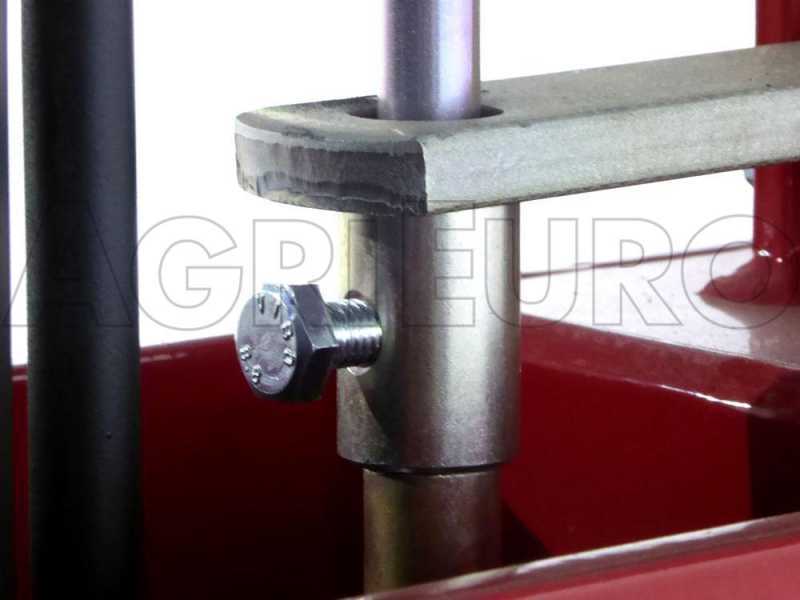

Piston stroke adjustment: to cut short logs and speed up work, the stroke can be adjusted by acting on the adjusting cylinder via the clamping key.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging and placed on a pallet.

The maintenance and operating instructions manual is included in the packaging.
