Ceccato olindo SPLE20 - Electric log splitter - Vertical - 400V

Add a question
ID: 112818

EAN: 8053435097079

MPN: SPLE20

Ceccato olindo SPLE20 - Electric log splitter - Vertical - 400V
Max. trunk diameter
65 cm
Piston stroke
110 cm
Max. pressure
1440 bar
Ground splitting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Three-phase 400 V
Nominal power
7.5 HP
Engine
Induction
Nominal power (W)
5500 W
Nominal splitting force
20 t
Manufacturing country
Italy
Product Features
Model:
SPLE20
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase 400 V
Nominal splitting force:
20 t
Piston stroke:
110 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
7.5 HP
Nominal power (W):
5500 W
Motor speed:
1440 RPM
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Single
Max. pressure:
1440 bar
Oil tank:
Yes
Cutting data
Max. trunk length:
114 cm
Max. trunk diameter:
65 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Rear wheels size:
27
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes

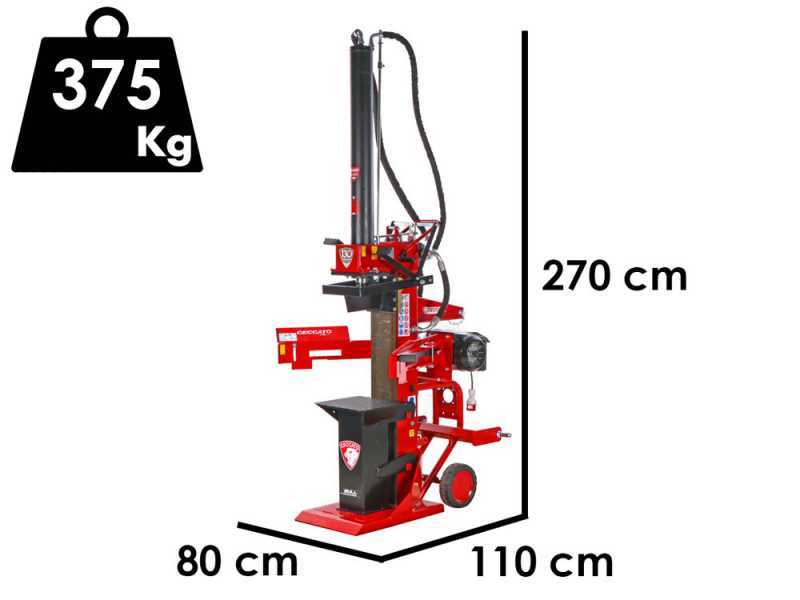

Dimensions and logistics
Product dimensions in cm (L x W x H):
110x80x270
Net weight:
375 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
125x85x225
Gross weight (packaging included) :
400 Kg
Unloading with hydraulic tail lift:
Yes
Out of stock
Free Shipping
€ 3.976,43
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

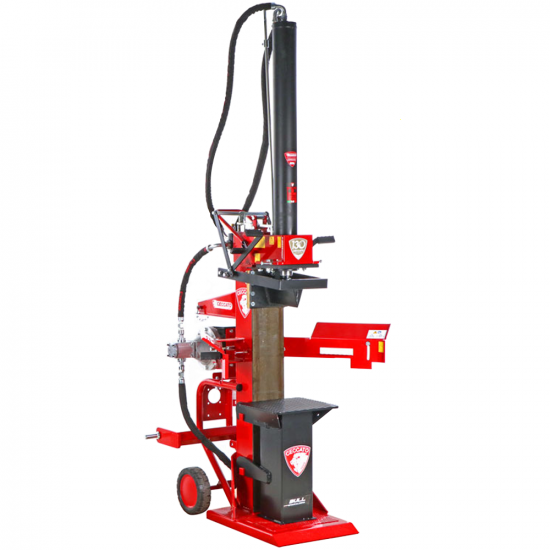

Ceccato olindo SPLE20 log splitter

The Bull SPLE20 log splitter manufactured by Ceccato Olindo establishes itself as an excellent choice for industry experts who need a durable and highly reliable tool for heavy-duty use.

This specific model is notable for its large wedge, supported by a solid steel rail, which provides excellent protection for the unit's cylinder, even in particularly demanding working conditions.

The Bull SPLE20 is distinguished by its multi-functionality, operating efficiently with electric power via a 7.5 Hp three-phase electric motor.

In terms of performance, this log splitter boasts an extraordinary thrust force of 20 tonnes, ideal for splitting gnarled logs of various sizes, up to a maximum height of 114 cm and a diameter of 65 cm.

Equipped with a 110 cm piston stroke. On the security front, the Bull SPLE20 excels. It includes an accident-prevention protective arch, a customisable automatic limit switch control system and all essential safety devices to ensure maximum protection during use.

It also features an innovative system that allows the device to operate at two different speeds, one slow and one faster. Its specifications make it not only effective, but also particularly safe for professional use.

The design features a retractable piston, which facilitates storage and adaptability of the log splitter to different spaces.

Manufactured in Italy, Ceccato Olindo 's Bull SPLE20 is part of the prestigious Bull series of log splitters. This model not only stands for excellence in quality and efficiency, but also represents an emblem of Italian solidity and reliability in the field of professional log splitters.

The unprecedented safety of the Ceccato Olindo log splitter

WEDGE: Cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 50 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

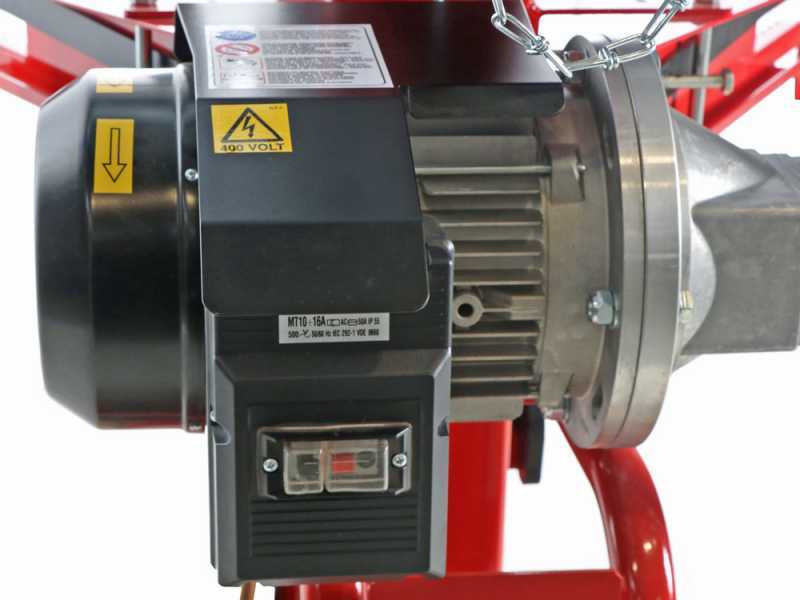

The electric motor

This log splitter can be operated using the 400V power supply using the 7.5 HP three-phase motor with a power output of 5500 w.

In this configuration, the electric motor exploits the action of a high-performance hydraulic pump operating at a pressure of 230 bar (max).

The frame of the machine structure itself acts as the hydraulic oil tank.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

Additionally, the pump is connected to a large-sized heavy-duty hydraulic distributor specifically designed for supporting the pressure of the hydraulic circuit.

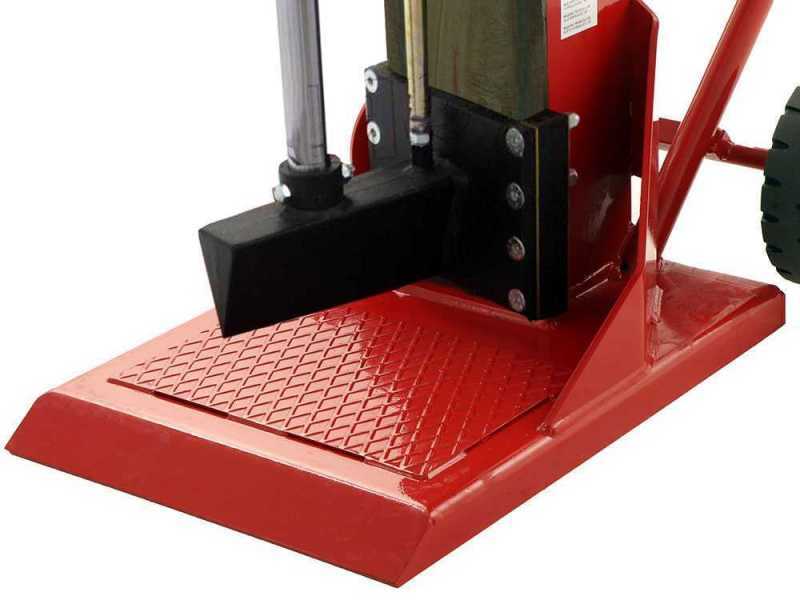

Wedge and piston stroke 1100 mm

With a thrust of no less than 20 tonnes, this log splitter is capable of splitting knotty logs of varying sizes up to a maximum height of 114 cm thanks to the additional drive controls on the top of the machine, which allow very large logs to be split.

This is possible thanks to the very sturdy and large piston, which features a 125 mm outer diameter and a 70 mm internal diameter.

The 1100 mm piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate and replaceable plate.

Thanks to the slide shim made of bronze, the guide rails preserve the load-bearing steel plate on the main log of the log splitter.

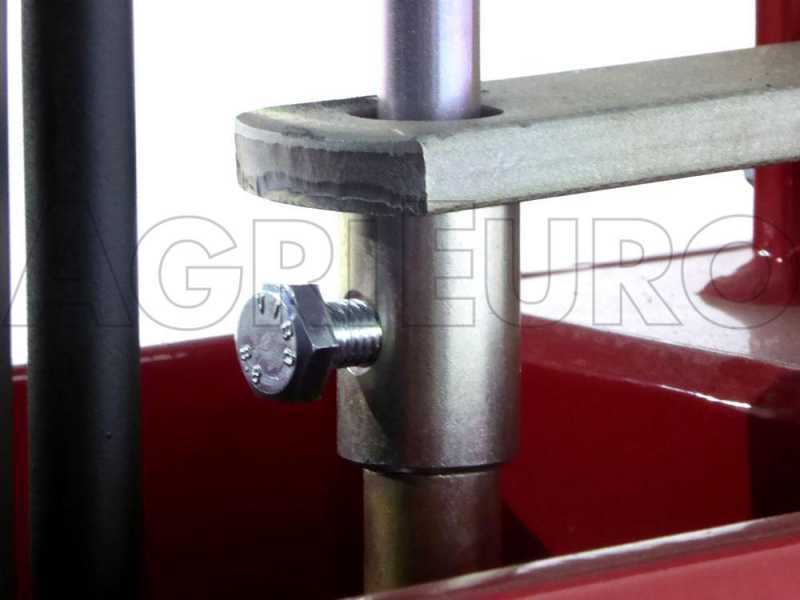

Piston stroke adjustment: to cut short logs and speed up work, the stroke can be adjusted by acting on the adjusting cylinder via the clamping key.

You can disassemble and close the piston to limit the log splitter size for easy storage.

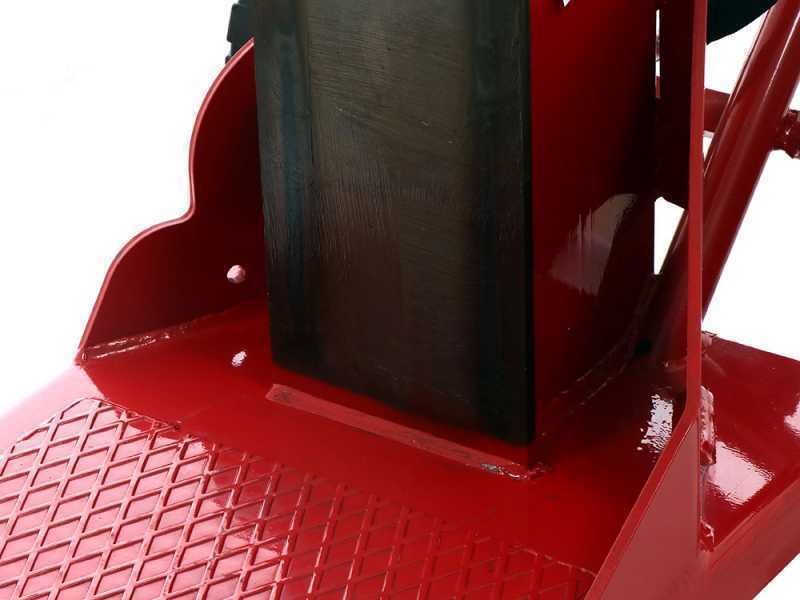

Dual controls and speed regulation

The log splitter is equipped with a speed cylinder drive circuit and double powering controls.

Focus on the upper controls and the lower controls.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 20 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

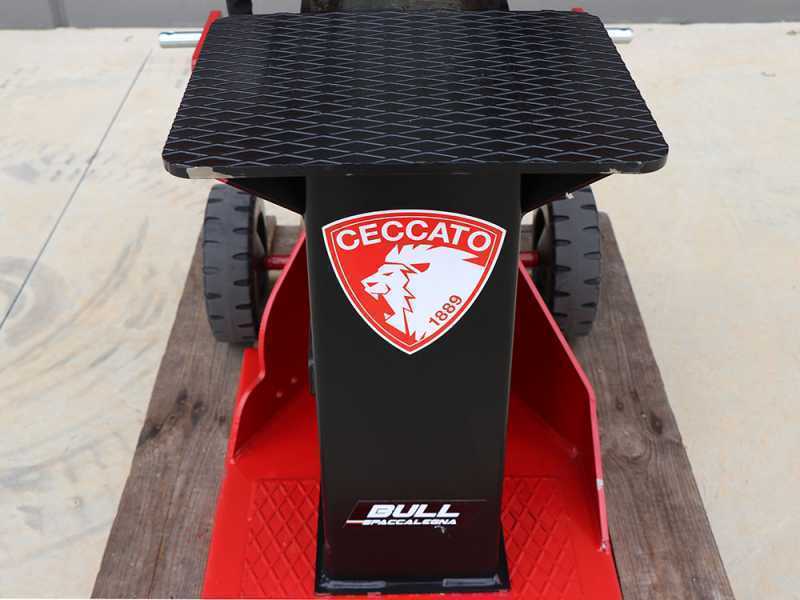

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

In fact, unlike most log splitters on the market, which have frames made from 'H' beams, the frame of the Ceccato log splitter is made from a boxed structure, and is reinforced with the front flat plate where the splitting wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

Focus on the 27 cm transport wheels.

Focus on the log lifting connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Other features

Wedge locking device with wedged logs. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the wedge.

Detail of removable floor for ground splitting

Details of the hydraulic oil drain plug.

Details of the hydraulic oil level.

Focus on the Ceccato Olindo oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the highly thick cutting plate.

Piston stroke adjustment: to cut short logs and speed up work, the stroke can be adjusted by acting on the adjusting cylinder via the clamping key.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging and placed on a pallet.

The maintenance and operating instructions manual is included in the packaging.
