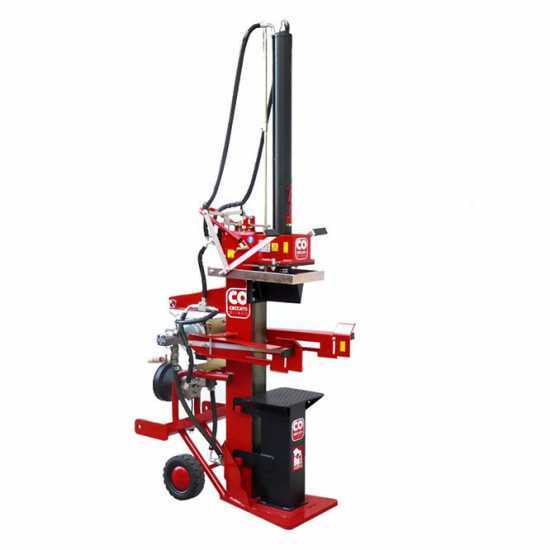

Ceccato KOMBI SPLET13 Tractor-mounted Log Splitter with Electric Motor - 13 Tons - 1100 mm Piston Stroke

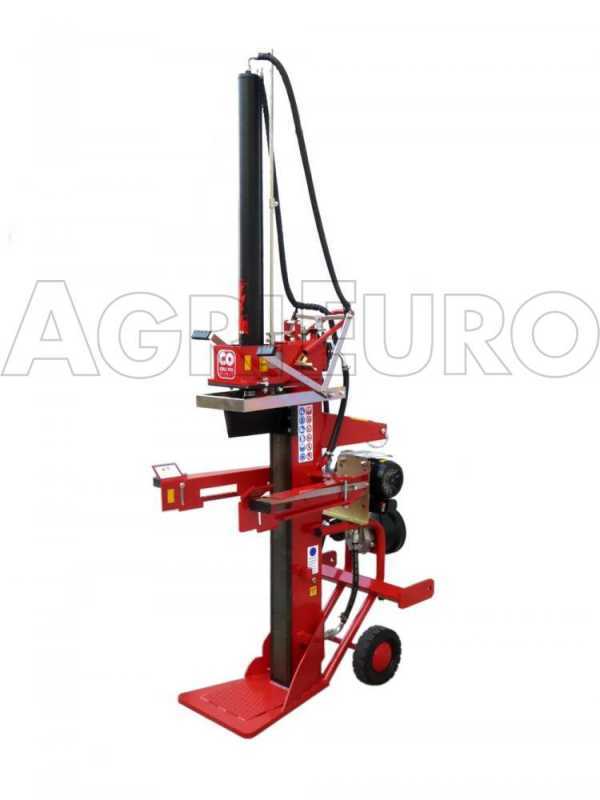

The Ceccato Olindo Bull SPLET13 log splitter is a vertical log splitter intended for intensive uses. It comes with a big wedge, which slides on a thick steel guide which prevents the cylinder from wear even in case of intensive use. It can be operated both by means the cardan universal joint directly connecting it to the tractor PTO or electrically-operated thanks to the 3 Hp single-phase motor.

The 13 tons splitting force allows splitting knotty logs up to 114 cm in height by means of the additional controls on the upper part of the machine in order to split large-sized logs.

Furthermore, it is equipped with a large capacity double pump on the electric motor for using it with a cardan shaft, which guarantees a great splitting force and a high working speed.

It is provided with a safety arch and adjustable end-of-stroke automatic control system. The piston can be closed for storage

This SPLET13 heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 50 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

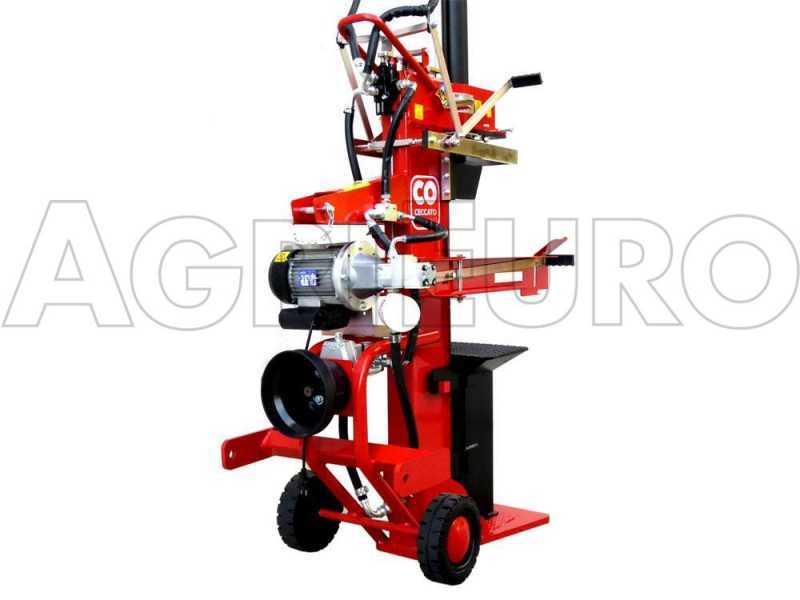

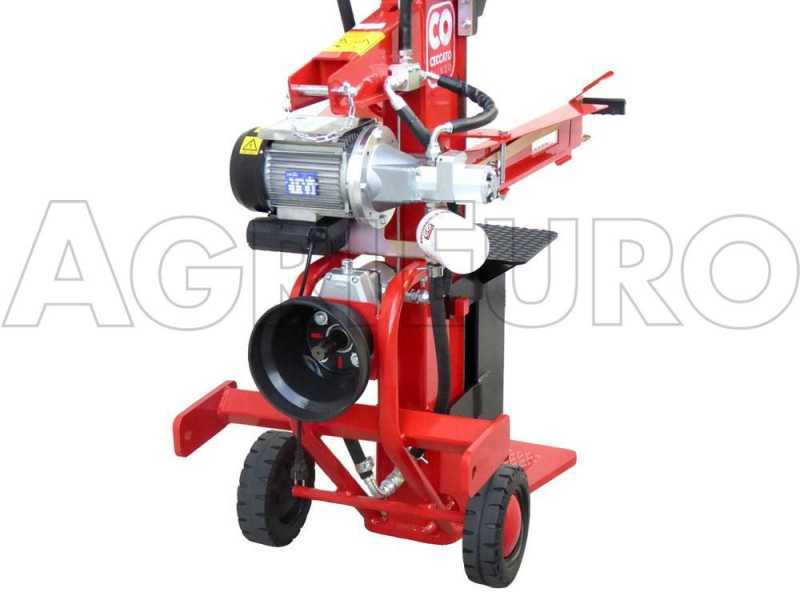

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 19 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The advantage of the double pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Furthermore, the double pump allows you to halve the operating time and increases the productivity of the log splitter.

Double pump fully made in Italy.

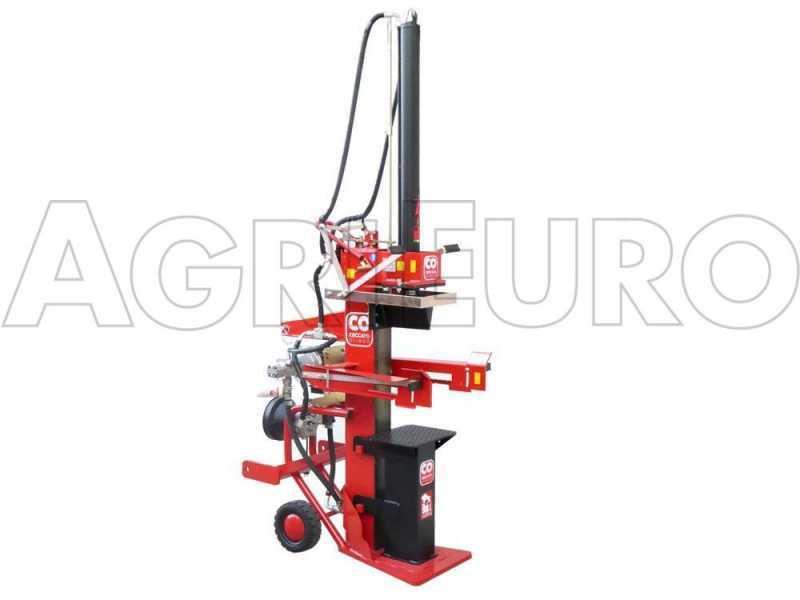

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 26 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

The 13 tons splitting force allows splitting knotty logs up to 114 cm in height by means of the additional controls on the upper part of the machine in order to split large-sized logs.

This is possible thanks to the very sturdy and large piston, which features a 90 mm outer diameter and a 50 mm internal diameter.

The 1100 mm piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

You can disassemble and close the piston to limit the log splitter size for easy storage.

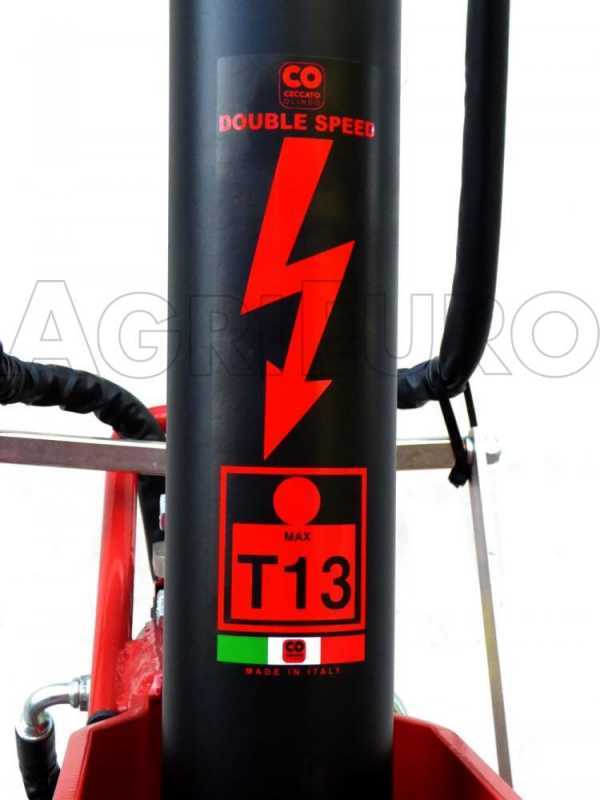

The log splitter is equipped with a speed cylinder drive circuit and double powering controls.

Focus on the upper controls and the lower controls.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

By applying small pressure on the control handles, the speed (up to 23 cm/sec) of the piston will be increased before contacting the log.

With a greater pressure on the control handles, the speed (up to 9 cm/sec) of the piston will considerably slow down and increases the wedge splitting force of up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame. This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 300 Kg.

Focus on the 27 cm transport wheels.

Focus on the upper three-point linkage

Focus on the lower three-point linkage

Focus on the log lifting connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the wedge.

Focus on the heavy-duty hydraulic distributor.

Focus on the removable plate for the ground split system.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the Ceccato Olindo oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the highly thick cutting plate.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.
