Ceccato BULL SPLET12FDP - Hybrid log splitter - Electric and tractor-driven - Vertical

Questions & Answers (1)
ID: 112813

EAN: 8053435097024

MPN: SPLET12FDP

Ceccato BULL SPLET12FDP - Hybrid log splitter - Electric and tractor-driven - Vertical
Max. trunk diameter
60 cm
Piston stroke
54 cm
Max. pressure
180 bar
Retractable piston for transport
Yes
Operating mode
Single-phase + tractor-driven PTO
Motor type
Induction
Nominal power
3 HP
Nominal power (W)
2200 W
Nominal splitting force
12 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
BULL SPLET12FDP
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase + tractor-driven PTO
Nominal splitting force:
12 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
126 cm
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2830 RPM
Power supply:
Tractor-driven PTO
Manufacturing country:
Italy
Pump data
Pump type:
Double
Max. pressure:
180 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
26 Litres
Cutting data
Max. trunk length:
126 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
No
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
No
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20.5 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics

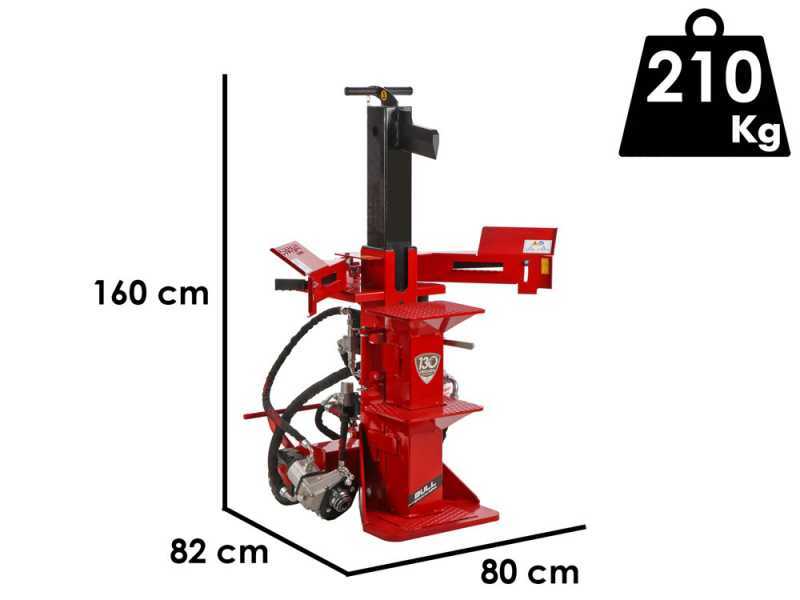

Product dimensions in cm (L x W x H):
82x80x160
Net weight:
210 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x80x120
Gross weight (packaging included) :
225 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 04/06/2024 - 06/06/2024
€ 2.552,74
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Ceccato BULL SPLET12FDP - Hybrid log splitter - Electric and tractor-driven - Vertical

The BULL SPLET12FDP log splitter model, designed by Ceccato Olindo, is an excellent product in the field of hybrid log splitters.

Designed to be driven both by tractor and electrically, this vertical model is the ideal choice for users who face demanding and prolonged work.

Its creation is the result of Italian excellence, a distinctive brand of Ceccato Olindo, a leading company with a long tradition in the sector.

It stands out as one of the most advantageous log splitters in terms of value for money in its category. Its construction uses high quality materials and has an extremely robust frame, characterized by a double reinforced tubular structure, the tube outside the piston is made of Domex steel while the knife is made of hardened steel.

The operation of the BULL SPLT12F is guaranteed by a tractor drive system, operating through a mobile pump that connects directly to the tractor's power take-off without the use of the universal joint.

This mechanism ensures a remarkable pushing force and an optimal working speed.

Or simply by plugging it into an electrical outlet.

The worktop measures 35x27 cm, dimensions that facilitate the management of logs of various sizes. This model can handle logs up to 126 cm in height and 60 cm in diameter, thanks to its 12-ton pushing force and its enlarged and reinforced frame.

In addition, it is equipped with a three-point connection and a cutting height adjustment system with three options: 54 cm, 87 cm and 126 cm. This last aspect makes the device extremely versatile and adaptable to different needs.

User safety is guaranteed by the adjustable limit switch control. Finally, it is important to point out that the Ceccato Bull log splitter is entirely produced in Italy, thus guaranteeing high quality standards.

This machine is an integral part of Ceccato Olindo’s renowned Bull line of log splitters

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 12 TONS

WEDGE: Cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: Shortened levers in the stump support arms and positioning them in accordance with the height measurements indicated by the standard. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

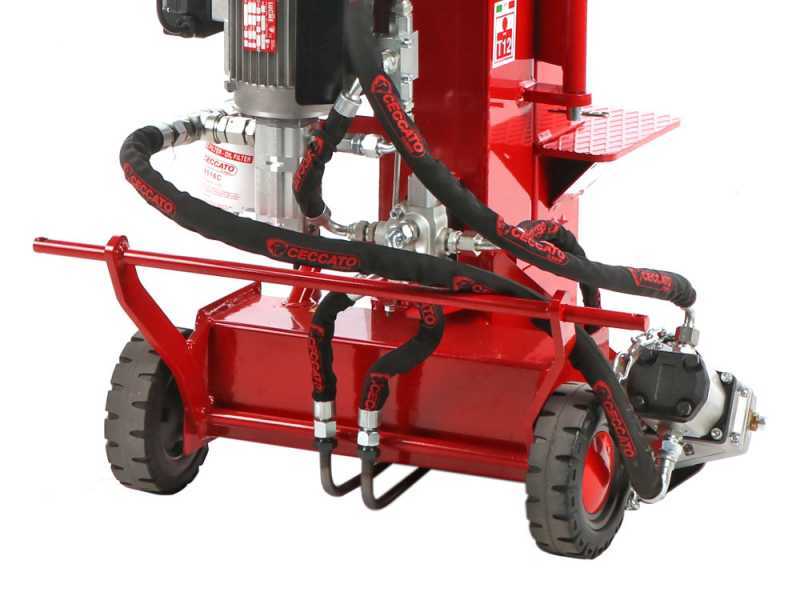

Dual functionality: tractor drive, mobile hydraulic pump

This log splitter can be operated directly connecting it to the tractor, thanks to the mobile pump.

Indeed, the SPLT12F is provided with pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and high working speed.

The multiplier gearbox transfers the drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 180 bar (max.) and pumps 26 L/min of oil to the hydraulic cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means of the three-point linkage on the sturdy machine frame and the mobile pump safety chains.

Details of the 3-point hitch

The use of the mobile pump makes it possible to NOT use the universal joint, as is the case with all other types of tractor-mounted log splitters.

Two-stage pump, fully made in Italy.

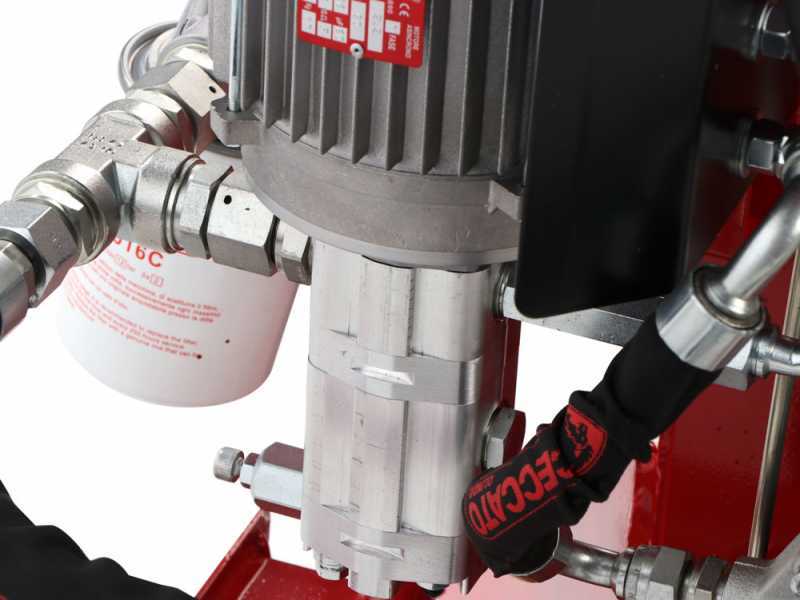

Dual functionality: electric engine drive

This log splitter is powered by a 3 Hp single-phase 230V electric motor featuring a power of 2.2 KW.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

It is equipped with a two-stage pump, which guarantees a great splitting force and a high working speed.

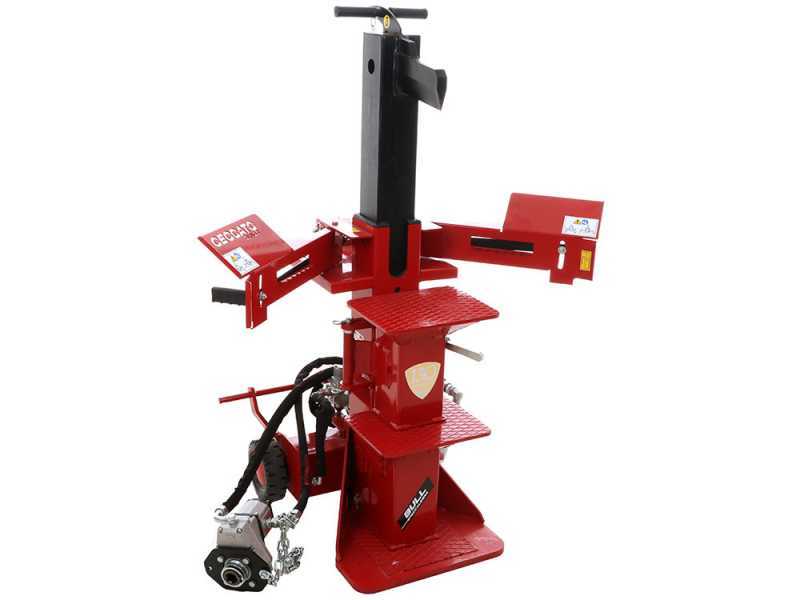

Wedge, dual control levers and cutting plate

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 126 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large removable cutting plate adjustable in 3 different splitting heights:

-54 cm

-87 cm

-126 cm

The user can operate the machine simply by means of the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

Adjustable dolphin stroke functionality has been meticulously designed, allowing users to set and adjust the stopping point of a machine or mechanical component with extreme accuracy, thus ensuring that every movement stops exactly where it is needed.

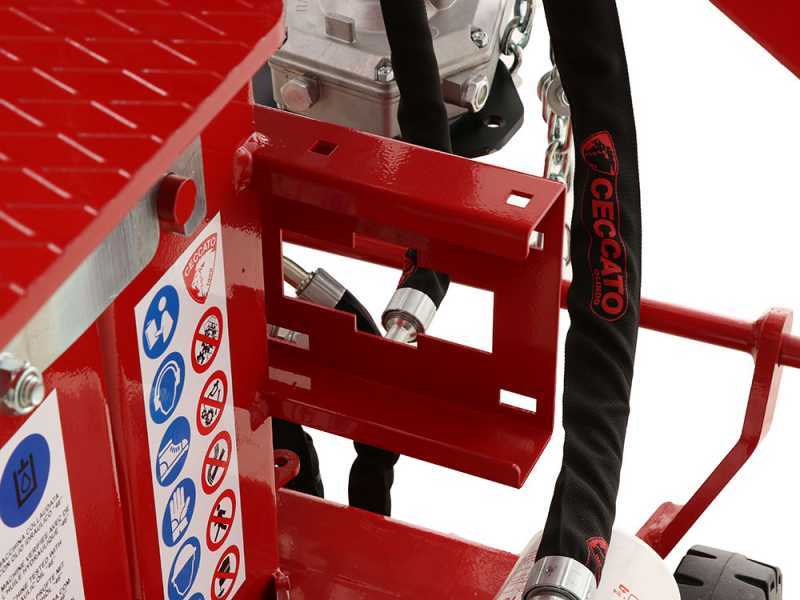

Other features

The log splitter is equipped with an oversized, reinforced double-tube frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier, and it is perfectly balanced. Even just one Operator can transport the machine by means of the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Details of the three-point linkage

Details of the upper three-point linkage.

Sturdy support platform

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

Convenient instructions manual holder to always have the instructions at hand.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

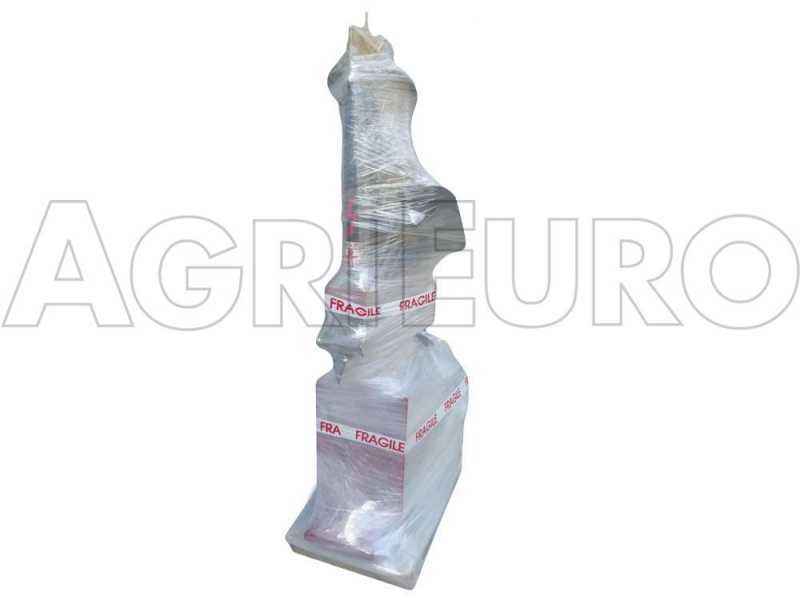

The log splitter is safely shipped in its original packaging and placed on a pallet.

The maintenance and operating instructions manual is included in the packaging.
