Ceccato BULL SPLET12 KOMBI Electric and Tractor-mounted Vertical Log Splitter - 12 Tons

Add a question
ID: 104060

EAN: 9999237541244

MPN: SPLET12

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLET12 KOMBI Electric and Tractor-mounted Vertical Log Splitter - 12 Tons
Max. trunk diameter
60 cm
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Operation
Single-phase 230V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
12 t
Pump type
Double hydraulic
Pump
Double
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
BULL SPLET12 Kombi
Type:
Vertical
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
12 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2850-540 RPM
Power supply:
Electric - tractor-driven PTO
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
10 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
No
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80x54x107 cm
Net weight:
200 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x80x120 cm
Gross weight (packaging included) :
229 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
Suggested price:
€ 2.695,56
€ 2.560,78
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

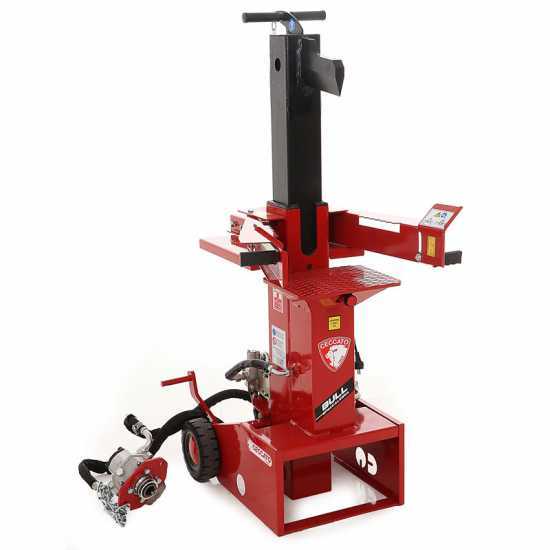

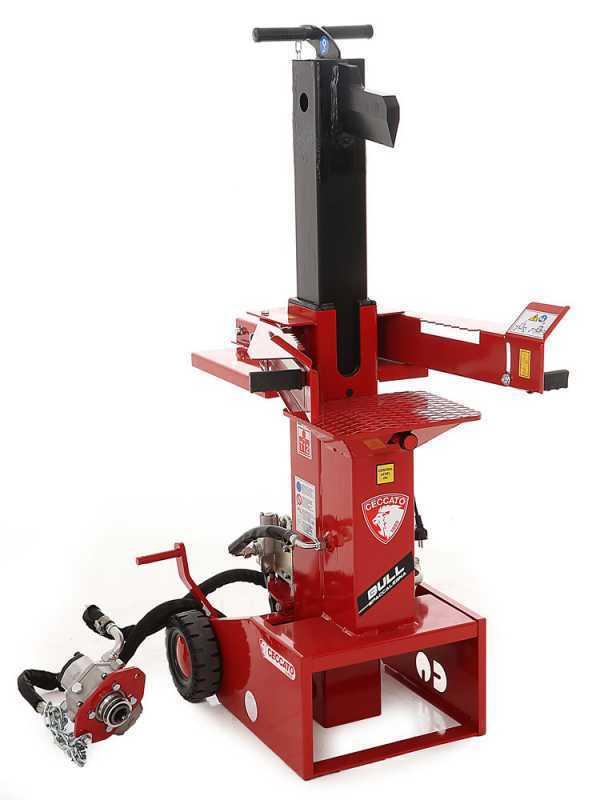

Ceccato Bull SPLET Kombi 12 tractor-mounted and electric log splitter - 12 tons

The Ceccato Olindo Bull SPLET12 Kombi is a tractor-mounted vertical log splitter entirely Made in Italy, suitable for those who have to carry out intensive and heavy-duty splitting operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

This specific model is absolutely among the highest-quality log splitters on the market thanks to its extraordinary versatility of use.

It can be both tractor-driven or electric-driven.

The Ceccato SPLET12 Kombi log splitter features 12 tons splitting force and oversized, reinforced double-tubular frame, which allows splitting knotty logs of different size up to max. 50 cm height and max. 60 cm diameter.

It is provided with 3-point linkage, double pump on the electric motor and multiplier gearbox-pump unit that is directly connected to the tractor PTO for extra splitting force and high working speed. It is NOT necessary using a cardan shaft.

Equipped with a powerful 3 Hp single-phase electric motor (2.2 Kw) The Ceccato Olindo SPLET 12 log splitter is provided with 2 wheels and proper handle for easy transport. Equipped with adjustable end-of-stroke automatic control system

and specific safety devices.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

Overall dimensions: 80 x 54 x 107 cm

Weight: 200 kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

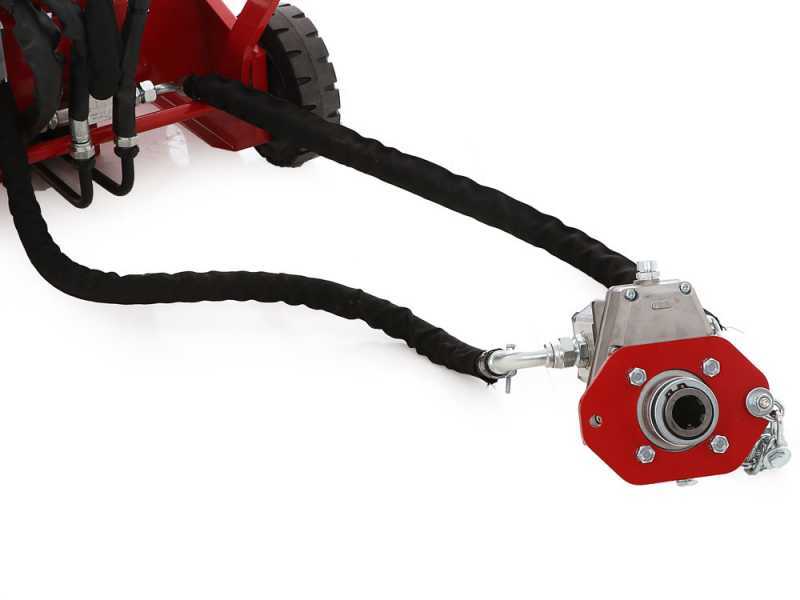

2 in 1: tractor-driven, mobile hydraulic pump

This log splitter can be operated directly connecting it to the tractor, thanks to the mobile pump.

Indeed, the SPLET12 is provided with pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and high working speed.

The multiplier gearbox transfers the drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 230 bar (max.) and pumps 26 L/min of oil to the hydraulic cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame and the mobile pump safety chains.

Focus on the 3-point linkage

If you use the mobile pump it is NON using the cardan shaft, as usual for others tractor-mounted log splitters on market.

Double pump fully made in Italy.

2 in1: start with electric motor

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

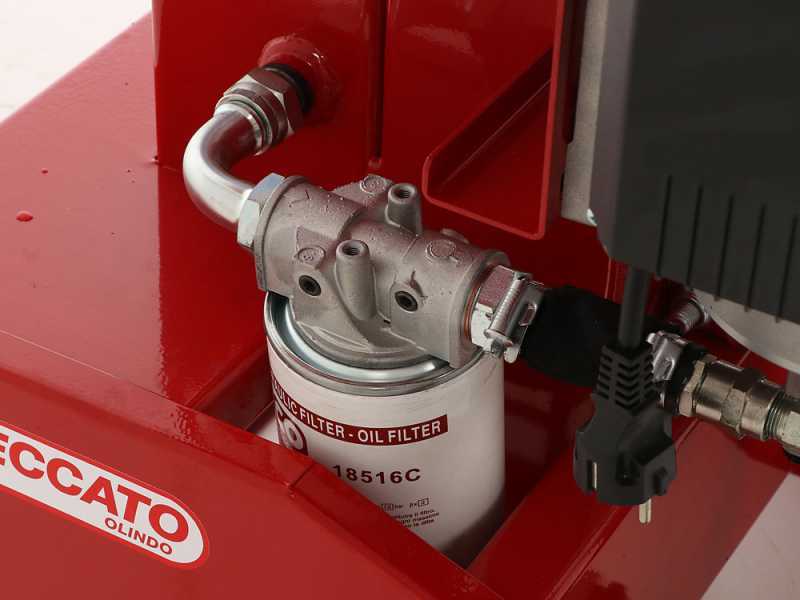

Oil Filter

Oil level check

The log splitter electric motor operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The double pump ensure a high splitting force and high working speed.

The advantage of the double pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Double pump fully Made in Italy.

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

The log splitter electric motor operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The double pump ensure a high splitting force and high working speed.

The advantage of the double pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Double pump fully Made in Italy.

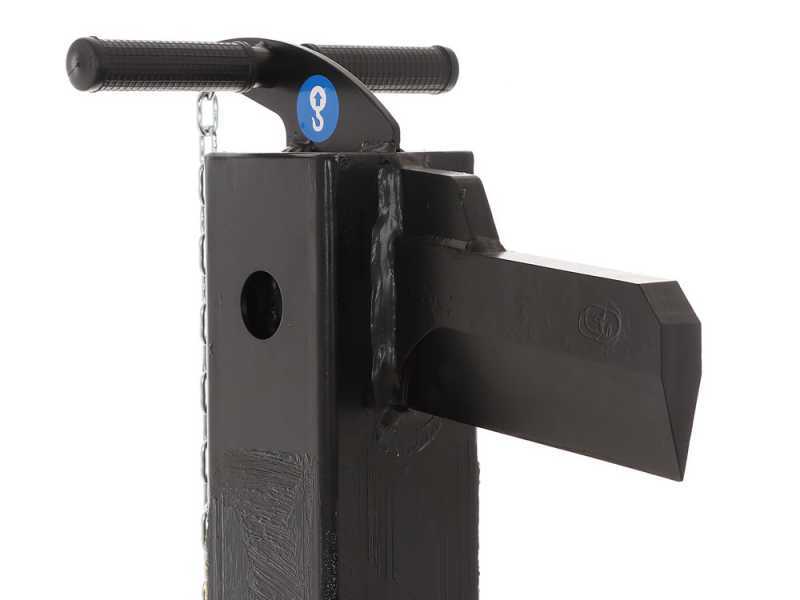

Wedge, dual control levers and cutting plate

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 35 x 27 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

Adjustable end-of-stroke control system

Other features

The log splitter is equipped with an oversized, reinforced double-tube frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

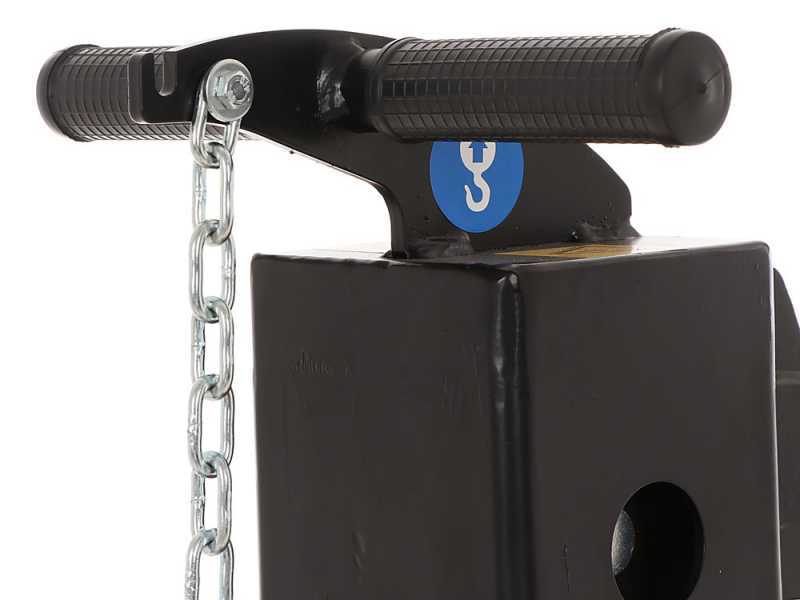

Furthermore, it is equipped with specific lifting hook.

Focus on the 3-point linkage:
focus on the upper 3-point linkage connection and lower 3-point linkage connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
