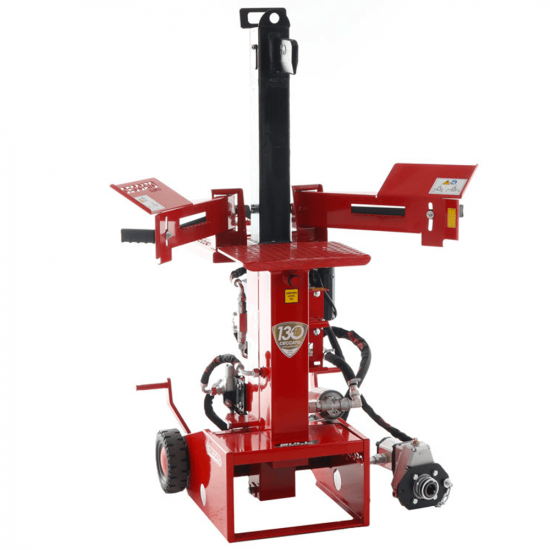

Ceccato BULL SPLET10 KOMBI - Hybrid Log Splitter - Vertical - Electric and tractor mounted

The Bull SPLET10 Kombi log splitter from Ceccato Olindo is a vertical log splitter entirely made in Italy, ideal for all users who have to cope with intensive and professional work. A product of the highest Italian quality, Ceccato Olindo, a historical brand and leader in the sector.

This particular model is absolutely among the best log splitters on the market thanks to its extraordinary versatility of use: it can be driven by tractor or electrically.

The user can therefore operate the log splitter by means of a tractor or thanks to the machine electric motor.

Equipped with a fully robot-welded frame, robust and with top-quality components.

Customised Ceccato Olindo steel knife with 54 cm cutting stroke.

Log maximum diameter: 50 cm

Equipped with a tractor 3-point hitch

Equipped with a powerful 3 Hp (2.2 Kw) single-phase electric motor. The Ceccato Olindo SPLET 10 log splitter has 2 wheels for easy transport made with a special rubber mixture that allows the stones not to get stuck.

Adjustable end stroke control system.

Hydraulic hoses with Ceccato Olindo screen-printed canvas sheathing and couplings in full compliance with CE regulations.

Provided with specific safety systems

Splitting power: 10 tons

Running: 54 cm

Log diameter: from 10 to 50 cm

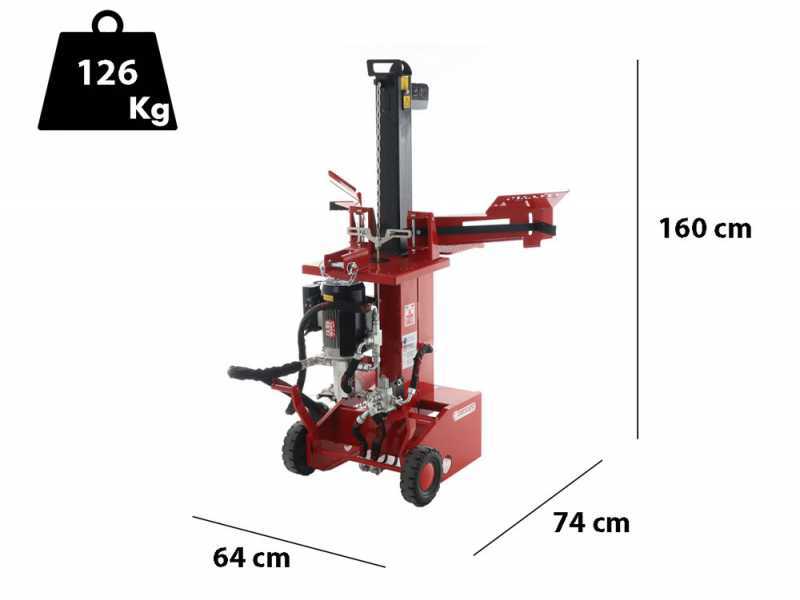

Weight: 126 kg

The Ceccato Bull log splitter is entirely manufactured in Italy.

This machine is part of the log splitter Bull line by Ceccato Olindo

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: Cutting wedge with 3 inclination towards the column.

ARM CONTROL LEVERS: Shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. Thus, the shape has been specifically selected to prevent the possible fall of the log towards the operator.

HYDRAULIC HOSES: We have increased the tube diameter. This allows a lower oil temperature. Protection and skimming with Ceccato Olindo reinforced sheath and screen-printed with steel studs. In case of damage or burst of the hose, it allows retaining the vaporizing oil without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

This log splitter can be used by connecting it directly to the tractor, thanks to the mobile pump.

The SPLET10 is equipped with a pump and multiplier unit that plugs directly into the tractor power take-off and guarantees powerful thrust and high working speed.

The multiplier transfers drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 180 bar (Max).

The body of the machine structure acts like a hydraulic oil tank.

Connection to the tractor is ensured by the three-point hitch with which the sturdy frame is equipped and the safety chains of the mobile pump.

Focus on the 3-point hitch

The use of the mobile pump makes it possible NOT to use the cardan joint, as is the case with all other tractor-mounted log splitters.

The double pump is strictly made in Italy

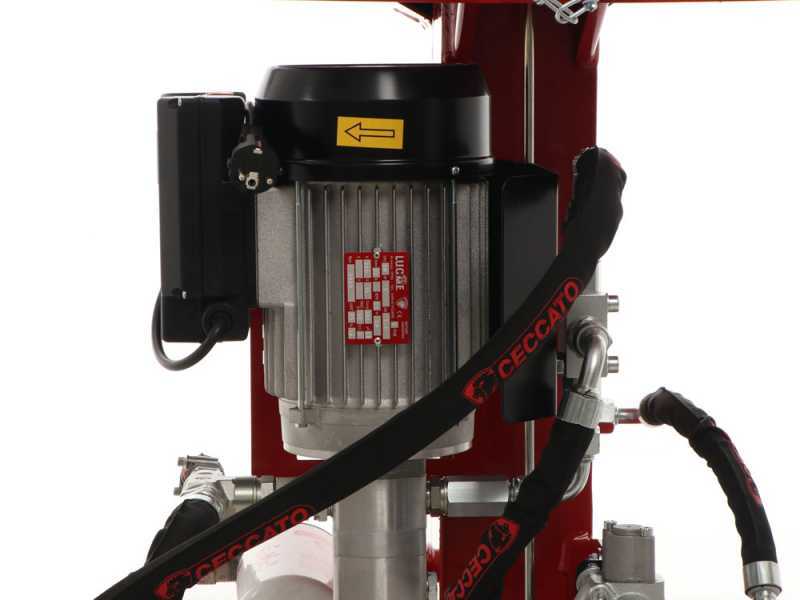

This log splitter can be used by connecting it to the standard household power grid exploiting the single phase 220 V 3 Hp motor that has a power of 2.2 Kw.

- General Electric power switch

The body of the machine structure itself has the function of hydraulic oil tank .

- Oil filter

- Porthole for oil control

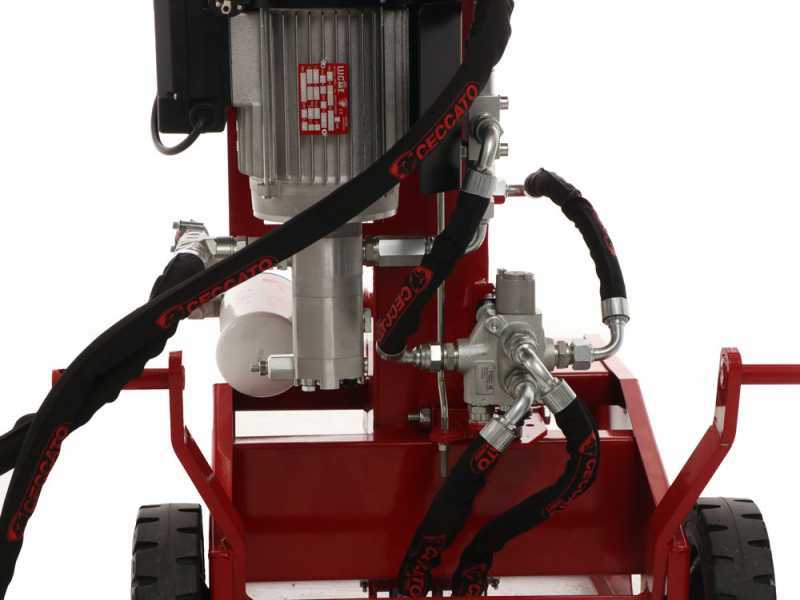

In this configuration, the electric motor exploits the action of a high-performance double hydralulic pump operated at a pressure of 180 bar (max) that supplies oil, drawn from the tank, to the hydraulic cylinder that acts as a pusher.

- Focus on the double hydraulic pump

The double pump guarantees powerful thrust and a high working speed.

The advantage of the double pump is that it allows to have a double piston speed, or even more, compared to the normal 3 Hp single-phase log splitter that use a single pump.

The double pump is strictly made in Italy

With a cutting thrust of 10 tons, this Ceccato log splitter is able to split wood logs which vary in size up to a maximum of 54 cm heightand a 50 diameter.

The wedge is made of high-strength steel.

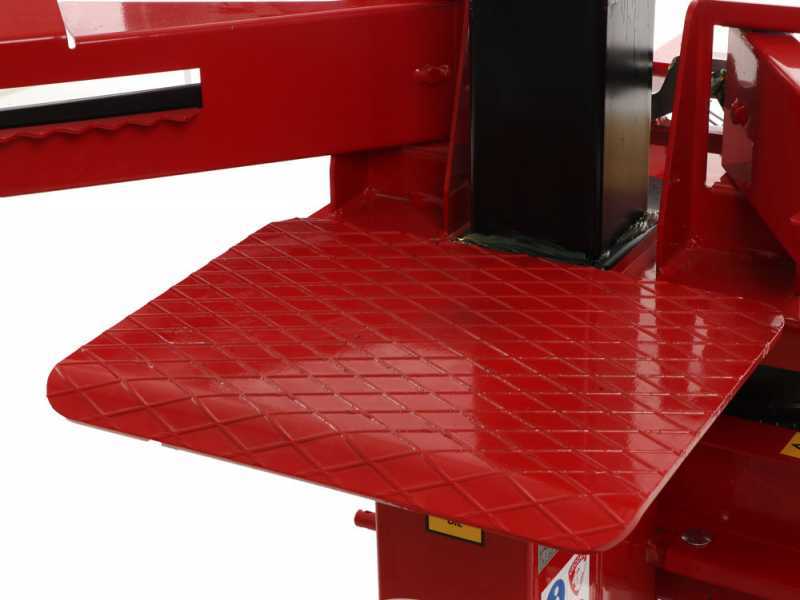

The work table is broad: 39 x 30 cm

The user will have to activate the machine by the two-hand command levers of the hydraulic valve to fully use the log splitter at best for his needs.

The pair of ignition handles It is equipped with appropriate hand protection and in accordance with all safety devices that protect the user.

Focus on the side log strain relief integrated into the handle arms.

Adjustable limit switch control system

The machine has a sturdy and super solid structure .

The log splitter comes complete with wheels for easy transport and it is renowned to be perfectly balanced: the log splitter can also be moved by a single operator using the handle to tilt the log splitter.

• Focus on the three-point attachment
• Focus on the high three point hitch
• Focus on the low three-point hitch



This machine is made keeping in mind all of the industry standards in order to make the operator's work safe.
