Ceccato BULL SPLE8LT - Electric log splitter - Vertical - 400V

Add a question
ID: 112812

EAN: 8053435097017

MPN: SPLE8LT

Ceccato BULL SPLE8LT - Electric log splitter - Vertical - 400V
Max. trunk diameter
50 cm
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Three-phase 400 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
8 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
Ceccato BULL SPLE8LT
Type:
Vertical
Double speed:
No
Operating mode:
Three-phase 400 V
Nominal splitting force:
8 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
2
Ground splitting system:
No
High position trunk length:
54 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2840 RPM
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
6 Litres
Cutting data
Max. trunk length:
54 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20.5
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics

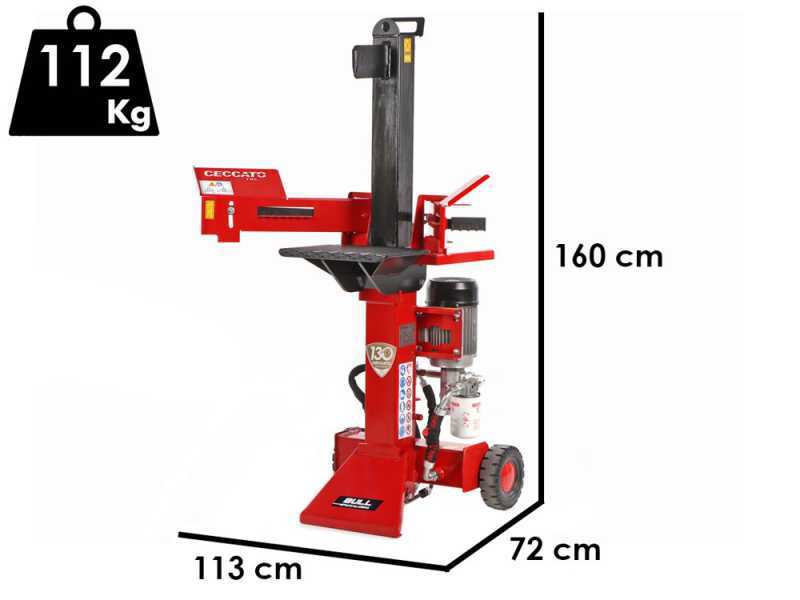

Product dimensions in cm (L x W x H):
113x72x160
Net weight:
112 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
80x80x130
Gross weight (packaging included) :
135 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 1.848,78
€ 1.756,34
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Ceccato BULL SPLE8LT - Electric log splitter - Vertical - 400V

The Bull SPLE8LT log splitter from Ceccato Olindo is the ideal choice for intensive use. This model, designed with an innovative approach, offers professional-level performance, guaranteeing an excellent quality/price ratio in its category.

Main features:

  • Thrust force: With an impressive thrust of 8 tons, the Bull SPLE8LT stands out for its ability to split knotty wood logs, managing variable sizes up to a maximum of 100 cm in height (thanks to the versatility of the bench adjustable in two positions) and a diameter of up to 50 cm.
  • 3 Hp (2.2 KW) three-phase electric engine: This log splitter is equipped with a powerful and reliable electric motor, optimized for prolonged and trouble-free operation.
  • Robust and reliable structure The super-strong frame and large wedge ensure superior strength and durability.
  • Ease of handling: Thanks to its 2 sturdy wheels, the Bull SPLE8LT is extremely practical and easy to move.
  • Safety: The device is equipped with advanced safety systems to ensure maximum protection of the user during use.
  • Cutting stroke. 54 cm

Designed and manufactured in Italy: The quality and reliability of the Ceccato Bull log splitter are guaranteed by its entirely Italian production, an integral part of Ceccato Olindo's renowned Bull log splitter line.

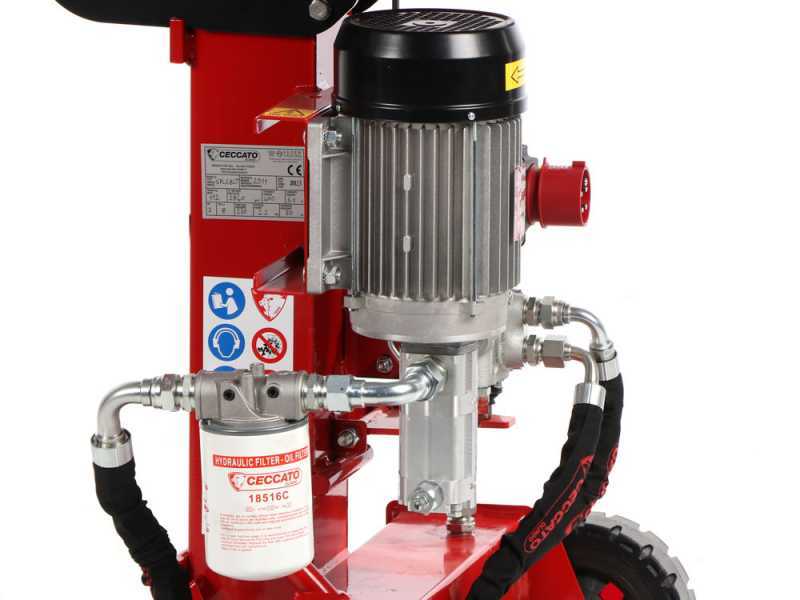

Electric engine

The BULL SPLE8LT electric log splitter model is an advanced device designed to improve efficiency in wood splitting. Featuring a 3 HP (2.2 KW) engine and a series of cutting-edge features, it is suitable for all operations related to wood treatment.

Technical Specifications:

  • Efficient engine: Equipped with a 3 Hp (2.2 KW) 400 V engine, ensuring superior splitting performance, maximising efficiency and reducing operational effort.

  • Structure with integrated tank: The construction of the log splitter incorporates a reservoir for hydraulic oil, acting both as a structural support and as an oil reservoir. This feature not only makes the design cleaner, but also optimizes oil management.

  • Double Hydraulic Pump: A distinctive feature of this model is the presence of a double hydraulic pump. This component allows high reactivity and enhanced performance, ensuring effective division even with logs of considerable strength.

  • Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

Detail of the Double Hydraulic Pump: The real added value of this device lies in its double hydraulic pump. This technological solution ensures a constant and vigorous hydraulic pressure, combined with a speed of operation that significantly increases productivity. In practice, this results in an ability to split wood more quickly and efficiently

Wedge, dual control levers and cutting plate

The Docma SF100 Rapid 380/4 XX high-power log splitter is an essential tool in the division of woody logs. Thanks to a thrust force of 8 tons, it has been developed to effectively and accurately handle the most demanding splitting operations.

Performance characteristics:

  • Thrust Capacity: It is distinguished by a thrust force of 8 tons. This remarkable power allows you to process logs of various sizes, ensuring accurate and timely division.
  • Split Dimensions: With the ability to handle logs that reach 54 cm in height and 50 cm in diameter, the log splitter offers remarkable versatility, responding to different processing needs.
  • High resistance steel wedge: The log splitter is equipped with a high-strength steel, which ensures long life and uniform performance over time.

Design and Functionality:

  • Working Surface: Its large work surface, adjustable in 2 positions 39 x 30 cm, is designed to offer adequate space for the arrangement and handling of logs.
  • Easy and Ergonomic Control: The bi-manual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Ceccato BULL SPLE8LT log splitter stands out as a technologically advanced solution for wood splitting. Combining power, ergonomics and safety features.

Other features

The log splitter is equipped with a sturdy, reinforced steel frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier, and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging and placed on pallet.

The maintenance and operating instructions manual is included in the packaging.
