Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke

Hobby
Questions & Answers (1)
ID: 104056

EAN: 9999237541206

MPN: SPLE8

Ceccato Olindo
Catalog Ceccato Olindo
8,5/10
After-sales assistance & Spare parts
39Pictures
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Special offer
Max. trunk diameter
50 cm
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
2 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
8 t
Manufacturing country
Italy
Product Features
Model:
BULL SPLE8
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
8 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2 HP
Nominal power (W):
2200 W
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Single
Max. pressure:
230 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
6 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80x54x107 cm
Net weight:
111 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x60x120 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 31/10/2024 - 04/11/2024
Free returns (up to 30 days after receipt) *
Suggested price:
€ 1.562,90
-5 %
€ 1.478,88
VAT Included
TOP QUALITYTOP QUALITY
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

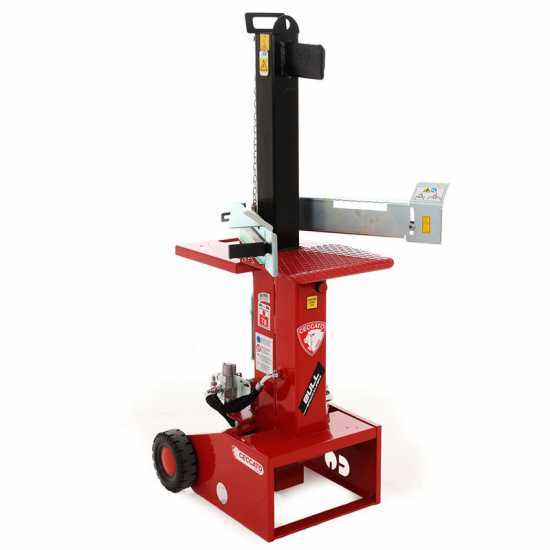

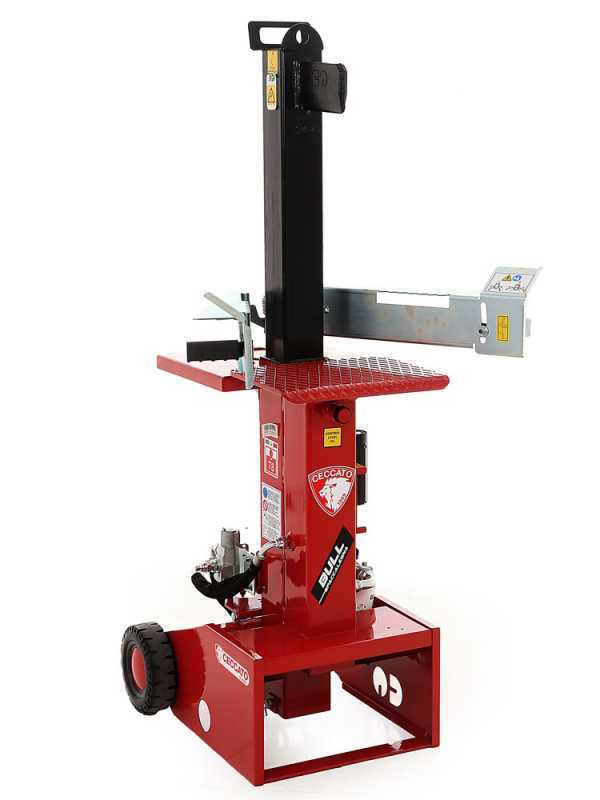

Ceccato Bull SPLE 8 electric vertical log splitter - 8 tons

The Ceccato Olindo Bull SPLE8 is a vertical log splitter powered by a single-phase electric motor intended for intensive use as is it provided with large wedge, highly-resistant frame and powerful splitting force.

The heavy-duty log splitter with the best price/performance ratio in its class.

With its 8 tons splitting force it can split knotty logs of different sizes up to max. 50 cm height and a max. 50 cm diameter.

Powered by a powerful 3 Hp single-phase electric motor (2.2 Kw) This Ceccato Olindo SPLE 8 log splitter is also equipped with 2 wheels for easy transport and adjustable end-of-stroke automatic control system.

This SPLE8 electric log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Splitting force: 8 tons

Log diameter: from 10 to 50 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

Overall dimensions: 80 x 54 x 107 cm

Weight: 111 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke

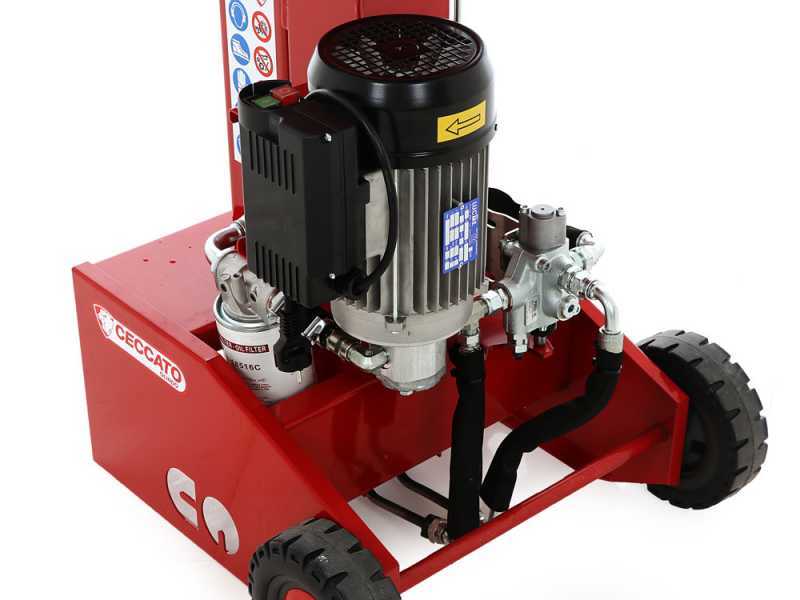

Electric motor

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke

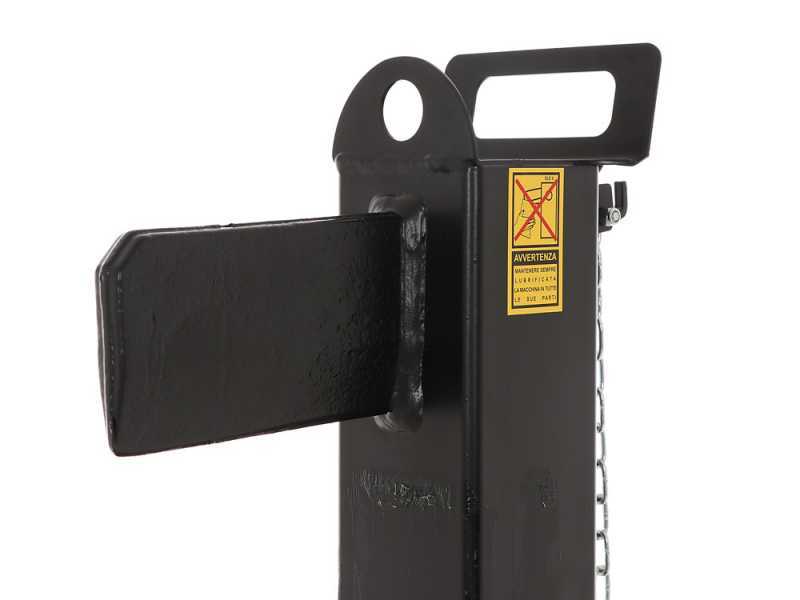

Wedge, dual control levers and cutting plate

With its 8 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 50 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 39 x 30 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Adjustable end-of-stroke control system

Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke

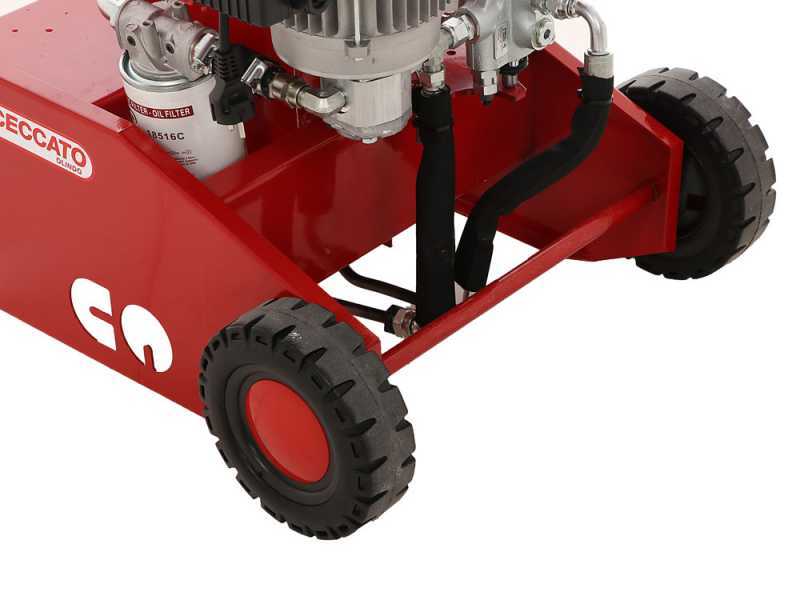

Other features

The log splitter is equipped with a sturdy reinforced steel frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.

Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke Ceccato BULL SPLE8 8 Tons Single-phase Vertical Log Splitter - 540 mm Piston Stroke
