Ceccato BULL SPLE13T-650 13 Tons Three-phase Electric Vertical Log Splitter - 650 mm Piston Stroke

Questions & Answers (1)
ID: 3740

EAN: 9993089183492


After-sales assistance & Spare parts

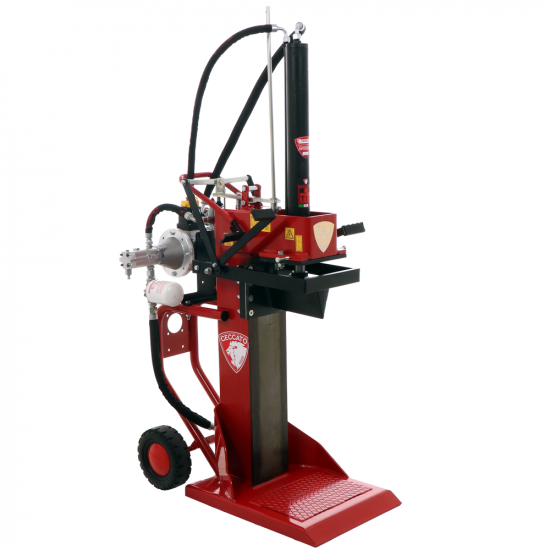

Ceccato BULL SPLE13T-650 13 Tons Three-phase Electric Vertical Log Splitter - 650 mm Piston Stroke
Max. trunk diameter
60 cm
Piston stroke
65 cm
Max. pressure
190 bar
Ground splitting system
Double speed
Operating mode
Three-phase 400 V
Nominal power
4 HP
Nominal power (W)
3000 W
Nominal splitting force
13 t
Pump type
Double hydraulic
Manufacturing country
Product Features
Double speed:
Operating mode:
Three-phase 400 V
Nominal splitting force:
13 t
Piston stroke:
65 cm
Adjustable piston stroke (for short logs):
Worktop log cutting:
Ground splitting system:
Manufacturing country:
Motor data
Motor brand:
Motor type:
Electric three-phase
Nominal power:
4 HP
Nominal power (W):
3000 W
Motor speed:
1450 RPM
Power supply:
400 V electric
Manufacturing country:
Pump data
Pump type:
Double hydraulic
Flow rate:
4-19 L/min
Max. pressure:
190 bar
Oil tank:
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
23 cm/s
Piston speed (2):
9 cm/s
Retracting speed:
15 cm/s
Manufacturing country:
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
67 cm
Max. trunk diameter:
60 cm
Covered with front plate
Vertical log splitter safety lever:
Retaining side arms:
Retaining side supports:
Trunk lifting system:
Retractable piston for transport:
Tractor three-point hitch:
Replaceable wedge guides:
Cartridge oil filter :
CE-compliant safety switch:
Wheeled trolley for transport:
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
Splitting wedge:
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x60x180 cm
Net weight:
235 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x80x190 cm
Gross weight (packaging included) :
243 Kg
Unloading with hydraulic tail lift:
Assembly time:
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
Suggested price:
€ 2.811,04
€ 2.529,94
VAT Included
You're viewing:
Customers also viewed:

SPLE13-650 electric vertical log splitter

Ceccato Olindo Bull SPLE13T-650 is a heavy-duty three-phase vertical log splitter intended for professional and intensive use. It is equipped with a large wedge guided by skids along a thick steel guide.

This Bull SPLE13T-650 log splitter is powered by a 4 Hp single-phase electric motor. With its 13 ton splitting force it can break knotty logs of different sizes up to max. 67 cm in height.

Ceccato Bull SPLE13T-650 log splitter is provided with the ground split system. It is provided with a safety arch,adjustable end-of-stroke automatic control system and other safety devices for protecting the Operator during use.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 55 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

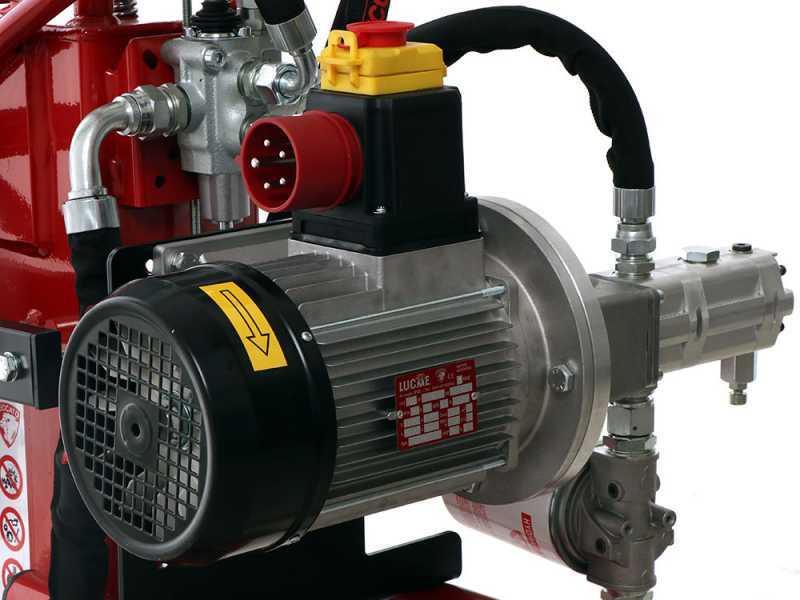

Electric motor

This log splitter is powered by a three-phase 400V electric motor featuring a power of 3 Kw.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 190 bar working pressure and can pump 19 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The advantage of the two-stage pump is that it allows the piston to double, or more, its speed, compared to normal single phase 4 Hp log splitters equipped with a single pump.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

Two-stage pump fully made in Italy.

Focus on the three-phase plug.

Focus on the on/off switch.

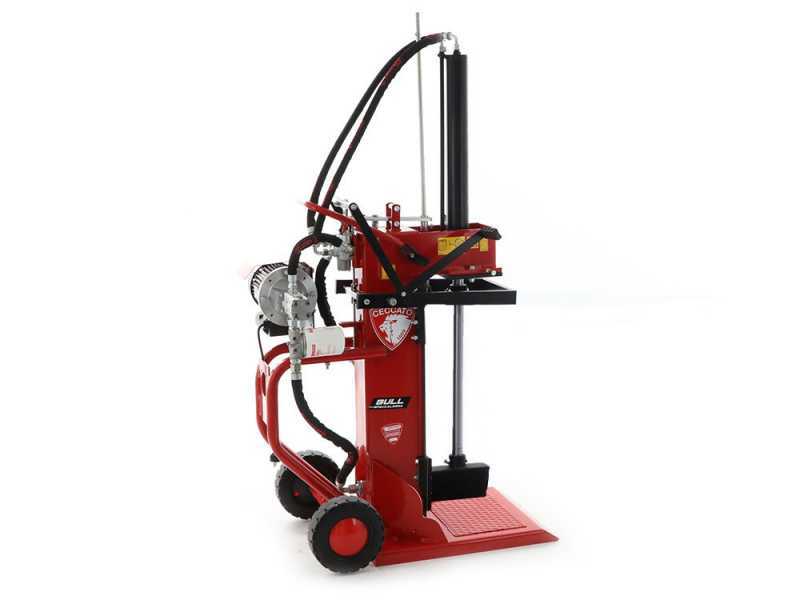

Wedge and piston

With its 13 ton splitting force it can break knotty logs of different sizes up to max. 67 cm in height.

This is possible thanks to the very sturdy and large piston, which features a 80 mm outer diameter and a 40 mm internal diameter.

The piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

The cutting wedge is made of highly sturdy melted pressed steel and features a 25 cm splitting length.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

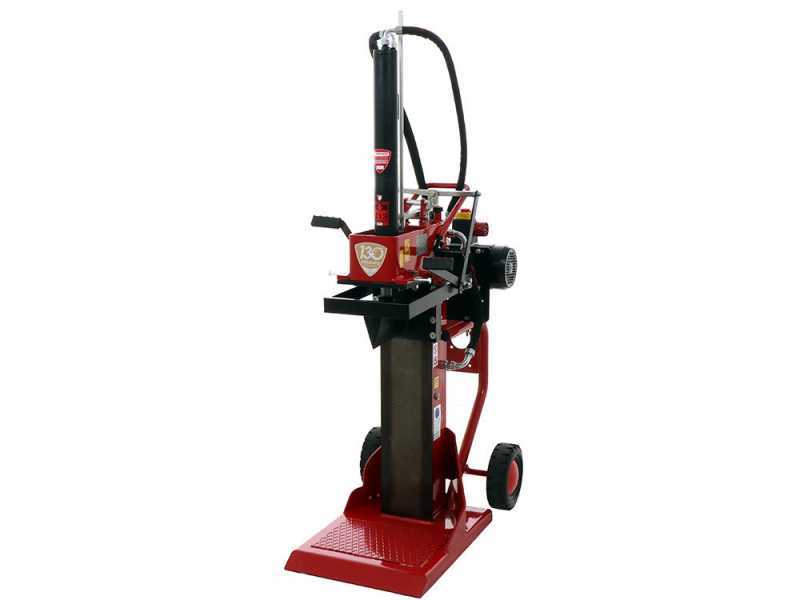

Controls and operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Focus on the motor operating control.

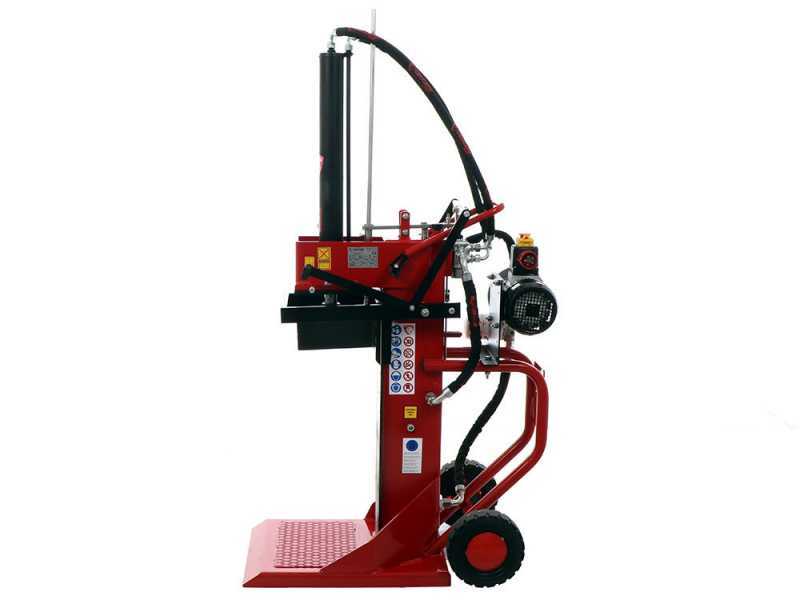

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides.

This plate is made of high-strength tempered steel, which is harder than the steel used for the frame. This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with 27 cm diameter wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 300 Kg.

Cutting plate dimensions: L. 69 cm x W. 50 cm x H. 5.5 cm. Its size provides great stability by extending beyond the flat plate where the log splitter wedge runs.

In specific situations, it can also be lifted using the specific lifting point connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

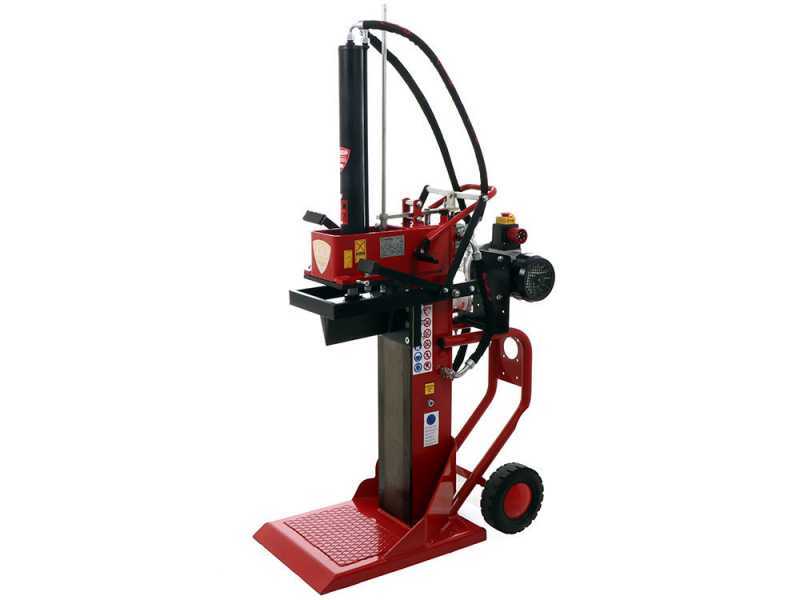

Other features

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists..

Focus on the heavy-duty hydraulic distributor.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the Ceccato Olindo oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the very thick cutting plate.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
