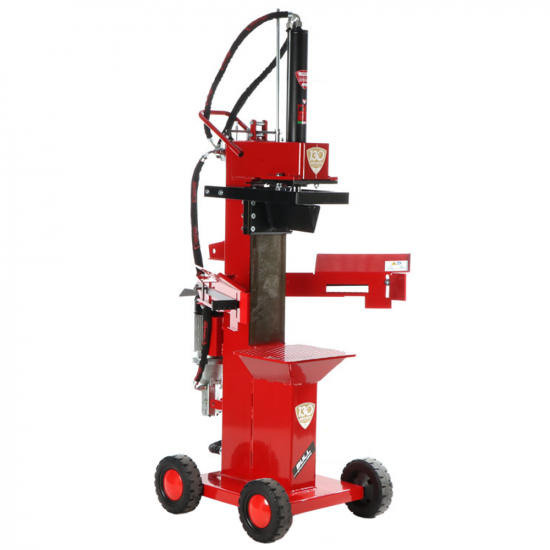

Ceccato BULL SPLE13R4T - Electric log splitter - Vertical - 400V

Add a question
ID: 112814

EAN: 8053435097031

MPN: SPLE13R4T

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE13R4T - Electric log splitter - Vertical - 400V
Max. trunk diameter
65 cm
Piston stroke
52 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Three-phase 400 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
13 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
BULL SPLE13R4T
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase 400 V
Nominal splitting force:
13 t
Piston stroke:
52 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Motor speed:
2840 RPM
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
14 cm/s
Piston speed (2):
5.5 cm/s
Retracting speed:
9 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
65 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
No
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes

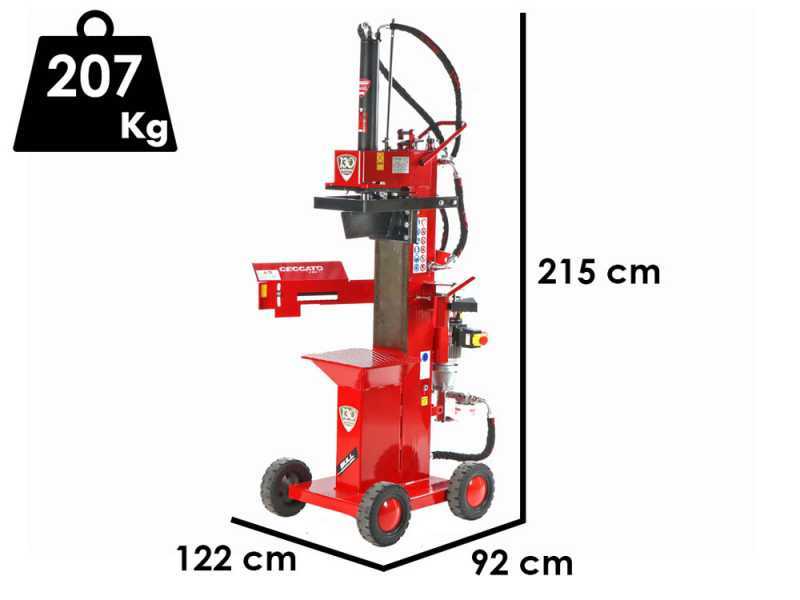

Dimensions and logistics
Product dimensions in cm (L x W x H):
122x92x215
Net weight:
207 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
81x81x190
Gross weight (packaging included) :
220 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 16/12/2024 - 19/12/2024
Suggested price:
€ 2.777,73
€ 2.633,00
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Ceccato BULL SPLE13R4T - Electric log splitter - Vertical - 400V

Ceccato Olindo's BULL SPLE13R4T log splitter represents excellence in the forestry machinery sector, designed and manufactured in Italy to meet the needs of professionals in the sector.

This machine, characterized by its robustness and reliability, is ideal for splitting wooden logs, even the most knotty ones, up to a maximum height of 52 cm and a diameter of 65 cm.

One of the distinctive features of the BULL SPLE13R4T log splitter is its large cast steel wedge, designed to offer an efficient and safe split.

The wedge slides on a bronze guide, a system designed to protect the frame and the piston, ensuring a long life of the machinery even under intense efforts. The 52 cm piston stroke ensures effective splitting for a wide range of logs.

The structure of the log splitter is particularly robust, built to withstand thrusts of up to 13 tons, a remarkable thrust power that allows you to tackle even the heaviest jobs with ease. This durability is a key element for professional operators who require reliable and long-lasting equipment.

Powered by a 4 HP three-phase motor, which ensures the necessary force for efficient and rapid splitting operations.

Equipped with double speed.

The mobility of the log splitter is guaranteed by a solid support base with 4 wheels, made with a special rubber mixture that prevents stones from getting stuck, thus facilitating the movement of the machinery even on uneven terrain.

Safety is a priority for Ceccato Olindo, as demonstrated by the safety arch and the adjustable limit switch system of the BULL SPLE13R4T log splitter. The hydraulic hoses are equipped with a Ceccato Olindo screen-printed cloth sheath and inserted into the fittings, ensuring full compliance with EC regulations.

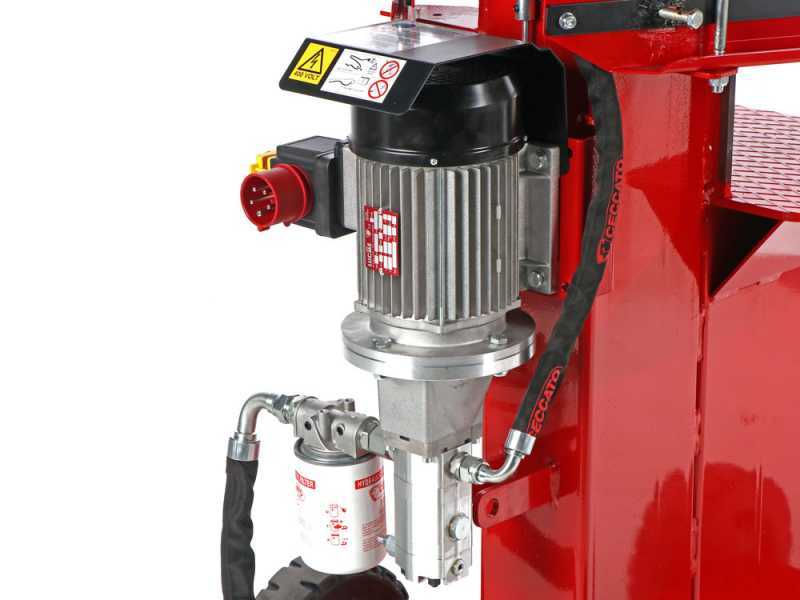

Electric engine

The BULL SPLE13R4T electric log splitter model is an advanced device designed to improve efficiency in wood splitting. Featuring a 4 HP (3 KW) three-phase engine and a range of cutting-edge features, it is suitable for all wood treatment operations.

Technical Specifications:

  • Efficient engine: Equipped with a 4 Hp (3 KW) 400 V, ensuring superior splitting performance, maximising efficiency and reducing operational effort.

  • Structure with integrated tank: The construction of the log splitter incorporates a reservoir for hydraulic oil, acting both as a structural support and as an oil reservoir. This feature not only makes the design cleaner, but also optimizes oil management, which is also equipped with an excellent oil filter.

  • Double Hydraulic Pump: A distinctive feature of this model is the presence of a plumbing system. This component allows high reactivity and enhanced performance, ensuring effective division even with logs of considerable strength.

  • Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

Detail of the Double Hydraulic Pump: The real added value of this device lies in its double hydraulic pump. This technological solution ensures a constant and vigorous hydraulic pressure, combined with a speed of operation that significantly increases productivity. In practice, this results in an ability to split wood more quickly and efficiently

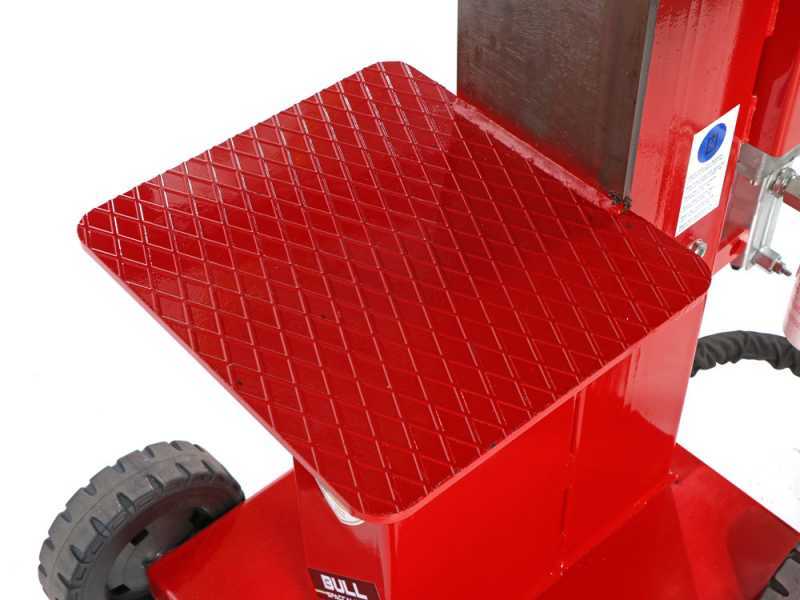

Wedge, bimanual levers and worktop

The Ceccato BULL SPLE13R4T high-power log splitter is an essential tool in the division of woody logs. Thanks to a thrust force of 13 tons, it has been developed to effectively and accurately handle the most demanding splitting operations.

Performance characteristics:

  • Thrust Capacity: It is distinguished by a thrust force of 13 tons. This remarkable power allows you to process logs of various sizes, ensuring accurate and timely division.
  • Split Dimensions: With the ability to handle logs that reach 52 cm in height and 65 cm in diameter, the log splitter offers remarkable versatility, responding to different processing needs.
  • High resistance steel wedge: The log splitter is equipped with a high-strength steel, which ensures long life and uniform performance over time.

Design and Functionality:

  • Working Surface: Its large working area, 36 x 41 cm, is designed to offer adequate space for the arrangement and handling of logs.
  • Easy and Ergonomic Control: The bi-manual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Ceccato BULL SPLE13R4T log splitter stands out as a technologically advanced solution for wood splitting. Combining power, ergonomics and safety features.

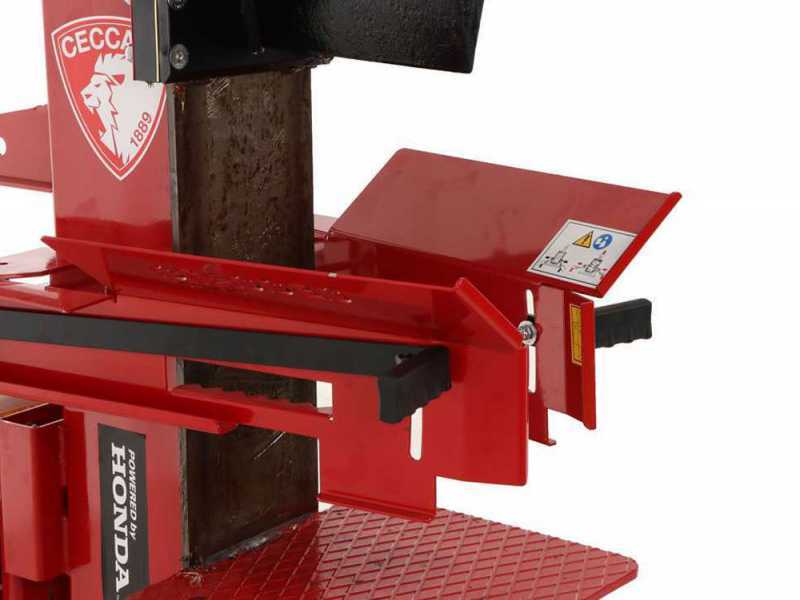

Controls and operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force to up to 13 tons.

- Special protection rubber on the handles.

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

In fact, unlike most log splitters on the market, which have frames made from ‘H’ beams, the frame of the Ceccato log splitter is made from a boxed structure, and is reinforced with the front flat plate where the splitting wedge slides.

This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

The log splitter is complete with wheels for easy movement and is excellent balanced: movement can be performed using the handle for tilting the log splitter and the movement wheels, which are an impressive 25 cm in diameter.

With a thrust of no less than 13 tonnes, this Ceccato log splitter is capable of splitting logs of varying sizes up to a maximum of 52 cm in height and 65 cm in diameter.

In specific situations, it can also be lifted using the specific lifting point connection.

The support bench measures 36 x 41 cm.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Additional features

Wedge locking device with wedged logs. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Details of the heavy-duty hydraulic distributor

Details of the hydraulic oil drain plug.

Details of the hydraulic oil level.

Detail of the Ceccato Olindo: cartridge-type, replaceable, professional, large oil filter.

Detail of the exceptional thickness

Free items & Standard equipment

Standard equipment

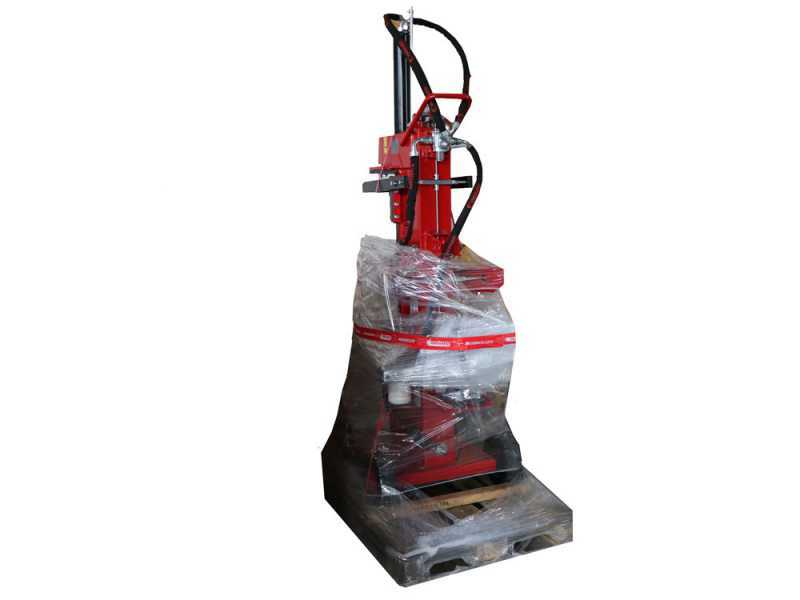

The log splitter is safely shipped in its original packaging on a pallet.

The maintenance and operating instructions manual is included in the packaging.
