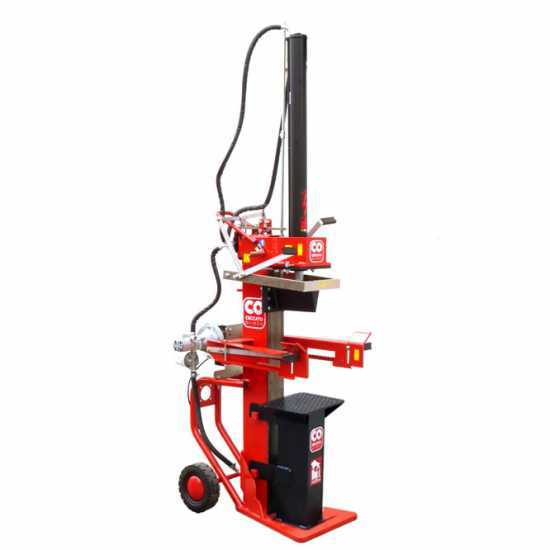

Ceccato BULL SPLE13 Electric Vertical Log Splitter - 2.2 Kw - 13 Tons - 1100 mm Piston Stroke

Add a question
ID: 3739

EAN: 9993089183485

MPN: SPLE13

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE13 Electric Vertical Log Splitter - 2.2 Kw - 13 Tons - 1100 mm Piston Stroke
+70 sold
Max. trunk diameter
60 cm
Piston stroke
110 cm
Max. pressure
230 bar
Ground splitting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
13 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SPLE13
Type:
Vertical
Double speed:
Yes
Operating mode:
Single-phase 230 V
Nominal splitting force:
13 t
Piston stroke:
110 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Flow rate:
4-19 L/min
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
14 cm/s
Piston speed (2):
5.5 cm/s
Retracting speed:
9 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
114 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
110x70x270 cm
Net weight:
286 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x230 cm
Gross weight (packaging included) :
300 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 17/12/2024 - 20/12/2024
€ 3.357,58
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

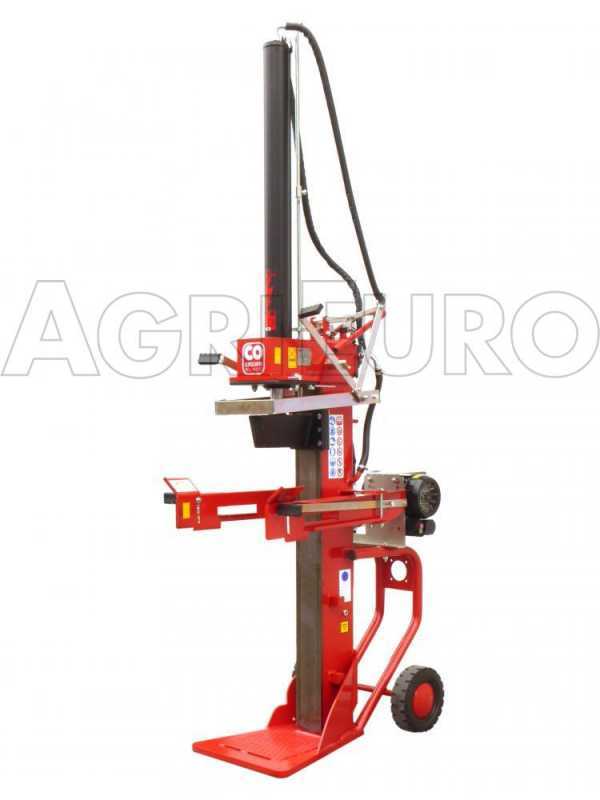

SPLE13 electric vertical log splitter

Ceccato Olindo Bull SPLE13 log splitter is a vertical log splitter intended for intensive uses. It comes with a big wedge, which slides on a thick steel guide which prevents the cylinder from wear.

You can use this machine by connecting the 3 HP motor to a standard domestic wall socket. Thanks to its 13 tons splitting force it can split knotty logs up to 112 cm height.

Ceccato Bull SPLE13 log splitter is provided with the ground split system. It is provided with a safety arch,*adjustable end-of-stroke automatic control system and other safety devices for protecting the Operator during use.

Ease of storage thanks to the closable piston. You can partially or fully close it as necessary.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 55 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

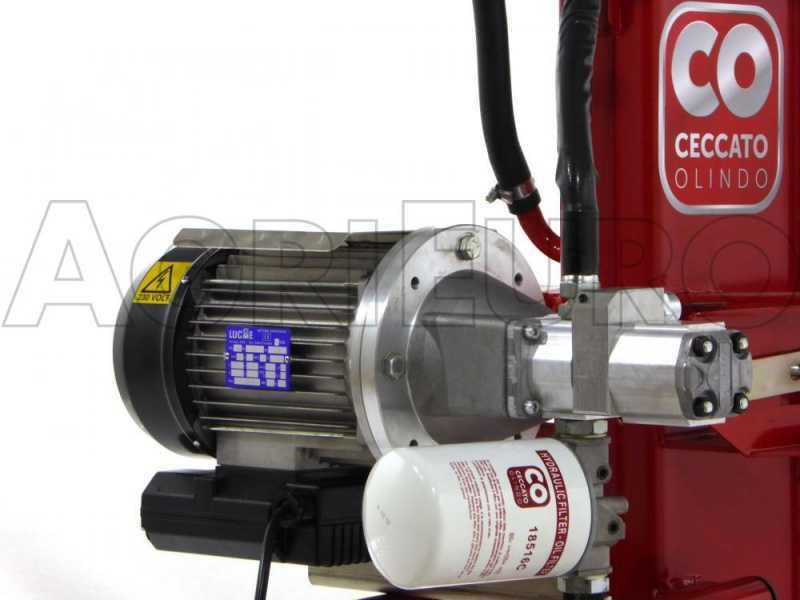

3 HP 2200 W electric motor

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 19 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The advantage of the double pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Furthermore, the double pump allows you to halve the operating time and increases the productivity of the log splitter.

Double pump fully made in Italy.

Focus on the motor stainless steel protection: it protects the motor from debris and hits.

Focus on the On/Off switch.

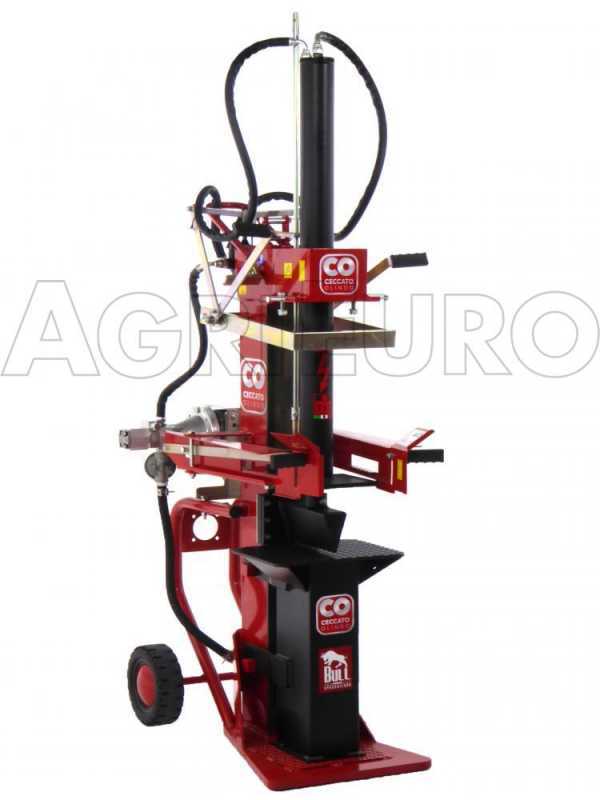

Wedge and 1100 mm piston stroke

The 13 tons splitting force allows splitting knotty logs up to 114 cm in height by means of the additional controls on the upper part of the machine in order to split large-sized logs.

This is possible thanks to the very sturdy and large piston, which features a 80 mm outer diameter and a 40 mm internal diameter.

The 1100 mm piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

You can disassemble and close the piston to limit the log splitter size for easy storage. You can partially close it by means of the table provided on standard equipment.

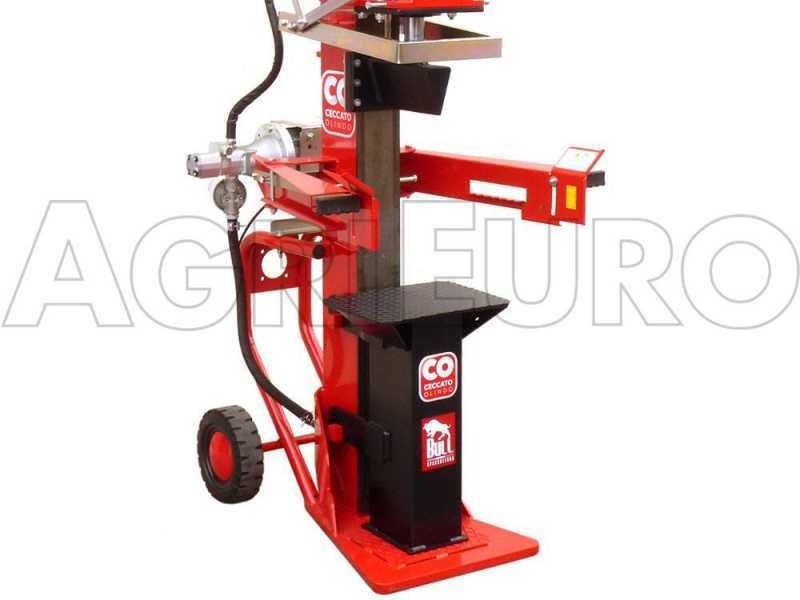

Dual controls and operating speed adjustment

The log splitter is equipped with a speed cylinder drive circuit and double powering controls.

Focus on the upper controls and the lower controls.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

By applying small pressure on the control handles, the speed (up to 23 cm/sec) of the piston will be increased before contacting the log.

With a greater pressure on the control handles, the speed (up to 9 cm/sec) of the piston will considerably slow down and increases the wedge splitting force of up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

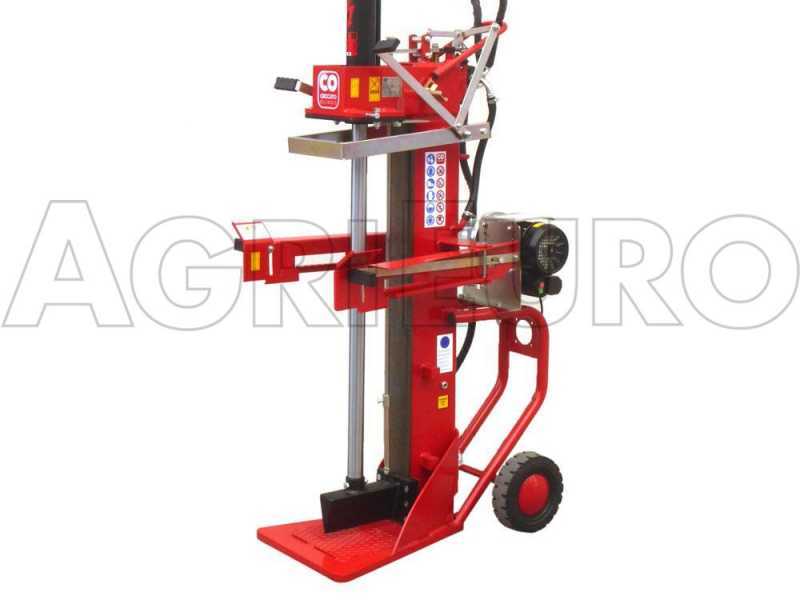

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 300 Kg.

Focus on the 27 cm wheels.

Focus on the lifting point.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Other features

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the wedge.

Focus on the heavy-duty hydraulic distributor.

Focus on the removable plate for the ground split system.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the Ceccato Olindo oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the very thick support platform.

Adjustable piston's stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
