Ceccato BULL SPLE12 FDP - Electric Log Splitter - Vertical - 230V

Questions & Answers (6)
ID: 106056

EAN: 9999991088511

MPN: SPLE12F

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE12 FDP - Electric Log Splitter - Vertical - 230V
+90 sold
Technical data
Max. trunk diameter
60 cm
Piston stroke
54 cm
Max. pressure
180 bar
Ground splitting system
Yes
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
12 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model
BULL SPLE12 FDP
Type
Vertical
Double speed
No
Operating mode
Single-phase 230 V
Nominal splitting force
12 t
Piston stroke
54 cm
Adjustable piston stroke (for short logs)
Yes
Worktop log cutting
Yes
Cutting plate positions
3
Ground splitting system
Yes
High position trunk length
126 cm
Manufacturing country
Italy
Motor data
Motor brand
LUCME
Motor type
Electric single-phase
Engine
Induction
Nominal power
3 HP
Nominal power (W)
2200 W
Motor speed
2830 RPM
Power supply
220 V electric
Manufacturing country
Italy
Pump data
Pump type
Double hydraulic
Max. pressure
180 bar
Oil tank
Yes
Manufacturing country
Italy
Hydraulic oil qty.
10 Litres
Cutting data
Max. trunk length
126 cm
Max. trunk diameter
60 cm
Equipment
Frame
Standard
Pump
Double
Vertical log splitter safety lever
Yes
Retaining side arms
No
Retaining side supports
No
Trunk lifting system
No
Retractable piston for transport
Yes
Stump Support Shelf
Yes
Tractor three-point hitch
No
Replaceable wedge guides
No
Cartridge oil filter
Yes
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Rear wheels size
20.5 cm
Free gifts/extra features
4-way wedge
No
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
76x129x116 cm
Net weight
194 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
80x80x170 cm
Weight including packaging
209 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 22/09/2025 - 24/09/2025
Suggested price:
€ 2.478,60
€ 2.329,88
Vat included
TOP QUALITYTOP QUALITY
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Ceccato Bull SPLE12 FDP 12 tons electric vertical log splitter

The Ceccato Olindo Bull SPLE12 FDP is a vertical tractor-mounted log splitter with single-phase electric motor,

entirely Made in Italy and suitable for intensive and professional use. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

The tube outside the piston is made of DOMEX steel, while the wedge is made of hardened steel.

It is among the best professional log splitters in its category in terms of sturdiness and performance and its quality Made in Italy distinguishes it from other products on the market.

The log splitter features 3 splitting heights:

-54 cm

-87 cm

-126 cm

The Ceccato SPLE12 FDP features 12 tons splitting force and oversized, high-resistance double-tubular frame, which allows splitting knotty logs of different size up to max. 126 cm height and max. 60 cm diameter.

Equipped with a powerful 3 Hp single-phase electric motor (2.2 Kw)

Cutting plate size: 35x27 cm

The Ceccato Olindo SPLE12 FDP log splitter is provided with 2 wheels and proper handle for easy transport and adjustable end-of-stroke automatic control system.
It is equipped with a double pump that ensures a high splitting force and high working speed. This SPLE12 FDP log splitter can operate very quickly and safely: it is equipped with special safety devices to protect the Operator while working.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Log's height: from 18 to 126 cm

Piston stroke: 54 cm

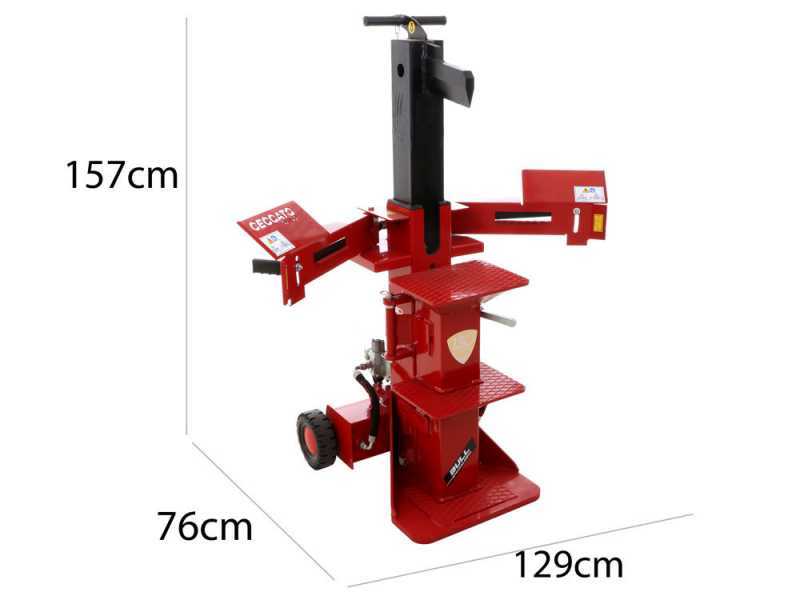

Overall dimensions: 76x129x157 cm

Weight: 194 Kg

Simply remove the 2 cutting plates to raise the cutting height.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

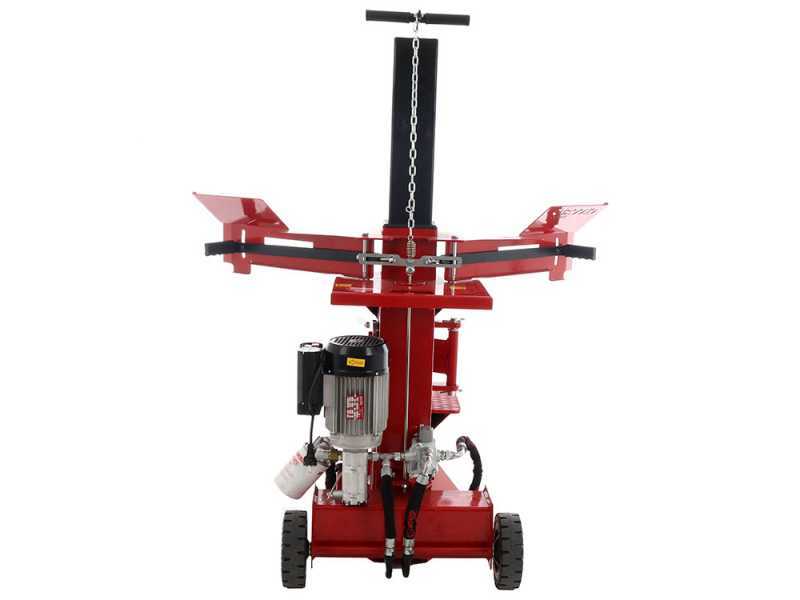

Electric motor

This log splitter is powered by a 3 Hp single-phase 230V electric motor featuring a power of 2.2 Kw.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

It is equipped with a double pump which guarantees a great splitting force and a high working speed.

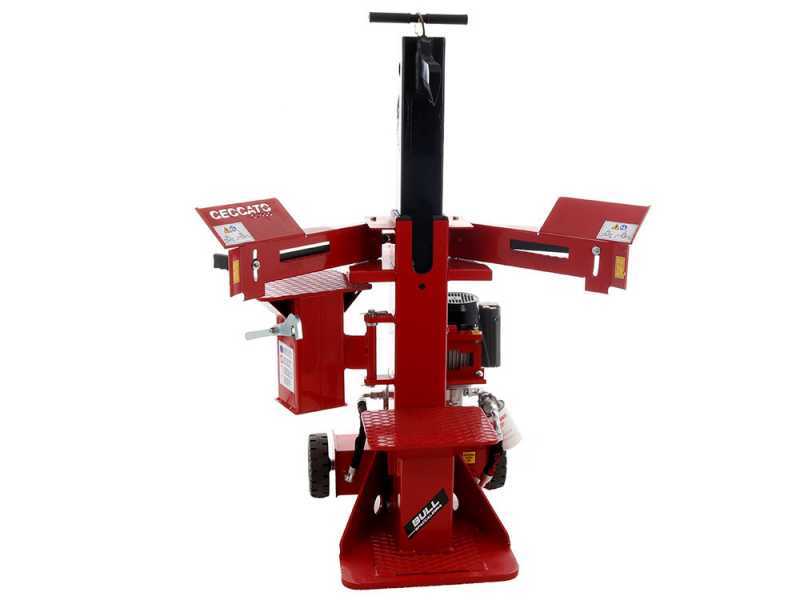

Wedge, dual control levers and cutting plate

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 126 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large removable cutting plate adjustable in 3 different splitting heights:

-54 cm

-87 cm

-126 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

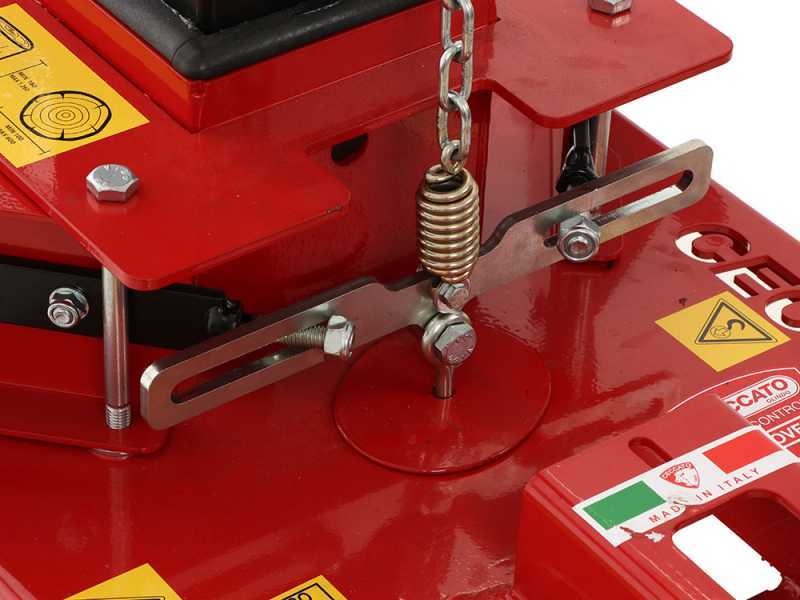

Adjustable end-of-stroke control system

Other features

The log splitter is equipped with an oversized, reinforced double-tube frame made of high-strenght steel. Highly-sturdy and resistant frame.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

Convenient instructions manual holder to always have the instructions at hand.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

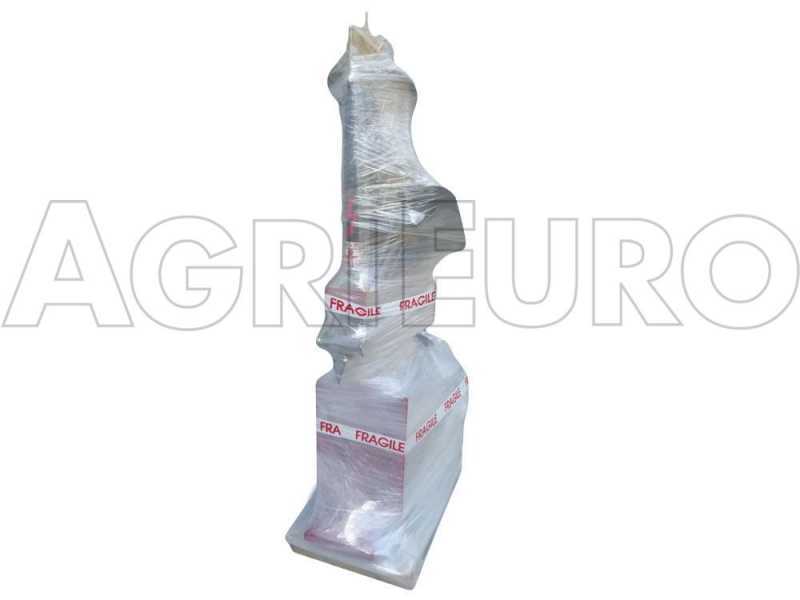

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
