Ceccato BULL SPLE12 Electric Single-phase Vertical Log Splitter - 12 Tons - 540 mm Piston Stroke

Questions & Answers (3)
ID: 104058

EAN: 9999237541220

MPN: SPLE12

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE12 Electric Single-phase Vertical Log Splitter - 12 Tons - 540 mm Piston Stroke
Special offer
+100 sold
Max. trunk diameter
60 cm
Piston stroke
54 cm
Max. pressure
180 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
12 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
BULL SPLE12
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
12 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
180 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
10 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80x54x107 cm
Net weight:
142 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x60x160 cm
Weight including packaging:
160 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 23/05/2025 - 27/05/2025
Lowest price:
€ 2.166,60
-8 %
€ 1.987,63
Vat included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

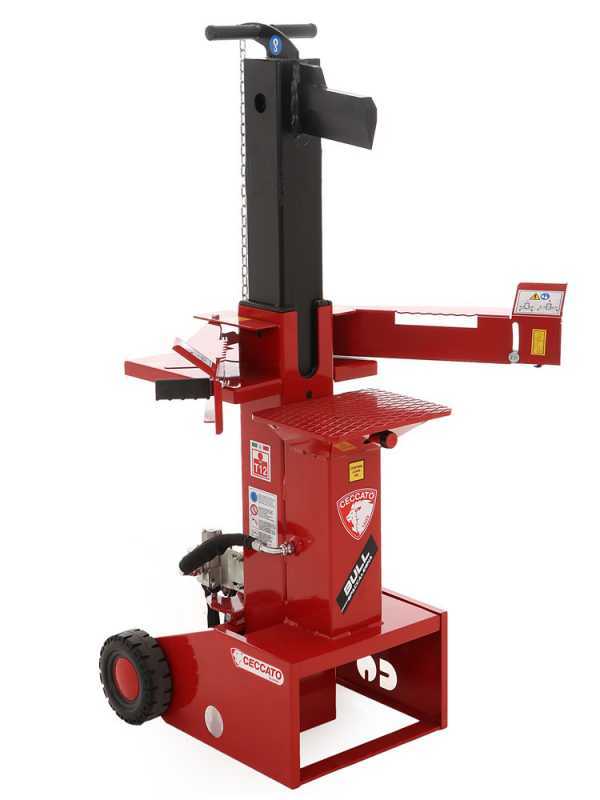

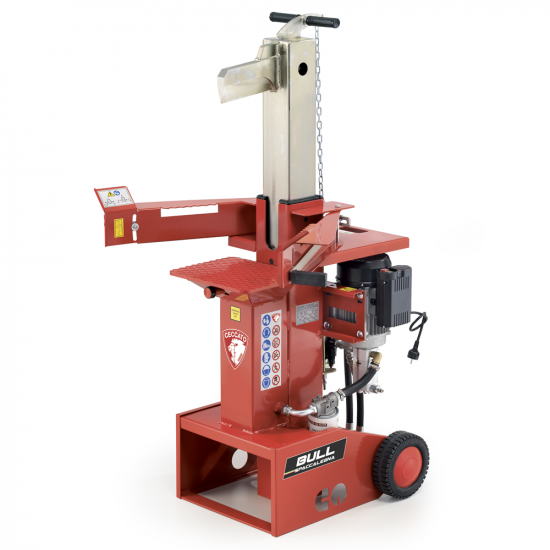

Ceccato Bull SPLE 12 electric vertical log splitter - 12 tons

The Ceccato Olindo Bull SPLE12 is a tractor-mounted vertical log splitter with single-phase electric motor entirely Made in Italy, suitable for those who have to carry out intensive and heavy-duty splitting operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

It is among the best professional log splitters in its category in terms of sturdiness and performance and its quality Made in Italy distinguishes it from other products on the market.

The Ceccato SPLE12 log splitter features 12 tons splitting force and oversized double-tubular frame made of high-resistance steel, which allows splitting knotty logs of different size up to max. 50 cm height and max. 60 cm diameter.

Equipped with a powerful 3 Hp single-phase electric motor (2.2 Kw) The Ceccato Olindo SPLE 12 log splitter is provided with 2 wheels and proper handle for easy transport and adjustable end-of-stroke automatic control system.
It is equipped with a double pump that ensures a high splitting force and high working speed.

This SPLE12 electric log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

Overall dimensions: 80 x 54 x 107 cm

Weight: 144 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

Electric motor

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

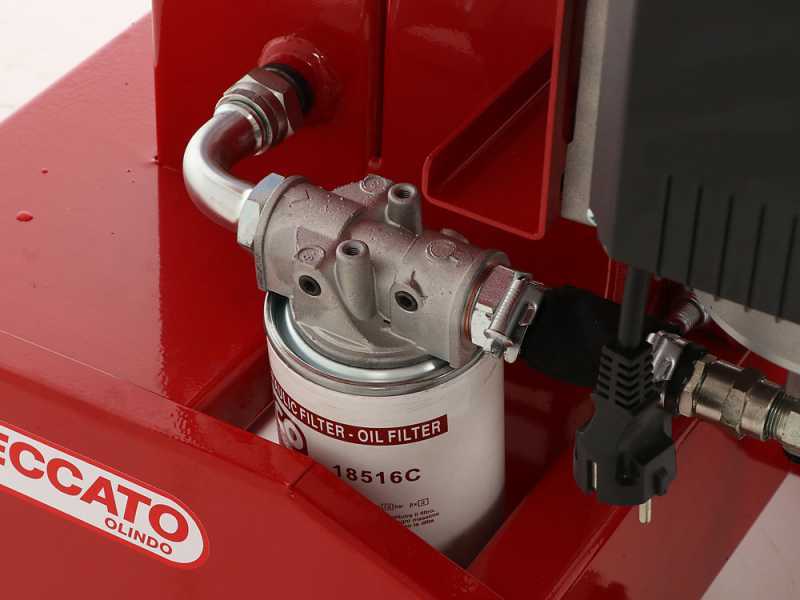

Oil Filter

Oil level check

It is equipped with a double pump which guarantees a great splitting force and a high working speed.

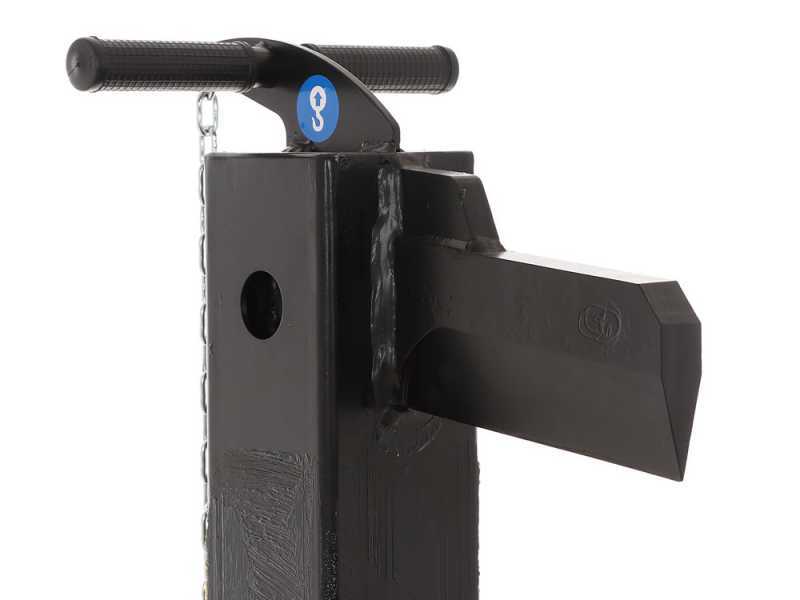

Wedge, dual control levers and cutting plate

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 35 x 27 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

Adjustable end-of-stroke control system

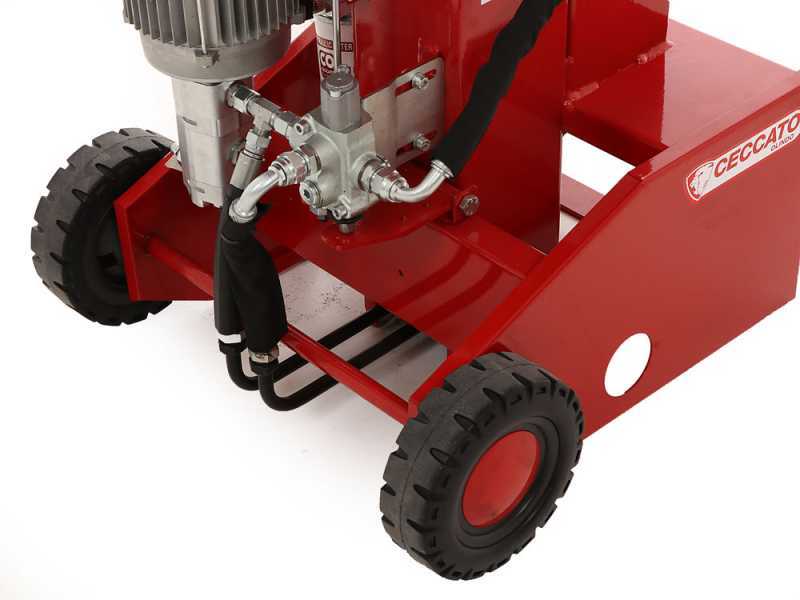

Other features

The log splitter is equipped with an oversized, reinforced double-tube frame made of high-strenght steel. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

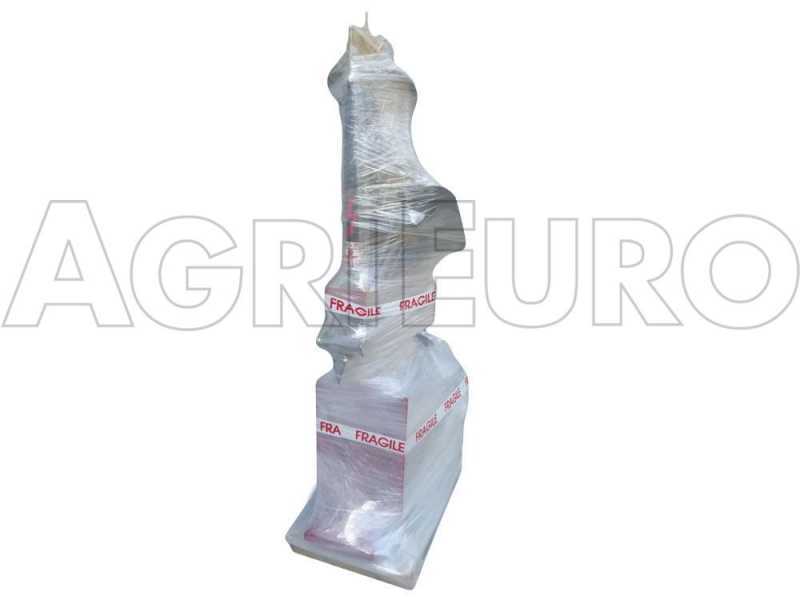

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
