Ceccato BULL SPLE10T - Electric Log Splitter - Vertical - 400V

The Bull SPLE10T log splitter by Ceccato Olindo is an all-Italian vertical log splitter designed for a semi-professional use. A product of the highest Italian quality, Ceccato Olindo, a historical brand and leader in the sector.

Equipped with customised Ceccato Olindo steel knife.

Completely robot-welded frame, sturdy and with top-quality components.

It guarantees a thrust of 10 tons, thanks to which it can split logs, even knotty ones, of varying dimensions up to a maximum height of 50 cm and with a maximum diameter of 50 cm.

It mounts a powerful 3 Hp (2.2 Kw) three-phase electric motor. The Ceccato Olindo SPLE 10T log splitter has 2 wheels and a special handle for easy transport. Thus, it is also equipped with an automatic adjustable end-of-stroke control system.
It is equipped with a double pump that guarantees a powerful thrust and great working speed.

The 2 wheels are made of a special rubber mixture that allows the stones not to get stuck.

Thanks to this electric log splitter, the cutting operations are easy and safe: the SPLE10T is equipped with special safety devices that are designed to protect the user.

Splitting power: 10 tons

Log minimum and maximum height: 18–50 cm

Log diameter: from 10 to 50 cm

Length of logs: from 18 to 50 cm

Running: 54 cm

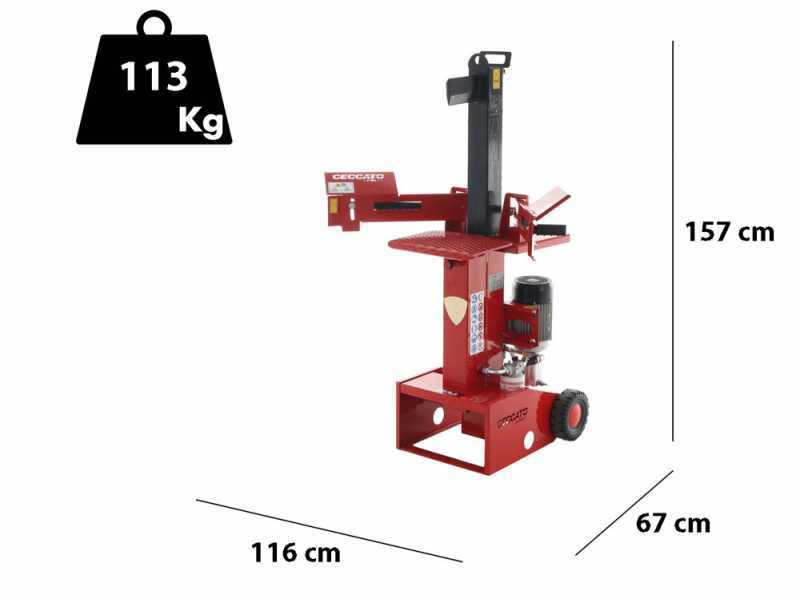

Weight: 113 kg

This machine belongs to the Ceccato Olindo's Bull line of log splitters.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

LOG SPLITTER 10/12 TONS MODEL

WEDGE: Cutting wedge with 3 inclination towards the column.

ARM CONTROL LEVERS: Shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. Thus, the shape has been specifically selected to prevent the possible fall of the log towards the operator.

HYDRAULIC HOSES: We have increased the tube diameter. This allows a lower oil temperature. Protection and skimming with Ceccato Olindo reinforced sheath and screen-printed with steel studs. In case of damage or burst of the hose, it allows retaining the vaporizing oil without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

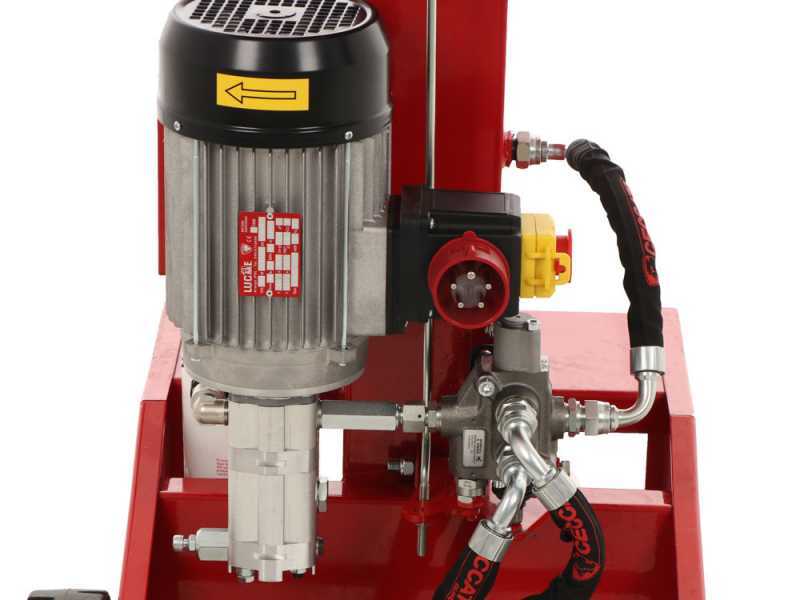

This log splitter is powered by a powerful three-phase 400 V 3 Hp motor with an output of 2.2 kW.

- Focus on the general electric switch

The body of the machine structure itself has the function of hydraulic oil tank .

- Focus on the oil filter

- Focus on the oil level control

It is equipped with a double pump that guarantees powerful thrust and high working speed.

- Focus on the double thrust pump

With a cutting thrust of 10 tons, this Ceccato log splitter is able to split wood logs which vary in size from a minimum 18 cm up to a maximum of 50 cm height and 50 cm diameter.

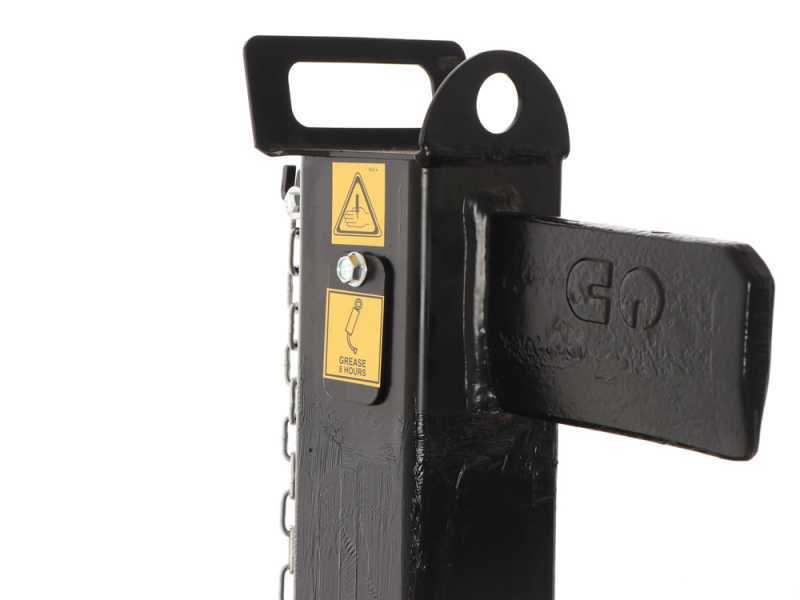

The wedge is made of high-strength steel.

Splitting table overall dimensions: 39 x 30 cm

All the operator has to do is simply use the two-hand levers to control the hydraulic valve.

The pair of operating handles is equipped with hand guards, in accordance with standards and all safety devices that protect the user.

- Focus on the adjustable limit switch end-stroke control system

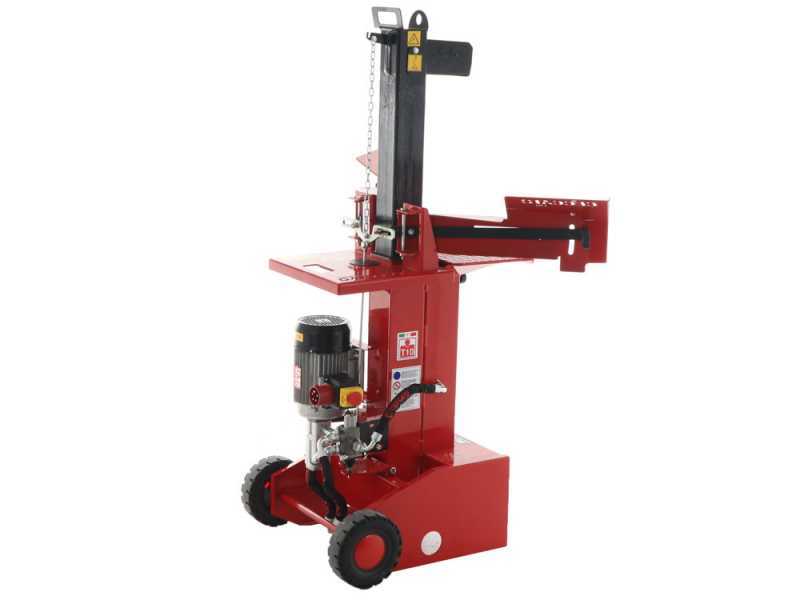

The machine has a very sturdy steel frame, and a very solid construction.

The log splitter comes complete with wheels for easy transport and it is renowned to be perfectly balanced: the log splitter can also be moved by a single operator using the handle to tilt the log splitter.

It is also equipped with a special attachment point for lifting.

- Focus on the sturdy support base

This machine is made keeping in mind all of the industry standards in order to make the operator's work safe.
