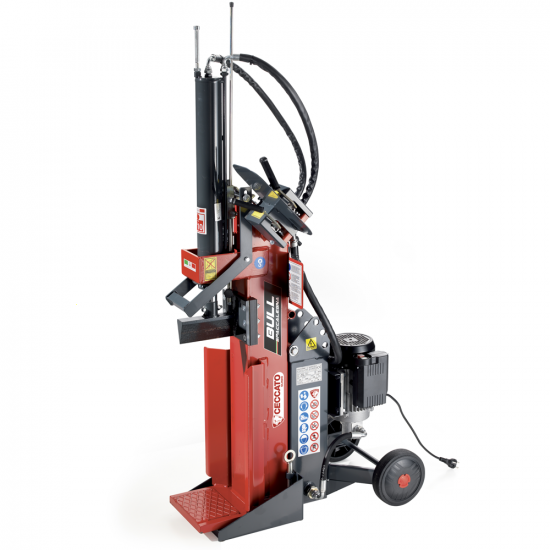

Ceccato BULL SPLE10-POL 10 Tons Single-phase Electric Log Splitter - Multi-position

Questions & Answers (10)
ID: 3733

EAN: 9993089183423

MPN: SPLE10-POL

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE10-POL 10 Tons Single-phase Electric Log Splitter  - Multi-position
+500 sold
Type
Adjustable multi-position
Max. trunk diameter
50 cm
Piston stroke
50 cm
Max. pressure
180 bar
Ground splitting system
Yes
Double speed
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
10 t
Manufacturing country
Italy
Product Features
Model:
Bull SPLE10-POL
Type:
Adjustable multi-position
Double speed:
Yes
Operating mode:
Single-phase 230 V
Nominal splitting force:
10 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
Lucme
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2830 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Single
Flow rate:
7.42 L/min
Max. pressure:
180 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
6.3 cm/s
Piston speed (2):
2.2 cm/s
Retracting speed:
4.8 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
50x80x170 cm
Net weight:
120 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
50x80x180 cm
Gross weight (packaging included) :
123 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
16 items in stock
Free Shipping
Estimated delivery: 28/06/2024 - 02/07/2024
€ 2.020,39
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

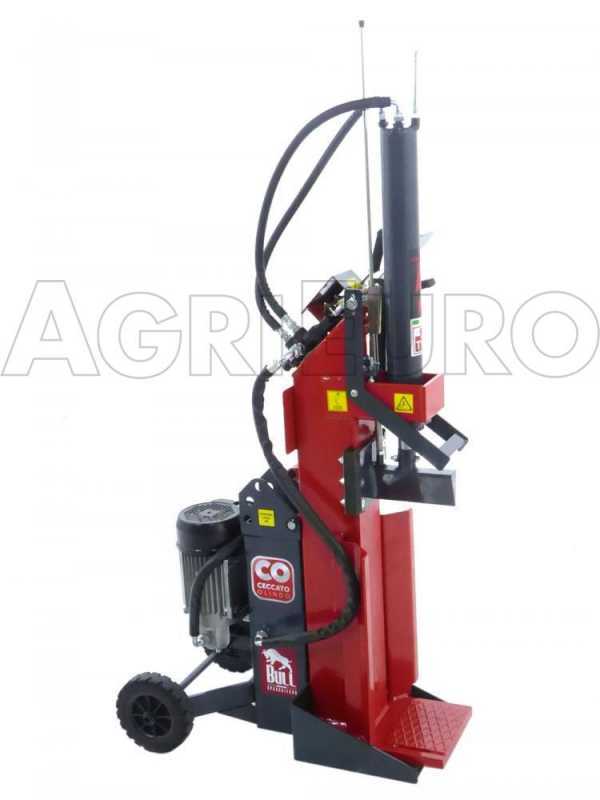

Ceccato Bull 10 tons electric log splitter - multi-position

Bull SPLE10-POL log splitter by Ceccato Olindo is an electric single-phase multi-position log splitter with 4 different working positions that allow choosing between vertical, horizontal and 30° or 60° tilted positions.

With its 10 ton splitting force it can break knotty logs of different sizes up to max. 54 cm in height and a max. diameter of 50 cm.

It is equipped with a large capacity pump that ensures high splitting force and operating speed, 2 wheels that allow easy transport and adjustable end-of-stroke automatic control system.

This SPLE10-POL heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Moreover, its multi-position configuration makes it extremely easy to transport. When it comes to the horizontal or tilted configuration, transporting the log splitter requires minimum effort.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

SUPPORT PLATFORM HEIGHT: the height of the support platform from the ground has been increased by changing the platform and assembling four wheels with a larger diameter, making it easier to move and sturdier.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

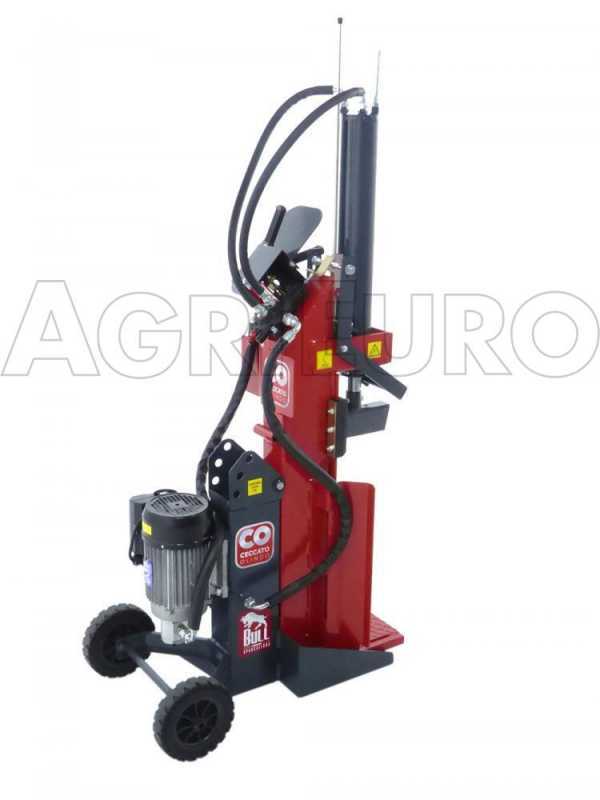

Multi-position: 4 operating positions

This log splitter features 4 different operating positions.

Indeed it is provided with an adjustable log tilt system featuring 4 different configurations that allow operating in vertical, horizontal and 30° or 60° tilted positions.

It is a very versatile machine allowing the Operator to choose between different working positions based on his/her own need depending on the logs dimensions and weight.

Horizontal position

60° tilted position

30° tilted position

Vertical position

Moreover, its multi-position configuration makes it extremely easy to transport: it is recommended to move the log splitter in horizontal or tilted position because it requires minimum effort.

Main features

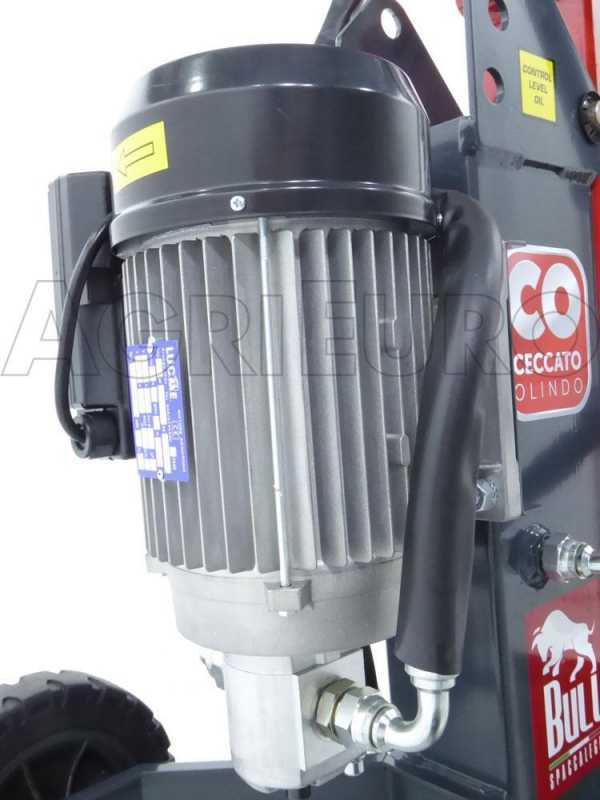

The machine is powered by a 220V 3 Hp single-phase induction motor with a power of 2200 W with a rotation speed of 2830 rpm.

The hydraulic system consists of a hydraulic pump on the electric motor that draft the oil from the tank to the hydraulic piston.

The frame of the machine structure itself acts as the hydraulic oil tank.

This log splitter is made with thick enamelled steel sections and provided with wheels for easy transport and front supports for secure positioning on the ground.

The cutting plate is placed on the supporting frame and is provided with a locking pin to fix it in the position needed.

This machine complies with the security Directives in order to guarantee a completely safe operation.

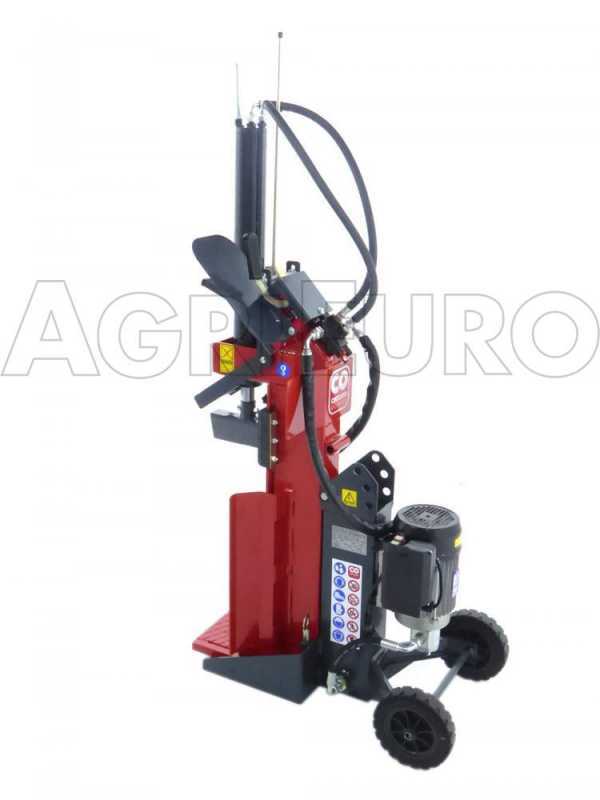

Operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

Simply pull the levers toward you to operate the machine: when light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

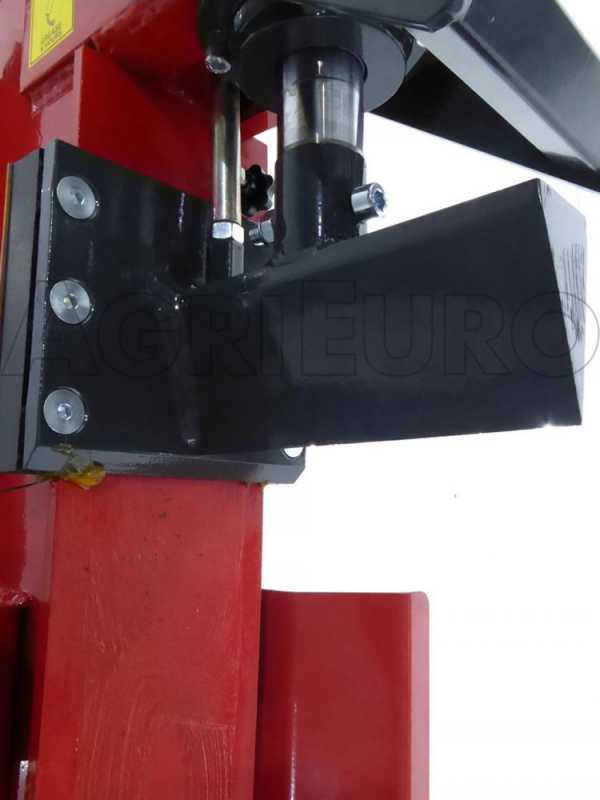

Other features

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

High-density ABS piston side guides Self-lubricating and long-lasting material (it will never be necessary to replace them), and mostly, unlike the bronze ones, they won't wear the steel plate after years use.

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Hydraulic cylinder

Focus on the hydraulic distributor connected to the control levers

Focus on the side supports for holding the logs.

Focus on the hydraulic oil drain plug.

Hydraulic circuit oil discharge

Focus on the motor operating control

Focus on the support platform

Focus on the wedge.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
