Ceccato BULL PTO SPLT11-POL Tractor-mounted Log Splitter - 11 Tons - Multiple Positions

Questions & Answers (5)
ID: 100342

EAN: 9993089410963

MPN: PTO SPLT11-POL

8,5/10
After-sales assistance & Spare parts
Ceccato BULL PTO SPLT11-POL Tractor-mounted Log Splitter - 11 Tons - Multiple Positions
+90 sold
Type
Adjustable multi-position
Max. trunk diameter
50 cm
Piston stroke
50 cm
Max. pressure
180 bar
Ground splitting system
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
11 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
PTO SPLT11-POL 11
Type:
Adjustable multi-position
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
11 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
4
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor speed:
540 RPM
Manufacturing country:
Italy
Pump data
Pump type:
Single
Flow rate:
20 L/min
Max. pressure:
180 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
23 cm/s
Piston speed (2):
9 cm/s
Retracting speed:
15 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
57 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
90x80x170 cm
Net weight:
152 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x80x180 cm
Gross weight (packaging included) :
162 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
Suggested price:
€ 2.154,04
€ 2.046,34
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

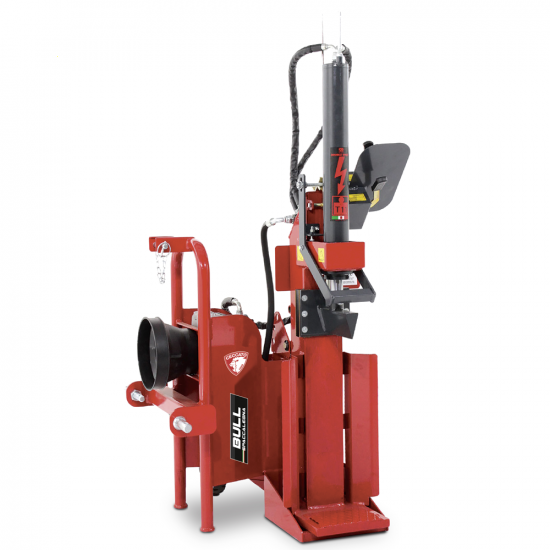

Ceccato Bull 11 tons tractor log splitter - multi-position

Bull PTO SPLT11-POL log splitter by Ceccato Olindo is a tractor-mounted multi-position log splitter with 4 different operating positions that allow choosing between vertical, horizontal and 30° or 60° tilted positions.

With its 11 ton splitting force it can break knotty logs of different sizes up to max. 54 cm in height and a max. diameter of 50 cm.

It is equipped with a large capacity pump that ensures high splitting force and operating speed and provided with adjustable end-of-stroke automatic control system.

This PTO SPLT11-POL heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Moreover, its multi-position configuration makes it extremely easy to transport. When it comes to the horizontal or tilted configuration, transporting the log splitter requires minimum effort.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG GUARD: in order to prevent cut logs from hitting the Operator when the machine is used in horizontal position.

OIL FILTER: To make it easier to clean the oil filter ensuring a longer service life for the hydraulic system, we have replaced the former wire mesh filter mounted inside the tank with a high-quality external hydraulic filter with a 25 NM-B>2 filtration degree.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

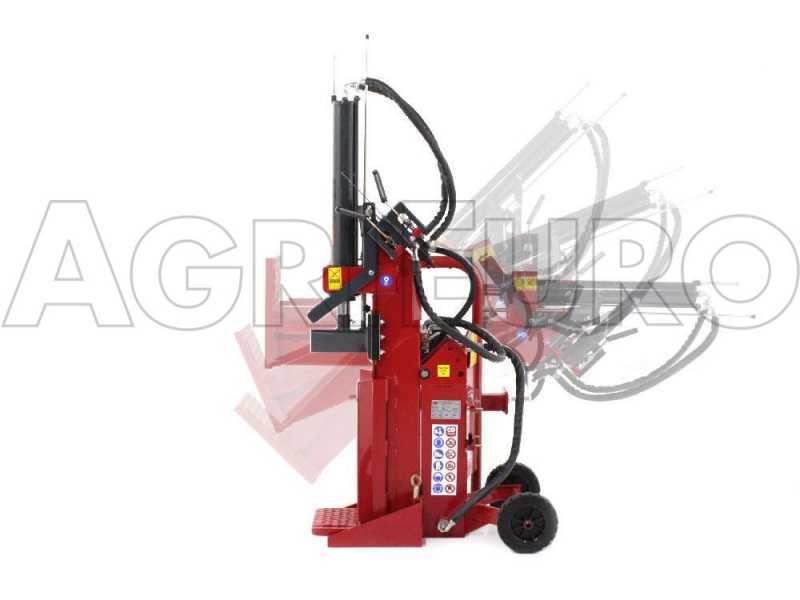

Multi-position: 4 operating positions

This log splitter features 4 different operating positions.

Indeed it is provided with an adjustable log tilt system featuring 4 different configurations that allow operating in vertical, horizontal and 30° or 60° tilted positions.

It is a very versatile machine allowing the Operator to choose between different working positions based on his/her own need depending on the logs dimensions and weight.

  • Horizontal position
  • 60° tilted position
  • 30° tilted position

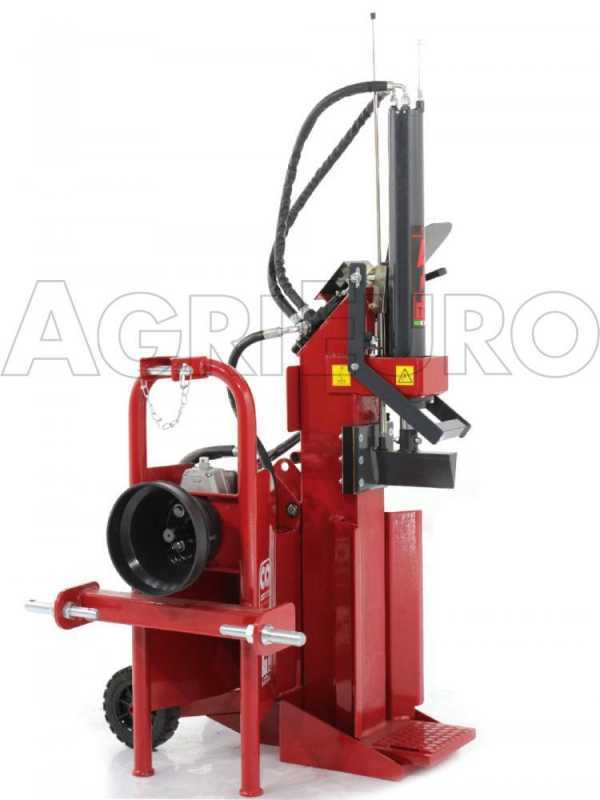

  • Vertical position

Focus on the housing of the pin for setting the operating position of the log splitter.

Simply place the pin into the proper hole according to the position desired.

Moreover, its multi-position configuration makes it extremely easy to transport: it is recommended to move the log splitter in horizontal or tilted position because it requires minimum effort.

Cardan shaft-driven tractor PTO

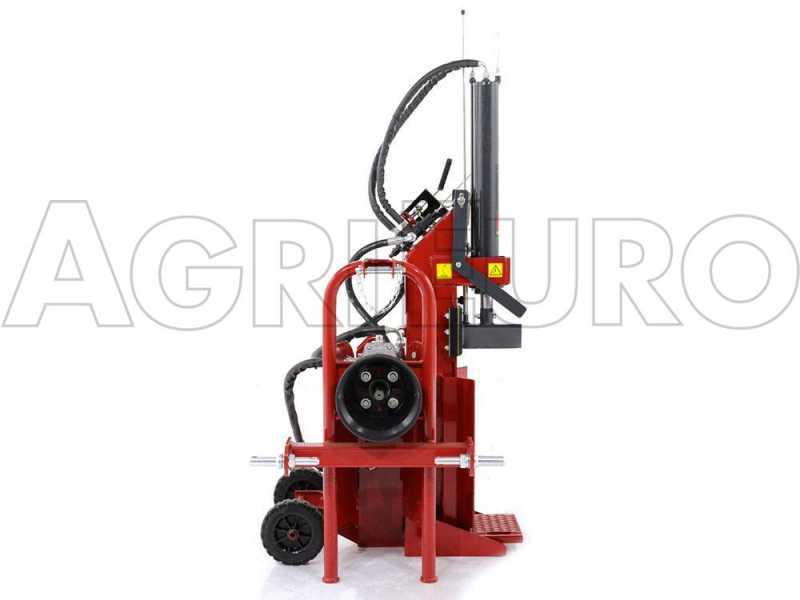

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 180 bar working pressure and can pump 20 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

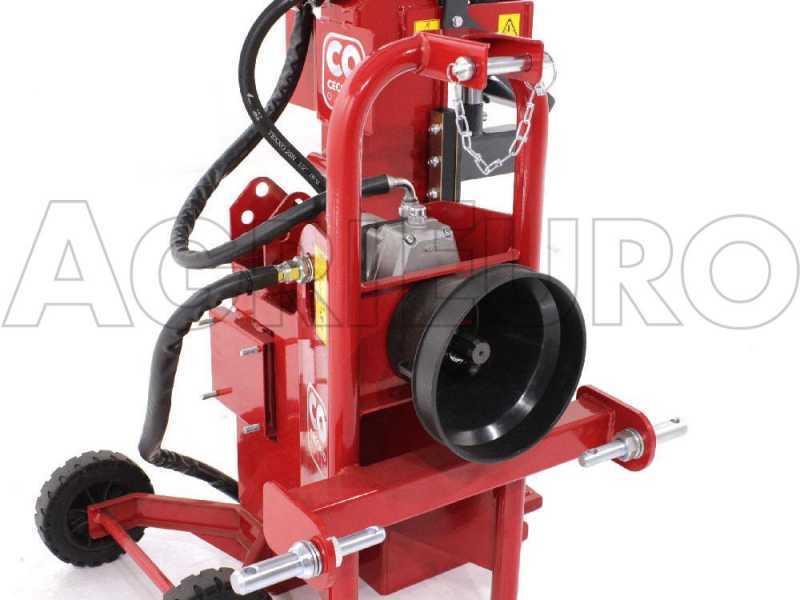

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides.

This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

The log splitter is equipped with wheels for easy transport and it is well-balanced.

Log splitter horizontal position size: 170x80x95 cm

Log splitter vertical position size: 80x90x170 cm

This machine complies with the security Directives in order to guarantee a completely safe operation.

Operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

Simply pull the levers toward you to operate the machine: when light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 11 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure.

Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Other features

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

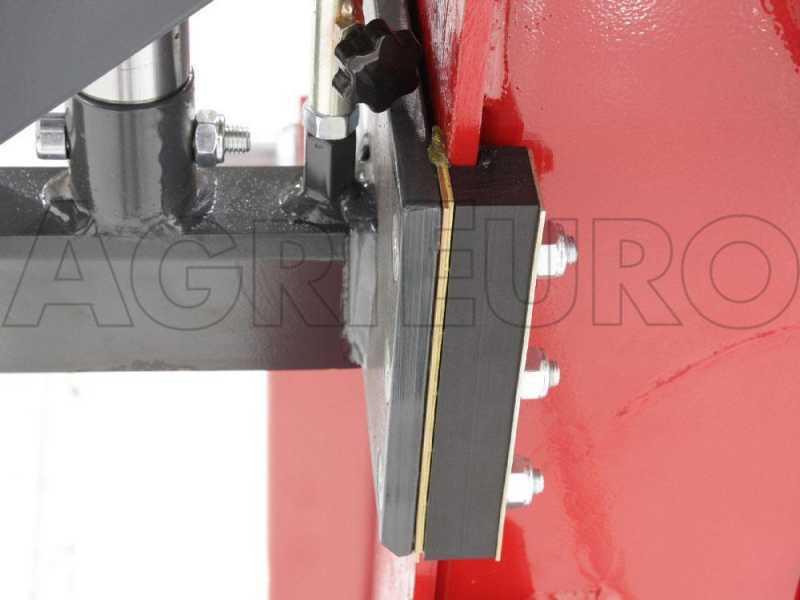

Focus on the sturdy high-density ABS piston side guides. High-density ABS piston side guides Self-lubricating and long-lasting material (it will never be necessary to replace them), and mostly, unlike the bronze ones, they won't wear the steel plate after years use.

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

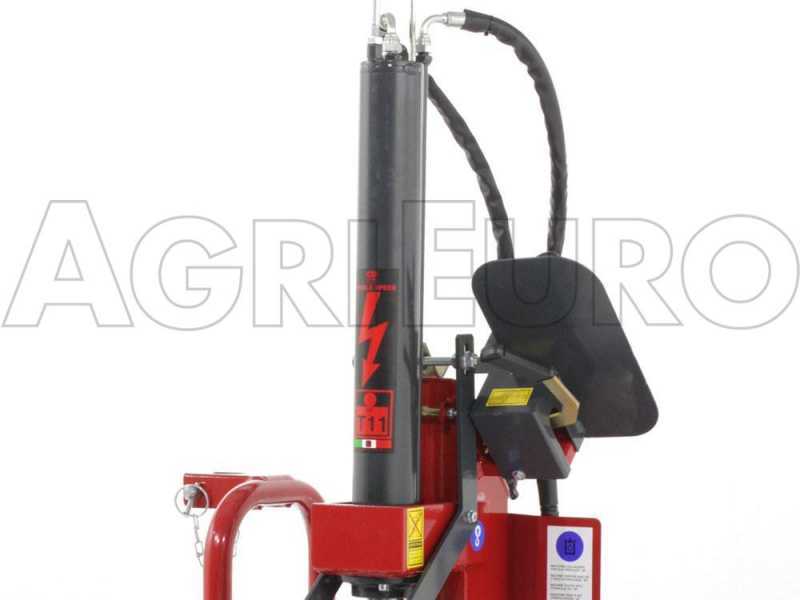

Hydraulic cylinder

Focus on the hydraulic distributor connected to the control levers

Focus on the side supports for holding the logs.

Focus on the hydraulic oil drain plug.

Focus on the support platform

Focus on the wedge.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
