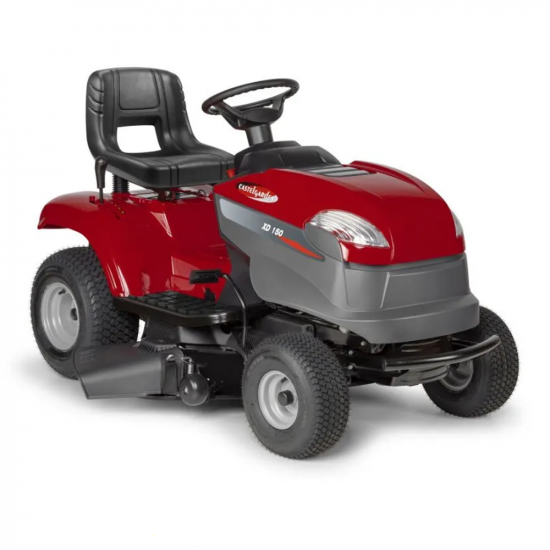

Castelgarden XD 150 - Riding-on Mower with Side Discharge and 98 cm Cutting Deck

The CastelGarden XD 150 riding-on mower is designed for cutting large quantities of grass, even quite dense, thanks to its 98 cm cutting plate and side discharge system, which dumps the cut grass to the side of the machine.

This riding-on mower is equipped with a side deflector on standard equipment that allows operating with the side discharge, a cutting system thought for large-sized lawns where it isn't necessary to collect the grass clippings after mowing.

The mulching cutting system is optional and can be used by entering the proper mulching plug on the cutting deck (the mulching plug is optional).

The cutting deck features two blades that can be activated by using a simple button, and two non-marking wheels that enhance the machine forward motion on the lawn while while simultaneously not ruining the turf.

The cutting height is adjustable on 7 different positions, from 28 mm to 80 mm.

Equipped with a mechanical gearbox with 5 gears and reverse gear, ideal for medium/large areas without too many obstacles, for quick mowing operations.

The riding-on mower also features a reverse cutting function, which allows to keep the blades working even when the tractor is operated in reverse.

It houses a Stiga ST 350 352 cc single-cylinder engine with a power of 3.5 kW. It is built with the "OHV" technology that highly reduces the noise and vibration levels during work.

The machine offers comfort and practicality of use, thanks to the ergonomic and adjustable seat.

The large rear and front wheels, together with the sturdy front bumper ensure higher safety and convenience of use, for mowing safely and having effective protection against impacts.

Ideal for users looking for a semi-professional machine.

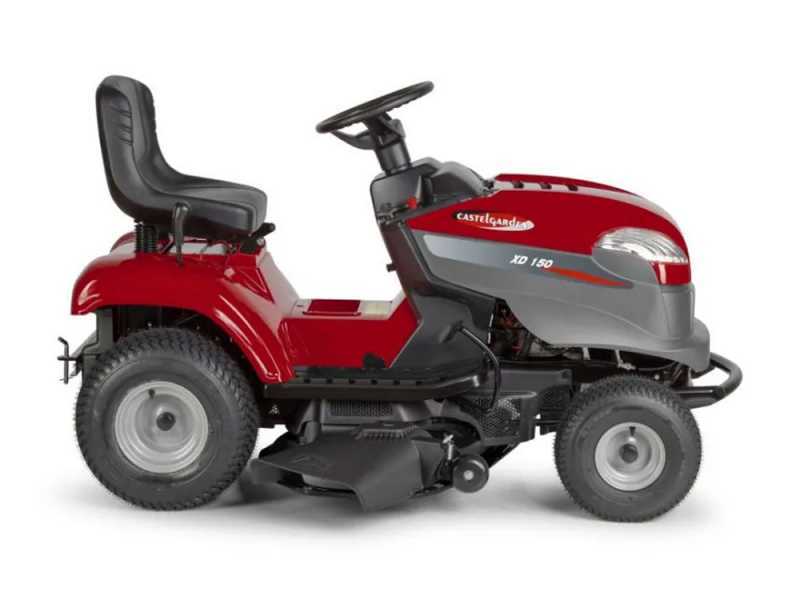

The Castelgarden XD 150 comes with two different cutting systems:

1 - SIDE DISCHARGE (supplied as standard): The riding-on mower cuts the grass which is discharged to the side through the deflector on the cutting deck. The ideal cutting system for mowing tall, overgrown grass.

2- MULCHING CUTTING SYSTEM (optional): This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are extremely fine that they will be barely noticeable on the lawn. This eliminates the problem of its disposal. Moreover, grass clippings will break down into nutrients and water for the lawn, thus ensuring a perfectly balanced biological cycle.

However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

The conversion from one system to another is easy.

Easy conversion: simply apply the mulching plug in the grass outlet under the deflector to operate with the mulching cutting system

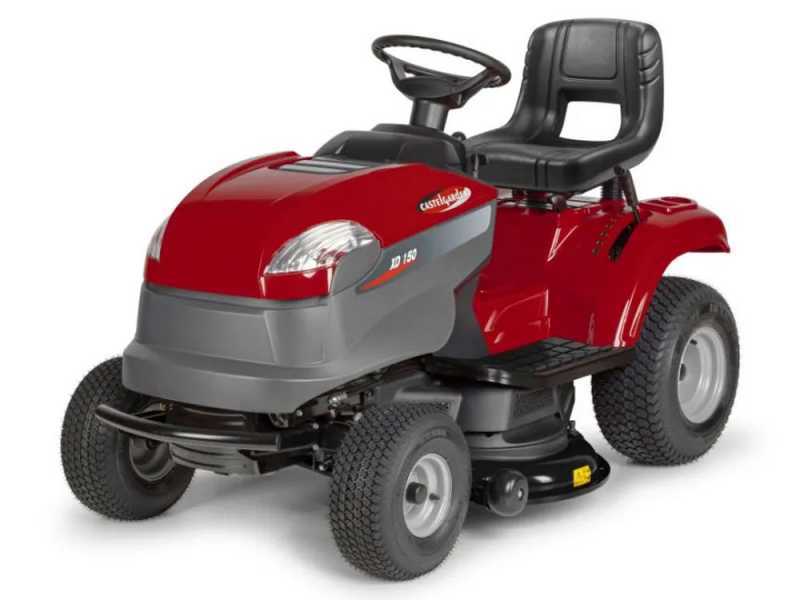

The ST 350 Powered by Stiga engine offers really impressive performance is ideal for tasks where high power is required.

State-of-the-art 352 cc single-cylinder 4-stroke engine with “OHV” overhead valve technology.

One of the most popular engines in the field of agricultural machinery and in the riding-on mower sector due to its long-lasting durability and extreme reliability.

It develops an effective power of 8.71 Hp at 2800 rpm.

The engine is equipped with an ignition lock with key.

Focus on the filter

Ignition key

Nominal Power: 11.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 8.71 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

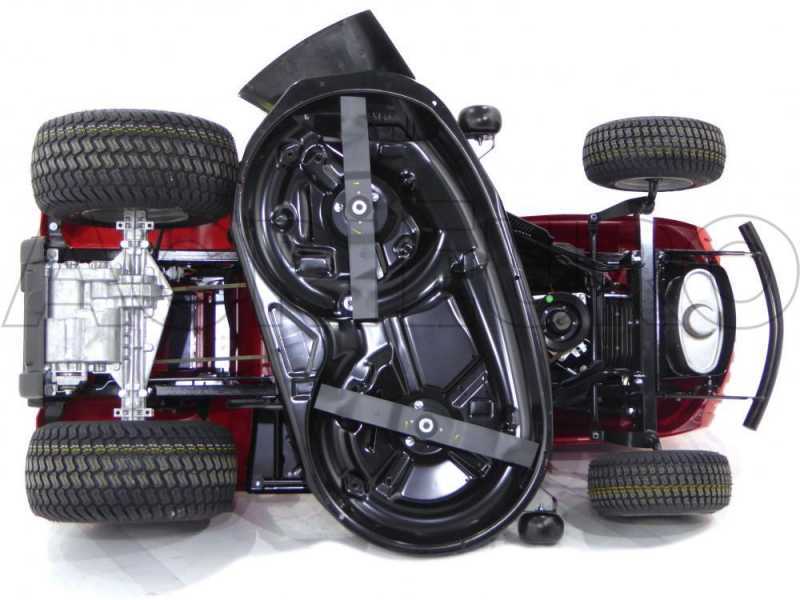

The cutting deck consists of 2 blades with asynchronous rotation.

98 cm cutting deck width.

The cutting deck on this riding-on mower is tilting: it adapts to undulating terrain (as long as it is not excessively rough) for a smooth and more aesthetically pleasing lawn mowing.

The height of the cutting deck can be adjusted by means of a lever on 7 positions, which vary from a minimum of 25 to a maximum of 80 mm.

- Focus on the cutting deck

- Focus on a blade

The CastelGarden XD 150 riding-on mower features several main controls and adjustments:

• Speed regulator
• Parking brake
• Ignition lock with key
• Braking pedal
• Cutting height adjustment lever
• Forward and reverse gears engagement gearbox (5 forward gears + 1 reverse gear)
• Electromagnetic blade engagement with red button placed on the right of the steering wheel

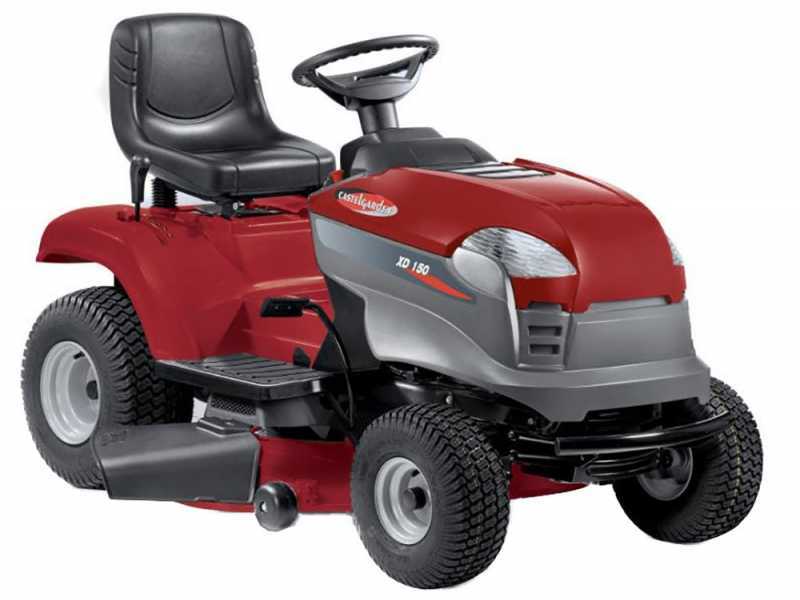

Other features of the CastelGarden XD 150 riding-on mower:

• Openable engine bonnet for easy cleaning and maintenance operations
• Glove box
• CastelGarden classic seat for maximum comfort during use
• CastelGarden ergonomic steering wheel
• Sturdy front bull bar: to protect the machine from obstacles and impacts
• Can holder
• 18 x 8.5-8 large rear wheels
• 15 x 6.00-6 front wheels
• Front headlights
• Non-marking wheels
• Pivoting front axle which ensure excellent balance, stability and riding comfort, even on not-perfectly flat terrains.
