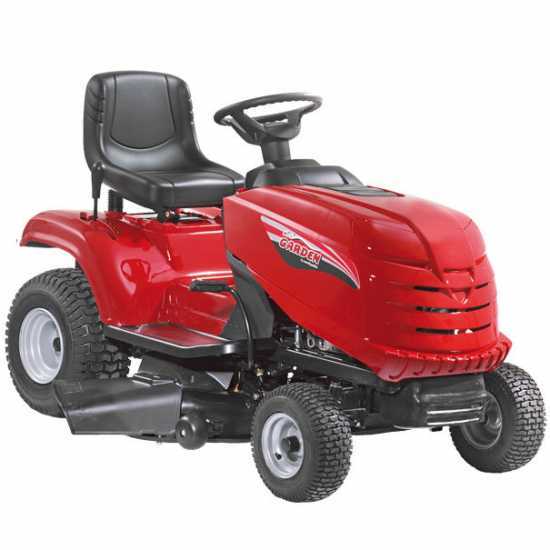

Castelgarden CG 98 SD - Riding-on Mower - 11.5 HP - Lawn Mower - Side Discharge

Questions & Answers (9)
ID: K502865

EAN: 8008984823853

MPN: 2T0515463/C19

8,0/10
After-sales assistance & Spare parts
Castelgarden CG 98 SD - Riding-on Mower - 11.5 HP - Lawn Mower - Side Discharge
+300 sold
Free gifts from AgriEuro
Free battery chargerFree battery charger
2 bottles of 1 L oil each2 bottles of 1 L oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Technical data
Side discharge
Mulching cutting system
Optional
Front bonnet
Motor brand
Producer-manufactured
Motor Model
St 350
Cubic capacity
352 cm³
Nominal power
11.5 HP
Recommended operating area
3500 s.q. m.
Cutting width
98 cm
No. of blades
2
Reverse speed cutting
Blade engagement
Electromagnetic
Gear shifting system
Mechanical gearbox
Gears
5+1
Product Features
Model
CG 98
Body
Plastic
Front bonnet
Side discharge cutting system
Standard equipment
Mulching cutting system
Optional
Cutting system
2 in 1
Recommended operating area
3500 s.q. m.
Starting mode
Electric
Manufacturing country
China
Motor data
Motor brand
Stiga
Motor Model
St 350
Motor type
4-stroke
Cubic capacity
352 cm³
No. of cylinders
Single-cylinder
Nominal power
11.5 HP
Rated power (HP)
8.71 HP
Fuel
Petrol
Tank capacity
6 L
Manufacturing country
China
Transmission data
Gear shifting system
Mechanical gearbox
Gearbox
In oil bath
No. of forward speeds
5
No. of reverse speeds
1
Gears
5+1
Operating mode
Gear lever
Cutting data
Body material
Enamelled steel
Cutting width
98 cm
No. of blades
2
Blade type
Cutting blades + mulching
Blade engagement
Electromagnetic
Max. cutting height
80 mm
Min. cutting height
25 mm
No. of cutting positions
7
Reverse cutting system
Yes
Non-marking wheels
2
Washing joint
Yes
Equipment
Grass discharge side deflector
Yes
Front Bull Bar
On Standard equipment
Electric start with key
Yes
Rear wheels size
18 x 8.50 - 8
Front wheels size
13 x 5.00 - 6
Seat type
Comfort
High backrest
Yes
Seat adjustment
Yes
Can holder
Yes
Free gifts/extra features
Mulching kit
Optional
Battery charger
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
173x112x107 cm
Net weight
160 Kg
Packaging
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H)
170x110x85 cm
Weight including packaging
170 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
60 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 11/09/2025 - 15/09/2025
€ 2.095,30
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

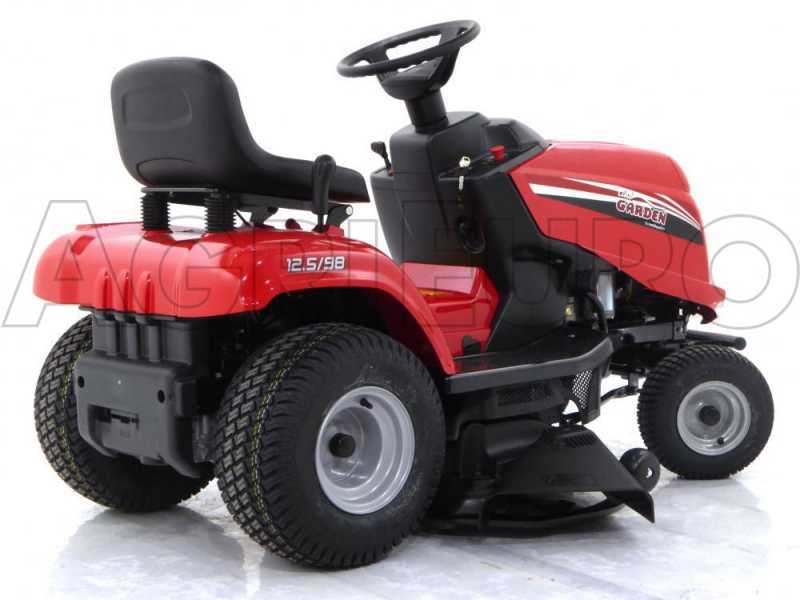

CastelGarden CG 98 Riding-on Mower

CastelGarden Club Garden CG 98 line riding-on mower with side discharge

The Club Garden range of riding-on mowers with side discharge by CastelGarden are ideal for mowing in large-sized spaces without too many obstacles. The side discharge enhances tall grass cutting and makes work easier.

The performance of this riding-on mower is truly exceptional given its 98 cm 2-blade cutting deck which makes it perfectly suitable for large surfaces. Equipped with large pneumatic wheels with excellent steering radius which provides for very smooth manoeuvring even in the smallest spaces.

It mounts a powerful Stiga St 350 11.5 Hp engine with mechanical 5 forward + 1 reverse gears gearbox.

Ideal for users looking for a high-featured machine close to heavy-duty level.

Cutting systems

1- SIDE DISCHARGE (supplied on standard equipment): This is the most traditional cutting system; the riding-on mower cuts the grass and leaves it on the lawn. This system is recommended for mowing large-sized areas and for those who have to cut over-grown grass, for which the mulching or the grass collector system are no longer efficient.

2- MULCHING CUTTING SYSTEM (optional): This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week. The conversion from one system to another is easy.

Easy conversion: simply fit the mulching plug into the grass collector outlet under the deflector to operate with the mulching cutting system

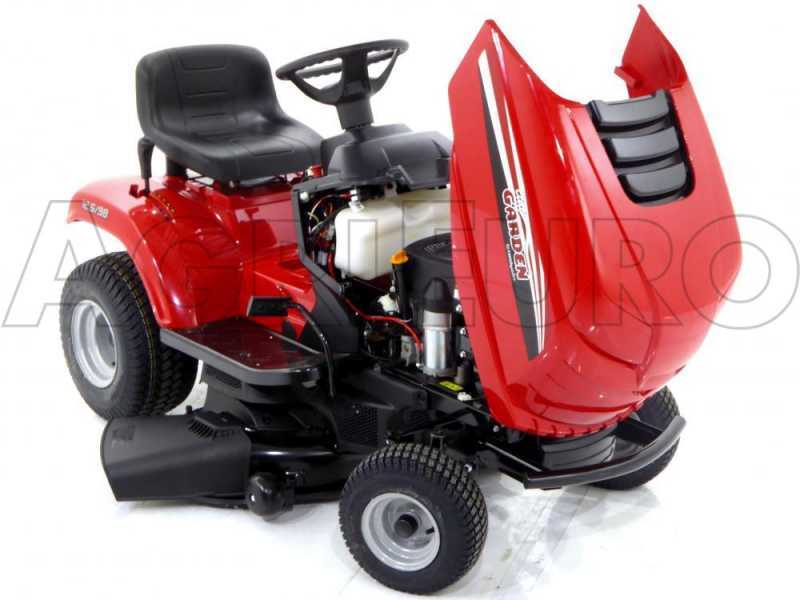

STIGA ST 350 engine

The ST 350 Powered by Stiga engine offers really impressive performance is ideal for tasks where high power is required.

State-of-the-art 352 cc single-cylinder 4-stroke engine with “OHV” overhead valve technology.

One of the most popular engines in the field of agricultural machinery and in the riding-on mower sector due to its long-lasting durability and extreme reliability.

It develops an effective power of 8.71 Hp at 2800 rpm.

The engine is equipped with an ignition lock with key.

Focus on the filter

Ignition key


Nominal Power: 11.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 8.71 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

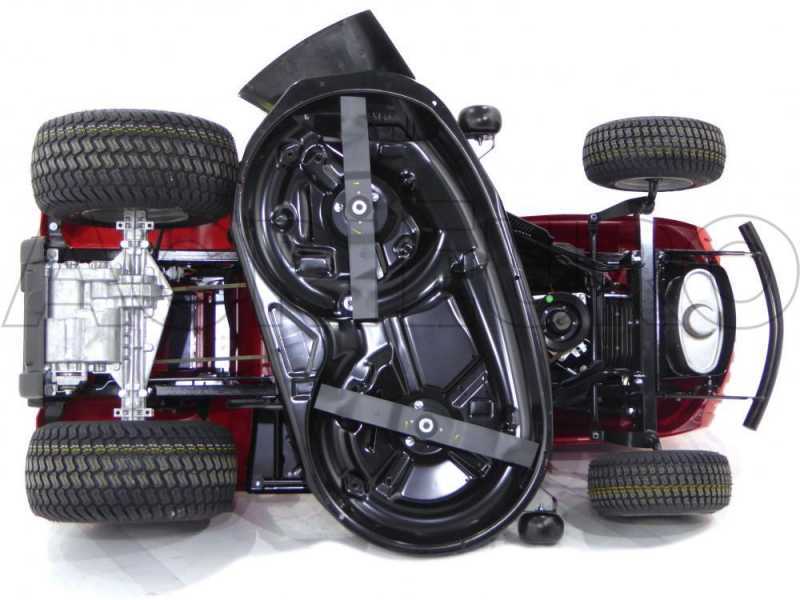

Cutting deck

The CastelGarden CG 98 riding-on mower is equipped with a 2-blade cutting deck.

The riding-on mower also mounts a mulching cutting system as standard.

98 cm cutting deck width.

The cutting deck on the riding-on mower is tilting: it adapts easily to the undulations of the ground (as long as they are not overly harsh). The cutting deck is equipped with 2 non-marking wheels.

The cutting height of the cutting deck is adjustable by means of a lever.

The cutting positions available are 7 and they vary from 80 mm to 25 mm.

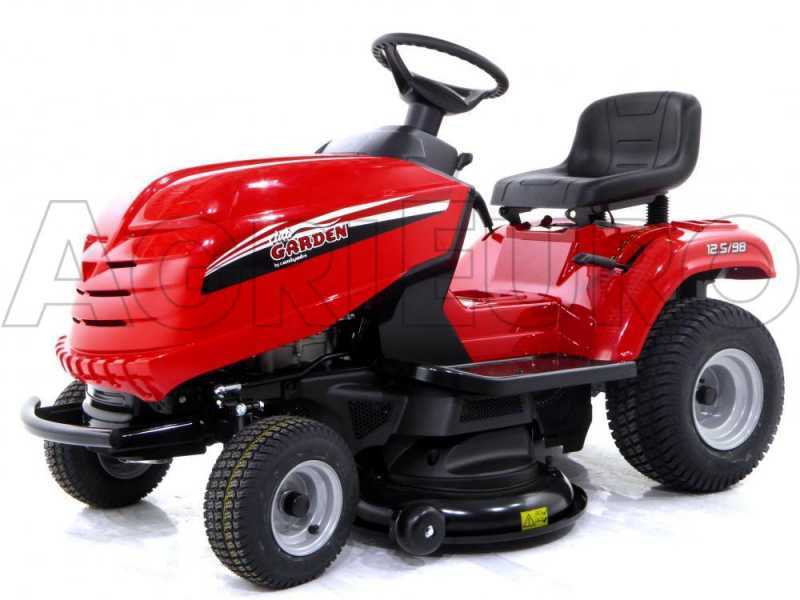

Controls and settings

The CastelGarden CG 98 riding-on mower controls and adjustments are easy and intuitive:

  • Speed regulator
  • Parking brake
  • Ignition lock with key
  • Braking pedal
  • Cutting height adjustment lever
  • Forward and reverse gears engagement gearbox
  • Electromagnetic blade engagement with red button placed on the right of the steering wheel

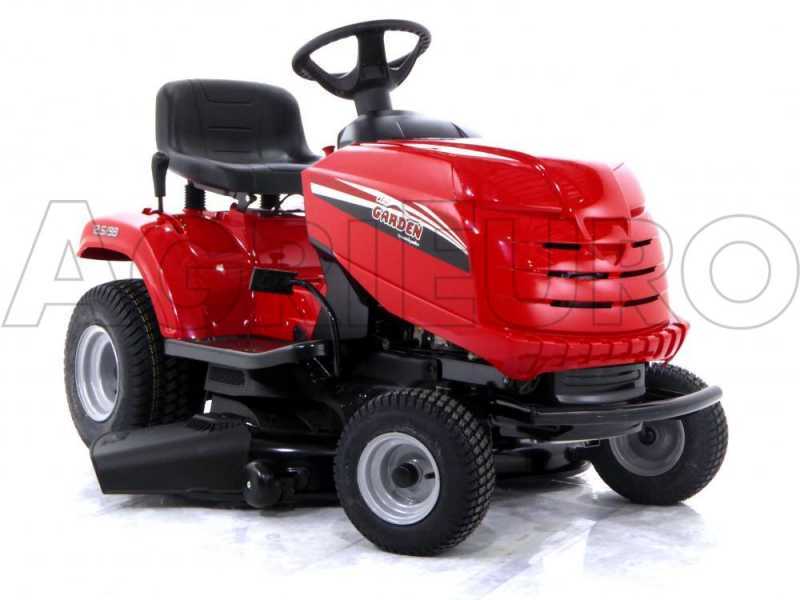

Other features

Other features of the CastelGarden CG 98 riding-on mower:

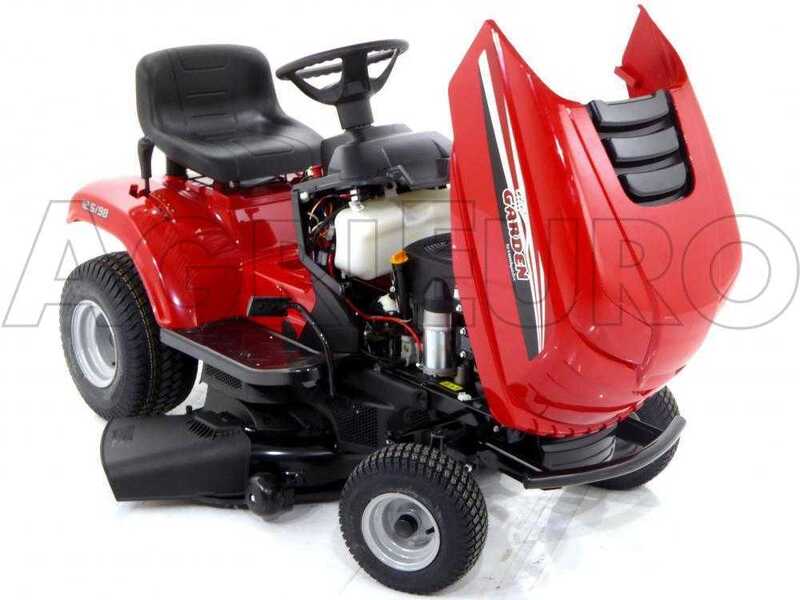

  • Openable engine bonnet for easy cleaning and maintenance operations
  • Adjustable comfort seat for maximum comfort during use
  • Ergonomic steering wheel
  • Sturdy front bull bar: It avoids frontal impacts and protects the machine.
  • 18 x 8.5-8 large rear wheels
  • 13 x 5.00-6 front wheels
  • which ensure excellent balance, stability and riding comfort, even on not-perfectly flat terrains.

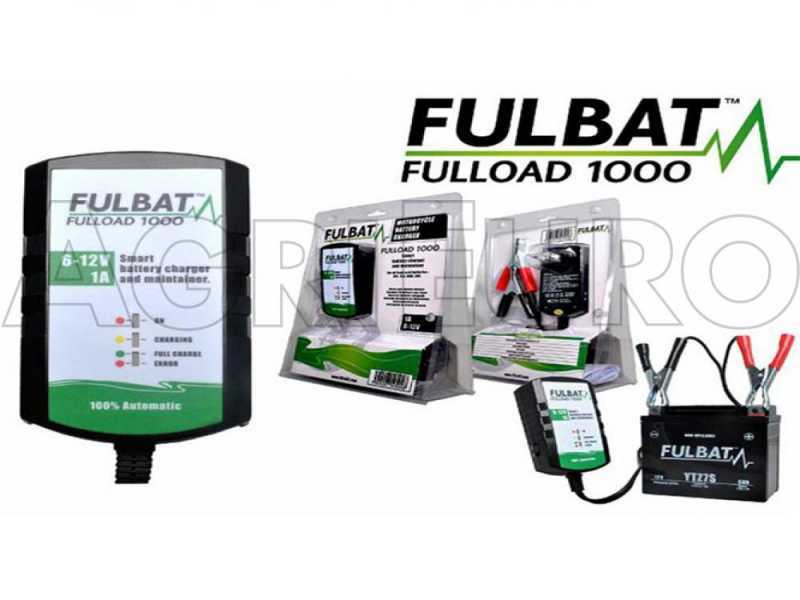

FULLOAD 1000 BATTERY CHARGER

This battery charger has even thought about the most inexperienced users. Fulload 1000 allows recharging the riding-on mower battery (as well as quad, motor-scooter and other machine batteries) as easy as it would be if you have to recharge your mobile phone: you just have to connect the adapter to the power socket and the two wires to the battery poles!

Suitable for all those people who want to make easy all the maintenance operations.

Provided with automatic maintain mode (when battery is fully charged).

The battery charger is completely automatic and it consists of 3 charge check levels.
It does not overload the battery.

It is protected from short circuits, overloads and reverse-polarity.

Technical features:
1Ah loading power- 6V o 12V Loading Tension.

Ideal for the 2 to 40 Ah battery chargers (standard, AGM or GEL).

Maintenance function for the winter storage for up to 60 Ah batteries.

Safety system in case of short-circuit: it starts protecting the machine automatically in case of short-circuit and reverse polarity.

Provided with terminal clamps and rings.

Free items & Standard equipment

Spare Parts and Maintenance Kit for Petrol Engines

Universal spare parts and accessories maintenance kit for the 4-stroke engines for gardening machineries.

WARNING: this kit is not suitable for all types of engines on the market. We do not provide different kits from those you see already published on this site nor do we guarantee the adaptability on machines not purchased on our site.

Included in the packaging are:

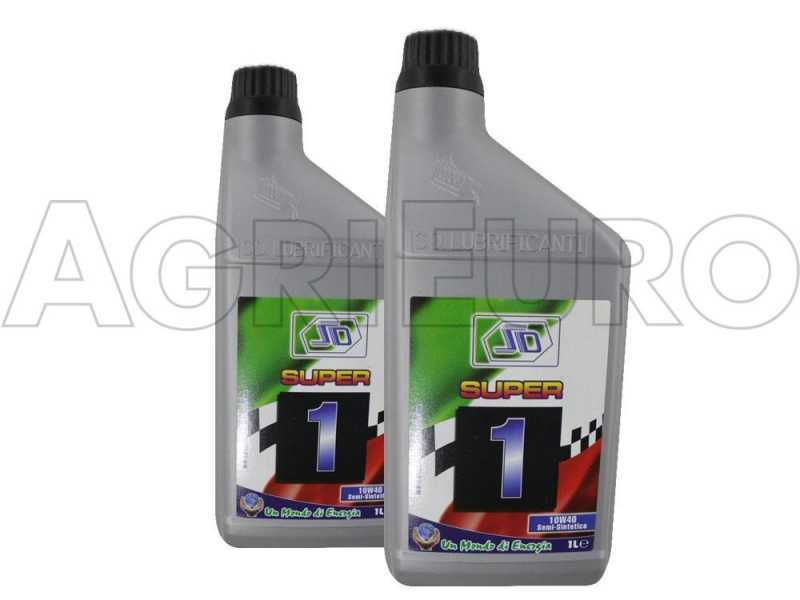

  • No. 02 1 L oil bottles: synthetic lubricant formulated for high performance levels. Suitable for all modern petrol engines which require maximum performance from a lubricant.
  • No. 01 original GeoTech spark plug
  • No. 01 professional joint spark plug socket wrench

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Free items included

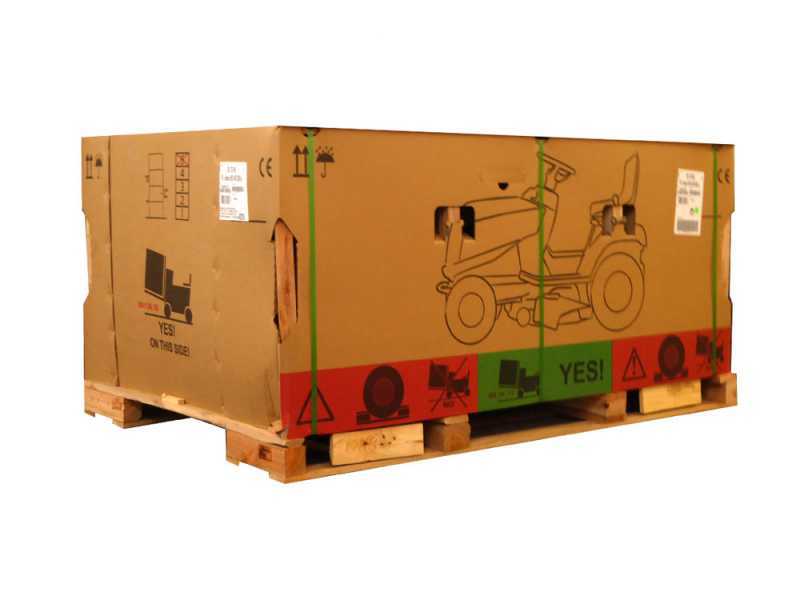

The riding-on mower is shipped in its original packaging.

FULLOAD 1000 battery charger.

The instructions manual is included in the packaging.

Once assembled, carefully read the instructions manual before using the machine.
