BullMach Rea 185 F - Tractor-mounted flail mower - Medium series

Questions & Answers (3)
ID: 111437

EAN: 8053435094207

BullMach Rea 185 F - Tractor-mounted flail mower  - Medium series
+60 sold
Tractor power
From 45 to 50 HP
Sturdiness/Series
Medium
Weight
352 Kg
Cutting width
185 cm
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Fixed hitch
Double spiral rotor
Product Features
Model:
REA 185 F
Tractor power:
From 45 to 50 HP
Sturdiness/Series:
Medium
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Double spiral rotor:
Fixed 3-point hitch:
Yes
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Cutting data
Cutting width:
185 cm
Wood diameter:
Up to 35 mm
No. of blades:
28
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
25 mm
Hammer width:
8.9 cm
Cutting width:
185 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
3
Opening rear flap:
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
194x80x73.5 cm
Net weight:
352 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
211x82x63 cm
Gross weight (packaging included) :
402 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 04/06/2024 - 06/06/2024
€ 2.051,04
VAT Included
You're viewing:
Customers also viewed:
Description

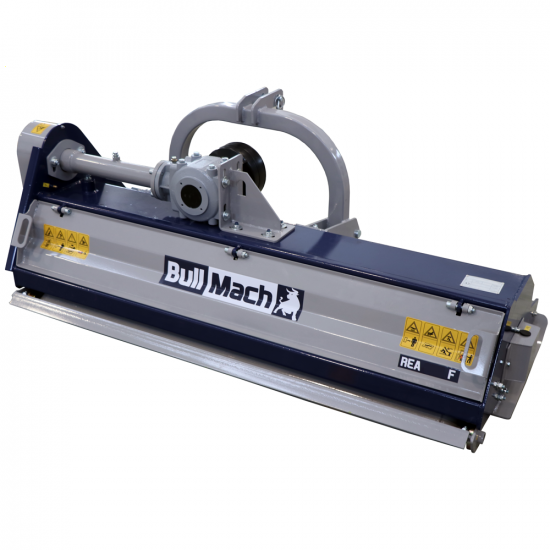

BullMach REA 185 F flail mower

The BullMach REA Series Tractor Flail Mower features a medium / heavy structure that can be used for shredding light pruning, grass and small shrubs.

Medium-heavy series tractor flail mower, mainly suitable for semi-professional use.

Provided with fixed linkage, 3 transmission belts and rear roller.

TECHNICAL SPECIFICATIONS (short overview):

  • Real working width: 185 cm
  • Real required space: 204 cm
  • Weight: 352 kg
  • 3 Point Hitch
  • 3-belt drive transmission

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

  • Hammer flails
  • Rear supporting roller
  • Drive shaft

Note: the machinery is shipped ready to use and it does contain oil already. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components.
Carefully read the instructions manual before use.

Cutting tools: hammer flails

No. of standard-supplied hammers: 28

The flail mower hammers are mounted on a sturdy bolt made of hardened steel of 16 mm diameter (overall length: 99 mm).

Close up of the cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The rotating roller where are assembled the hammers features a diameter of 107 mm.

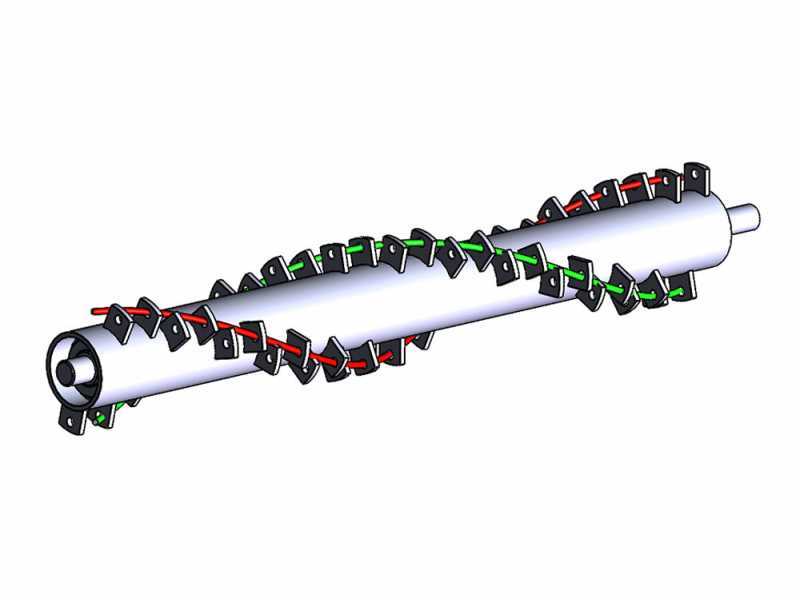

Figurative image of the double-spiral rotor.

3 Point Hitch

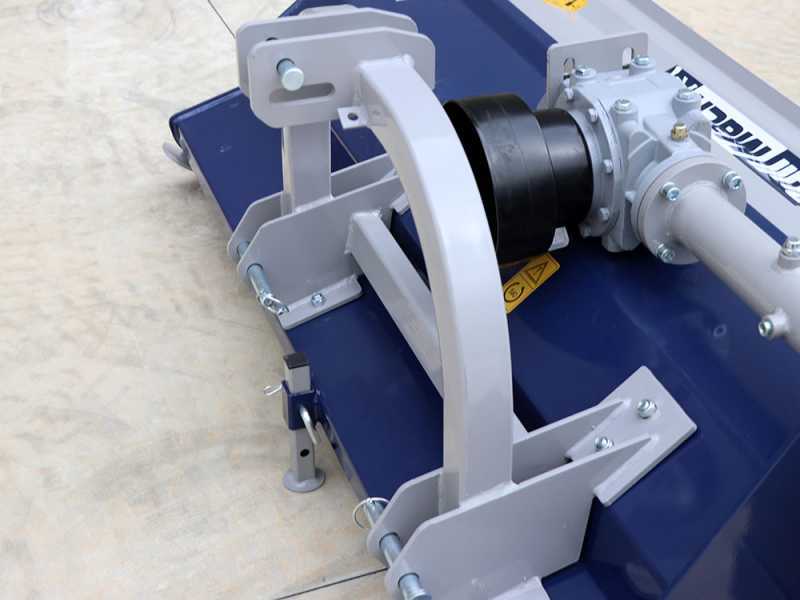

The machine is equipped with a sturdy 3-point hitch of 1st category.

Focus on the first-category sturdy three-point hitch.

Rotor and side bearings

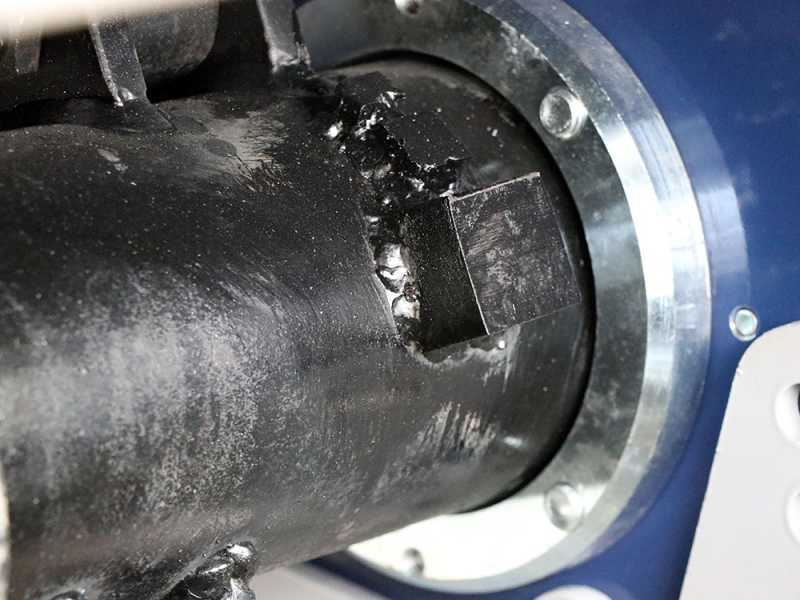

Focus on the side supporting device with internal locking bearing of the hammer rotor.

Focus on the external rotor anchorage system with central opening and greaser.

The cutting roller has a diameter of 107 mm.

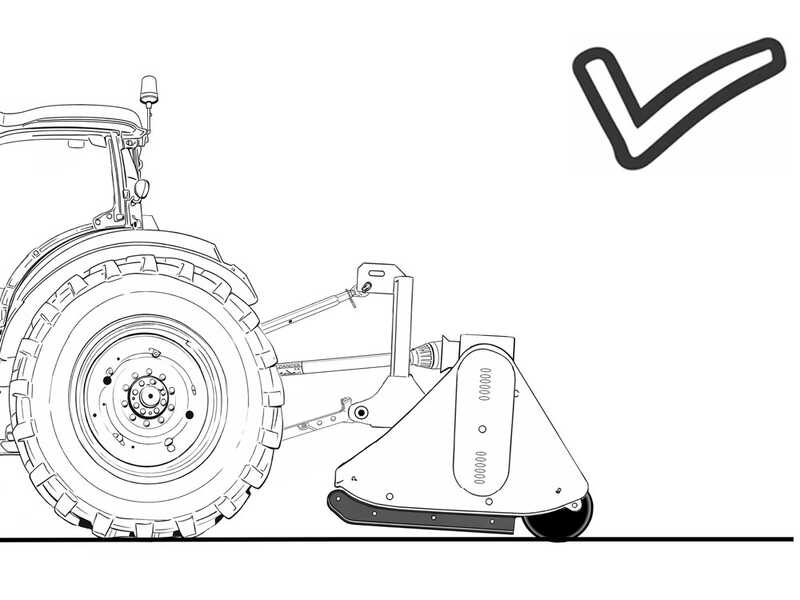

Thanks to the hammer flails you will get great cutting results while working on gardens, lawns and urban areas. The flail mower is fitted to the rear side of the tractor three-point linkage.

Universal standard PTO (1 3/8” Z6).

Focus on the sturdy three-point hitch.

Side belt transmission and geared transmission

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or overrunning coupling) integrated in the gearbox. This feature ensures long durability to all the moving parts of the machine, avoiding the kickback that would be created from 540 rpm to 0 rev/min. Thus, it allows the rotor to rotate freely until reaching a total stop.

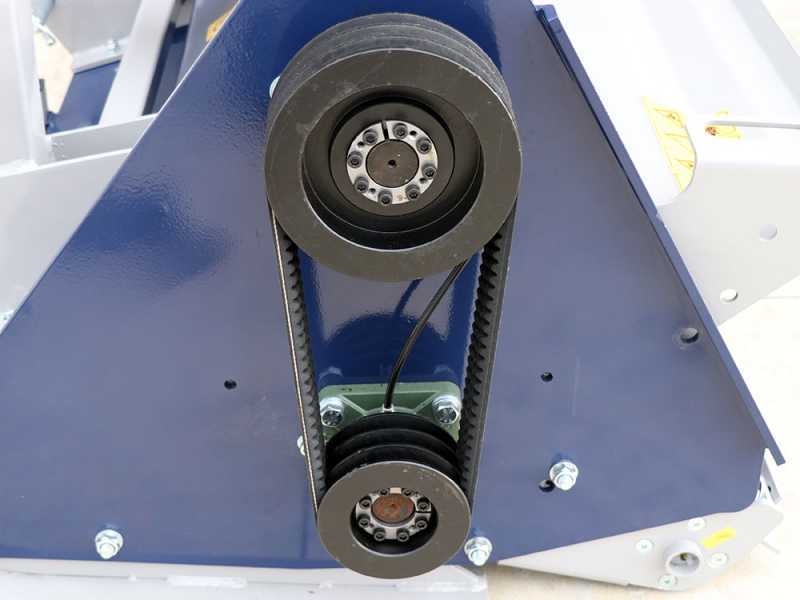

3-Belt side transmission (most of the tractor flail mower belonging to this weight category are normally equipped with 2-belt standard transmission)

Focus on the side belt protection cover.

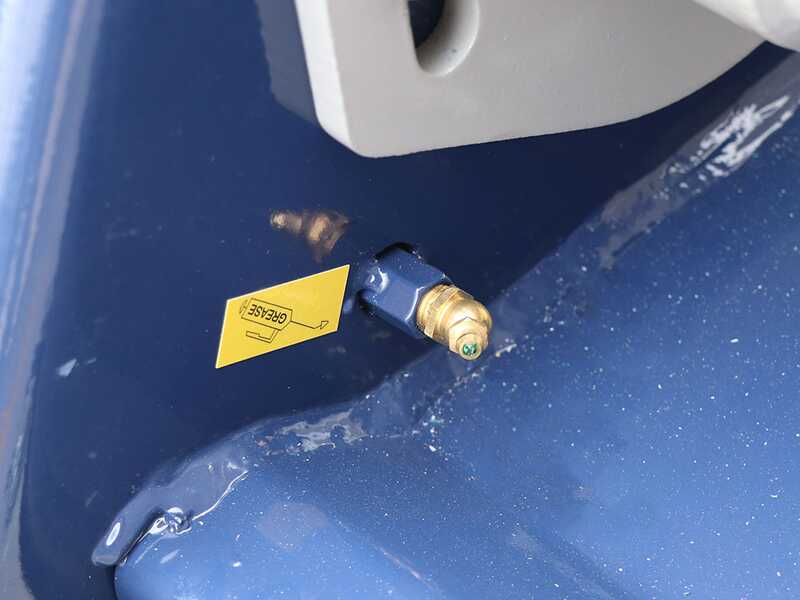

Focus on the side transmission greaser, which can be easily accessed by the Operator from underneath one of the screws that holds the transmission cover.


WARNING!

The gearbox assembled to this machinery may contain up to 0.5 L oil.

Before using the machine, read the instruction manual carefully.

Standard PTO 1 3/8” z6 (suitable to all tractors of the actual and recent production): Whether you own a particularly dated tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

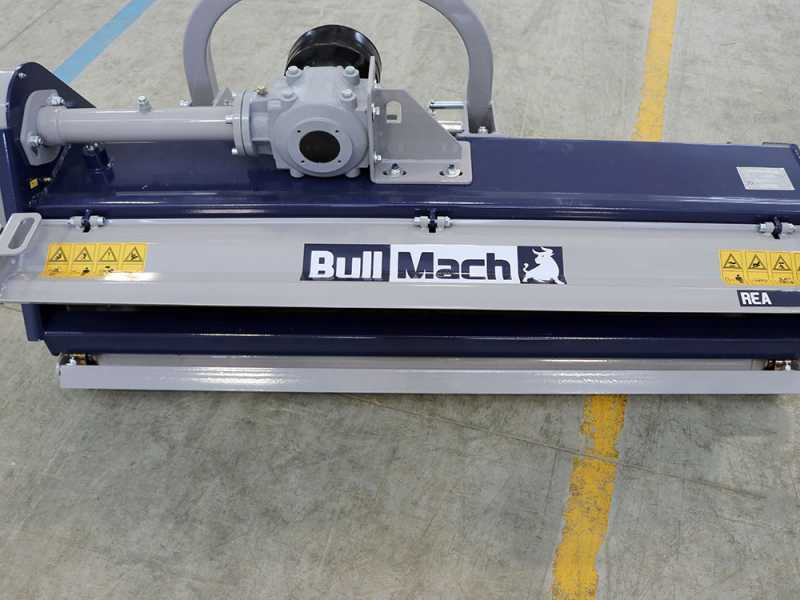

Rear openable cover

This tractor flail mower is equipped with rear cover (it can be opened), which is mounted on 3 (1st hinge, 2nd hinge, 3rd hinge) sturdy hinges. Easy opening by simply unscrewing two bolts Provided with lifting handle. Extremely comfortable and user-friendly for maintenance and cleaning operations of the internal component, as well as for replacing tools, and so on.

Easy lifting of the cover: you will just need to raise the lid through the handles on the two sides of the equipment.

Supporting attachments - Rear roller and side skids

Standard-supplied rear height-adjustable supporting roller which features a diameter of 92 mm.

Focus on the roller locking bearing

Focus on the roller barprovided with holes for the height adjustment. Height adjustable in 3 different positions.

Side supporting skids provided on standard equipment, which are also adjustable in two positions.

Heavy-duty Series of front protection slaps made of shaped steel.

Supporting foot

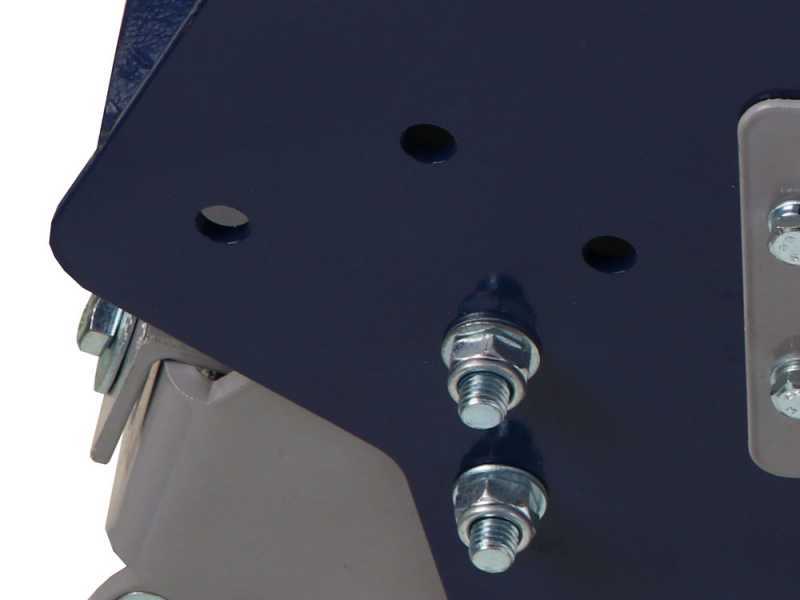

Focus on the 3 holes for the connection of an inter-row disc.

Focus of the scraper

You can adjust the roller height up to 5 positions and the height of the skids up to 3 different positions.

Free items & Standard equipment

Free items / Extra features

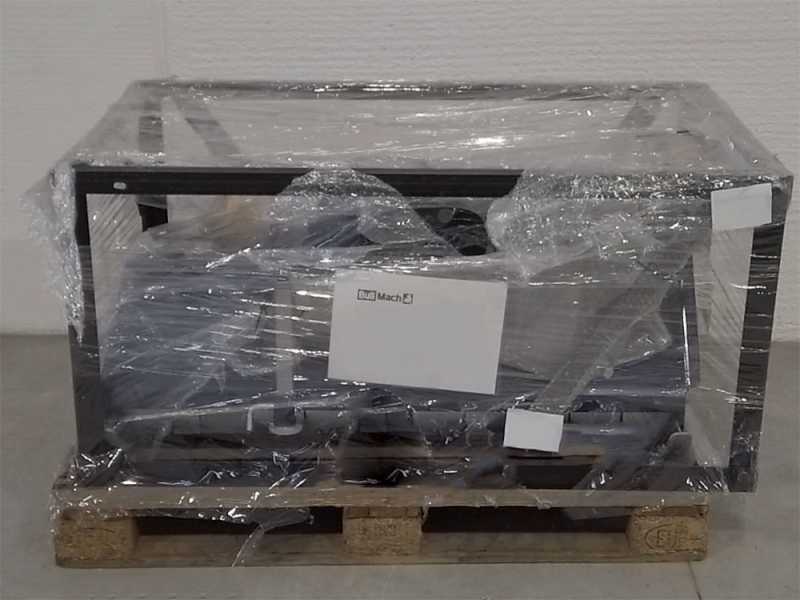

The flail mower is shipped on a pallet. You will just need to assemble the tractor three-point hitch and few additional parts.

Cardan shaft included in the package.

Cardan shaft category: 05B

Cardan shaft length: 100 cm

Instructions and Assembly Manual
