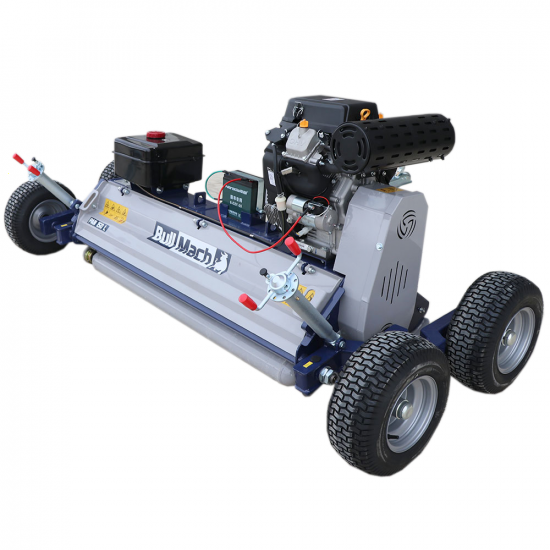

BullMach PAN 150 L - ATV-mounted Trailed Petrol Rough Cut Mower - Loncin LC2V80FD

The BullMach PAN 150 L rough cut mower is equipped with two pairs of tilting wheels that allow this product to have greater stability than models with only two wheels, thus allowing you to always have maximum grip even on the most uneven terrains.

It is an excellent alternative for those who do not own a tractor and need a powerful and reliable cutting action. It has a powerful petrol engine and was designed to be mounted on ATVs or tractors.

The rough cut mower has a robust structure that can be used on thin branches, grass and small shrubs.

It is equipped with an angular coupling for trailer hitch and can be attached to both ATVs or tractors equipped with hook.

TECHNICAL SPECIFICATIONS (brief overview):

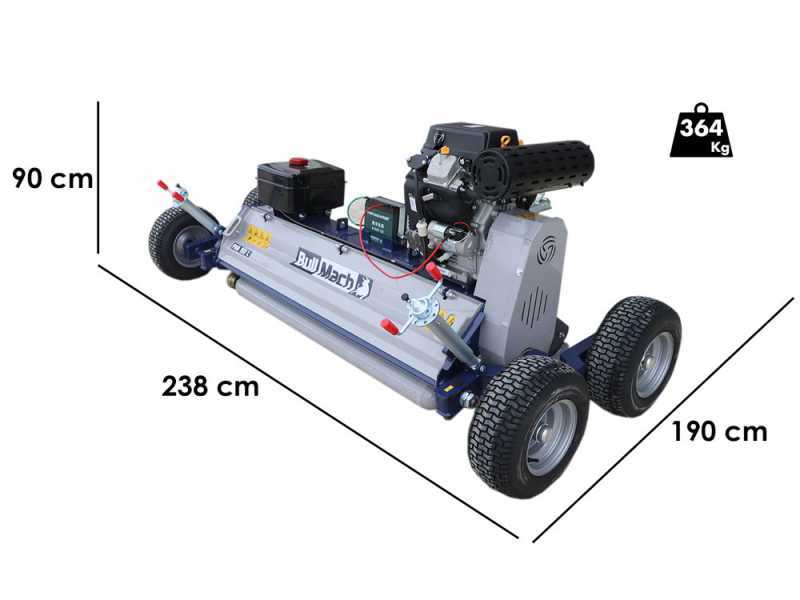

• Real working width: 150 cm
• Real working width: 238 cm
• Weight: 364 kg

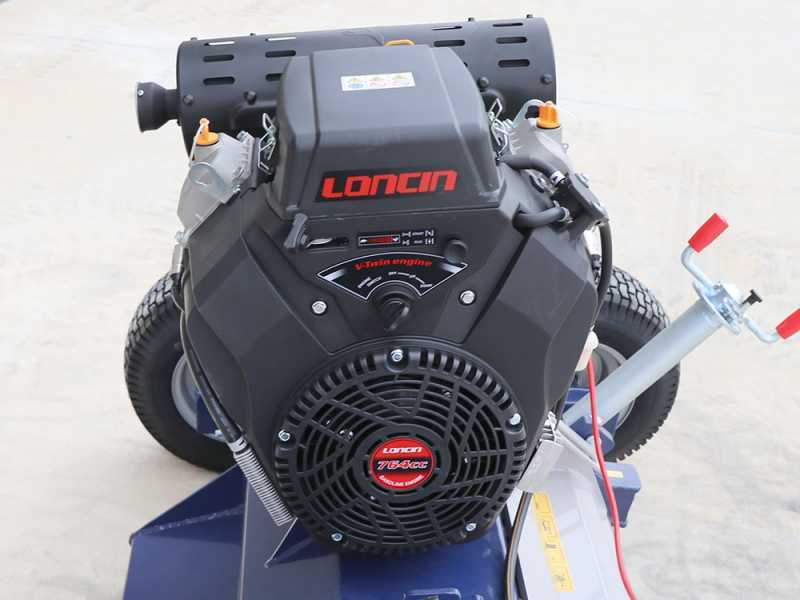

• Loncin 764 cc engine with electric starting.
• Recommended for tractors and ATVs
• Angular coupling for trailer hitch
• Belt drive

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

• Hammer blades
• Adjustable rear support roller
• 16X6.50-8 pneumatic wheels

WELL ADJUSTED WORKING HEIGHT (7 - 8 cm high)

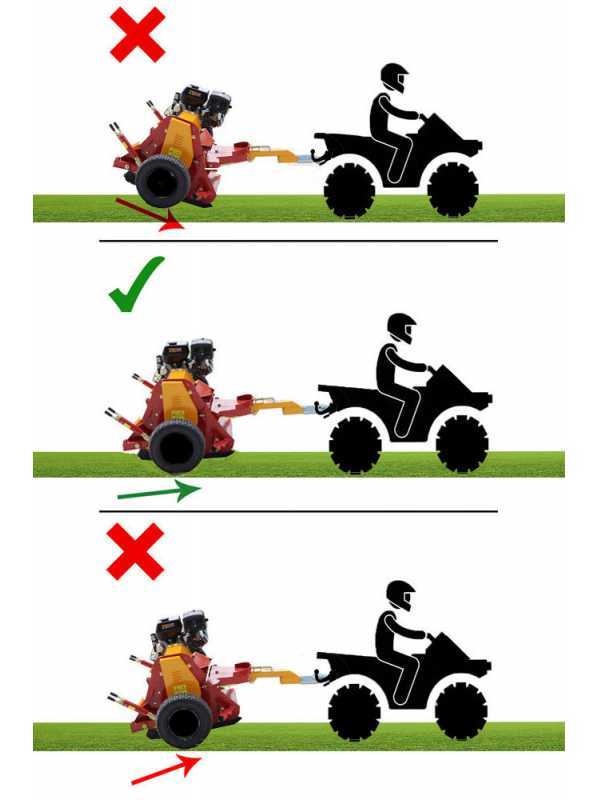

The height of ATV rear trailer hitch can vary, so make sure to position the ATV so that its working position is sufficiently raised to prevent the cutting hammers from touching the ground.

The exact working height of the hammers from the ground is 7-8 cm minimum.

WARNING: frequent impacts of the hammers on the ground can lead to excessive wear of the lateral transmission belts or even their overheating or combustion, resulting in damage to the belts and the product.
We recommend that you pay attention to these circumstances of excessive product strain, as the overload noise coming from the machine may sometimes not be perceived by the operator riding the ATV due to the noise coming from the latter.

OPERATING SPEED:

a frequent mistake regards the product speed, mainly because of the high speed provided by the ATV.
This ATV-mounted petrol rough cut mower must be used at the same speeds as tractor-mounted rough cut mowers or smaller, hand-push petrol mowers.

Speed: from 1 km/h up to max. 4 km/h

In case of particularly tall grass, it is recommended not to exceed the speed of 1/1.5 km/h

In case of low and frequently cut grass, a speed closer to 4 km/h is acceptable

WARNING: this rough cut mower is equipped with a side centrifugal clutch that keeps the rotor with hammers stationary (in neutral) when the engine is started at low rpm (state of rest), and a 2-belt transmission. Using this machine at higher speed than indicated above causes overloading and overheating of the clutch and also excessive wear of the lateral transmission belts, risking that the clutch, if burned, may even cause combustion of adjacent belts or other parts of the product.

Features:

Thanks to the practical electric start with key, it is very easy to start the machine.

Focus on the battery

WARNING

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

No. of standard-supplied hammers: 24

These hammers are mounted on a sturdy bolt made of hardened steel of 12 mm diameter.

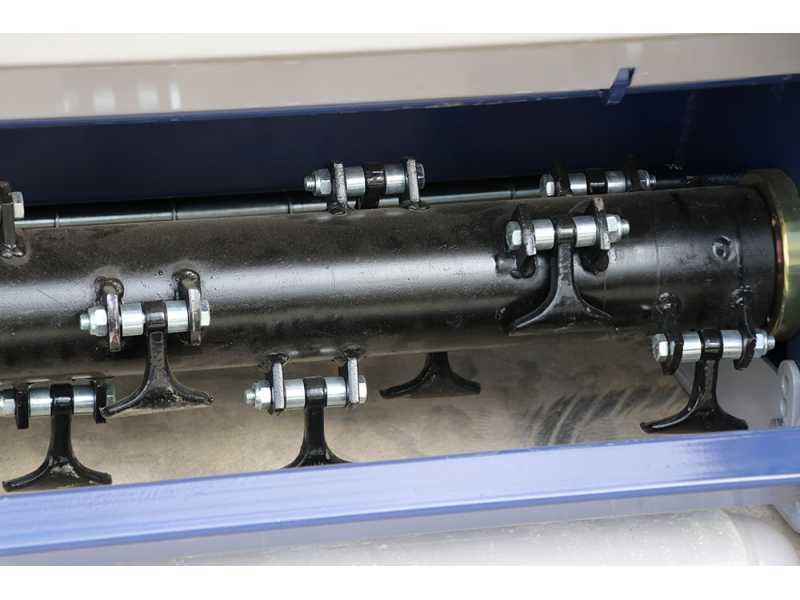

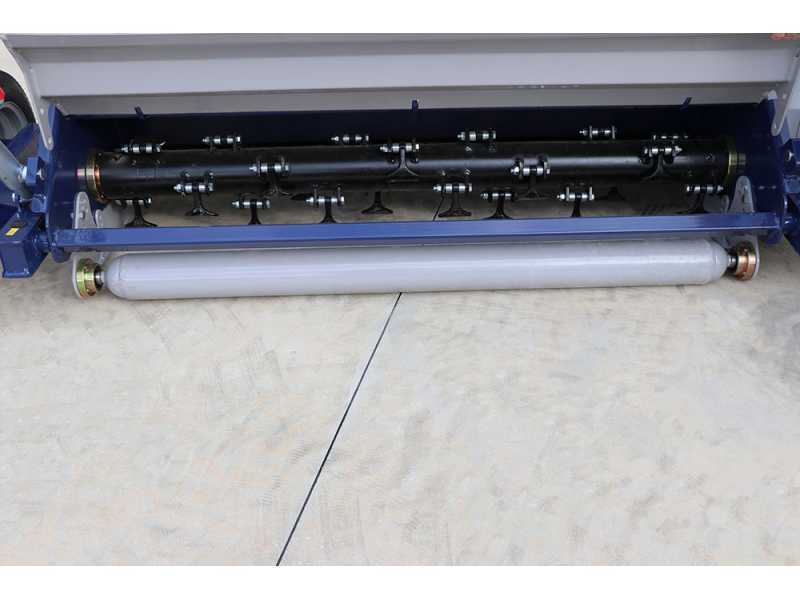

Close up of the cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor rpms and hammers (hammer blades), the wave effect on the grass is reduced, for an excellent cutting job.

Thanks to the hammer flails you will get great cutting results while working on gardens, lawns and urban areas. The machine can be attached to a motorized vehicle thanks to a trailer hitch.

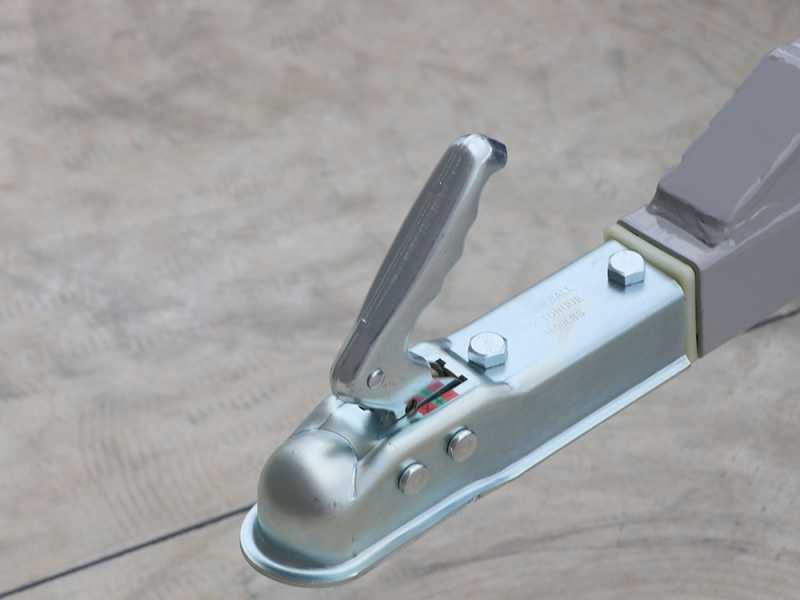

Focus on the trailer hitch coupling

Lateral belt transmission:

Focus on the side belt protection casing with lateral grease nipple on the transmission side, conveniently placed and easy to access through the dedicated window.

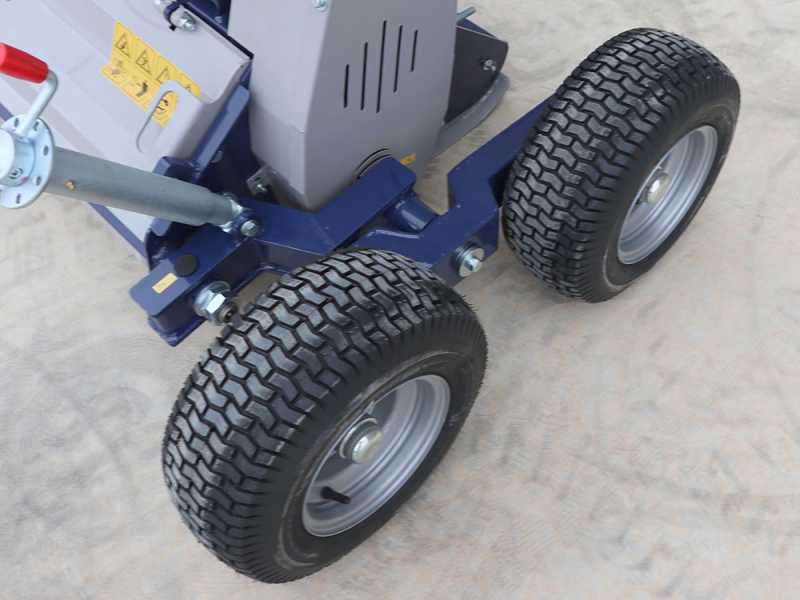

The BullMach PAN 150 L rough cut mower is equipped with two pairs of tilting wheels.

Thanks to the pin placed equidistant from the wheels, they can move both upwards and downwards, allowing the rough cut mower to always have maximum grip even on the most uneven terrain. Therefore, it is possible to work effectively and safely even on difficult conditions.

Focus on the tilting pin

16 x 6.50 - 8 large pneumatic wheels

Adjustable rear support roller provided on standard.

The cutting height is adjustable via special levers that raise and lower the wheels and consequently the cutting roller.

Focus on the rear roller locking bearing.

Focus on the roller support, equipped with holes for height adjustment. Height adjustable in 6 different positions.

Side support slides provided on standard equipment, which are also adjustable in 4 positions.

Heavy-duty series of front protection slaps made of shaped steel.

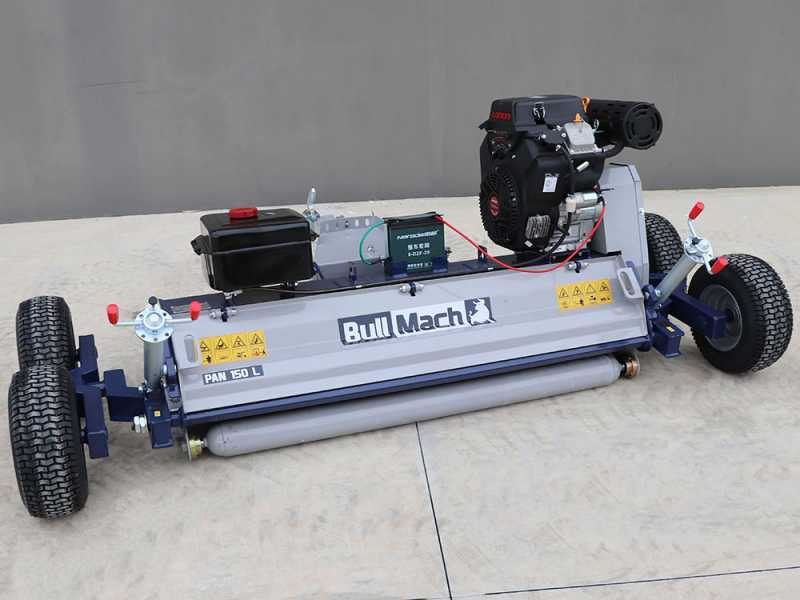

This tractor flail mower is equipped with rear cover (it can be opened), which is mounted on 2 sturdy hinges. Easy opening by simply unscrewing two bolts Provided with lifting handle. Extremely comfortable and user-friendly for maintenance and cleaning operations of the internal component, as well as for replacing tools, and so on.
