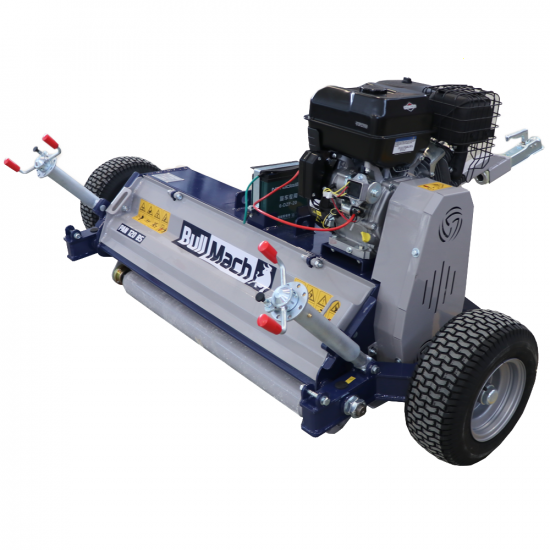

BullMach PAN 120 BS - ATV-mounted Trailed Rough Cut Mower - B&S XR2100

The BullMach PAN 120 BS rough cut mower is equipped with a powerful petrol engine and has been designed to be mounted on ATVs or tractors.

The rough cut mower has a robust structure that can be used on thin branches, grass and small shrubs. It is an excellent alternative for those who do not own a tractor and need a powerful and reliable cutting action. It is equipped with an angular coupling for trailer hitch and can be attached to both ATVs or tractors equipped with hook.

TECHNICAL SPECIFICATIONS (brief overview):

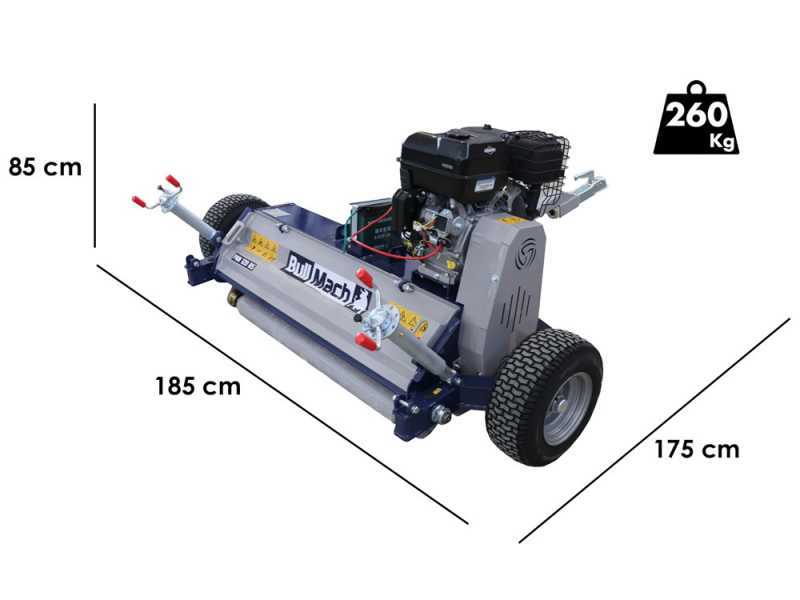

• Real working width: 120 cm
• Real working width: 185 cm
• Weight: 260 kg

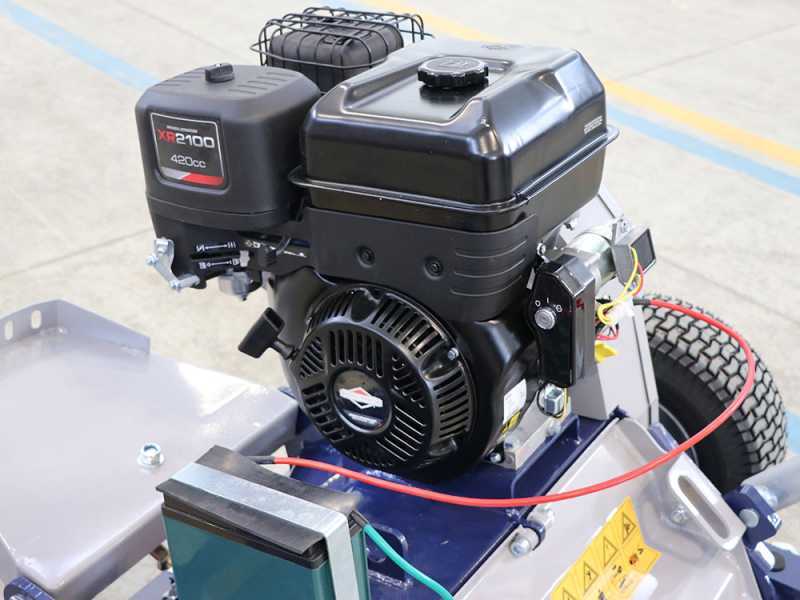

• Briggs & Stratton 420 cc engine with electric starting.
• Recommended for tractors and ATVs
• Angular coupling for trailer hitch
• Belt drive

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

• Hammer blades
• Adjustable rear support roller
• 16X6.50-8 pneumatic wheels

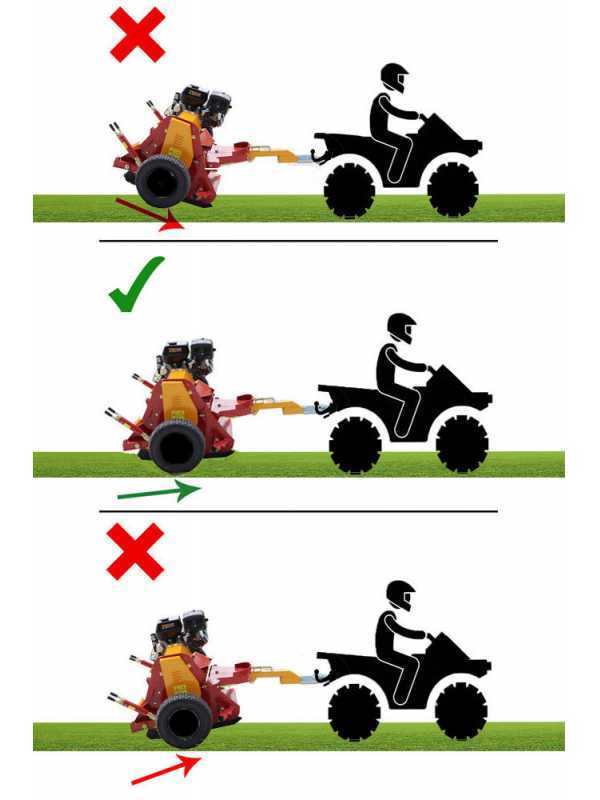

WELL ADJUSTED WORKING HEIGHT (7 - 8 cm high)

The height of ATV rear trailer hitch can vary, so make sure to position the ATV so that its working position is sufficiently raised to prevent the cutting hammers from touching the ground.

The exact working height of the hammers from the ground is 7-8 cm minimum.

WARNING: frequent impacts of the hammers on the ground can lead to excessive wear of the lateral transmission belts or even their overheating or combustion, resulting in damage to the belts and the product.
We recommend that you pay attention to these circumstances of excessive product strain, as the overload noise coming from the machine may sometimes not be perceived by the operator riding the ATV due to the noise coming from the latter.

OPERATING SPEED:

a frequent mistake regards the product speed, mainly because of the high speed provided by the ATV.
This ATV-mounted petrol rough cut mower must be used at the same speeds as tractor-mounted rough cut mowers or smaller, hand-push petrol mowers.

Speed: from 1 km/h up to max. 4 km/h

In case of particularly tall grass, it is recommended not to exceed the speed of 1/1.5 km/h

In case of low and frequently cut grass, a speed closer to 4 km/h is acceptable

WARNING: this rough cut mower is equipped with a side centrifugal clutch that keeps the rotor with hammers stationary (in neutral) when the engine is started at low rpm (state of rest), and a 2-belt transmission. Using this machine at higher speed than indicated above causes overloading and overheating of the clutch and also excessive wear of the lateral transmission belts, risking that the clutch, if burned, may even cause combustion of adjacent belts or other parts of the product.

Features:

Thanks to the practical electric start with key, it is very easy to start the machine.

Focus on the battery

WARNING

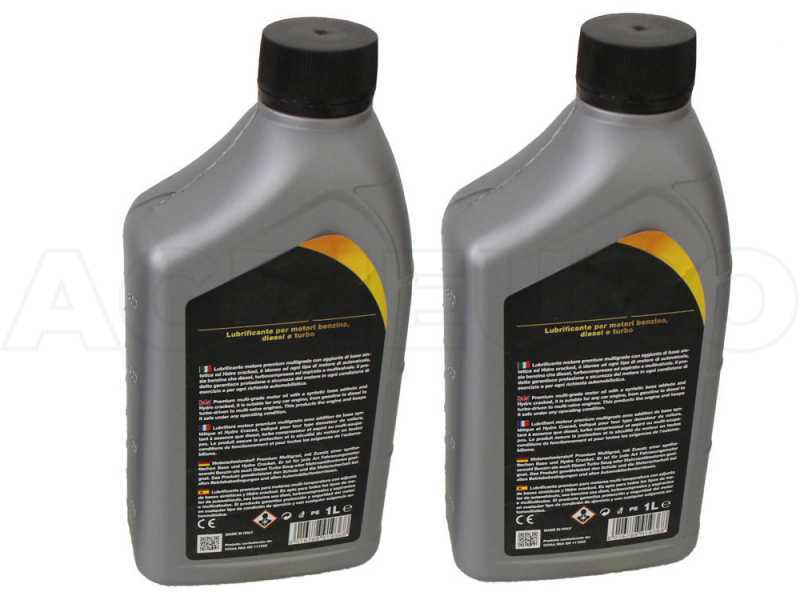

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 13.5 HP
The correct term would be "Commercial” Power, meaning the classic definition standard of power officially used until a few years ago by all leading engine manufacturers.

* This information is extremely popular and advertised in the leading commercial channels, although it is higher than the actual power.

Real power: 12.06 Hp
It corresponds to the real power expressed by the motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

No. Of standard-supplied hammers: 28

These hammers are mounted on a sturdy bolt made of hardened steel of 12 mm diameter.

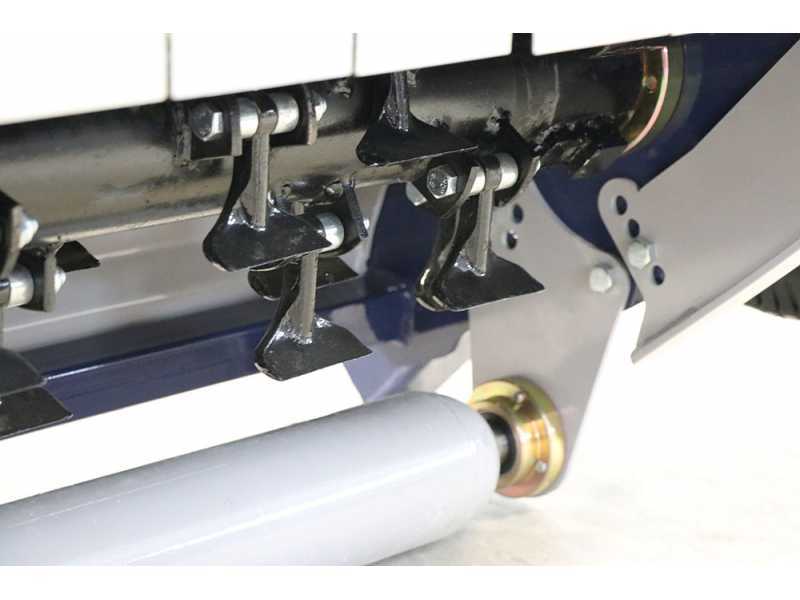

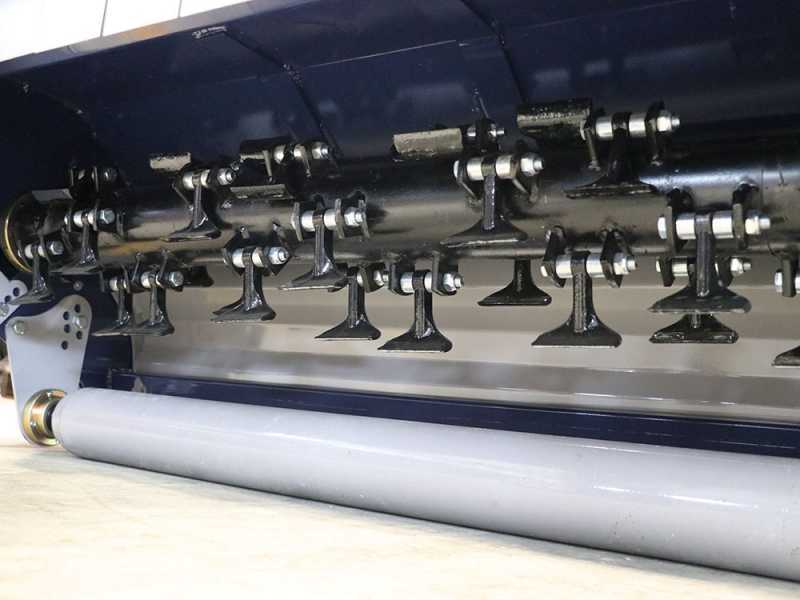

Close up of the cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor rpms and hammers (hammer blades), the wave effect on the grass is reduced, for an excellent cutting job.

Thanks to the hammer flails you will get great cutting results while working on gardens, lawns and urban areas. The machine can be attached to a motorized vehicle thanks to a trailer hitch.

Focus on the trailer hitch coupling

Lateral belt transmission:

Focus on the side belt protection casing with lateral grease nipple on the transmission side, conveniently placed and easy to access through the dedicated window.

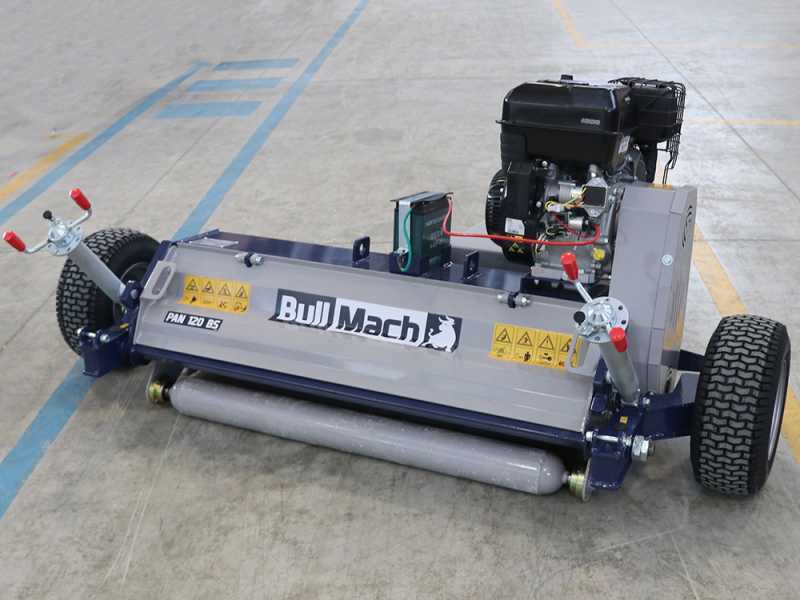

This rough cut mower features two different positions of the pneumatic wheels, according to your needs. In fact, the wheels can be mounted on the side of the cutting roller or on the back of the machine.

The right configuration depends on the situation, for example if you are working on more uneven ground it is recommended to keep the rear wheels close to the roller, so they can give more stability to the rollers, together with the trailer hitch. Furthermore, this configuration allows for tighter manoeuvres, also reducing the size of the machine if you have to work on grounds with obstacles.

Instead, when the wheels are placed laterally they are more suitable for jobs on a more even and flat ground, therefore leaving the rear roller to give stability to the machine

Wide pneumatic wheels which allow the machine to easily walk on all terrains.

Focus on the adjustment of the coupling to the trailer hitch.

Adjustable rear support roller provided on standard. The rear roller, together with the two pneumatic wheels, considerably increases the stability of the machine even on the most uneven ground. In fact, being placed near the rotor and being as wide as the whole machine, it perceives any unevenness in the ground, and moving accordingly it lifts the machine to prevent the hammers from getting stuck on the ground.

The cutting height is adjustable via special levers that raise and lower the wheels and consequently the cutting roller.

Focus on the rear roller locking bearing.

Focus on the roller support, equipped with holes for height adjustment. Height adjustable in 6 different positions.

Side support slides provided on standard equipment, which are also adjustable in 4 positions.

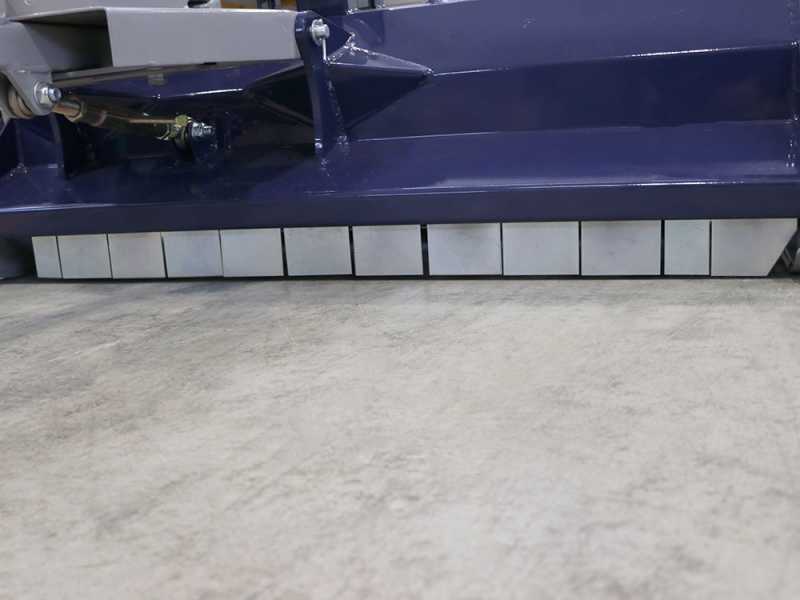

Heavy-duty series of front protection slaps made of shaped steel.

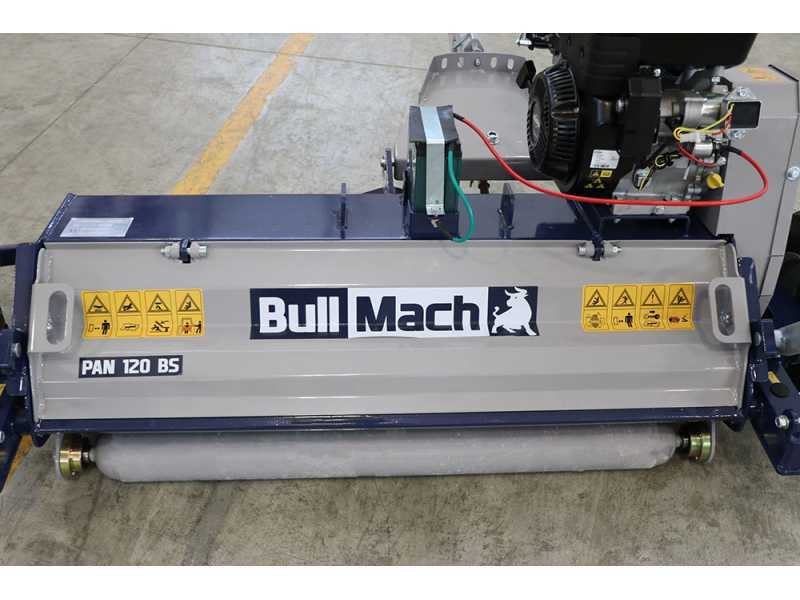

This tractor flail mower is equipped with rear cover (it can be opened), which is mounted on 2 sturdy hinges. Easy opening by simply unscrewing two bolts Provided with lifting handle. Extremely comfortable and user-friendly for maintenance and cleaning operations of the internal component, as well as for replacing tools, and so on.
