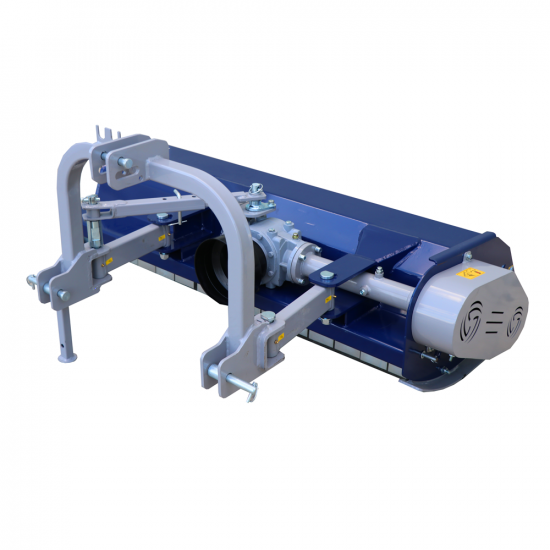

BullMach Maia 155 S - Tractor-mounted flail mower - Medium series - Manual shift

The BullMach Tractor flail mower MAIA S Series features a medium elastic structure and it is normally intended for shredding light branch tendril, grass and shrubs.

Medium series flail mower, mainly suitable for hobby use.

This flail mower model is equipped with manual shifting, 3 drive belts and rear roller.

TECHNICAL SPECIFICATIONS (short overview):

• Real working width: 155 cm
• Real required space: 175 cm
• Weight: 312 kg
• 3-point linkage
• 3-belt drive transmission

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

• Hammer flails
• Rear supporting roller
• Drive shaft

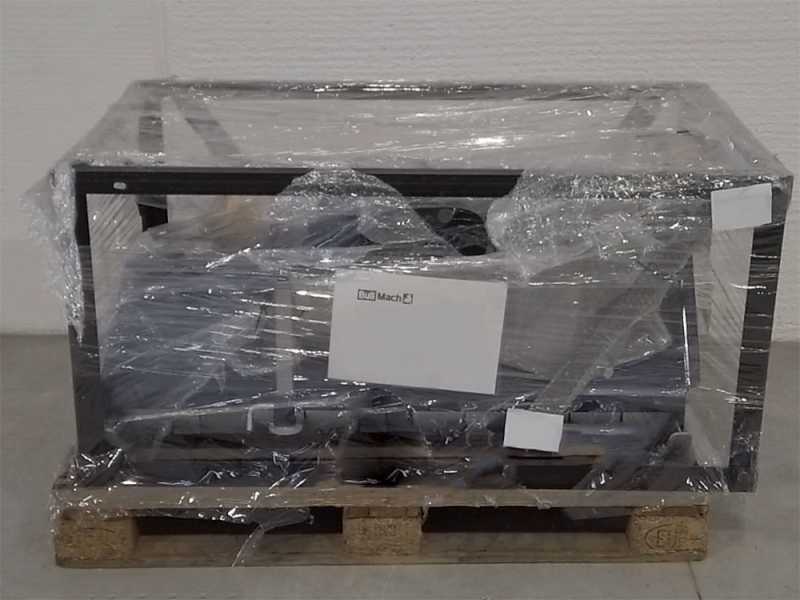

Note: the machinery is shipped ready to use and it does contain oil already. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components
Carefully read the instructions manual before use.

The machinery is intended for light cutting operations of grass or small twigs (of maximum 2 cm diameter) exclusively. It is recommended to fit the flail mower to low-powered tractors (as indicated in the technical data sheet) and on well-levelled ground without stones. In case of use on areas that are not perfectly levelled and wit presence of stones, accidental hits of stones or slopes with the cutting components of the equipment may damage the machine (as we’re dealing with a light-series machinery).

No. of standard-supplied and assembled hammers 24

The flail mower hammers are mounted on a sturdy bolt made of hardened steel of 24 mm diameter (overall length: 100 mm).

Image of the cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The rotating roller where are assembled the hammers features a diameter of 107 mm.

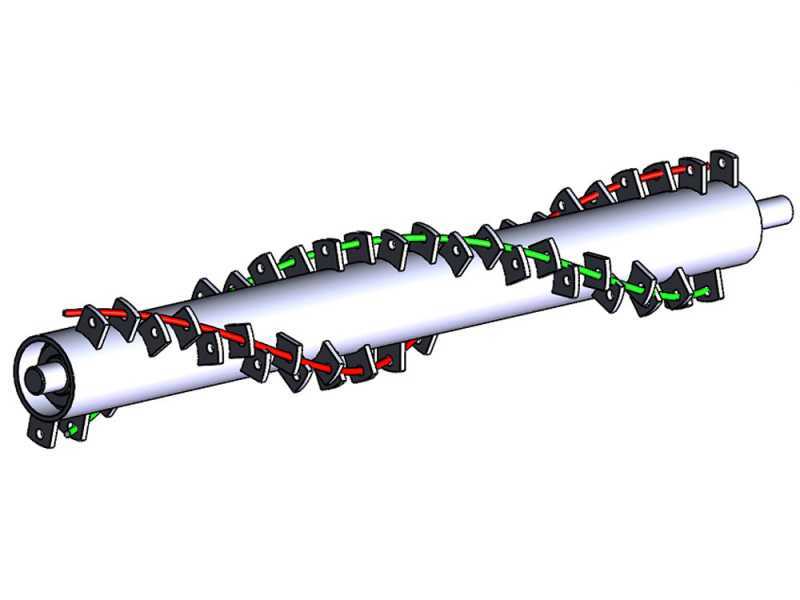

Figurative image of the double-spiral rotor.

The flail mower is equipped with manual shift consisting of 3 modes, intended to enhance the harvesting operations in vineyards, orchards, hazelnut trees, as well as is specific areas where is still necessary to work beyond the track width of the tractor and / or in inclined positions for cleaning up ditches, embankments, roadsides, slopes and so on.

The three-point hitch is adjustable by means of a fixing bar consisting of no. 3 holes that allow setting the flail mower in 3 different configurations.

Focus on the positioning holes.

Universal standard PTO (1 3/8” Z6)

Universal-type hitches that can be fitted to all the tractors on the market.

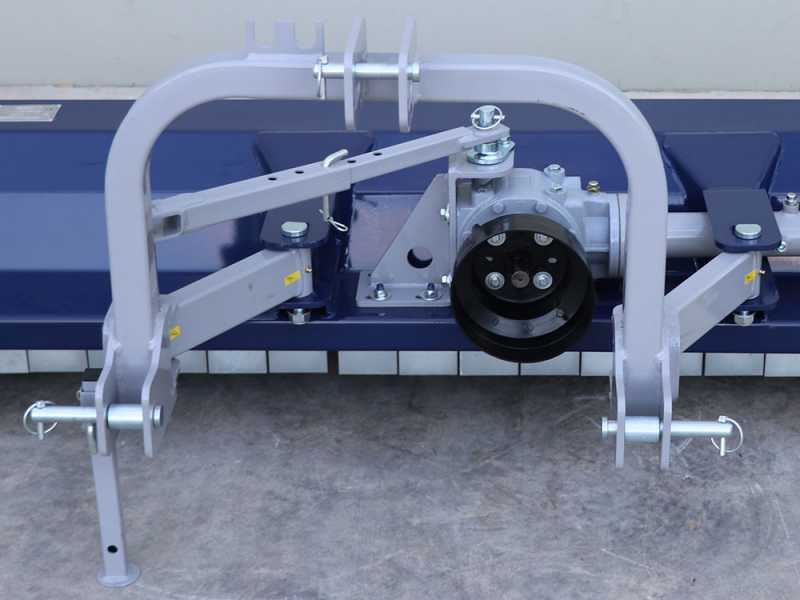

Focus on the first-category sturdy three-point hitch.

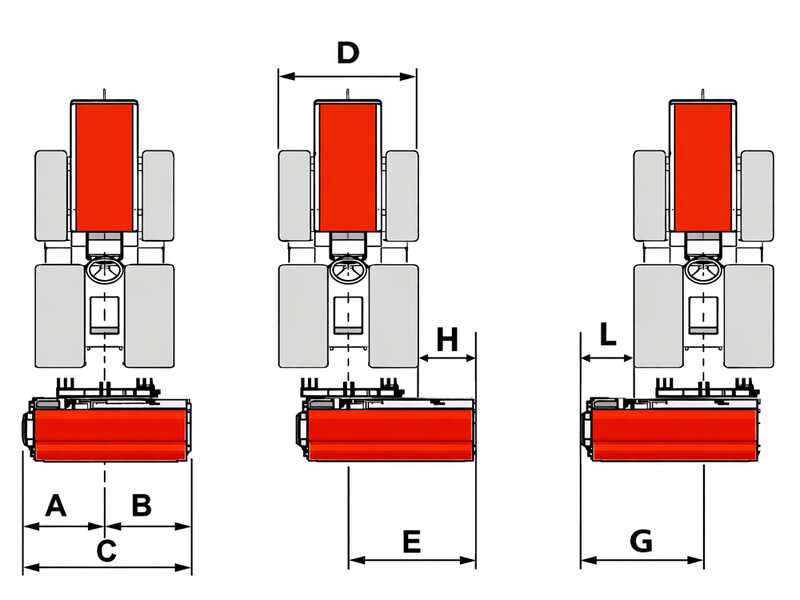

The three-point linkage features a side opening from the centre of the equipment of 65 cm on both sides.

Right side maximum opening, left side maximum opening.

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or overrunning coupling) integrated in the gearbox. This feature ensures long durability to all the moving parts of the machine, avoiding the kickback that would be created from 540 rpm to 0 rev/min. Thus, it allows the rotor to rotate freely until reaching a total stop.

3-Belt side transmission (most of the tractor flail mower belonging to this weight category are normally equipped with 2-belt standard transmission)

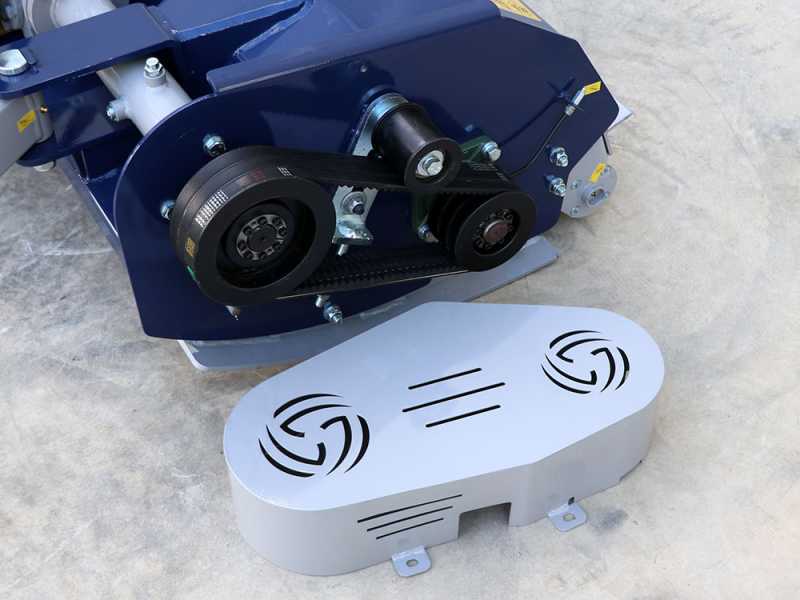

Focus on the side belt protection cover.

Focus on the transmission side greaser, which can be easily accessed by the Operator.

WARNING!

The gearbox assembled to this machinery may contain up to 0.5 L oil.

Before using the machine, read the instruction manual carefully.

Standard PTO 1 3/8” z6 (suitable to all tractors of the actual and recent production): Whether you own a particularly dated tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Standard-supplied rear height-adjustable supporting roller, which features a diameter of 102 mm.

Focus on the rear roller locking bearing.

Roller scraper provided on standard equipment.

Focus on the cutting roller fixing bearing.

Standard-supplied adjustable side supporting skids.

Focus on the supporting foot.

Heavy-duty Series of front protection slaps made of shaped steel.

Focus on the roller bar provided with holes for the height adjustment.

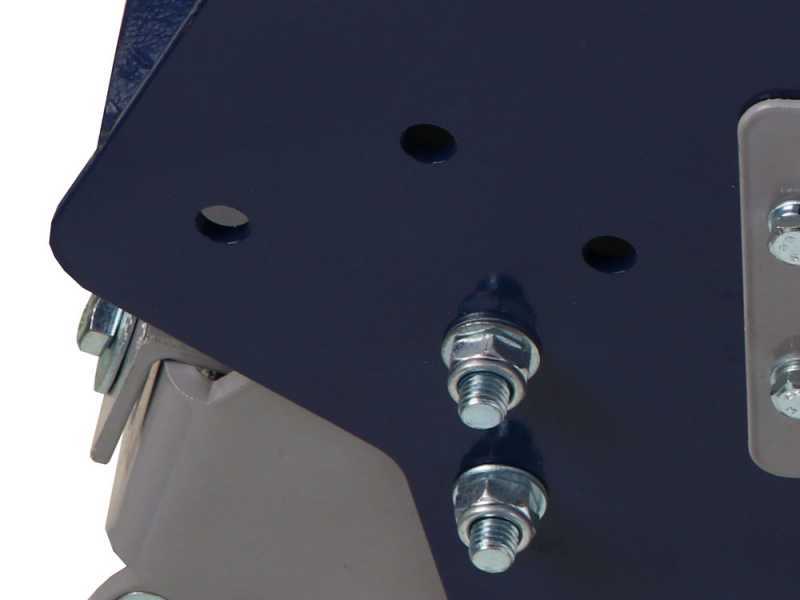

Focus on the 3 holes for the addition of an inter-row disc.
