Name: BullMach Maia 115 S - Tractor-mounted flail mower with manual shift
Brand: BullMach
SKU: 111438
Price: 1806.5 EUR
Availability: InStock
Rating: 4.67 (1 reviews)

Description

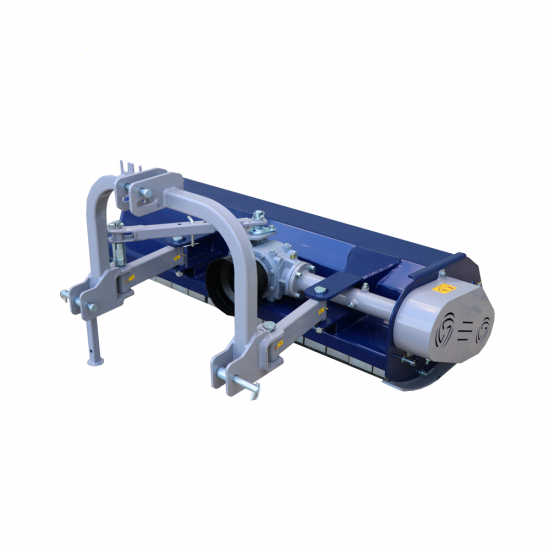

BullMach MAIA 115 S Flail Mower

The BullMach Tractor flail mower MAIA S Series features a medium elastic structure, and it is normally intended for shredding light branch tendril, grass and shrubs.

Medium series flail mower, mainly suitable for hobby use.

This flail mower model is equipped with manual shifting, 3 drive belts and rear roller.

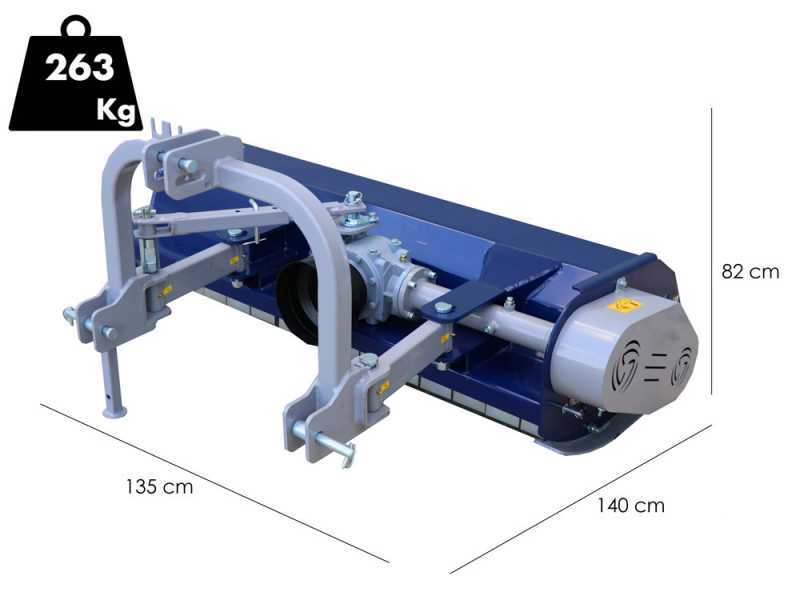

TECHNICAL SPECIFICATIONS (short overview):

Real working width: 115 cm
Real required space: 135 cm
Weight: 263 kg
3-point linkage
3-belt drive transmission
Maximum excursion from the centre, left side: 77.6 cm
Maximum excursion from the centre, right side: 71.5 cm

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

Hammer flails
Rear supporting roller
Drive shaft

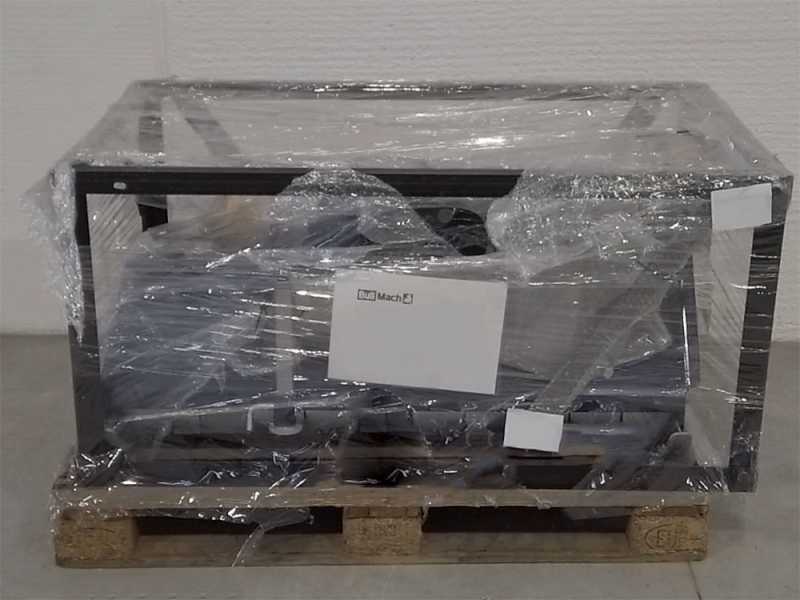

Note: the machinery is shipped ready to use and it does contain oil already. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components.
Carefully read the instructions manual before use.

BullMach Maia 115 S - Tractor-mounted flail mower with manual shift

Hammer flail cutting system

No. of standard-supplied and assembled hammers 16

The flail mower hammers are mounted on a sturdy bolt made of hardened steel of 24 mm diameter (overall length: 100 mm).

Image of the cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The rotating roller where are assembled, the hammers features a diameter of 107 mm.

Figurative image of the double-spiral rotor.

Manual side shift and Tractor 3-point hitch

The flail mower is equipped with manual shift consisting of 3 modes, intended to enhance the harvesting operations in vineyards, orchards, hazelnut trees, as well as is specific areas where is still necessary to work beyond the track width of the tractor and / or in inclined positions for cleaning up ditches, embankments, roadsides, slopes and so on.

The three-point hitch is adjustable by means of a fixing bar consisting of no. 3 holes that allow setting the flail mower in 3 different configurations.

Focus on the positioning holes.

Universal standard PTO (1 3/8” Z6)

Universal-type hitches that can be fitted to all the tractors on the market.

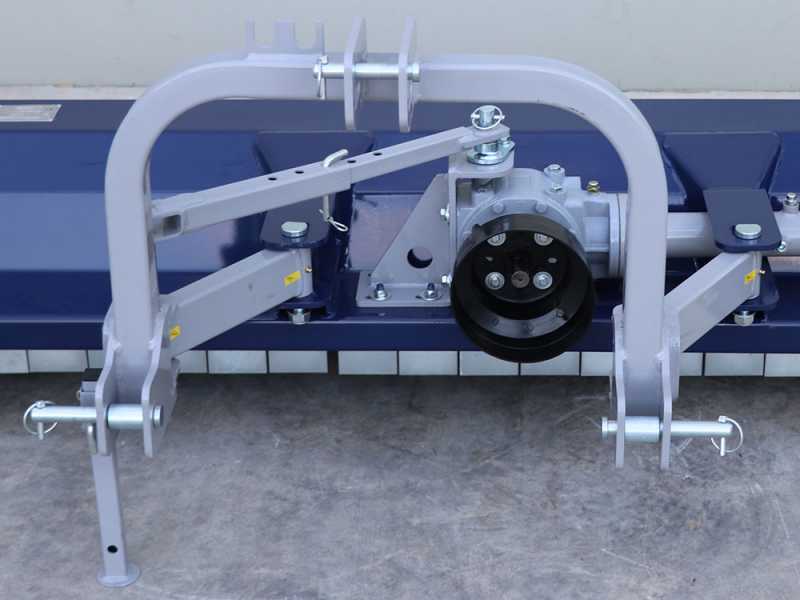

Focus on the first-category sturdy three-point hitch.

The three-point linkage features a side opening from the centre of the equipment of 65 cm on both sides.

Right side maximum opening, left side maximum opening.

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

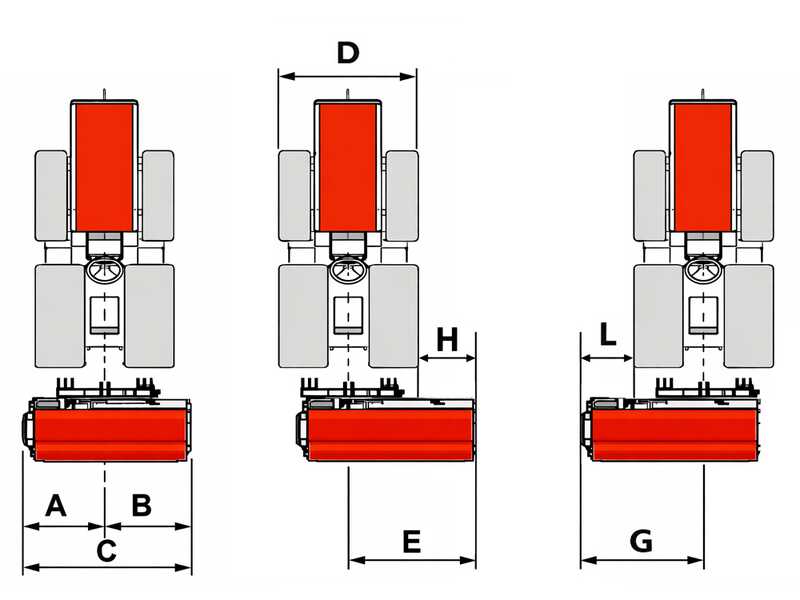

Side-shift adjustment diagram :

A : 60 cm
B : 55 cm
C : 115 cm
D : tractor width
E : 71.5 cm
G : 77.6 cm
H : E - 1/2 (D)
L : G - 1/2 (D)

Supporting attachments - Rear roller and side skids

Standard-supplied rear height-adjustable supporting roller, which features a diameter of 102 mm.

Focus on the rear roller locking bearing.

Roller scraper provided on standard equipment.

Focus on the cutting roller fixing bearing.

Standard-supplied adjustable side supporting skids.

Focus on the supporting foot.

Heavy-duty Series of front protection slaps made of shaped steel.

Focus on the roller bar provided with holes for the height adjustment.

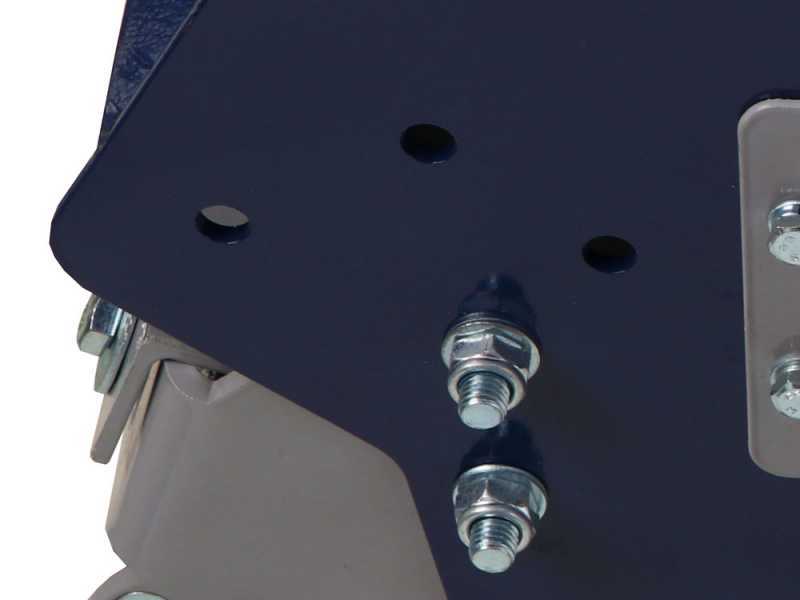

Focus on the 3 holes for the addition of an inter-row disc.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.
