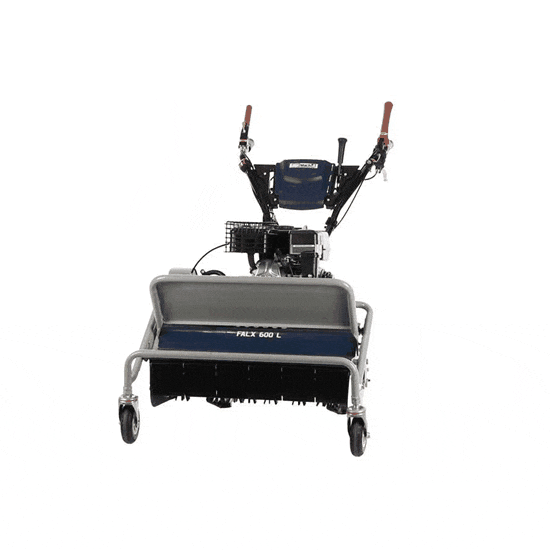

BullMach FALX 600 L - Hammer Rough Cut Mower - Loncin G200F

The BullMach FALX 600 L petrol-driven flail mower is a reliable choice for the maintenance of uncultivated areas, grounds and areas of tall grass or weeds. Equipped with a 196 cc 4-stroke Loncin G200F engine, this flail mower ensures power and autonomy in difficult terrain. The Loncin engine offers a power rating of 6.5 HP.

The cutting rotor is equipped with 48 serrated knives, divided into groups of 3. This feature makes it unique compared to products in this range and allows the operator to chop even smaller what passes under the rotor, thus improving its effectiveness.

The cutting width of 60 cm allows high coverage per single pass, reducing the number of movements required and thus the time taken, especially on medium-sized surfaces. This working width balances the manoeuvrability of the mower with the ability to tackle complex surfaces, improving productivity. The knife cutting system with 48 knives ensures an efficient and even chopping action. Each knife works to reduce the vegetation into small fragments, facilitating the decomposition and natural fertilization of the soil.

Its maximum cutting height is 60 cm, allowing a precise finish even on the most difficult ground.

The BullMach FALX 600 L is equipped with two forward gears, and one reverse gear, providing great versatility and ease of manoeuvring in different working conditions.

With neutral engaged, it is possible to move the machine without starting the engine.

Key features:

• Wide cutting width: 60 cm
• Cutting height: Minimum 10mm - maximum 600mm
• Engine: Loncin G200F
• Gears: 2 forward and 1 reverse gears.
• Blades: 48 knives

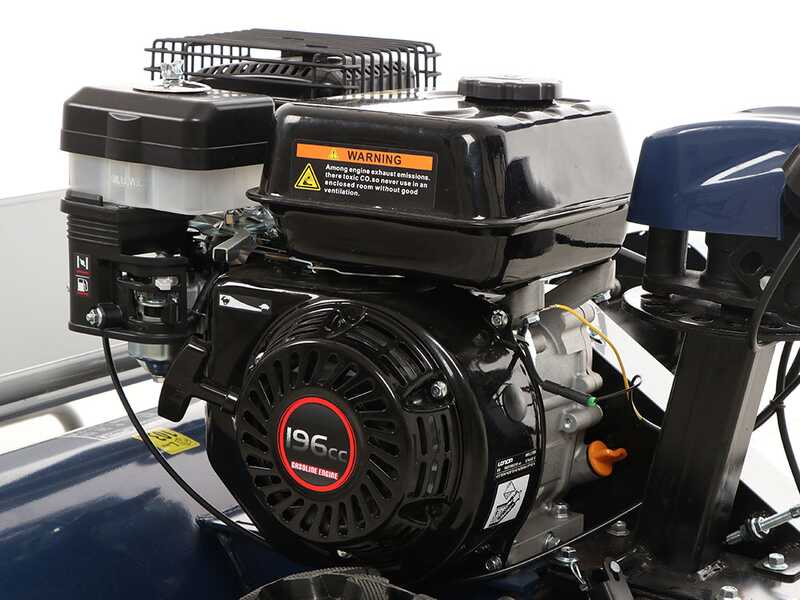

The flail mower is equipped with a 196cc, 4-stroke, air-cooled Loncin G200F engine with overhead valves and aluminium cylinder.

Features:

WARNING
The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 HP would be ‘Commercial’ power, meaning the classic power definition standard officially used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.5 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

3-Speed gearbox in oil bath: 2 forward gears and a reverse gear

The gearbox is really sturdy and reliable.

Final drive to the flail mower rotor by means of drive belts protected by a robust casing.

Focus on the gear selector switch

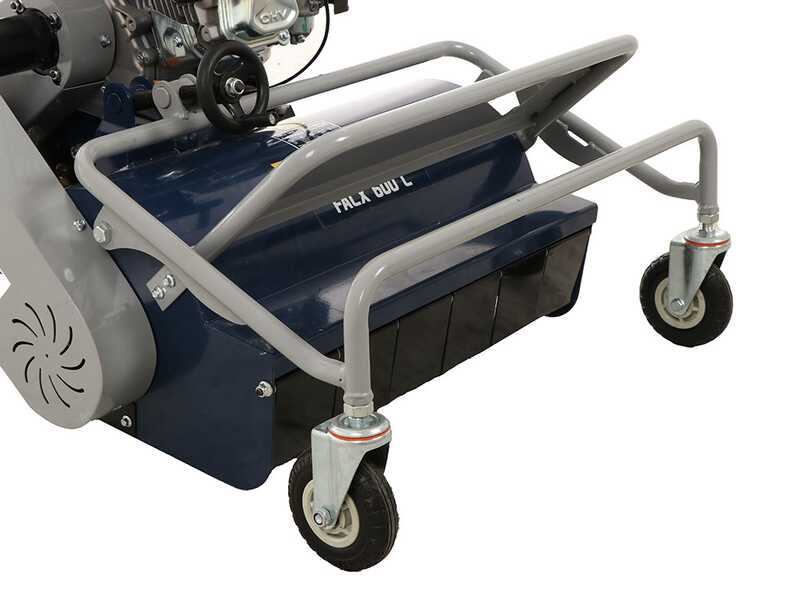

Flail mower plate made of sheet steel.

Robust rotor made of tempered steel, with 48 knives in groups of 3. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

70mm rotor diameter.

Working width: 60 cm

Detail of knives and their holders

Cutting height adjustment by handwheel

Robust front protection straps, mounted on a swinging strap.

The cutter deck also has an additional user protection grid mounted on the top of the deck. This accident-prevention protective grating ensures maximum safety during use.

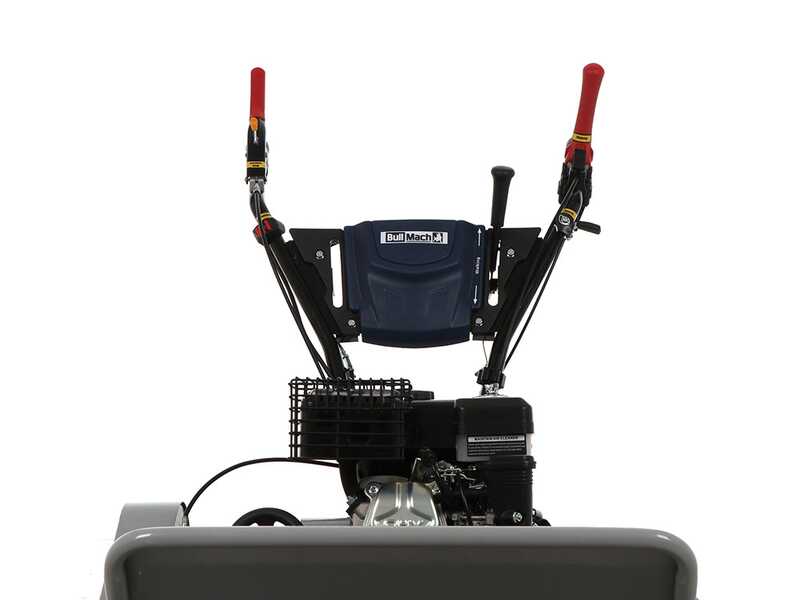

Left lever: is the feed clutch lever, it activates and deactivates the feed, whatever speed is selected on the gearbox (both forward and reverse). Releasing this lever stops the machine instantly, for safety reasons.

Right lever: activates and deactivates the knife rotor (i.e. the grinding function) and is connected to the disc safety brake, which quickly stops the rotation of the rotor if it is released.

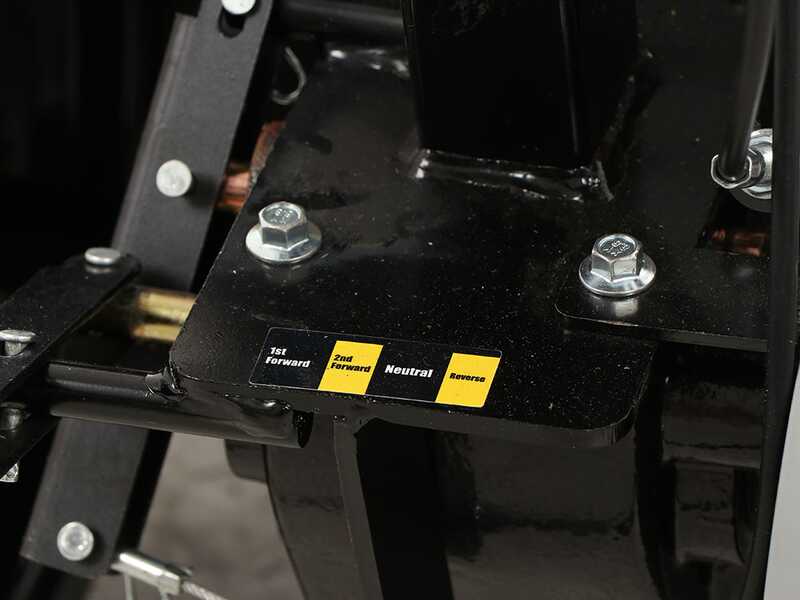

Gear selector switch

Throttle control

Cutting height adjustment: turn the lever to raise or lower the cutting deck from a minimum of 10 mm to 600 mm.

Traction release lever allowing the machine to move into neutral

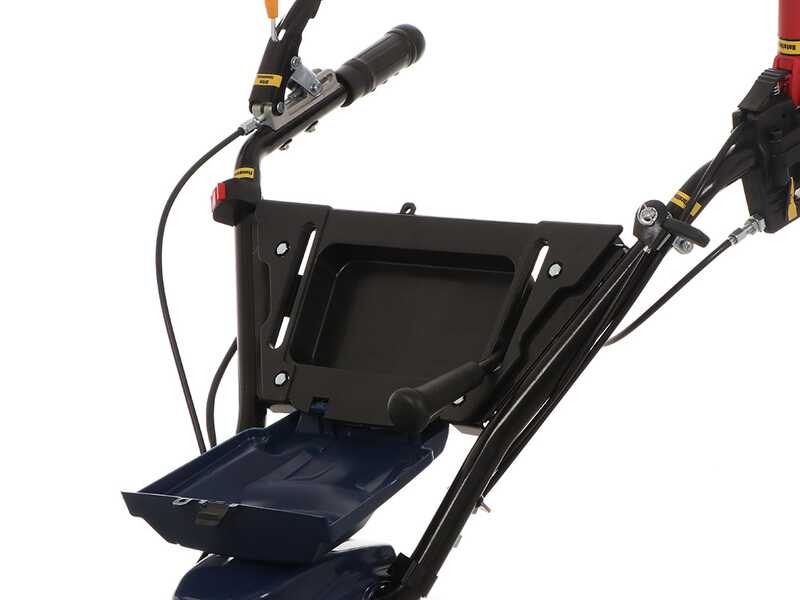

Lever for adjusting handlebar height and rotation.

Adjustment example:

In height:

• 1
• 2
• 3

Sideways:

• 1
• 2
• 3
• 4

Swinging steel front fairing. It tends to rise automatically if the machine is facing large masses of particularly tall and thick grass, to facilitate its entry under the cutter deck for efficient and instantaneous crushing.

Front swivel castors

Pneumatic wheels for agriculture of dimensions: 13 x 3.5

Upper holders
