BullMach FALX 600 B&S - Hammer Flail Mower - B&S CR950

The BullMach FALX 600 B&S petrol flail mower stands out as a reliable solution for maintaining uncultivated areas, difficult terrain and areas with high grass or weeds. It is powered by a 208 cc 4-stroke B&S CR950 engine, capable of delivering a rated power of 6.5 HP, guaranteeing high performance and excellent autonomy even on demanding surfaces.

The cutting rotor, equipped with 48 serrated knives divided into groups of 3, is a distinctive feature of this flail mower. This unique configuration enables extremely fine shredding of vegetation, significantly increasing effectiveness and improving cutting results compared to other products in the same category.

With a cutting width of 60 cm, the B&S BullMach FALX 600 guarantees wide coverage per single pass, optimising working time, especially on medium-sized surfaces. This balance between manoeuvrability and operational capacity makes it ideal for tackling complex terrain while maintaining high productivity.

The knife cutting system ensures a uniform and efficient action, reducing vegetation into very small fragments. This not only facilitates natural decomposition, but also promotes organic fertilisation of the soil.

The maximum cutting height of 60 cm allows precise handling of even the most difficult areas. In addition, the machine is equipped with two forward and one reverse gear, ensuring excellent manoeuvrability in all working conditions.

A further advantage is the possibility of moving the machine with neutral engaged, without the need to start the engine, offering greater convenience when travelling.

Key features:

• Wide cutting width: 60 cm
• Cutting height: Minimum 10mm - maximum 600mm
• Engine: B&S CR950
• Gears: 2 forward and 1 reverse gears.
• Blades: 48 knives

The flail mower has a Briggs & Stratton CR950 4-stroke air-cooled 196cc engine with overhead valves and aluminium cylinder.

Features:

WARNING
The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 7 HP would be ‘Commercial’ power, meaning the classic power definition standard officially used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.70 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

3-Speed gearbox in oil bath: 2 forward gears and a reverse gear

The gearbox is really sturdy and reliable.

Final drive to the flail mower rotor by means of drive belts protected by a robust casing.

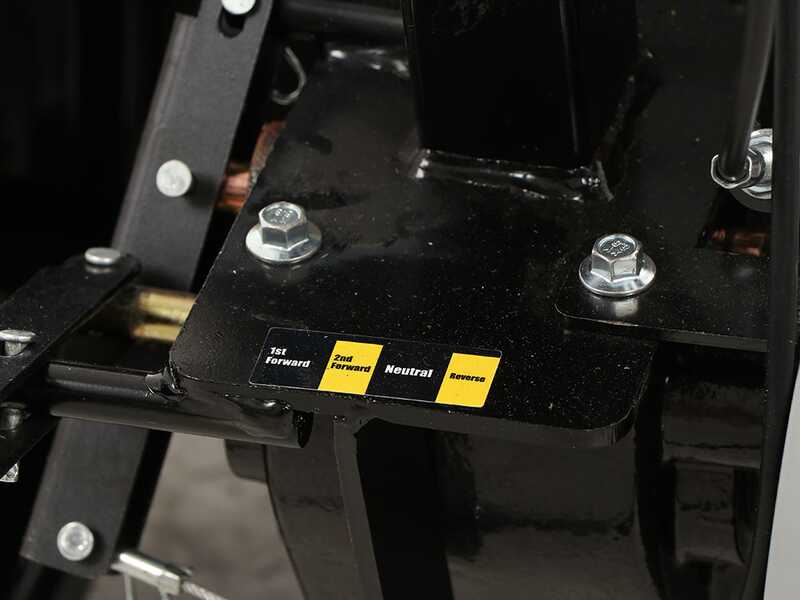

Focus on the gear selector switch

Flail mower plate made of sheet steel.

Robust rotor made of tempered steel, with 48 knives in groups of 3. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

70mm rotor diameter.

Working width: 60 cm

Detail of knives and their holders

Cutting height adjustment by handwheel

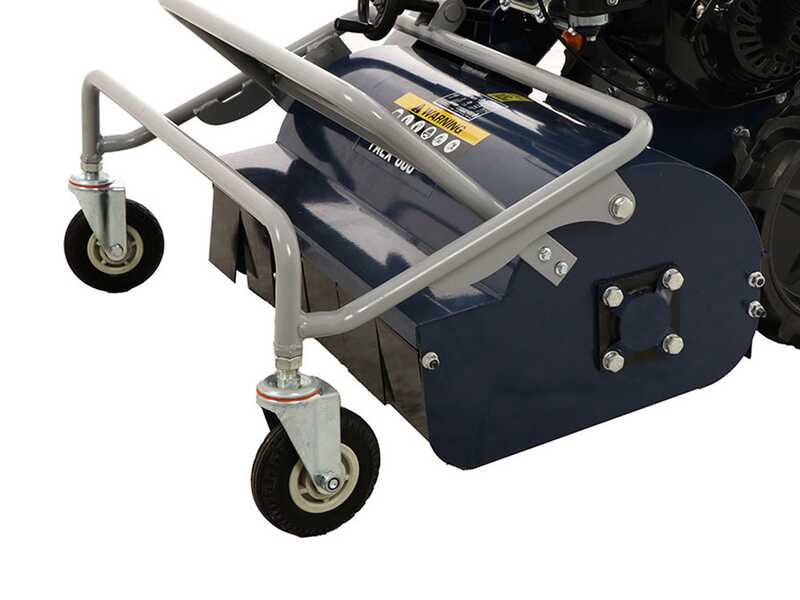

Robust front protection straps, mounted on a swinging strap.

The cutter deck also has an additional user protection grid mounted on the top of the deck. This accident-prevention protective grating ensures maximum safety during use.

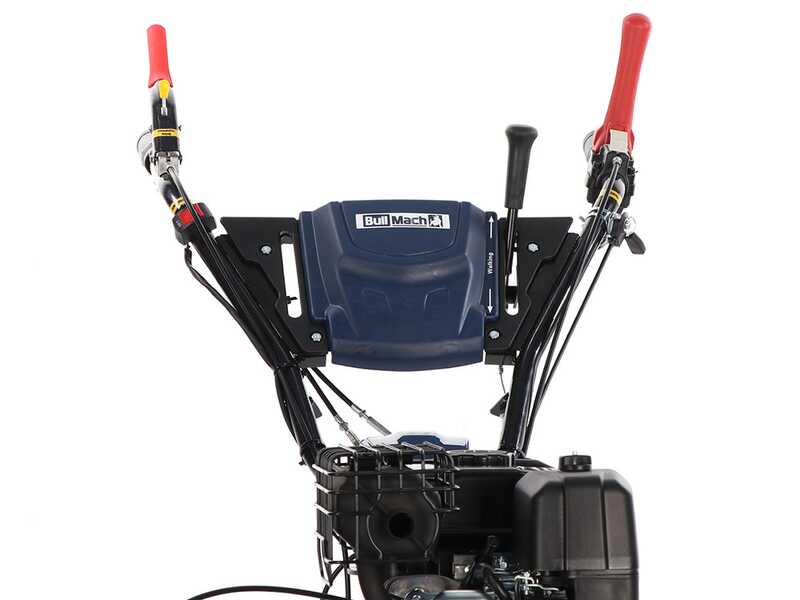

Left lever: is the feed clutch lever, it activates and deactivates the feed, whatever speed is selected on the gearbox (both forward and reverse). Releasing this lever stops the machine instantly, for safety reasons.

Right lever: activates and deactivates the knife rotor (i.e. the grinding function) and is connected to the disc safety brake, which quickly stops the rotation of the rotor if it is released.

Gear selector switch

Throttle control

Cutting height adjustment: turn the lever to raise or lower the cutting deck from a minimum of 10 mm to 600 mm.

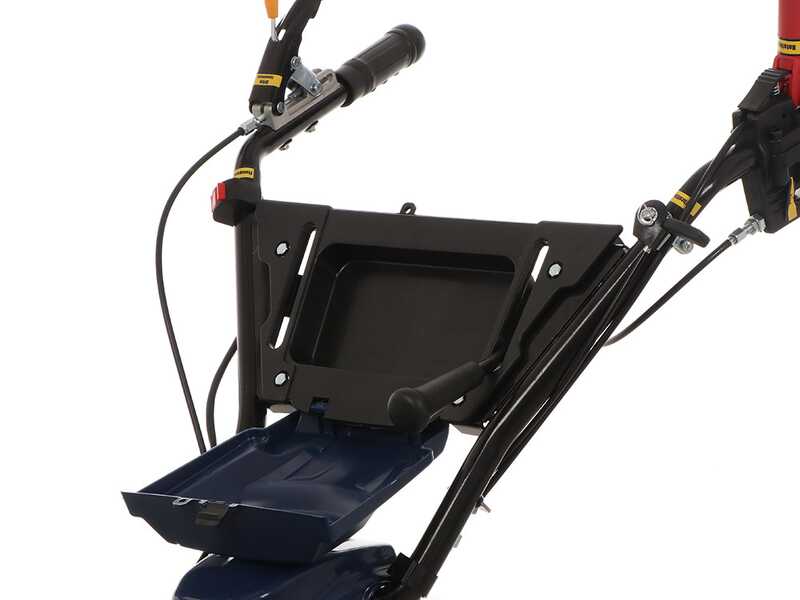

Lever for adjusting handlebar height and rotation.

Traction release lever for moving the machine into neutral.

Adjustment example:

In height:

• 1
• 2
• 3

Sideways:

• 1
• 2
• 3
• 4

Swinging steel front fairing. It tends to rise automatically if the machine is facing large masses of particularly tall and thick grass, to facilitate its entry under the cutter deck for efficient and instantaneous crushing.

Front swivel castors

Pneumatic wheels for agriculture of dimensions: 13 x 3.5

Upper holders
