BullMach BM-LS-PTO 30 V - Tractor-Mounted Log Splitter - Vertical

Questions & Answers (5)
ID: 108120

EAN: 8054141543805

MPN: BM-LS-PTO 30 V

9,0/10
After-sales assistance & Spare parts

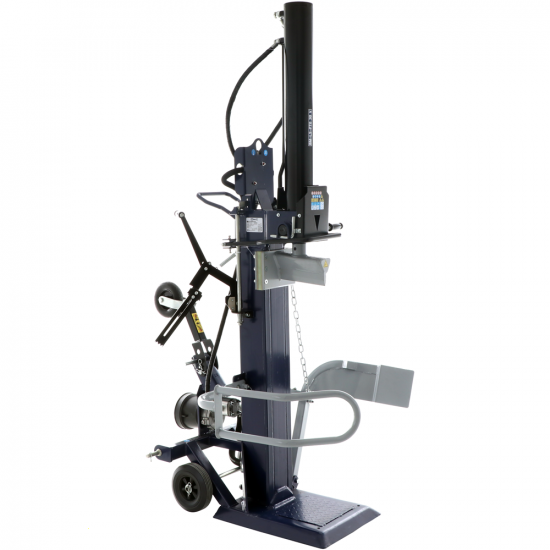

BullMach BM-LS-PTO 30 V - Tractor-Mounted Log Splitter - Vertical
+70 sold
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 06/05/2026 - 08/05/2026
Suggested price:
€ 2.937,13
€ 2.202,85
Vat included
Technical data
Max. trunk diameter
40 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
30 t
Tractor three-point hitch
Yes
Product Features
Model
BM-LS-PTO
Type
Vertical
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
30 t
Piston stroke
94.8 cm
Adjustable piston stroke (for short logs)
No
Worktop log cutting
No
Ground splitting system
Yes
Manufacturing country
China
Motor data
Power supply
Tractor-driven PTO
Oil tank capacity
30 L
Manufacturing country
China
Pump data
Pump type
Hydraulic
Oil tank
Yes
Hydraulic cylinder outer diameter
133 mm
Piston diameter
70 mm
Manufacturing country
China
Cutting data
Max. trunk length
110 cm
Max. trunk diameter
40 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
Yes
Retaining side arms
Yes
Retaining side supports
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Tractor three-point hitch
Yes
Replaceable wedge guides
Yes
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Rear wheels size
30
Free gifts/extra features
Wooden pallet (safe shipping)
Yes
4-way wedge
No
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
155x100x250 cm
Net weight
338.4 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
98x68x201 cm
Weight including packaging
345 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
30 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

BullMach BM-LS-PTO 30 V Tractor Log Splitter

The BullMach BM-LS-PTO 30 V tractor log splitter is a vertical unit intended for semi-professional and professional use.

It can be operated either through the cardan shaft by connecting it by means of the PTO to the tractor.

With a splitting force of 30 tons, it allows splitting wood logs, even knotty, ranging in size up to a maximum of 110 cm in height and a diameter of maximum 40 mm

Foldable piston for easy storage.

Splitting force: 30 tons

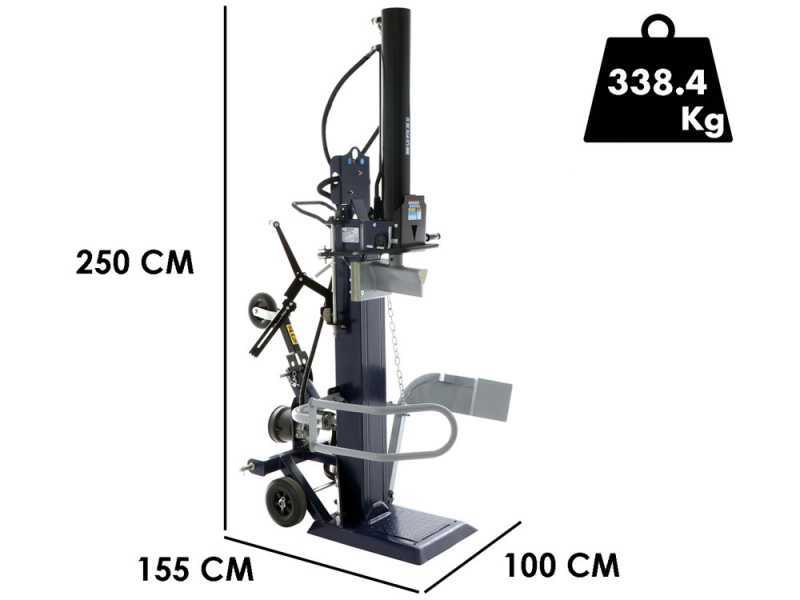

Dimensions: L 155 cm x W 100 cm H 250 cm

Weight: 338.4 KG


WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case it is advisable to look at professional models. In addition, the strains should be split only once they have been dried, and not in the green state; when the wood is green it has less tendency to split and open and therefore less suitable for use of the log splitter. Once dried instead, it can be split and becomes ready for use in furnaces, stoves, ovens, etc .

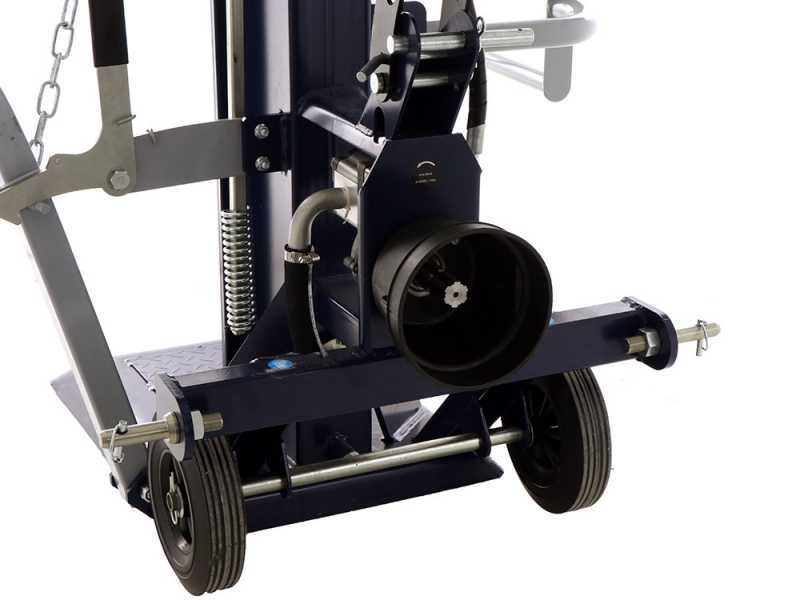

Tractor PTO cardan connection

This log splitter can be used by connecting it to the tractor through the universal cardan joint. Max. Power <560 rpm

The tractor connection is guaranteed by means of the three-point hitch located in the machine frame.

The log splitter exploits the action of a hydraulic pump that draws oil from the tank housed at the base of the machine body, of 30.0 L capacity, and moves the hydraulic cylinder which acts as a pushing device.

The body of the machine structure itself has the function of hydraulic oil tank.

Focus on the gear multiplier.

This multiplier transfers the torque from the tractor to the hydraulic pump (through the universal joint).

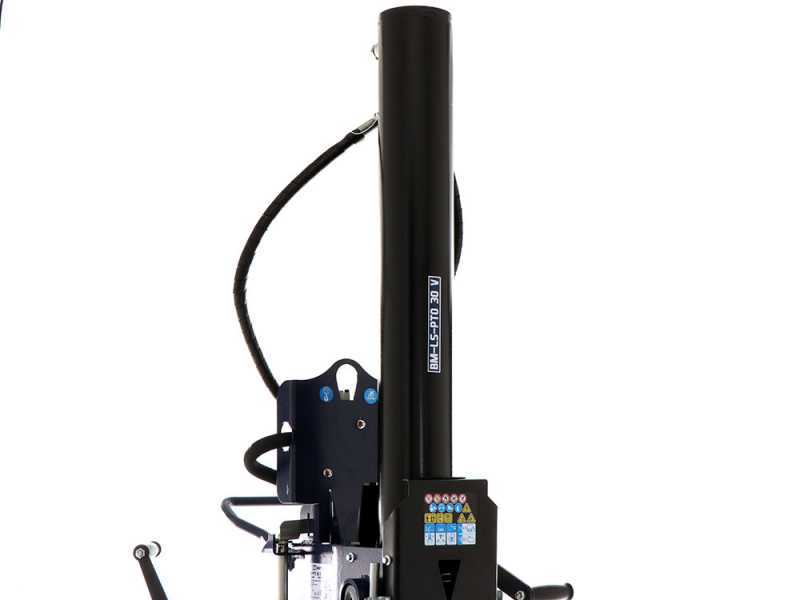

Wedge and piston

Featuring a splitting force of 30 tons, this log splitter model is capable of splitting logs from 8 to 40 cm diameter, and up to 110 cm high.

Focus on the wedge of the log splitter of 26 cm length.

The length of the piston stroke is 94.8 cm

The internal piston is very thick, 70 mm, so it is able to withstand the 30 tons working pressure applied by the equipment.

The outer piston has a diameter of 133 mm

Main features

Integrated oil tank located on the base of the log splitter.

CE-compliant operating handles.

Log side fixing support integrated and adjustable through the special mechanism.

Log lifting system with locking system

Focus on the wedge and the rear handle. The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), which are intended to easily move and transport the log splitter.

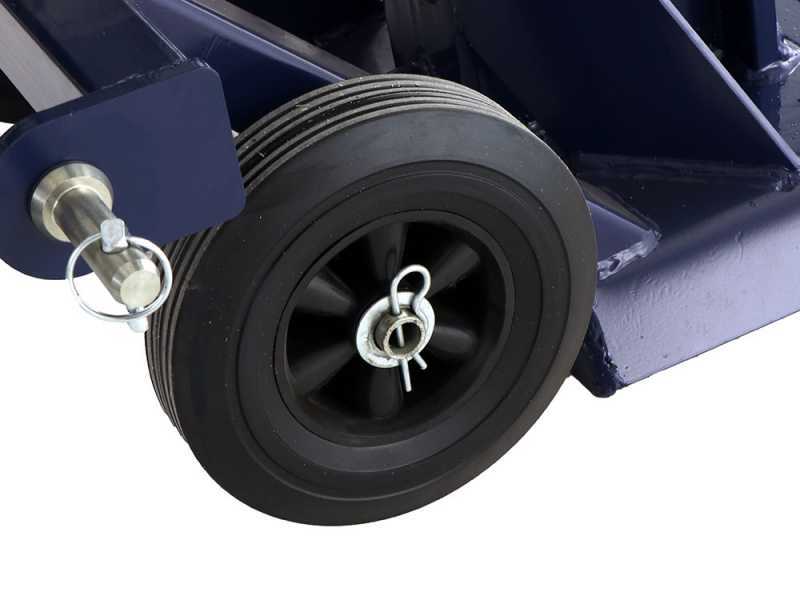

Focus on the wheels integrated in the base of the log splitter.

Focus on the three-point hitch for the tractor connection, the diameter of the three hitches is 21 mm - hitch overall space: 6.8 cm.

Focus on the support platform (Overall dimensions L 67 cm x W 54 cm x H 6 cm).

Focus on the lever, intended to raise the piston and to manage the double speed.

Free items & Standard equipment

Extra features

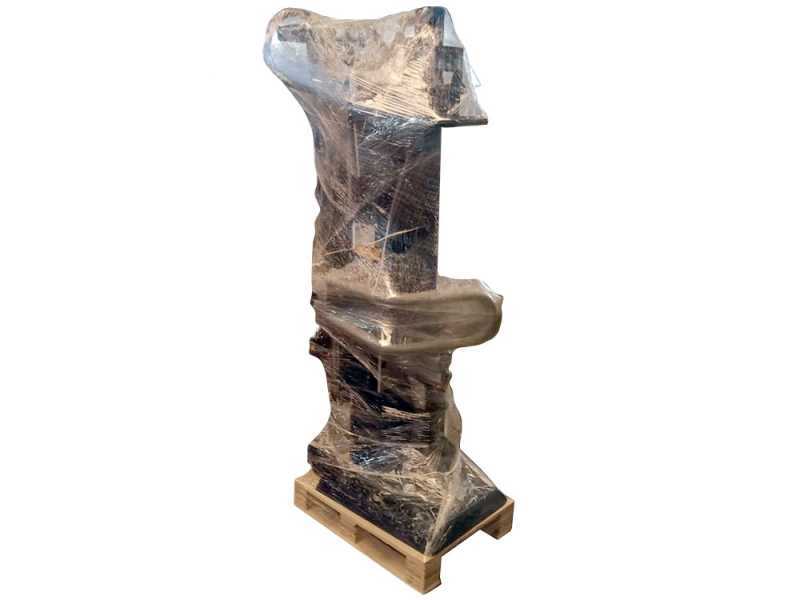

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions
for the correct operation and maintenance
