BullMach BM-LS-E 5 H - Electric Log Splitter - Horizontal - 230V

Add a question
ID: K603413

EAN: 8054141543980

MPN: BM-LS-E 5 H

9,0/10
After-sales assistance & Spare parts
BullMach BM-LS-E 5 H - Electric Log Splitter - Horizontal - 230V
Max. trunk diameter
25 cm
Piston stroke
52 cm
Operating mode
Single-phase 230 V
Nominal power
2 HP
Engine
Induction
Nominal power (W)
1500 W
Nominal splitting force
5 t
Nominal power
1500 W
Product Features
Model:
BM-LS-E 5 H 2 in 1
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
5 t
Piston stroke:
52 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2 HP
Nominal power (W):
1500 W
Nominal power :
1500 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
15 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
139X48X66 cm
Net weight:
55 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
100X30.7X48 cm
Weight including packaging:
58 Kg
Unloading with hydraulic tail lift:
No
Assembly time:
30 minutes
Prompt Delivery
56 items in stock
Free Shipping
Estimated delivery: 15/07/2025 - 17/07/2025
Suggested price:
€ 328,86
€ 302,55
Vat included

You're viewing:
Customers also viewed:
Description

BullMach BM-LS-E 5 H 2 in 1 Log Splitter

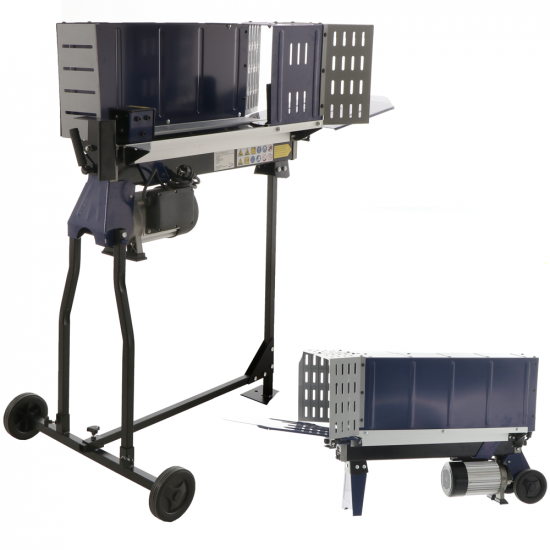

BullMach BM-LS-E 5 H electric single-phase log splitter 230 V 5 tons. Thanks to the standard-supplied support, the wood splitter can be used both in the low mode and high mode.

Electric log splitter of small dimensions for hobby and home use.

It allows you to effectively split logs effortlessly and safely thanks to the CE-protection and activation with both hands.

HORIZONTAL STRUCTURE: allows splitting logs without almost lifting it (you can put them above without particular effort, given the reduced axis height of support)

With single-phase electric motor 230V / 50Hz 1500W

Thrust horse power: 5 tonnes

Trunk diameter: from 5 to 25 cm

Long length: Max 52 cm

It has two wheels that allow easy movement.

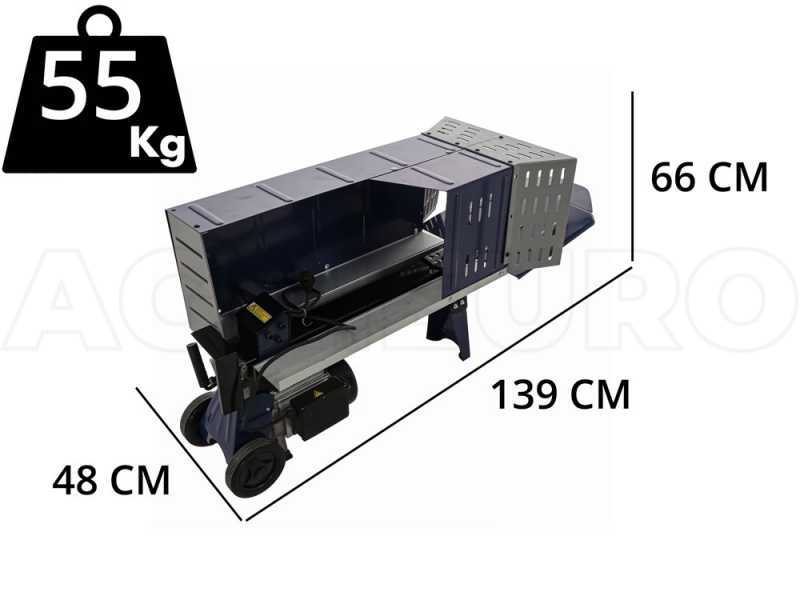

Overall dimensions in low mode: 139 x 48 x 66 cm

Overall dimensions in high mode: 139 x 48 x 130 cm

Weight: 55 Kg (59 Kg with wheels kit)

It complies with EC safety regulations.


WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case it is advisable to look at professional models. In addition, the strains should be split only once they have been dried, and not in the green state; when the wood is green it has less tendency to split and open and therefore less suitable for use of the log splitter. Once dried instead, it can be split and becomes ready for use in furnaces, stoves, ovens, etc ..

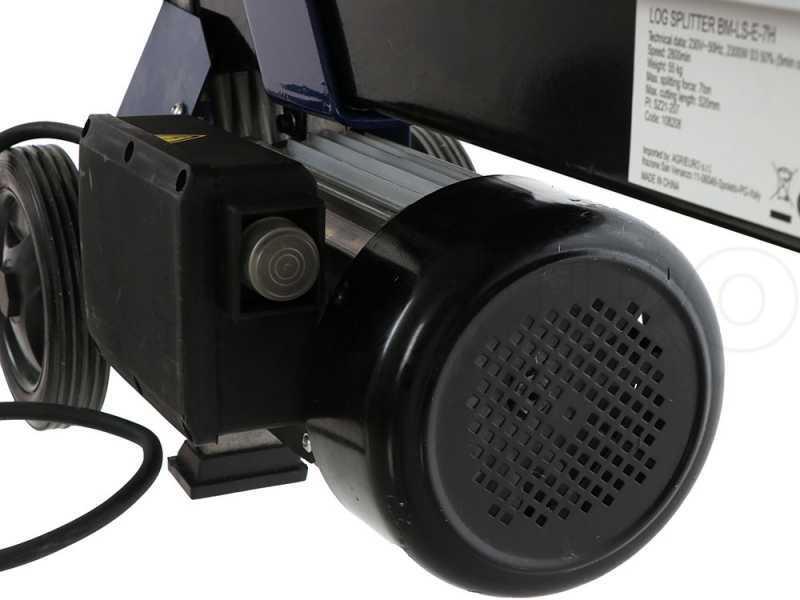

Electric motor 1500 W

Log splitter with single-phase electric motor

Power supply: 230 V - 50 Hz

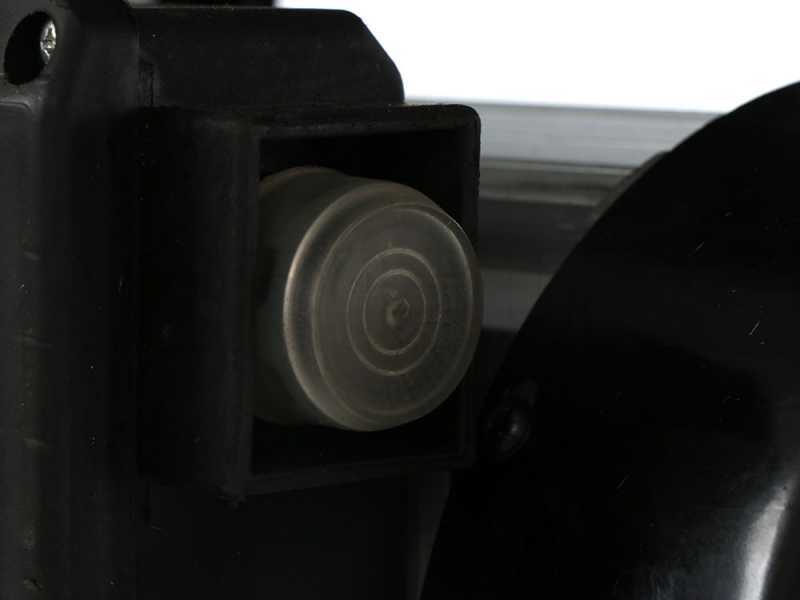

Focus on the power button and start handle

Controls and other features

Double-hand starting procedure:

1) the first hand must press the ignition button electric motor (which drives the pump)

2) the second hand pulls the actioning piston lever, to activate the splitting phase

Oil tank capacity: 3.2 L

Piston head made of cast aluminium

Focus on the robust cutting wedge

The powerful wedge with multiple welding ensures a perfect result and a long service life. It also splits hardwood without difficulty.

Easy transport thanks to the handle and wheels located in the proximity of the electric motor.

Focus on the protections in accordance with CE standards.

Oil breather bolt and breather screw

Free items & Standard equipment

Standard equipment

The log splitter is shipped in its original packaging

The Instruction manual is included in the package

Equipped with wheel kit for easy transport
