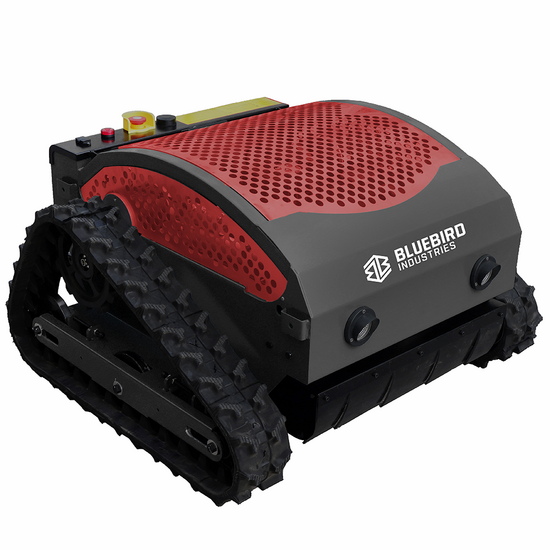

BlueBird FM 23-53 Radio-Controlled Robot Lawn Mower

The BlueBird FM 23-53 radio-controlled robot lawn mower represents an important innovation in the field of robot lawn mowers, a versatile solution suitable for mowing tall grass in spaces that are difficult and inconvenient for a man to reach. It is also suitable for work in dangerous or rough areas.

This robot lawn mower stands out for its hybrid drive system, which combines the power of a 224 cc Loncin petrol engine, ideal for ensuring high performance during mowing operations, with the energy efficiency of two 28V and 600W (300W x 2) battery electric motors, which guarantee smooth and constant machine advancement.

The distinctive feature of this model is definitely the radio control, which offers precise and intuitive control of the machine's functions up to a distance of 200 metres, thus ensuring safe and comfortable use in all conditions.

As regards mobility, the FM 23-53 is equipped with sturdy tracks designed to tackle any type of terrain, guaranteeing excellent climbing capabilities.

This makes it ideal for major mowing operations, removal of tall grass and clearing undergrowth, even on steep slopes.

With regard to mowing functions, the robot is equipped with a 53 cm disc with two floating blades, which allow a precise and even cut.

To ensure improved visibility in low light conditions, it is equipped with LED headlights, an additional detail that enhances its functionality and effectiveness in any working scenario.

This robot features a hybrid power supply, combining the power of the Loncin 224 engine with the efficiency and torque generated by electric motors.

The Loncin engine is connected to the machine blade and to an alternator, which charges the two 28V batteries that power the 600w electric motors.

Features:

WARNING!
The engine is provided without oil.
Check the oil level before the first starting.

Nominal Power: 7.5 HP

Rated power: 5.38 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Track structure: sturdy and over sized. Better than the average rough cut mower available on the market of the same size

Trucks: these machines are equipped with high-quality trucks. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

TRUCK DRIVE:

The direct connection between the electric motors and the tracks ensures efficient transmission of motion and power.

The radio control with which this machine is equipped has a range of up to 200 metres, so that cutting operations can always be performed safely.

From the remote control you can manage all functions of the machine:

Levers:

• left: operates the forward and reverse motion of the robot
• right: controls the steering of the robot.

Buttons:

• left
  • at the top: scrolls through the on-screen menu
  • at the bottom: turns on the remote control
• right

  • at the top: scrolls through the on-screen menu
  • at the bottom: select menu item

Red button: emergency stop

In the on-screen menu, you will be able to:

• switching the heat engine on and off
• adjustment of engine RPM
• cutting height adjustment
• forward speed adjustment
• switching the lights on and off

Furthermore, the battery status and temperature of the machine's control unit can be checked from the screen.

The grass cutting deck of this machine consists of a large rotating disc with two mounted floating knives.

It features a cutting diameter of no less than 51 cm, a generous size for working good amounts of soil.

The cutting deck height is adjusted by means of an electric motor and is controlled by the remote control

Adjustment example:

• 1 max
• 2
• 3
• 4 min

On the machine, the sole control is the red on/off button,

next to it is the antenna (left) and the operation indicator light (right)

The battery charging port

The machine's bonnet is equipped with hydraulic pistons to facilitate opening and to hold it up.

Electric motor driving the cutting deck adjustment.

Lubrication nozzle.

LED headlights in operation.

28v proprietary charger
