Blue Bird SG0813 - Professional Hammer Rough Cut Mower - Loncin G390F

Questions & Answers (3)
ID: K601426

EAN: 8025518358780

MPN: 883200

8,1/10
After-sales assistance & Spare parts
Blue Bird SG0813 - Professional Hammer Rough Cut Mower - Loncin G390F
+60 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement sprak plugReplacement sprak plug
Foam air filterFoam air filter
Body material
Enamelled steel
Recommended operating area
10000 s.q. m.
Cutting width
75 cm
Cutting adjustment
1 hand crank
Type
With flails
Self-propelling
Traction / self-propelled
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G390F
Cubic capacity
389 cm³
Nominal power
11 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Motor/blade drive
Intermediate belt drive
Forward motion
Pneumatic wheels
Product Features
Model:
SG0813
Body material:
Enamelled steel
Forward motion:
Pneumatic wheels
Type:
With flails
Conversion with other accessories:
no
Self-propelling:
Traction / self-propelled
Cut with rear discharge:
Standard equipment
Recommended operating area:
10000 s.q. m.
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G390F
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
Single-cylinder
Nominal power:
11 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6.5 L
Oil tank capacity:
1.1 L
Outer oil filter:
No
Motor/blade drive:
Intermediate belt drive
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Steel
Cutting width:
75 cm
Blade type:
Hammer flails
N° of chopper blades:
40
Blade engagement:
Lever on the handle
Safety blade brake:
Yes
Cutting adjustment :
1 hand crank
Max. cutting height:
80 mm
Min. cutting height:
20 mm
No. of cutting positions:
Screw adjustment
Cutting width:
75 cm
Adjustable cutting height:
Yes - centralised
Equipment
Line head accessoty:
Assisted steering:
No
Rear wheels size:
13 x 500 - 6
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes

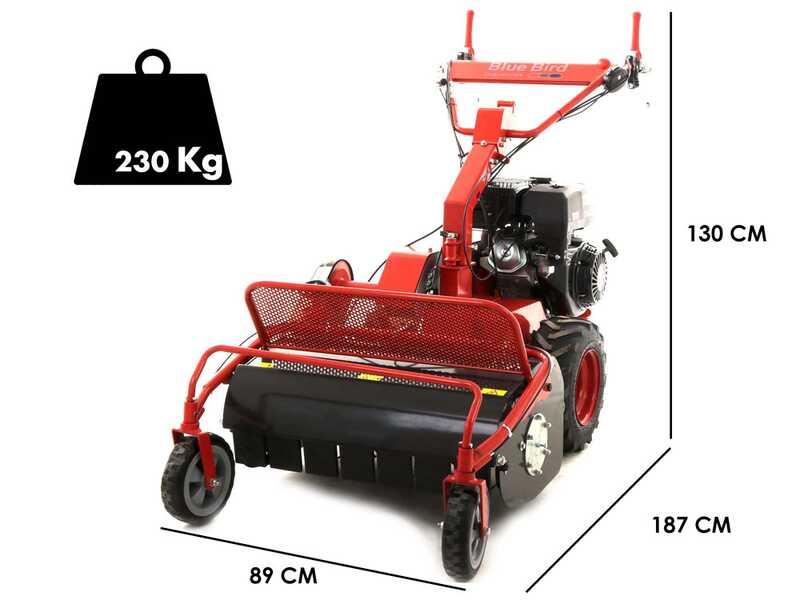

Dimensions and logistics
Product dimensions in cm (L x W x H):
187x89x130 cm
Net weight:
230 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
173.6x97x88
Weight including packaging:
245 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
18 items in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
Suggested price:
€ 3.270,48
€ 3.075,70
Vat included
You're viewing:
Customers also viewed:
Description

Blue Bird SG0813 Rough Cut Mower

The Blue Bird SG0813 rough cut mower is a smaller and more compact model compared to competitor products.

Thanks to its innovative design it is easier to operate and to be used on sloping grounds.

Equipped with a powerful Loncin 11HP engine, which gives the machine the right amount of power to work optimally.

The mower is self-propelled. Also, both the handle and the working height are adjustable, to satisfy even the most demanding users.

Besides grass, it can also cut brushwood and brambles (up to 2.5 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not too steep).

Most of the time, this product is used to cut weeds in orchards, vineyards, olive groves (especially for grassing process), or by nurserymen, green operators and public authorities, who use it to clean uncultivated areas.

To make a comparison, we can affirm that this machine offers, without effort, an hourly yield equal to an average of 10 times a normal brush cutter, leaving a much cleaner and smoother result, as well as more finely chopped grass.

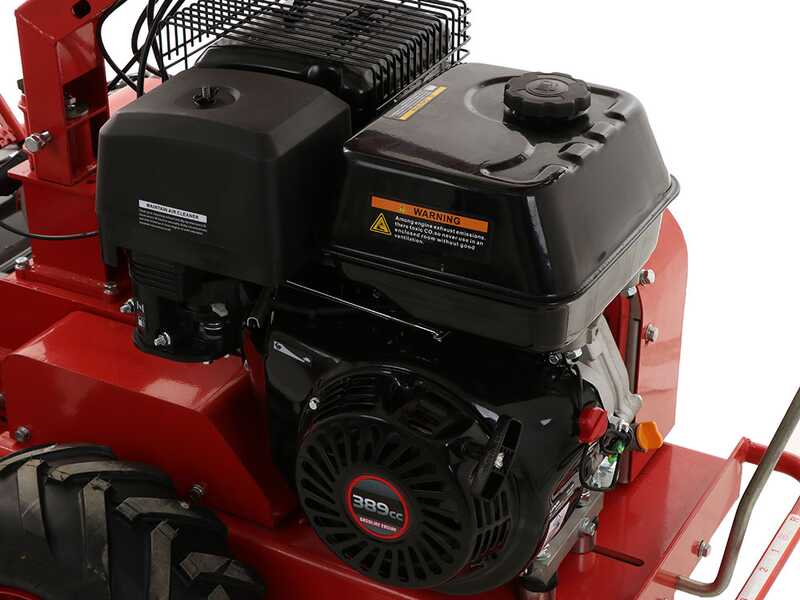

389 cc Loncin Engine

The machine is equipped with a powerful 11Hp Loncin engine

Features:

Engine type: 4-Stroke
Cylinder type: Aluminium
Engine cooling: air-cooled
Displacement: 389cm³
Power supply: Petrol
Power: 11 Hp
Recoil start system
Tank capacity: 6.5L

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

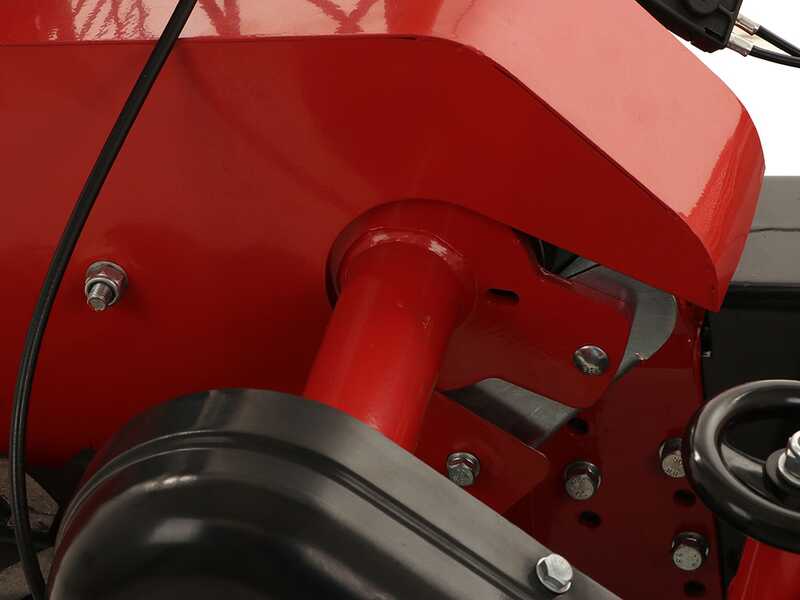

Gearbox and Transmission

4-Speed oil-bath gearbox: 3 forward gears with reverse gear.

The gearbox is very robust and reliable.

Belt drive final transmission towards the rotor protected by a sturdy casing.

Focus on the dashboard with gear selector.

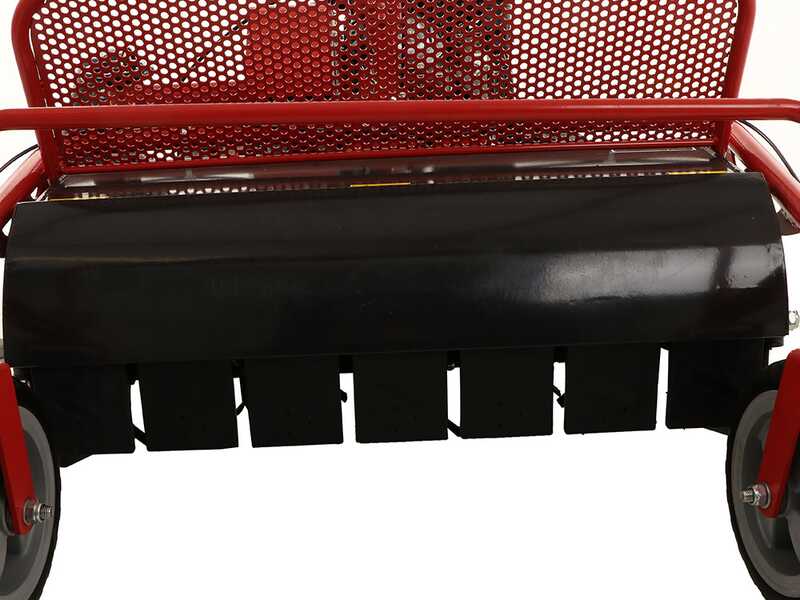

Cutting Deck

Rough cut mower made of steel sheet.

Sturdy rotor made of tempered steel, with 40 Y-shaped blades. They give this machine unparalleled effectiveness for any type of work (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 75 cm

Focus on the blades and their supports

Cutting height adjustment through handwheel

Focus on the sturdy front stone guards, mounted on a 79 cm swinging bar.

The mower deck is also equipped with an additional protection grid for the user mounted on the top of it. This grid ensures maximum safety of use.

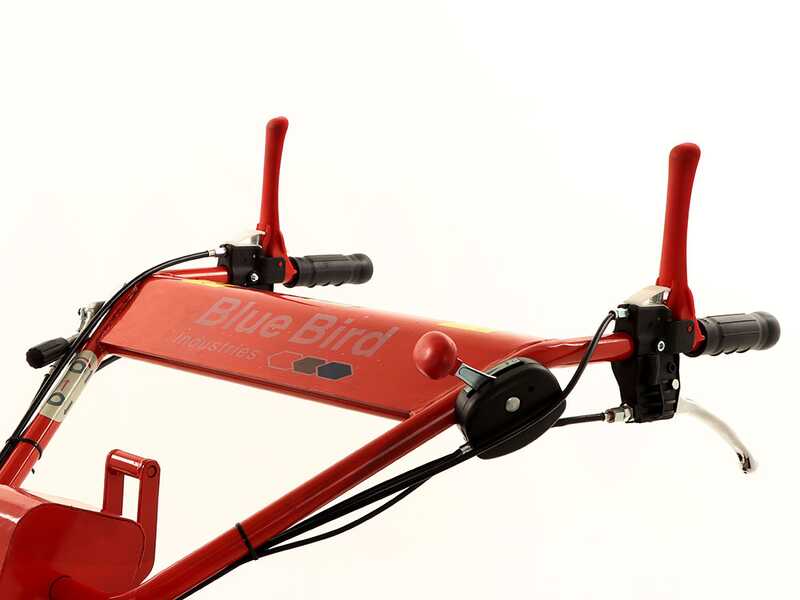

Controls and Settings

Left lever: activates and deactivates the operation, whatever the speed selected on the automatic transmission (forward or reverse). By releasing this lever, the machine stops instantly, for safety reasons.

Right lever: activates and deactivates the blade rotor (i.e. the grinding function) and is connected to the safety disc brake which quickly blocks the rotor when released.

Gear selector

Throttle lever

Lever to lock the piston of the pivoting wheels.

Cutting height adjustment: rotate the lever to raise or lower the cutting deck.

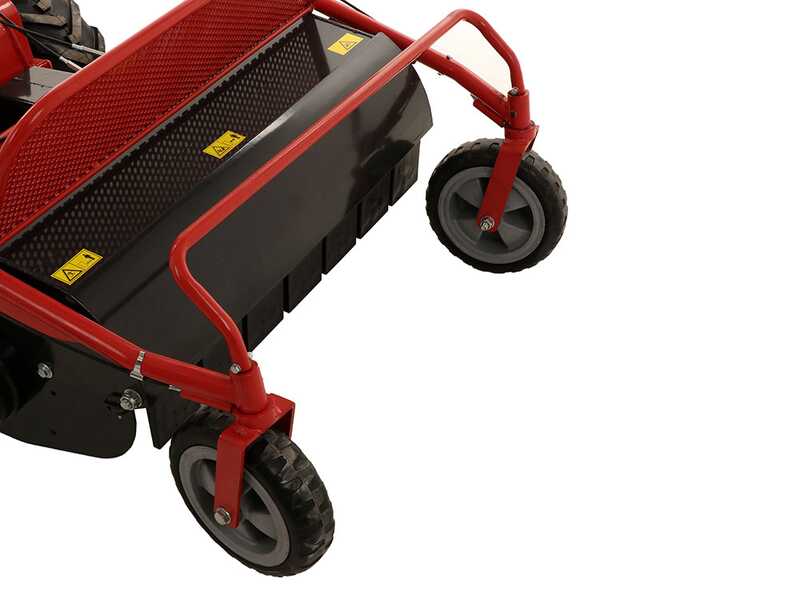

Further Features

Front tilting steel casing. It automatically lifts if the machine is faced with large amounts of particularly tall and thick grass, so the blades can easily reach and cut the grass.

Tilting front wheels.

TRACTOR pneumatic wheels for large areas: 13/500 6

Stone guard protecting the mower deck

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

Free Items Included

The petrol rough cut mower is shipped in its original packaging on a pallet

The packaging includes detailed use and maintenance instructions, as well as general rules for the proper functioning of the product.
