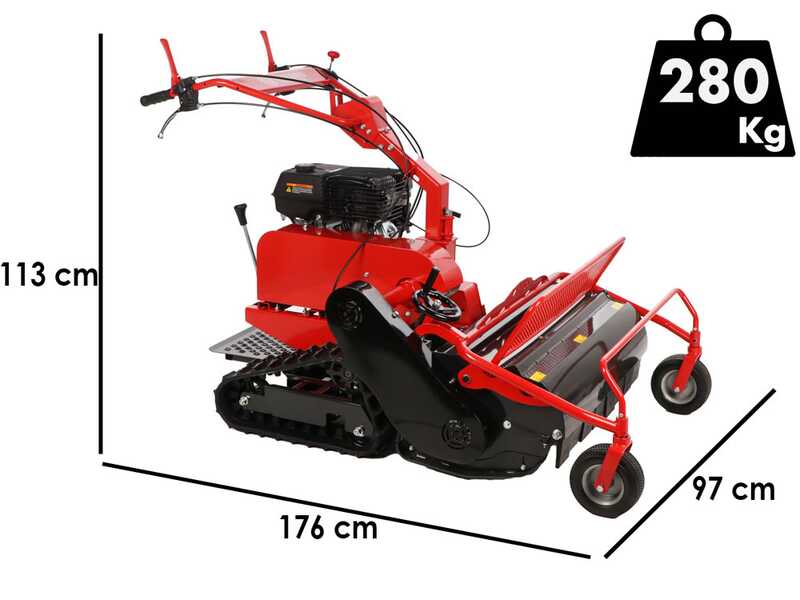

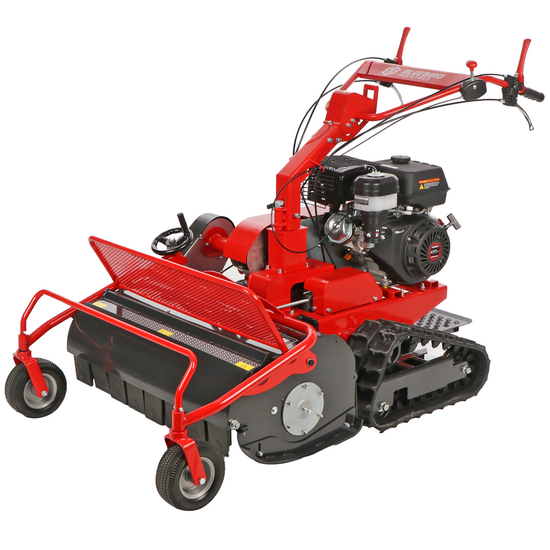

Blue Bird FM860 - Professional Hammer Rough Cut Mower - Loncin G420F

The Blue Bird FM 860 petrol-driven flail mower is designed to meet the needs of both professionals and experienced hobbyists in the gardening and farming sector. Equipped with a 420 cc 4-stroke Loncin engine, this flail mower guarantees high and reliable performance even in the most difficult conditions.

The 86 cm cutting width and 48 knives ensure an even and precise cut over large areas. The adjustable cutting height from 20 to 150 mm allows easy adaptation to different lawn maintenance requirements, making this flail mower versatile and suitable for various types of soils and vegetation.

The 3 forward and 1 reverse mechanical drive allows precise control and excellent manoeuvrability, while the turning radius of less than 1.2 metres facilitates operations in confined and challenging spaces. With a working efficiency of 2500 m² per hour, the Blue Bird FM 860 is ideal for large green areas and farmland.

The 285 kg weight adds to the stability and robustness of the flail mower, allowing it to tackle even the most difficult soils without any problems. This model stands out for its solid and durable design, ensuring a long service life and reducing the need for frequent maintenance.

Distinctive features of the Blue Bird FM 860:

• 4-stroke Loncin engine, 420 cc: 15 HP power for high performance.
• 86 cm cutting width: Wide coverage for efficient work.
• 48 knives: Smooth and precise cut.
• Adjustable cutting height (20-150 mm): Adaptable to different needs.
• 3 forward and 1 reverse gear drive: Precise control and manoeuvrability.
• 2500 m² per hour efficiency: Ideal for large areas.
• Steering radius < 1.2 metres: User-friendly in restricted spaces.
• 285 kg weight: Stability and sturdiness on demanding soils.

Features:

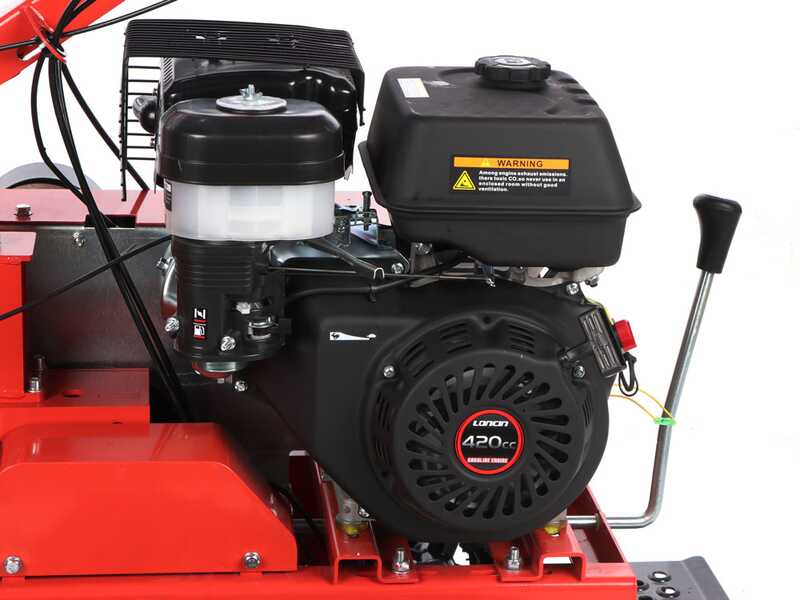

• Engine brand and model: Loncin G 420 F
• Single-cylinder engine type: 4-stroke - OHV
• Cylinder type: Aluminium
• Displacement: 420 cm³
• Power: 15 Hp

Air filter detail

Spark plug detail

Detail of air adjustment lever and tank

Nominal Power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition officially used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 11.3 HP
It refers to the actual power output at the drive shaft. This is the figure listed as official in the engine manufacturer's instruction manual or technical data.

* This is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the engine applied

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before start-up.

WARNING: using it at less than maximum revs, in addition to not efficiently shredding branches and failing to chop larger diameters, can lead to a whole series of anomalies
- lowering of revolutions or shutting down of the engine during use;
- rapid deterioration of the drive belts between the engine and rotor;
- damage to the centrifugal clutch of which, if the engine is not at maximum revs, does not expand completely, causing it to wear out until it burns and needs to be replaced;

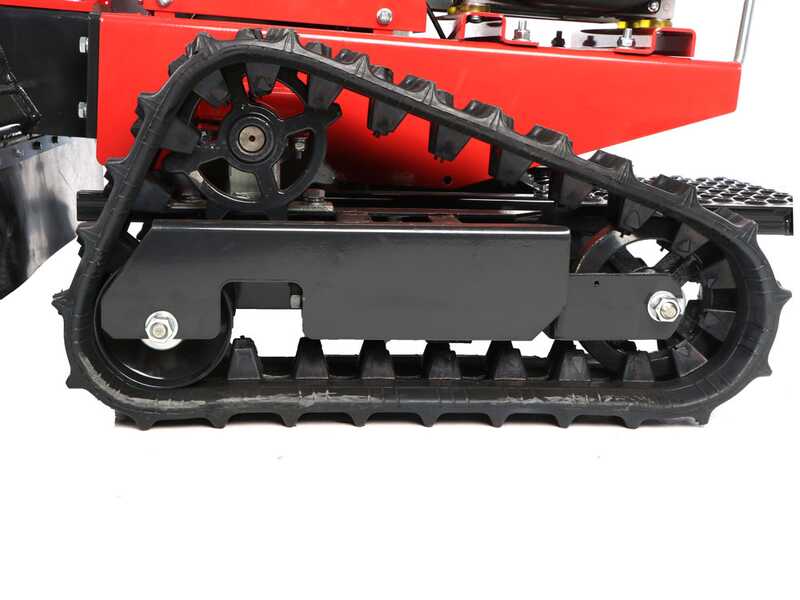

Track unit: sturdy and large. Better than the average flail mower of the same size on the market. The perfect balance ensures the distribution of loads and a perfect grip on the ground.

Tracks: top-quality tracks are used. Thanks to their tread width and profile, they guarantee perfect grip and stability on all types of soil. Made of special reinforced rubber with high grip, they are able to cope with all kinds of surfaces.

TRACK DRIVE

With separate releases and integrated brake

4-speed oil-bath gearbox: 3 forward gears with 1 reverse.

The gearbox is very sturdy and reliable.

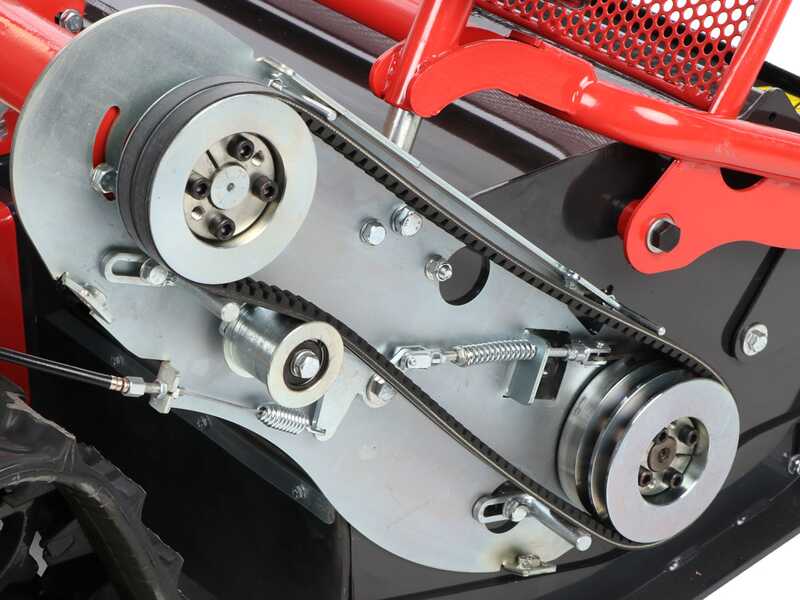

Drive belt.

End transmission to the flail mower rotor via drive belt protected by a robust housing.

Gearbox detail.

Flail mower deck made of sheet steel.

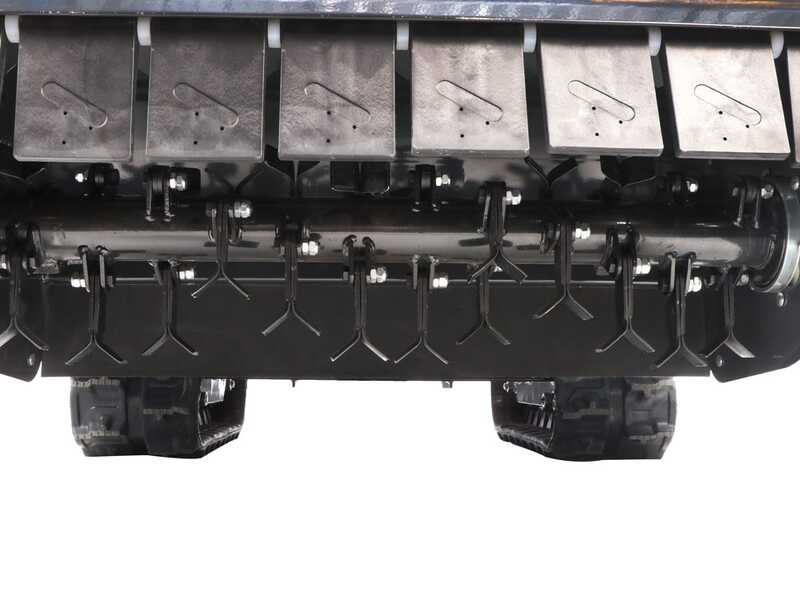

Sturdy rotor made of hardened steel, with 48 Y-shaped knives. They give this machine unrivalled effectiveness on all types of tasks (grass but also brushwood, thorn bushes, pruning, up to 2.5 cm in diameter)

Working width: 86 cm; 48 knives.

Detail of the knives and their supports.

Cutting height adjustment by hand-wheel, 20–150 mm.

Adjustable guard.

The cutting deck is also equipped with an additional protection grid for the operator fitted to the top of the deck. This safety guard ensures maximum safety in use.

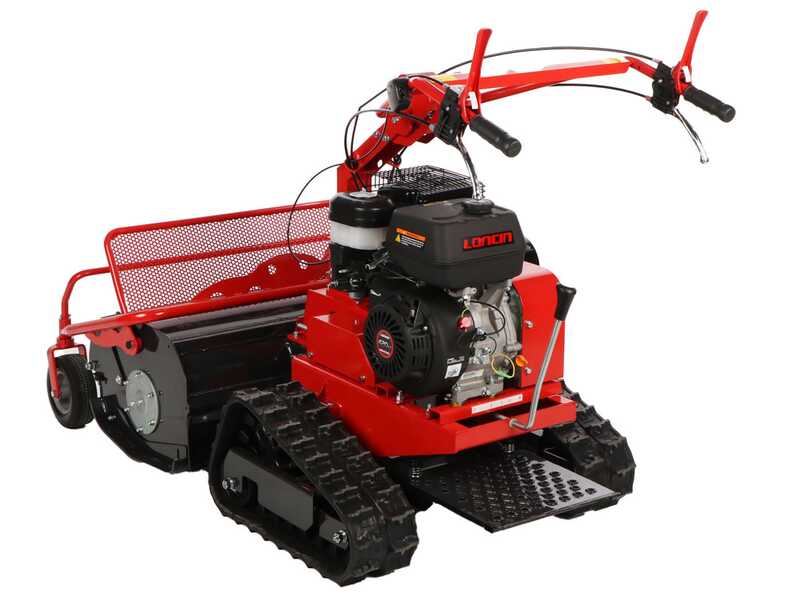

Left lever: this is the feed clutch lever, it activates and deactivates the feed, whatever speed is selected on the gearbox (both forward and reverse). Releasing this lever causes the machine to stop instantly, for safety reasons.

Right lever: activates and deactivates the knife rotor (i.e. the grinding function) and is connected to the disc safety brake, which quickly stops the rotation of the rotor in case of release.

Accelerator knob.

Handlebar height adjustment via lever.

Lateral handlebar adjustment.

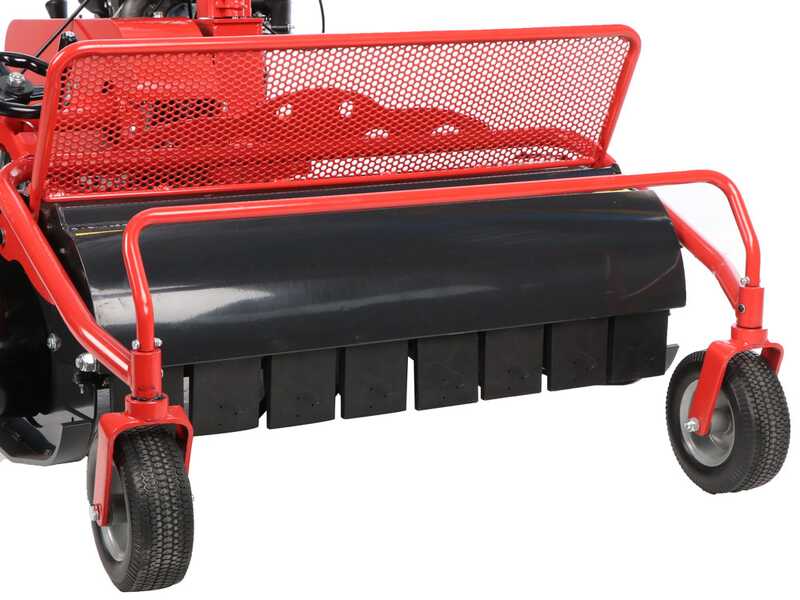

Tilting steel front fairing. It tends to rise automatically should the machine have to deal with large masses of particularly tall and thick grass, to facilitate its entry under the cutter deck for efficient and instant shredding.

Swivelling front wheels.

Stone guard above the flail mower deck.

Operator platform, allowing the operator to manoeuvre the machine without having to walk behind it, so that large areas can be worked comfortably.
