Blue Bird FM 24-65 - Hybrid Radio-Controlled Mulching Robot

Add a question
ID: K610536

EAN: 8025518517675

MPN: 889420

8,1/10
After-sales assistance & Spare parts
Blue Bird FM 24-65 - Hybrid Radio-Controlled Mulching Robot
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Technical data
Recommended operating area
6500 s.q. m.
Cutting width
65 cm
Cutting adjustment
Centralised
Opening rear flap
Type
Free-swinging blades
Assisted steering
Yes
Motor type
4-stroke
Operating mode
Hybrid
Starting mode
Electric
Motor brand
Loncin
Motor Model
LC1P85FA
Cubic capacity
352 cm³
Nominal power
10 HP
Battery type
Lead-acid
Gear shifting system
Hydrostatic
Gears
3+3
Forward motion
Tracks
Digital control panel
Yes
Product Features
Model
FM 24-65
Forward motion
Tracks
Type
Free-swinging blades
Operating mode
Hybrid
Items included
Battery included
Cut with rear discharge
Standard equipment
Recommended operating area
6500 s.q. m.
Starting mode
Electric
Manufacturing country
China
Motor data
Motor brand
Loncin
Motor Model
LC1P85FA
Motor type
4-stroke
Battery type
Lead-acid
Cubic capacity
352 cm³
No. of cylinders
Single-cylinder
Nominal power
10 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Manufacturing country
China
Transmission data
Gear shifting system
Hydrostatic
Transmission type
Electric
Gearbox
Electric
No. of forward speeds
3
No. of reverse speeds
3
Gears
3+3
Forward speed
56.7 m/min
Operating mode
Control levers
Cutting data
Body material
Steel
Cutting width
65 cm
Blade type
Swivelling knives
Blade engagement
Push-button
Safety blade brake
Yes
Cutting adjustment
Centralised
Max. cutting height
120 mm
Min. cutting height
30 mm
No. of cutting positions
Millimetric
Cutting width
65 cm
Adjustable cutting height
Yes - centralised
Equipment
Digital control panel
Yes
Assisted steering
Yes
Recoil start system (with rope)
No
Opening rear flap
Free gifts/extra features
Engine oil bottle for free
2
Additional spark plug for free
Yes
Instructions manual
Yes
Dimensions and logistics

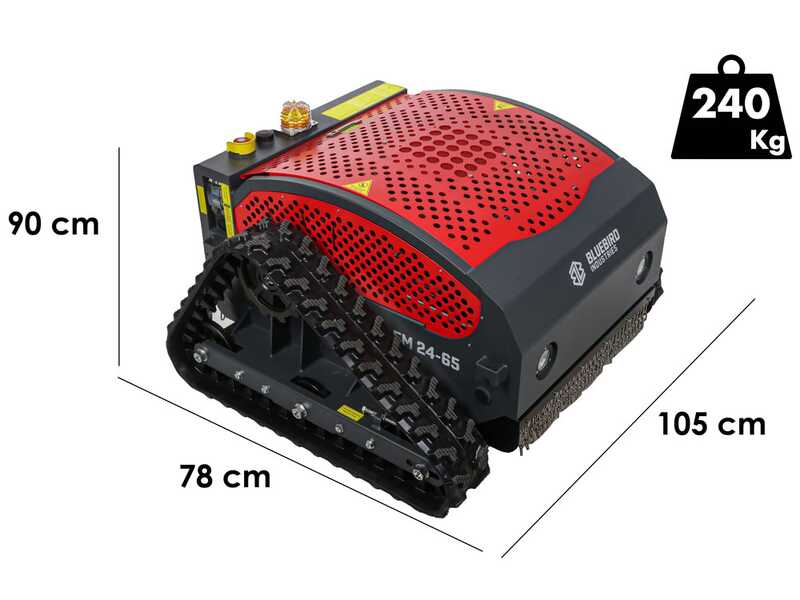

Product dimensions in cm (L x W x H)
105x78x90 cm
Net weight
240 Kg
Packaging
Original wooden box
Original packaging/s dimensions in cm (L x W x H)
112x104x76 cm
Weight including packaging
308 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Coming soon
Free Shipping
€ 4.850,00
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

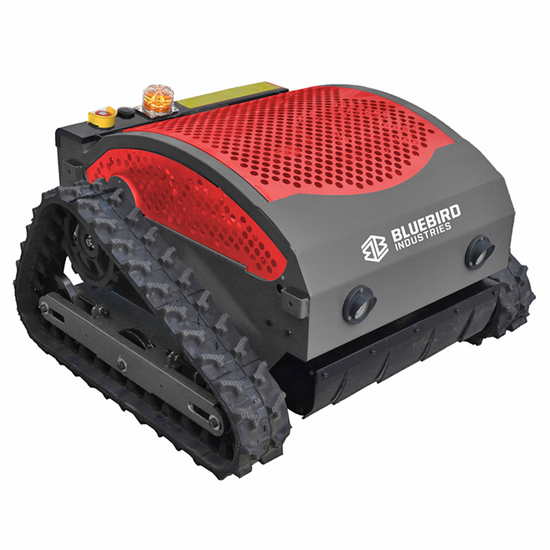

Blue Bird FM 24-65 Radio-Controlled Mulching Robot

The Blue Bird FM 24-65 radio-controlled mulcher is a model designed to tackle mowing operations on difficult and sloping terrain. Equipped with a track drive system and a hybrid motor, it combines power and manoeuvrability for work on tall grass, brush and undergrowth.

The machine is equipped with a 352 cc Loncin combustion engine and two 24V brushless electric motors with a total power of 1200W. This hybrid system allows for smooth and controlled forward movement, ideal for uneven surfaces and slopes up to 15%.

The cutting deck is fitted with a 65 cm disc with two floating blades, which adapt to the unevenness of the ground, ensuring a uniform cut. The cutting height adjustment can be controlled directly from the radio remote control, which operates on the 2.4G band and allows the machine to be controlled from up to 200 metres away.

The integrated LED lights allow operation even in low light conditions.

These features make the Blue Bird FM 24-65 radio-controlled mulching robot suitable for the maintenance of public green areas, agricultural land and wooded areas, offering an effective solution for mowing in demanding conditions.

Distinctive features:

  • Loncin 352 cc hybrid engine + 2 24V brushless motors: a combination of power and control to tackle difficult terrain;
  • 65 cm cutting disc with 2 floating blades: guarantees a uniform cut even on uneven surfaces;
  • Radio remote control with a range of up to 200 metres: allows remote control in complete safety;
  • High-grip tracks: ensure stability and traction on slopes up to 15%;
  • Integrated LED lights: allow use in poor visibility conditions.

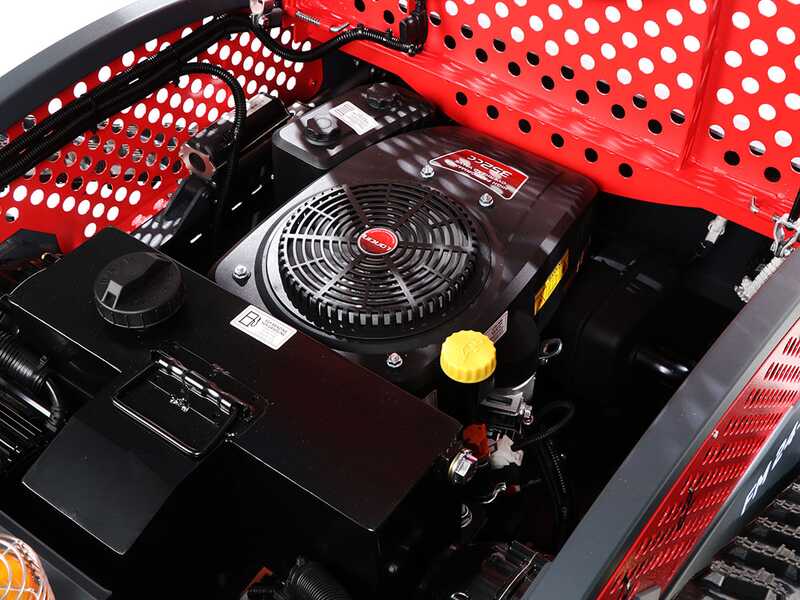

Loncin LC1P85FA engine and electric motors

This brush cutter features a hybrid power supply, combining the power of the Loncin LC1P85FA engine with the efficiency and torque generated by electric motors.

The Loncin engine is connected to the machine's blade and to an alternator, which recharges the 24V battery that powers the 1200w electric motors.


Features:

Engine type
Single cylinder 4-stroke
Cylinder type
Aluminium
Displacement
352 cm³
Fuel
Petrol
Fuel
OVH (overhead valves)

Nominal power: 10 HP


ATTENTION!

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before starting it.

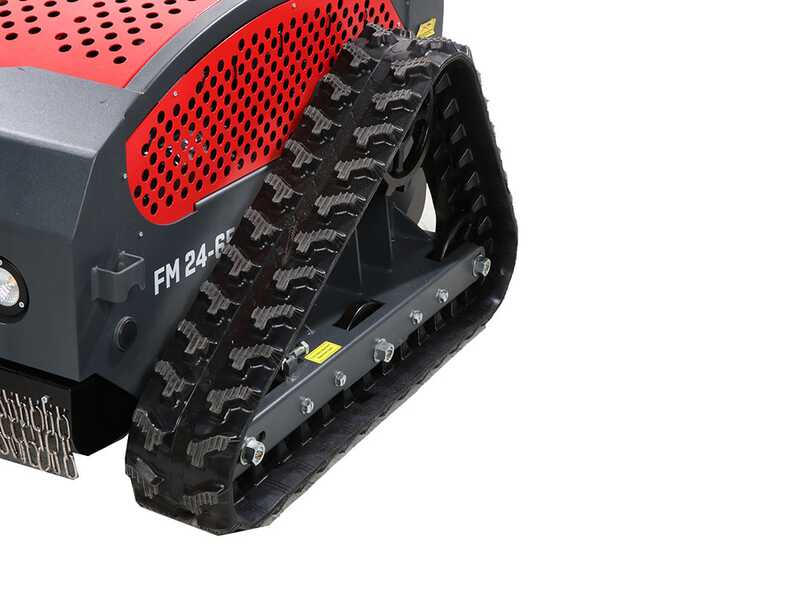

Tracks and tread pattern

Track chassis: sturdy and oversized. Superior to the average shredder on the market of the same size.


Tracks: high quality tracks are used. Thanks to their width and tread pattern, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with high grip, they can tackle all types of surfaces.

TRACK TRANSMISSION:

The direct connection between the electric motors and the tracks ensures efficient transmission of motion and power.

Track width: 16 cm

Support length: 92 cm

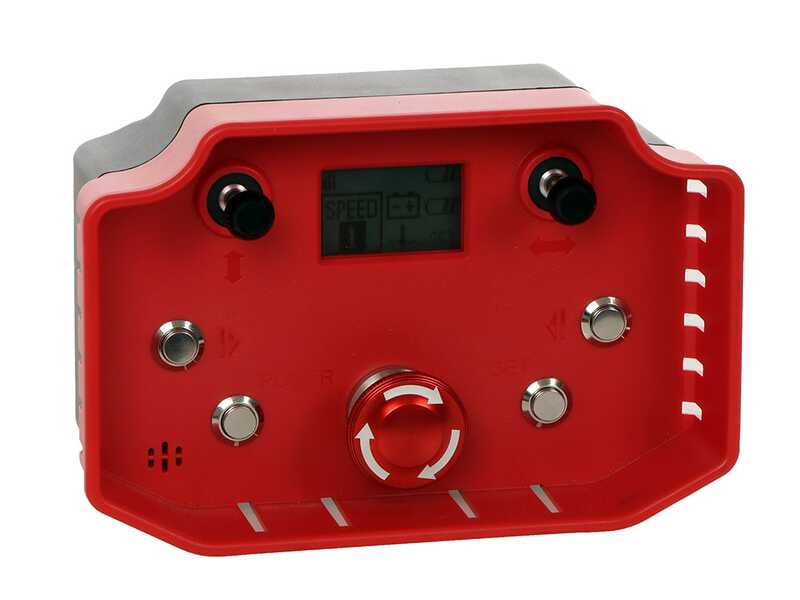

Radio control

The radio control fitted to this machine has a range of 200 metres, allowing cutting operations to be carried out in complete safety.

All machine functions can be controlled from the remote control:

Levers:

  • left: controls the forward and reverse movement of the mulcher
  • right: controls the mulcher's steering.

Buttons:

  • left
    • top: scroll through the menu displayed on the screen
    • bottom: turns on the remote control
  • right
    • top: scrolls through the menu displayed on the screen
    • bottom: select the menu item

Red button : emergency stop

It will then also be possible to:

  • turn the thermal engine on and off
  • increase or decrease the engine speed
  • activate cruise control
  • increase or decrease the cutting height
  • forward speed adjustment
  • turning the headlights on and off

All of this can be viewed on the central display, where you can also check the battery status and the temperature of the machine's control unit .

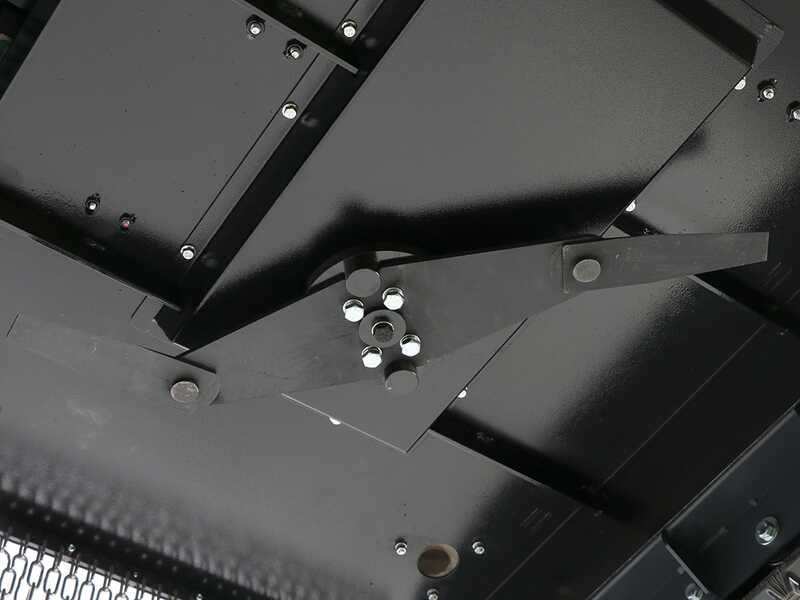

65 cm grass cutting deck

The grass cutting deck of this machine consists of a large rotating disc with two floating blades mounted on it.

It has a cutting diameter of 65 cm, a generous size for working large areas of ground.

It can cut shrubs with a maximum diameter of 2cm.

The cutting deck height is adjusted by an electric motor and controlled by the remote control

example of adjustment:

Other details

At the top of the machine there is a red button, which is used as an emergency stop, the machine antenna and the flashing siren, which indicates the connection status with the remote control.

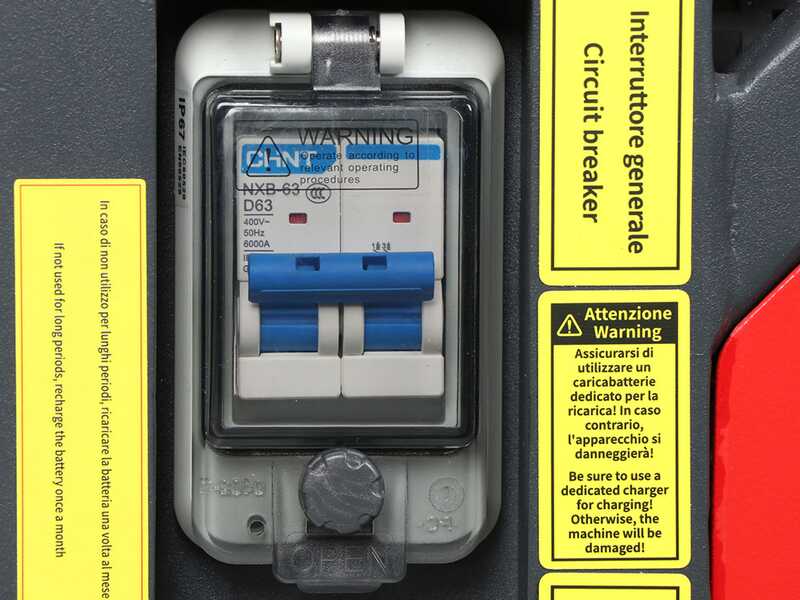

On the side, there is the connection for the electric motor charger and the main switch.

The bonnet can be easily opened using this handle without the need for tools, and remains raised thanks to two hydraulic pistons.

LED headlights in operation.

Proprietary 24 V charger

Free items & Standard equipment

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessories set for petrol engine maintenance

WARNING: this set is not suitable for other product brands and models on the market. We do not supply sets other than those already posted on this website.

The maintenance kit includes:

  • Professional engine spark plug
  • Multifunction jointed spanner. Specific for lawn mowers - flail mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy disposal.
  • Funnel for changing engine oil

2° GIFT: protection kit

SAFETY KIT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

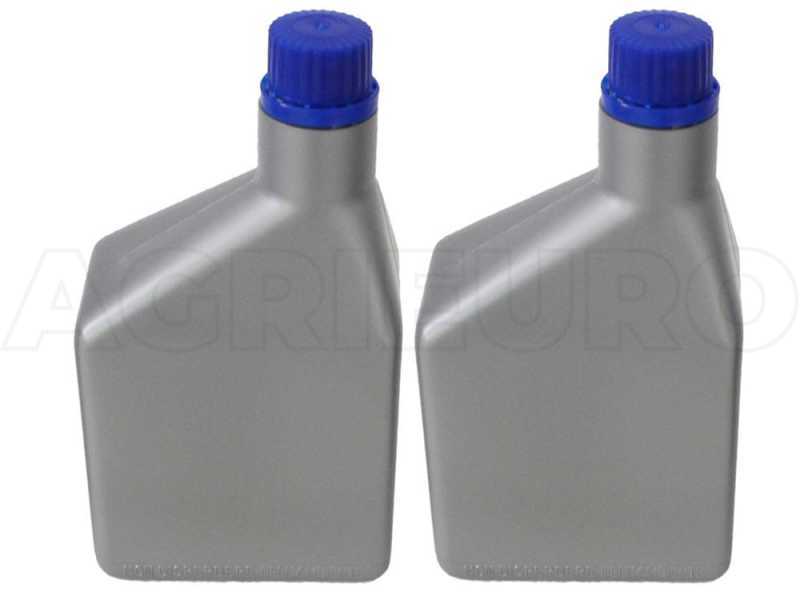

3° GIFT: engine oil

FOR FREE: 2x 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersing.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill, and it is ready for use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Free items included

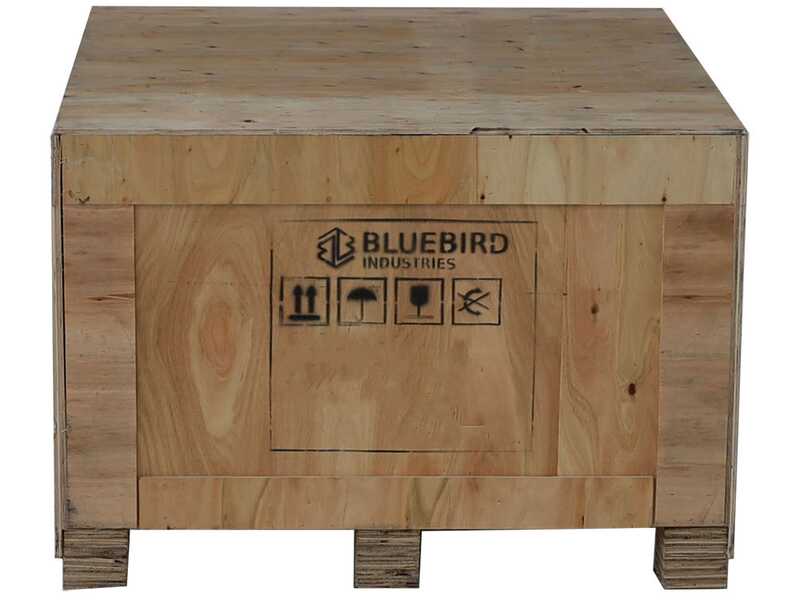

The machine is shipped in its original packaging, which contains a practical case containing:

  • Instruction manual
  • Battery charger for recharging the supplied battery.
  • Radio remote control
  • Spare belt
  • Spark plug wrench
  • USB-C charging cable for radio remote control


ATTENTION.
The engine is supplied without oil. Fill to the correct level before starting for the first time.
