BlackStone RPDH 240 - Tractor-mounted Flail Mower - Heavy Series - Hydraulic Displacement

Add a question
ID: 112675

EAN: 8053435096638

MPN: 112675

8,9/10
After-sales assistance & Spare parts
BlackStone RPDH 240 - Tractor-mounted Flail Mower - Heavy Series - Hydraulic Displacement
Tractor power
Over 80 HP
Sturdiness/Series
Heavy
Weight
730 Kg
Cutting width
240 cm
Sliding motion
Shift
Hydraulic
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
1.2 Kg
Cardan shaft
With safety bolt
Double spiral rotor
Product Features
Model:
RPDH 240
Mulcher type:
Standard rear mulcher
Tractor power:
Over 80 HP
Sturdiness/Series:
Heavy
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Sliding motion:
Double spiral rotor:
Operating mode:
Tractor-driven PTO
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
240 cm
Wood diameter:
Up to 40 mm
No. of blades:
24
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Blades bolt diameter:
16 mm
Cutting width:
240 cm
Equipment
Counter-blade:
Single row
Side drive belts:
5
Hydraulic Piston for moving:
Yes
Opening rear flap:
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Rear adjustable Hood:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
With safety bolt
Instructions manual:
Yes

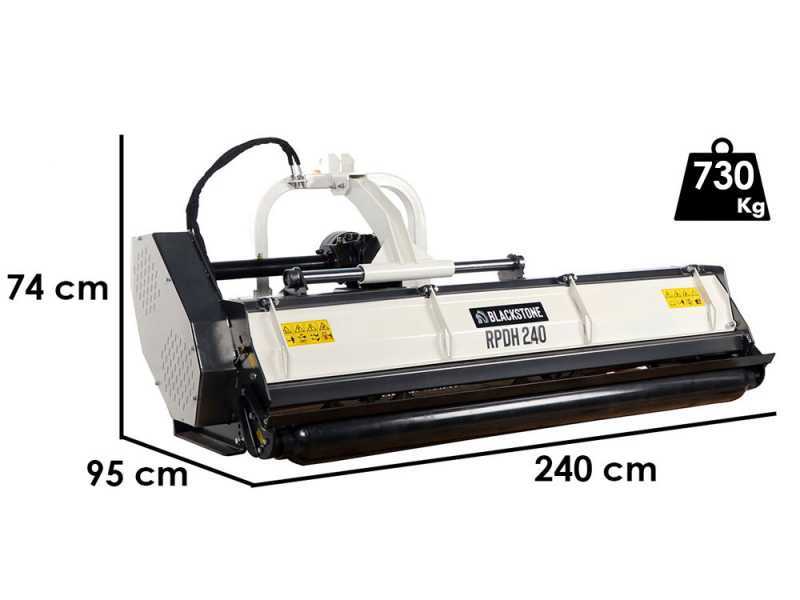

Dimensions and logistics
Product dimensions in cm (L x W x H):
240x95x74 cm
Net weight:
730 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
276x110x80 cm
Gross weight (packaging included) :
852 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Out of stock
Free Shipping
€ 3.610,05
Vat included
You're viewing:
Customers also viewed:
Description

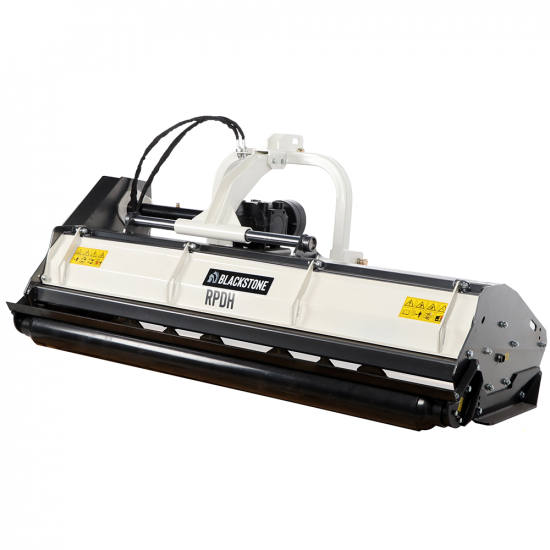

BlackStone RPDH 240 Tractor-Mounted Flail Mower

The BlackStone RPDH 240 tractor-mounted flail mower is a high-quality tool designed for green maintenance and plant residue management.

It is perfect for tractors with 80 to 120 HP.

It boasts a 240 cm working width, offering wide and effective coverage.

The sturdy design of the BlackStone RPDH 240 tractor-mounted flail mower guarantees durability and strength.

Weighing 730 kg, it offers stability in operation.

Equipped with 5 drive belts and 24 hammers, it guarantees a precise and even cut, ideal for soils of average complexity.

It includes a standard cardan shaft, simplifying installation and use with different tractor models.

BlackStone's RPDH 240 is ideal for managing lawns, fields and green spaces, significantly reducing the time required for said operations.

The hydraulic displacement system provides greater flexibility, easily adapting to different soil conditions and improving operating efficiency.

Distinctive Features and Advantages

  • 240 cm width: Wide and effective coverage.
  • 5 drive belts: Reliability and durability.
  • 24 hammers: Precise and even cut.
  • 730 kg weight: Operating stability.
  • Compatibility with 80-120 HP tractors: Wide versatility.
  • Standard cardan shaft: Easy installation.

Serviceable Bonnet and Side Belt Drive

The opening bonnet of the Blackstone RPDH 240 flail mower, located at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way for maintenance, inspection and cleaning purposes of any crop or vegetation residue.

Gearbox in oil bath. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox;
this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

5-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

Focus on the side belt protection guard.

Detail of side lubricator on transmission side, (detail without bonnet)

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it's equipped with the same PTO and with standard clockwise rotation (right-side).

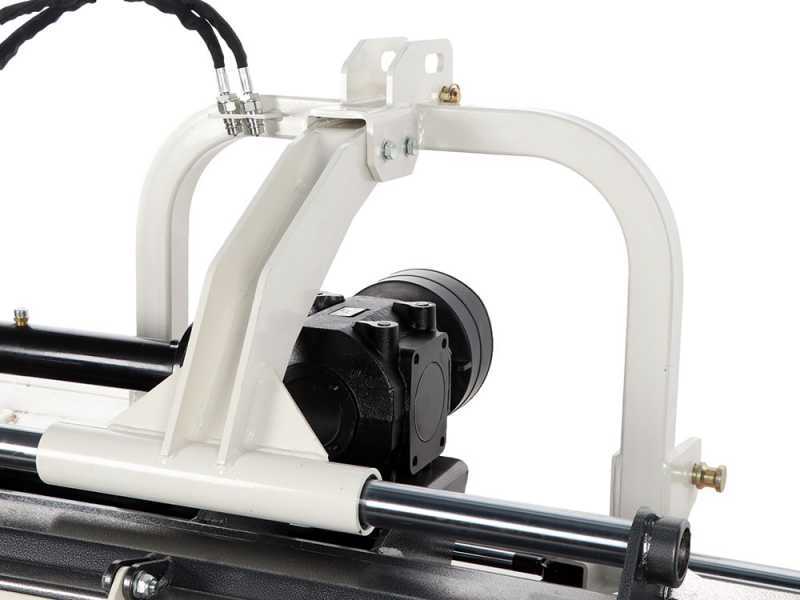

Hydraulic Side Shift and 3-point Hitch

The flail mower is equipped with hydraulic shift.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO (1 3/8" Z6)

Universal joints suitable for all tractors on the market.

Detail of the sturdy 1° category 3-point hitch.

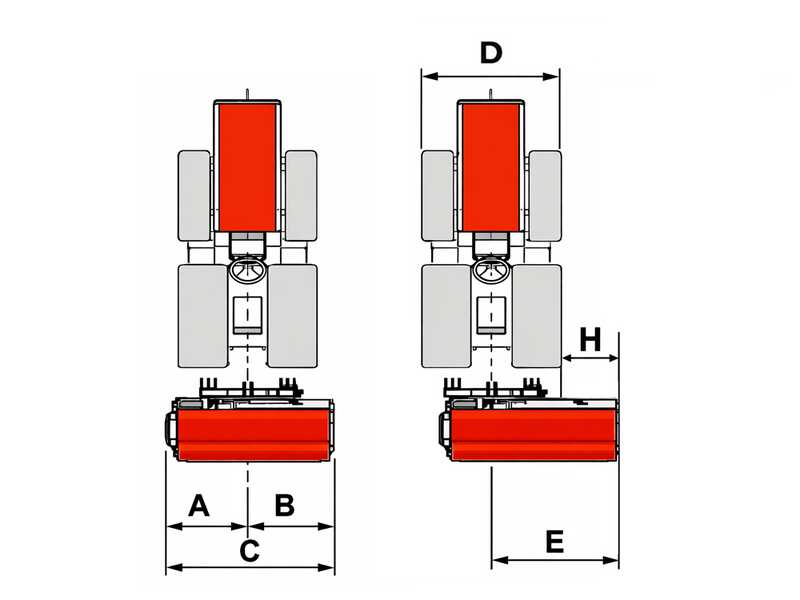

Hydraulic displacement, allowing the machine to move by 45 cm

Stabilisation Accessories - Rear Roller and Side Skids

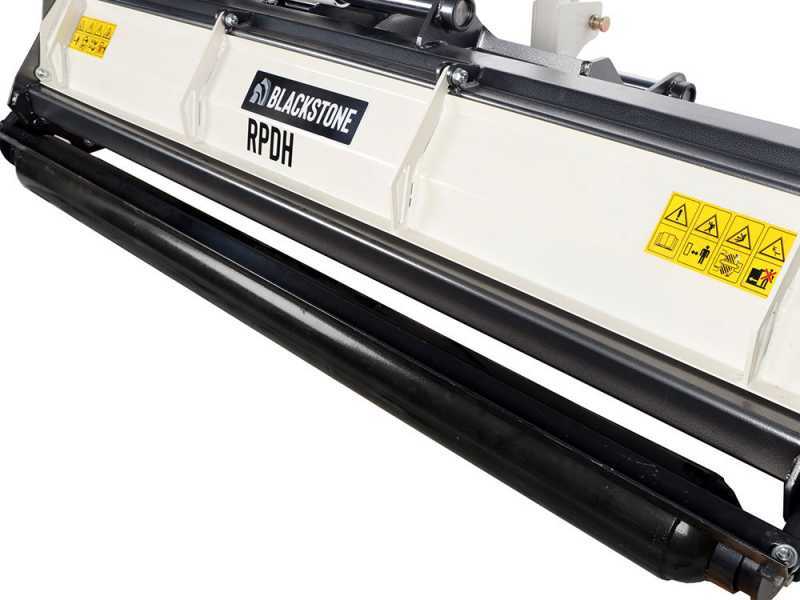

Rear support roller supplied as standard equipment.

Support roller protection rod.

Focus on one of the two standard adjustable side support skids.

5-Belt side drive.

Detail of the greasing hose for the drive belt pulley

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

Detail of the external anchorage of the rear roller, central cavity with lubricator.

Illustration of the double spiral rotor.

Detail of the screw tensioner for belt tensioning

Detail of the counter-blade row

Hammer-cutting Tools

No. of hammers fitted on standard equipment: 24

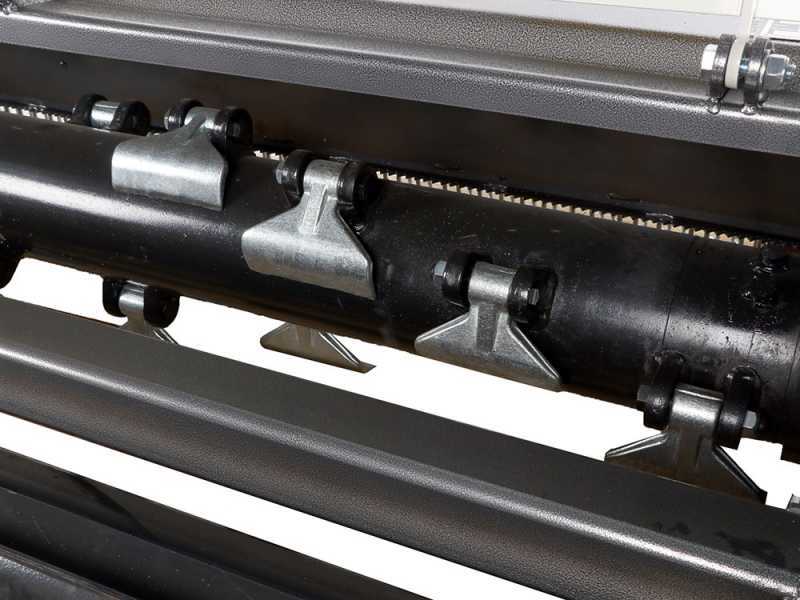

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width: 13.5 cm

Weight of the single hammer flail: 1.2 Kg

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf.
Thanks to the rotor speed and great number of hammers (hammer flails), reduces the wave effect of the turf and has an excellent shredding action.

Counter-knife detail

Free items & Standard equipment

Free Items Included & Standard Equipment

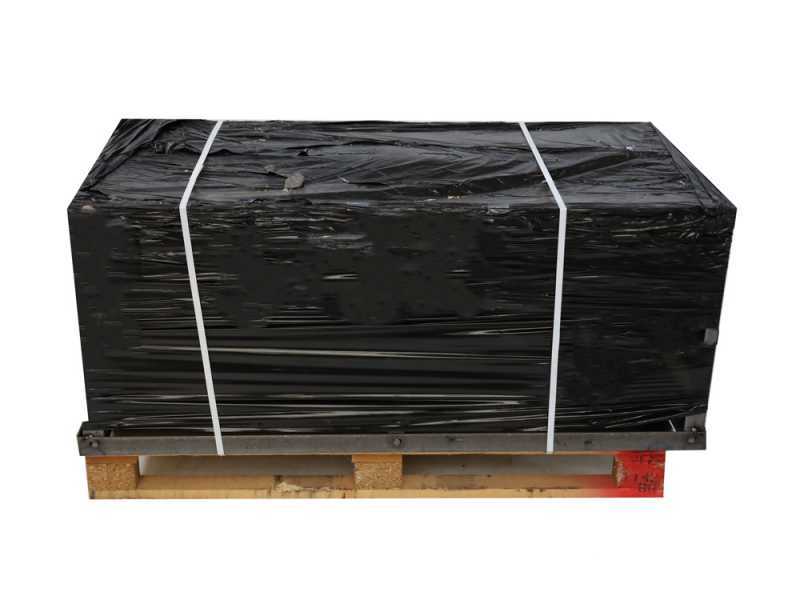

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
