BlackStone BP-CD 200 - Tractor-mounted flail mower - Heavy-series - Hydraulic shift

Add a question
ID: 110575

EAN: 8054141546998

MPN: BP-CD 200

BlackStone BP-CD 200 - Tractor-mounted flail mower - Heavy-series - Hydraulic shift
Tractor power
From 40 to 70 HP
Sturdiness/Series
Heavy
Weight
535 Kg
Cutting width
200 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
1.2 Kg
Cardan shaft
Yes
Double spiral rotor
Product Features
Model:
Blackstone BP-CD 200
Type:
Trincia con spostamento idraulico
Tractor power:
From 40 to 70 HP
Sturdiness/Series:
Heavy
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Double spiral rotor:
3-point hitch category:
Second
Required power:
45-70 HP
Cardan shaft rotation:
Standard
Manufacturing country:
China
Cutting data
Cutting width:
200 cm
No. of blades:
18
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Equipment
Counter-blade:
Single row
Hydraulic Piston for moving:
Yes
Opening rear flap:
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

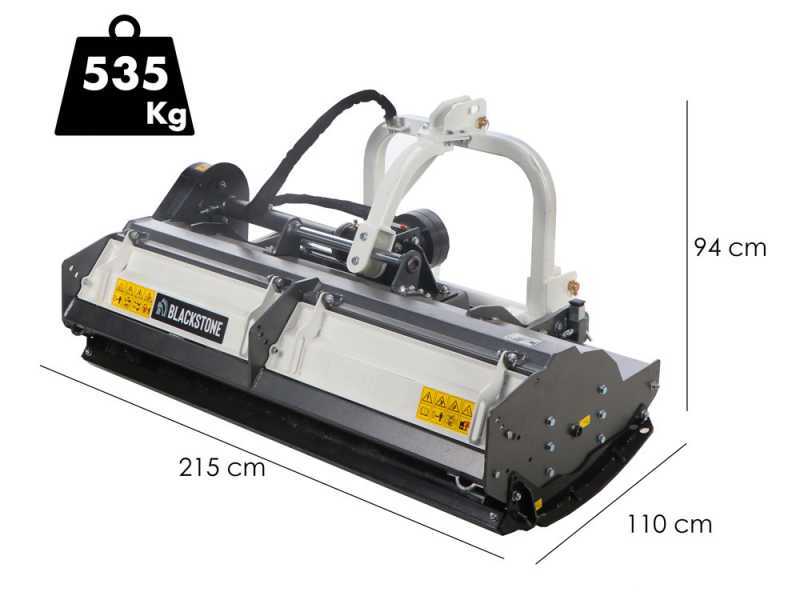

Product dimensions in cm (L x W x H):
215x110x94 cm
Net weight:
535 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
224x100x60 cm
Gross weight (packaging included) :
565 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 3.096,01
VAT Included
You're viewing:
Customers also viewed:
Description

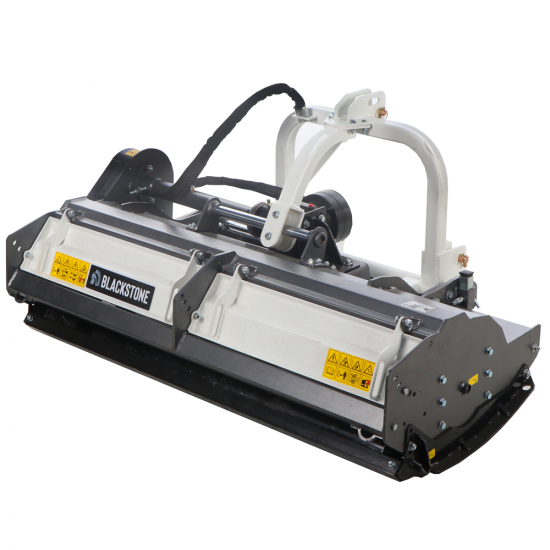

Blackstone BP-CD 200 Flail Mower

The Blackstone BP-CD 200 flail mower features a sturdy and solid frame but this fact does not prevent it from being incredibly efficient in all shredding operations, guaranteeing top-quality results when shredding grass, bushes and light prunings.

Thanks to its advanced piston, every operation will be precise and effortless.

This heavy-series flail mower is particularly suitable for heavy-duty hobby work. The hydraulic side-shift system, the four drive belts, the rear roller and the double opening bonnet are just some of the outstanding components that make it a highly complete machine.

The Blackstone BP-CD 200 is able to cope with steep and difficult terrain: it defies every obstacle with its impressive force, despite its considerable weight of 535 kg, thanks to the reliable hydraulic piston, which smoothly shifts the working position, guaranteeing exceptional manoeuvrability.

The well exposed and easily accessible greasing points make maintenance extremely easy and intuitive.

TECHNICAL DATA (brief overview):

Real working width: 200 cm
Effective overall width: 215 cm
Weight: 535 kg
Hydraulic side shift
Adjustable 2° category 3-point hitch with hydraulic piston
4-belt drive
Required power: 45-70 HP

Double opening bonnet, rotor and side bearings

This flail mower has been designed to support an inter-row disc (available separately on the site), which can be attached to the machine by means of a practical bracket (supplied).

The Blackstone BP-CD 200 flail mower's double bonnet, placed at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way so as to carry out maintenance, inspection and cleaning of any crop or vegetation residue.

Focus on one of the two support feet.

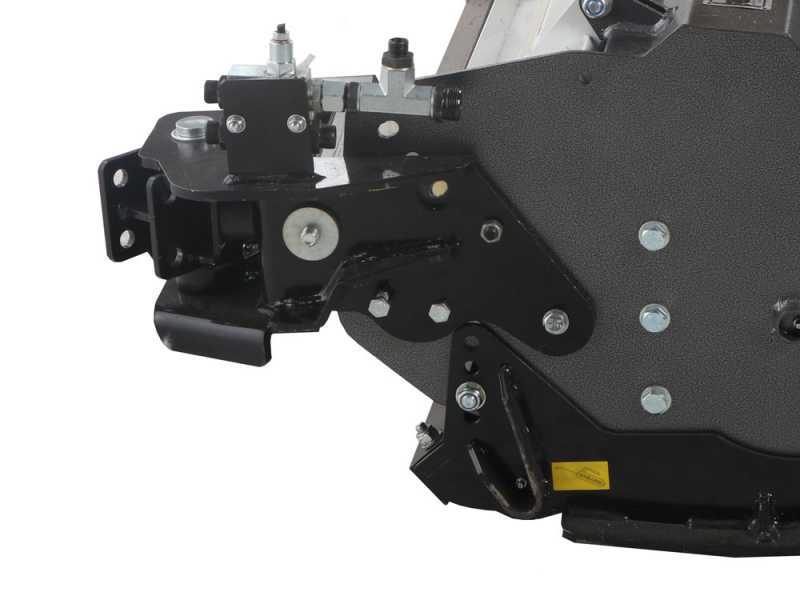

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

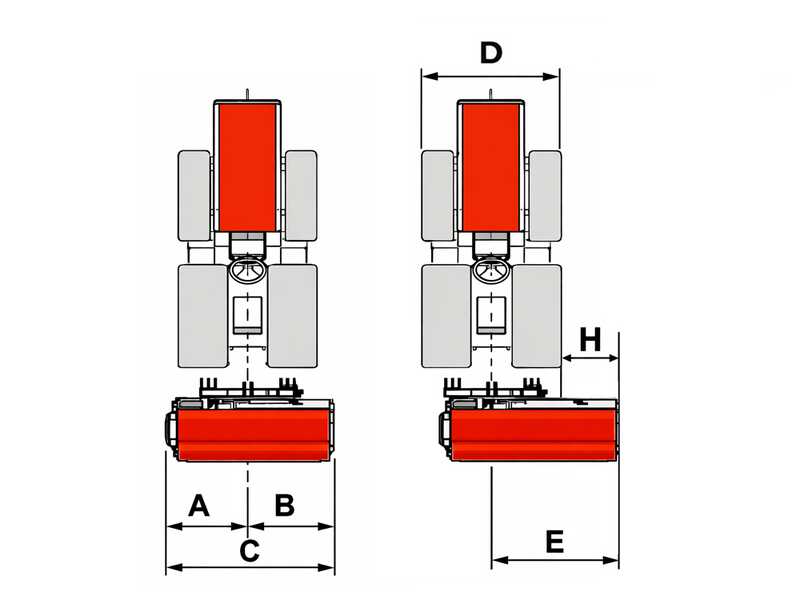

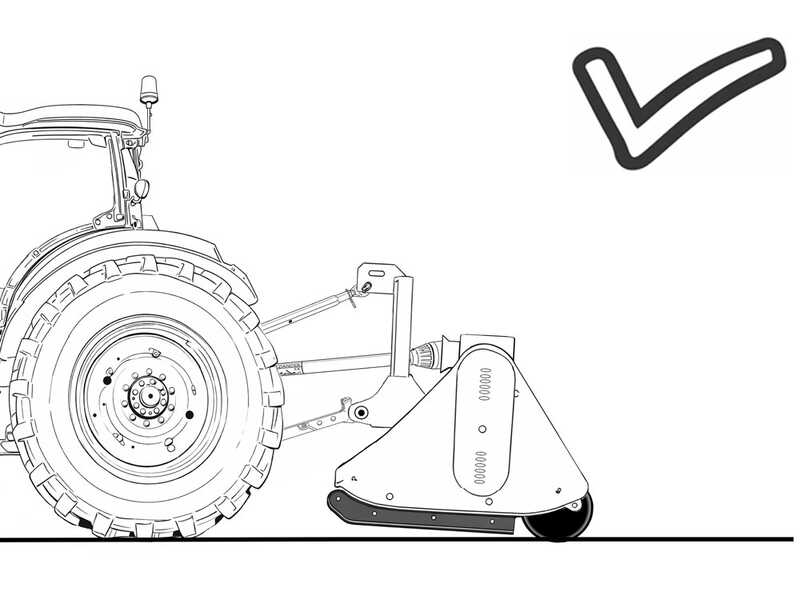

Hydraulic side shift and 3 point-hitch

The Blackstone BP-CD 200 flail mower is equipped with hydraulic shift.

The three-point hitch slides on two sturdy tubulars, one longer (126 cm) at the bottom, which runs along almost the entire body, the other shorter (45 cm) at a higher position.

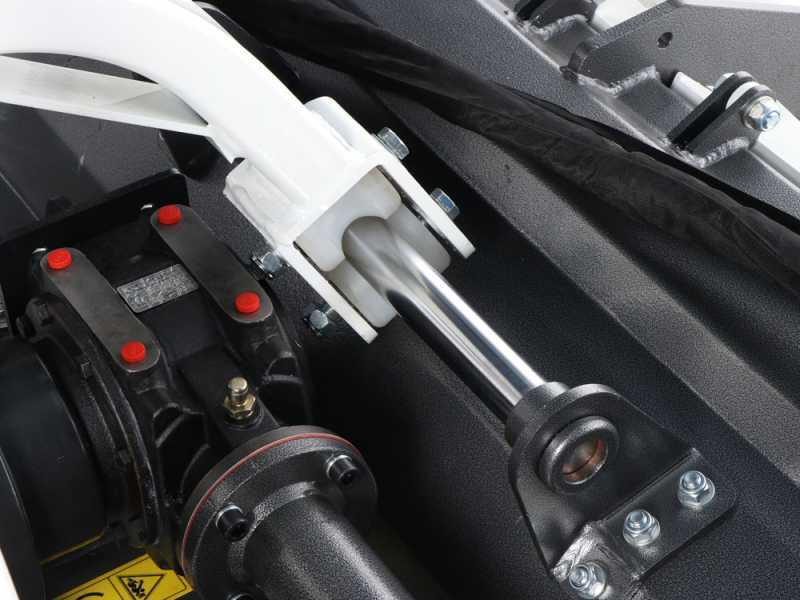

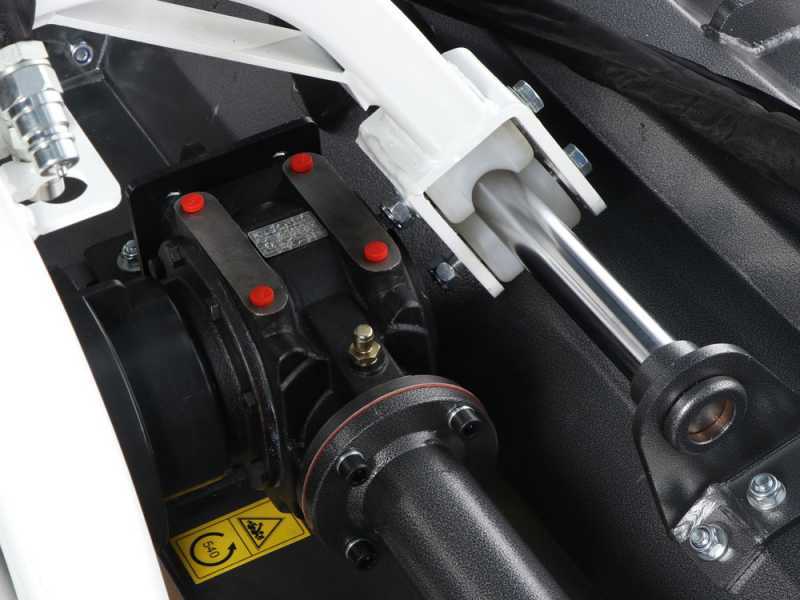

Focus on the piston that controls the hydraulic shift (28 cm) of this flail mower. This allows the position of the cutting unit to be adjusted and moved laterally compared to the machine frame. This feature allows the cutting unit to be aligned with the vegetation to be cut and to work efficiently even under the most demanding shredding conditions.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 2° category 3-point hitch, wheelbase size 67 cm.

Height of the two lowest pins from the ground: 30 cm

Height from the highest pin from the ground: 85 cm

Stabilisation accessories - rear roller and side skids

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller fixing bearing

Support roller protection rod.

Focus on the roller grease nipple.

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 4-belt side drive (most tractor-mounted flail mowers on the market are equipped with a 3-belt drive)

Focus on the protective casing.

Sturdy set of front protection slaps made of steel.

The front protection chains of this flail mower are safety systems employed to prevent debris or other objects projection from the front section of the machine during the working process, thus ensuring several safety and protection advantages.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 18.

Weight: 1200 g each.

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm

Blade width: 13.5 cm

Focus on the single row of underframe counter-hammers.

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

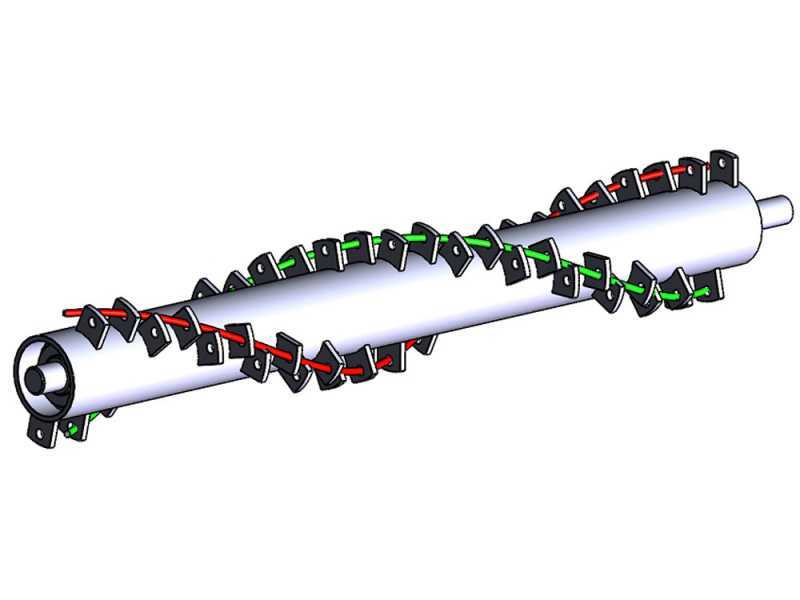

Figurative image of the double-spiral rotor.

Free items & Standard equipment

Free items included

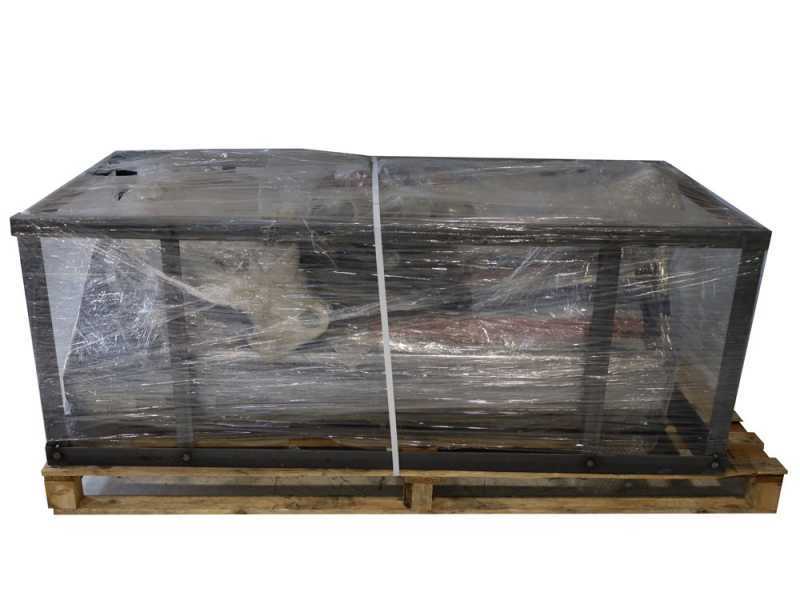

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
